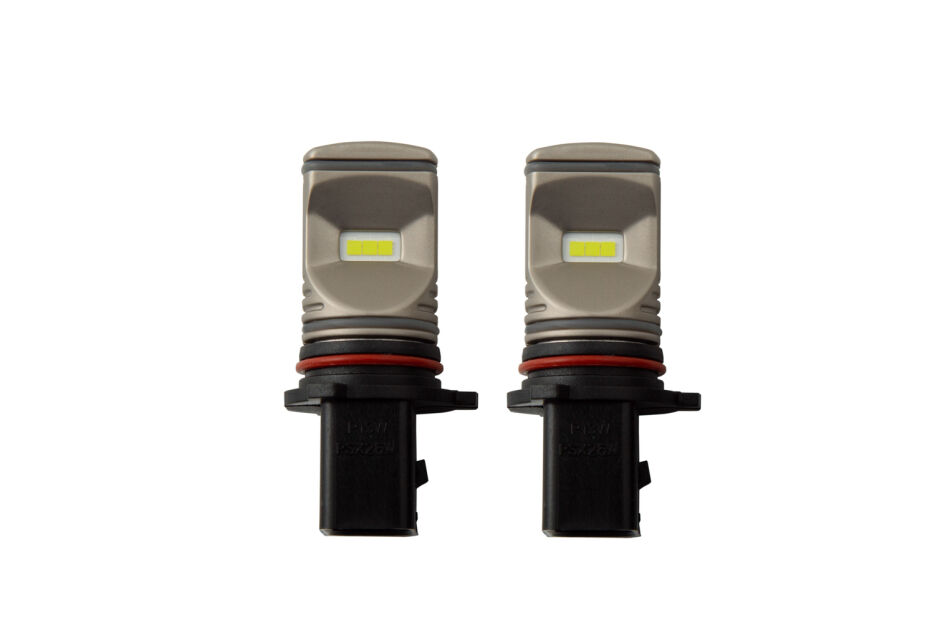

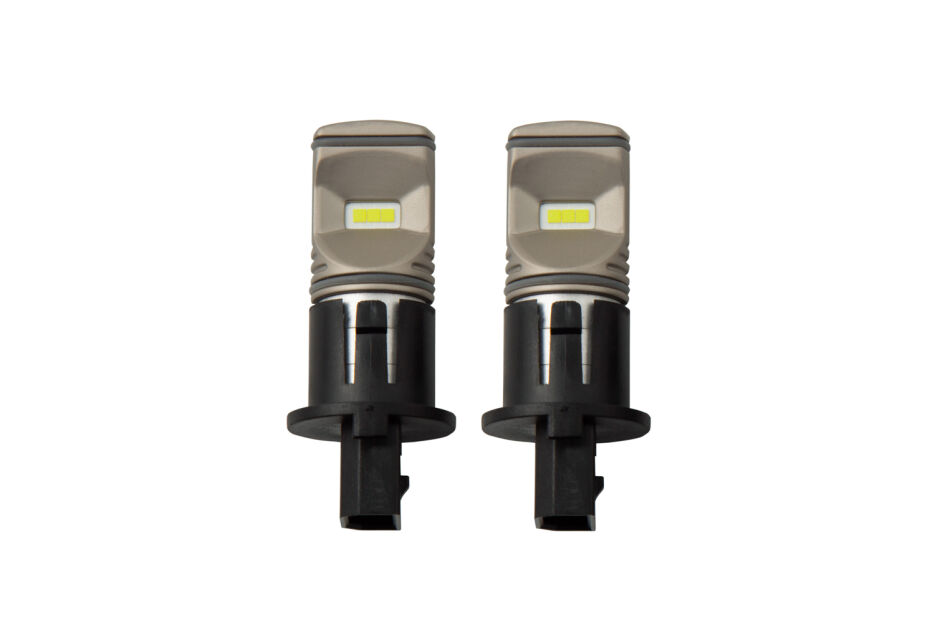

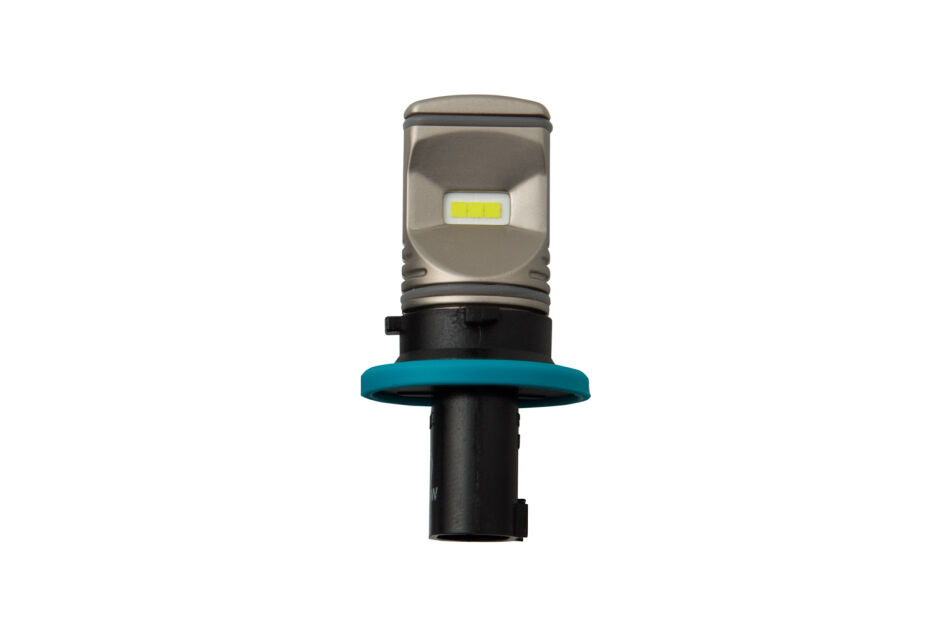

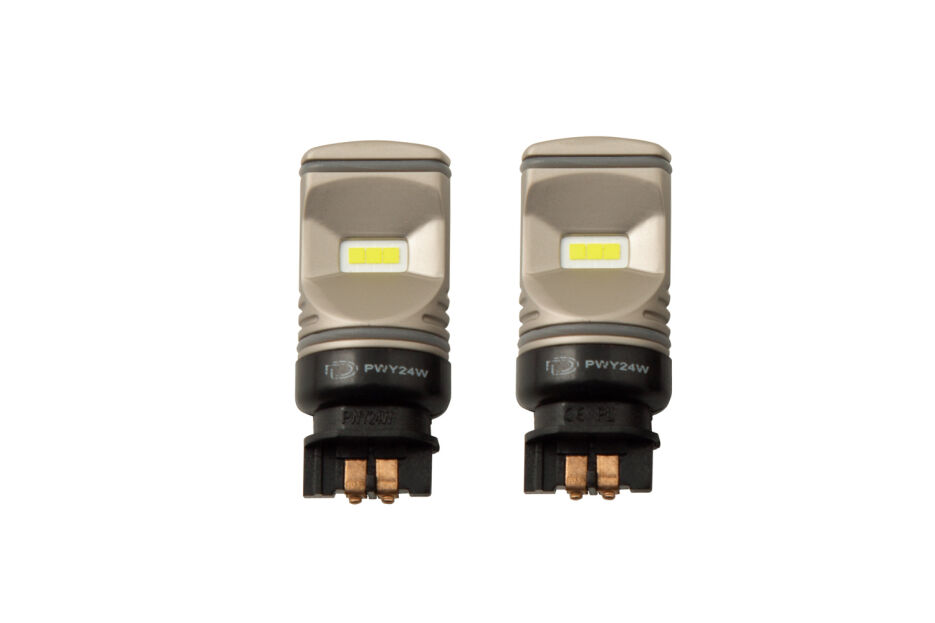

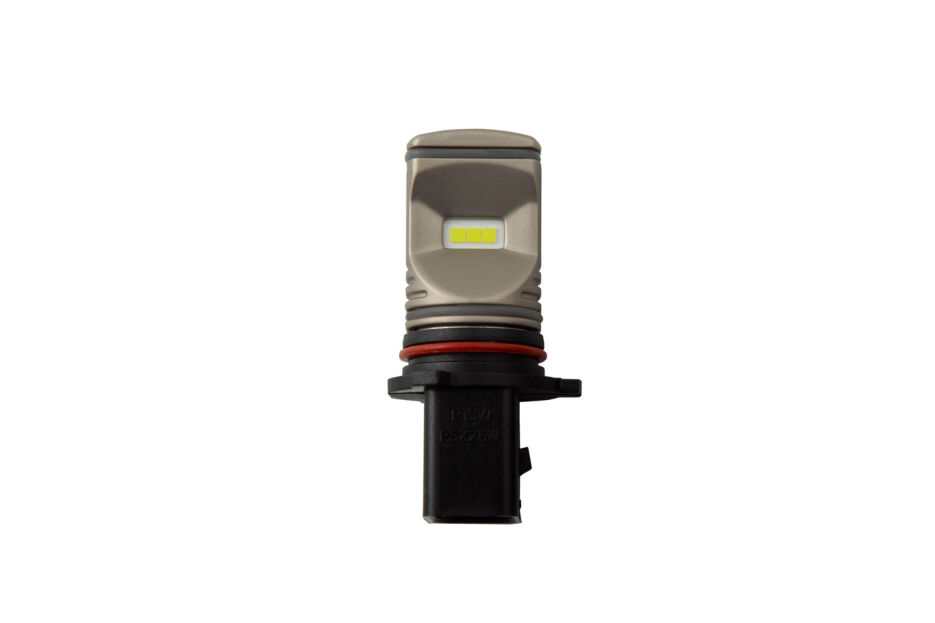

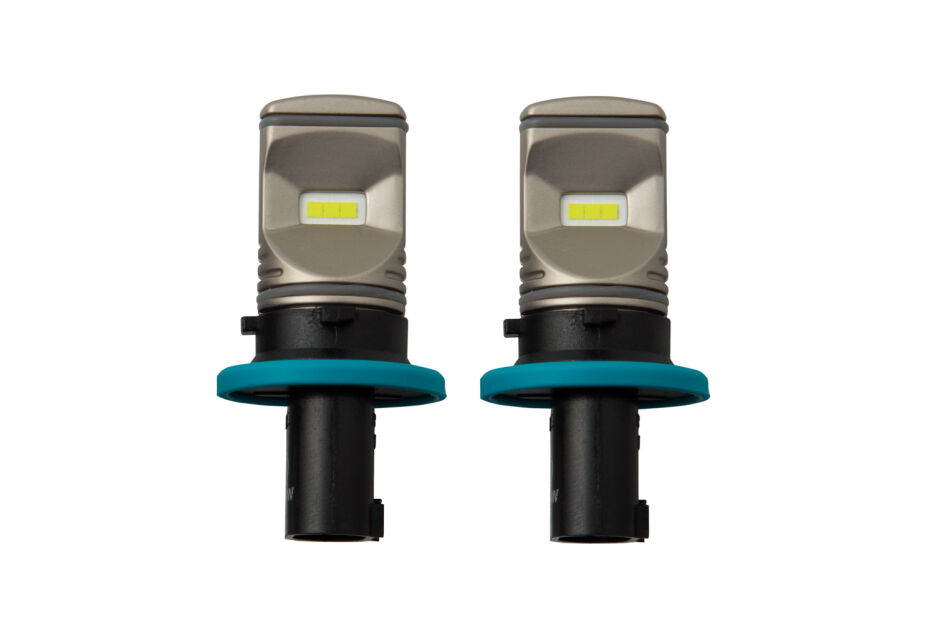

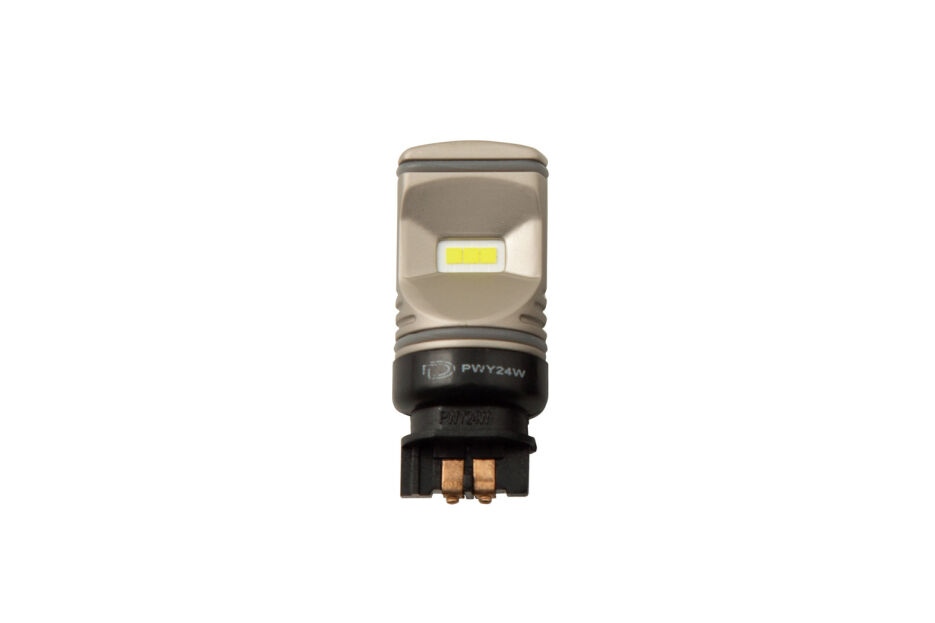

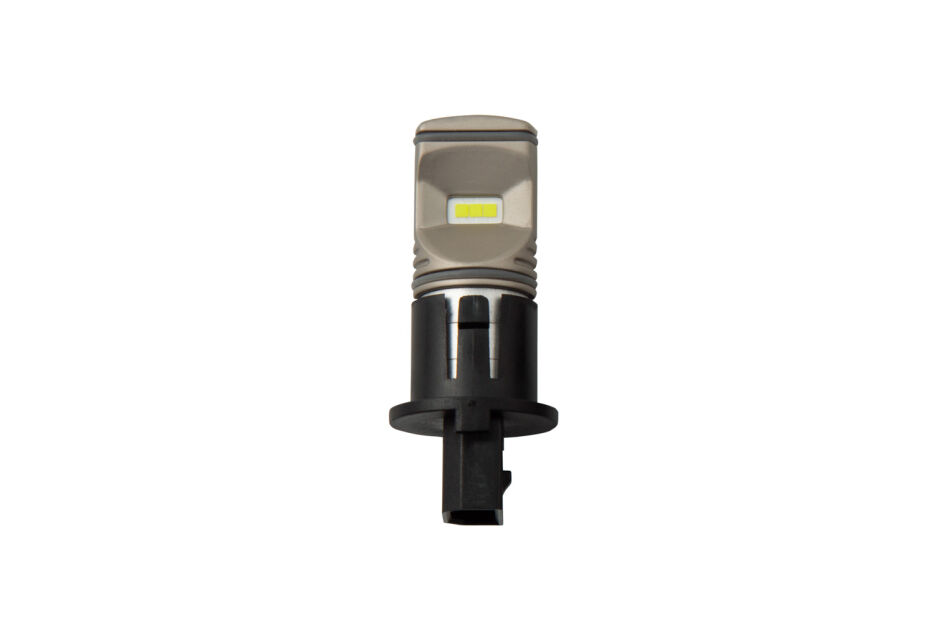

Diode Dynamics HP60 LED Bulbs



The Diode Dynamics HP60 LED Bulbs are designed for customers who want a brighter, cleaner LED upgrade for compatible factory fog light and daytime running light locations. These bulbs replace yellowish factory incandescent bulbs with a crisp 6000K cool white LED appearance while keeping the original lamp housing and bulb socket. Diode Dynamics lists HP60 applications such as PH16W, PWY24W, and P13W / PSX26W-style fitments depending on the selected configuration.

Each HP60 bulb is rated at 510 measured lumens, giving customers a real-world output rating based on tested performance rather than estimates. Diode Dynamics positions the HP60 as a strong option for fog lights or daytime running lights, while noting that it is not recommended for low beam or high beam headlight applications.

The HP60 design uses six high-power CSP LEDs and is engineered with correct filament positioning to help deliver focused light output in compatible factory housings. This helps the bulb work more effectively in the intended lamp location compared with basic LED replacements that do not place the light source properly.

Built for reliability, HP60 bulbs feature constant-current circuitry and transient suppression to help reduce flicker and premature failure. Select listings also note 7W input power, 9–16V operation, and a wide operating temperature range from -40°F to 185°F.

Whether customers are refreshing fog lights, upgrading DRL appearance, replacing dim factory bulbs, or adding a cleaner LED look to compatible forward lighting locations, Diode Dynamics HP60 LED Bulbs provide a simple socket-based upgrade with strong measured output. Now Available at LEER!



---



Features & Specifications

Product Type: LED replacement bulb
Material: Application-specific LED bulb construction with CSP LED emitters
Finish Options: Cool White, 6000K
Mounting Type: Compatible factory socket replacement
Fitment: Universal socket-based fitment depending on selected bulb type and vehicle application
Design: HP60 LED replacement bulb with six high-power CSP LEDs and correct filament positioning
Key Dimensions: Application-specific bulb dimensions; PH16W listing notes 5.7cm x 1.8cm dimensions
Functionality:

• 510 measured lumens per bulb
• 6000K cool white output
• Six high-power CSP LEDs
• Correct filament location for focused output
• Direct replacement for compatible factory incandescent bulbs
• Plug-and-play installation in supported sockets
• Constant-current circuitry
• Transient suppression
• 7W input power on select configurations
• 9–16V operating range on select configurations
• Compatible fog light and daytime running light applications depending on bulb type and vehicle
• Not recommended for low beam or high beam headlight applications
• Universal fitment verification required



---



Why Choose

This product is ideal for customers who want a brighter LED upgrade for compatible fog light or DRL locations without replacing the full lamp assembly.

• 510 measured lumens provide a strong output upgrade over many factory bulbs
• Six CSP LEDs create a clean modern cool white appearance
• Correct filament positioning helps improve usable output in compatible housings
• Plug-and-play installation keeps the upgrade simple in supported sockets



---



What’s Included

• Diode Dynamics HP60 LED Bulb or Bulbs in selected configuration
• Selected pack quantity, single or pair depending on application
• Installation instructions or product documentation, where included



---



Installation Notes

• Confirm factory bulb size, socket type, polarity, and available housing clearance before ordering
• Use only in compatible fog light, daytime running light, or supported forward lighting applications
• Not recommended for low beam or high beam headlight applications
• Some vehicle circuits may require additional wiring support, a resistor, or warning-canceler component
• Install matching bulbs as a pair where side-to-side lighting balance is important
• Test all lighting functions before regular vehicle use
• Professional installation is recommended for hard-to-access bulb locations or vehicles with sensitive lighting circuits
• Check local laws before using modified exterior lighting on public roads



---



Warranty Information

Diode Dynamics Warranty

Diode Dynamics products are backed by a limited warranty, covering defects in materials and workmanship.

3-year replacement warranty coverage is listed for Diode Dynamics HP60 LED Bulbs
Excludes damage from improper installation, misuse, accidents, unauthorized modifications, wiring errors, incorrect voltage use, polarity issues, overloading, vehicle circuit issues, heat damage from improper fitment, moisture intrusion caused by improper installation, non-compliant use, or normal wear
Proof of purchase required for warranty claims
