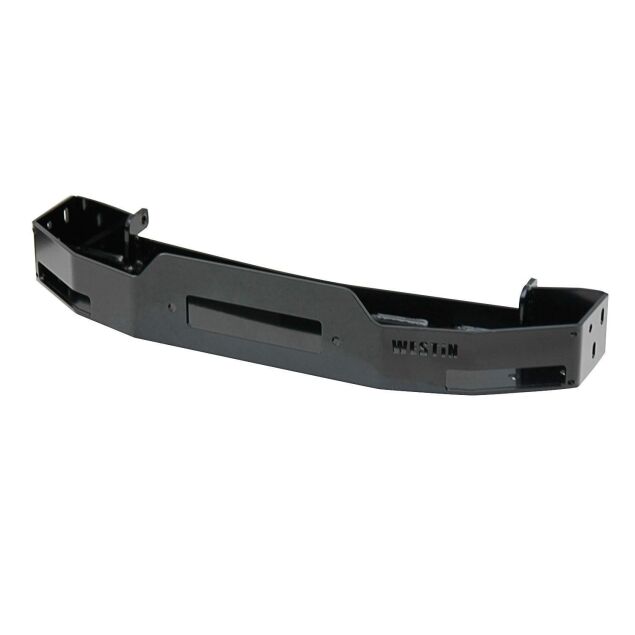

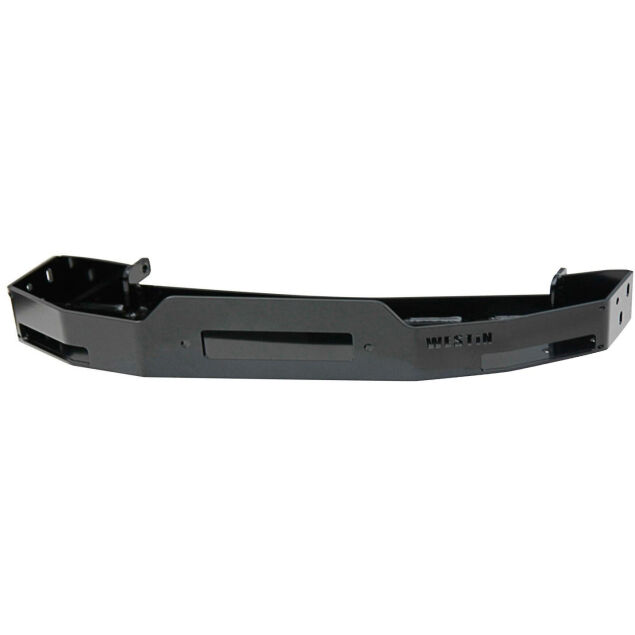

Westin MAX Winch Tray

2022 Toyota Tacoma
  • Fitment Notes
      6.5 in. Motor Length 6.75 in. Winch Depth Requires Minor Trimming Of Tow Hook Pockets Requires Trimming Lower Grille Special TRD Skid Plate Cannot Be Reused Special TRD Tow Hooks Cannot Be Reused

Product Features

  • HD brackets mount directly to vehicle frame
  • Winch tray tested to a maximum straight line pull of 16,500 lbs
  • Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall
  • Pre-drilled for quick mounting of hawse or roller fairlead
  • Optional MAX Bull Bar/Light Bar
  • Optional MAX Faceplate
  • Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)
$489.73
46-23885

  • Free Shipping

    This product qualifies for free shipping.

  • Fast Fulfillment
  • Military Discount

    For all active, reservist, veteran, and retired U.S. military personnel.

    Verify Military Status


Disclaimer: Product information and images are provided by the manufacturer. While we strive for accuracy, LEER is not responsible for errors, omissions, or discrepancies in manufacturer-supplied-content.

Product Details

Westins MAX Winch Tray is the core product in our winch mounting system that mounts directly to the vehicle frame. MAX Winch Trays are constructed of heavy weight steel designed to provide a sturdy platform for winch mounting that is pre-drilled for easy bolt-on mounting of the winch and roller fairlead (not included). MAX Winch Trays are compatible with most major brand medium frame winches. The tray is rated line pull of up to 16500 lbs. All trays feature openings for two MAX Tow Hooks (sold individually) for clevis hook anchoring.



  • HD brackets mount directly to vehicle frame
  • Winch tray tested to a maximum straight line pull of 16,500 lbs
  • Fits most medium frame 8,000-12,000 lbs winches up to 10.25" tall
  • Pre-drilled for quick mounting of hawse or roller fairlead
  • Optional MAX Bull Bar/Light Bar
  • Optional MAX Faceplate
  • Optional MAX Tow Hooks (Part No. 46-3005 - 2 needed)

Warranty

3 Year Warranty

Westin Automotive Products, Inc. guarantees the original purchaser of Westin products a three year warranty from the date of original purchase against manufacturer defects in materials, workmanship and finish under normal use excluding damage resulting from road hazards such as gravel or other debris, product misuse, improper installation, impairments from accidents, product modifications or product neglect. This three year warranty applies only to new products and is limited to the repair or replacement of Westin products. Warranty does not include electrical components or light bulb replacement, costs of removal, installation, labor, freight, inconvenience or consequential damages. Original purchaser must return defective merchandise, along with the purchase receipt, to the original place of purchase. This warranty does not cover damage resulting from accident, misuse, neglect, improper installation, fire, vandalism or any form of abuse.
