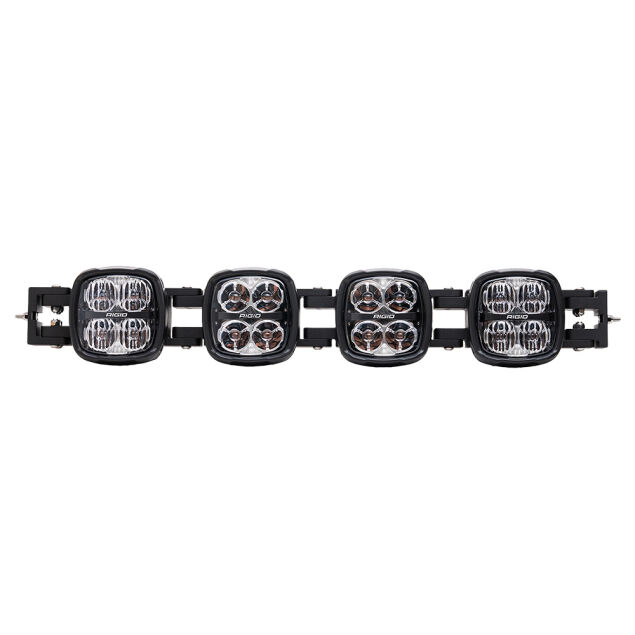

RIGID Phoenix 30 Inch Connect Bar

The RIGID Phoenix 30 Inch Connect Bar is built for customers who want a high-output modular light bar with the flexibility of RIGID Phoenix 5-inch pod technology. Designed for demanding off-road environments, this 30-inch Connect Bar combines multiple Phoenix pods with billet aluminum links to create a durable surface-mount lighting setup.

This configuration includes four Phoenix 5-inch pods, using two Spot lenses and two Drive lenses. The Spot lenses support long-distance visibility, while the Drive lenses provide a wider, more balanced beam pattern for trail, overland, and real-world driving conditions.

The Phoenix Connect design gives customers a strong mix of forward projection and wide coverage from one pre-assembled light bar. Instead of relying on a single fixed beam style, the combination of Spot and Drive optics helps support visibility at distance while also improving usable coverage closer to the vehicle.

Drivers can also switch between five color modes, including Cool White, Natural, Full Power, Warm, and Amber. This allows the light output to be adjusted from inside the cab based on terrain, dust, weather, and visibility needs.

The Phoenix lineup also offers three selectable power modes to help optimize lighting output for the vehicle’s power system. The light bar uses a cast aluminum housing, protective cast aluminum bezel, and IP68+ related sealing for protection from water and dust in demanding off-road conditions.

Whether customers are upgrading for trail driving, overlanding, off-road racing support, nighttime visibility, worksite lighting, or long-distance forward lighting, the RIGID Phoenix 30 Inch Connect Bar delivers modular Phoenix performance in a rugged 30-inch light bar package. Now Available at LEER!

Features & Specifications

Product Type: Modular LED Light Bar
Brand: RIGID
Product Name: Phoenix 30 Inch Connect Bar
SKU: 168242
UPC: 849774037207
Vehicle Fitment: Universal applications depending on selected mount and installation location
Mounting Location: Surface mount
Lighting Type / Product Function: Forward auxiliary lighting
Light Quantity / Size: Four 5-inch Phoenix pods in a 30-inch Connect Bar
Size: 30 in
Light Shape: Pod-style modular light bar
Beam Category: Spot / Driving Combo
Included Beam Setup: Two Spot lenses and two Drive lenses
Voltage Range: 9V–36V
Product Height: 4.375 in
Product Width: 31.5 in
Product Depth: 5.25 in
Product Weight: 22.4 lbs
Housing: Cast aluminum housing
Bezel: Cast aluminum protective bezel
Weather Protection: IP68+ related sealing from water and dust
Wiring Harness Included: Light assembly harness included; main wiring harness sold separately
Mounting Hardware Included: Yes
L-Shaped Mounting Brackets: Sold separately
Fitment: Universal depending on selected mounting location, brackets, wiring setup, and vehicle configuration

Functionality:

• Long-distance forward lighting
• Trail and overland visibility
• Mixed Spot and Drive beam coverage
• Selectable color output
• Selectable power control
• Surface-mounted auxiliary lighting
• Modular Phoenix light bar applications
• Off-road and worksite lighting support


Why Choose the RIGID Phoenix 30 Inch Connect Bar?

This product is ideal for customers who want a modular high-output light bar with Phoenix pod performance, selectable color control, and mixed beam coverage.

• Combines four Phoenix 5-inch pods into one 30-inch Connect Bar
• Uses two Spot lenses for long-distance visibility
• Uses two Drive lenses for balanced distance and width
• Includes five selectable color modes for changing conditions
• Offers three selectable power modes to help manage output and power needs
• Built with billet aluminum links for modular durability
• Cast aluminum housing supports demanding off-road use
• Protective cast aluminum bezel helps shield the lenses
• IP68+ related sealing helps protect against water and dust
• Pre-assembled light bar design helps simplify setup compared with building a pod array from scratch


What’s Included

• Pre-assembled RIGID Phoenix 30 Inch Connect Bar
• Two 5-inch Phoenix pods with Spot lenses
• Two 5-inch Phoenix pods with Drive lenses
• Mounting hardware
• Light assembly harness
• Four black light covers

Note: Main wiring harness is sold separately. L-shaped mounting brackets are sold separately. Included components may vary by selected configuration.

Installation Notes

• Universal surface-mount light bar installation
• Confirm mounting location, bracket needs, wiring requirements, and vehicle compatibility before installation
• Main wiring harness is sold separately and should be selected based on the customer’s installation setup
• L-shaped mounting brackets are sold separately if required for the chosen mounting location
• Installation may require bracket installation, light bar mounting, harness routing, switch placement, and final aiming
• Designed for off-road and auxiliary lighting applications; customers should confirm legal use based on location and vehicle application
• Buyer is responsible for use in accordance with applicable vehicle, road, off-road, racing, and local lighting laws


Warranty Information

RIGID Warranty

The RIGID Phoenix 30 Inch Connect Bar is listed with a Limited Lifetime Warranty and 30-Day Returns.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
