ReadyLift 3"F / 2"R SST Lift Kit w/Bilstein 6112 Coilovers
Disclaimer: Product information and images are provided by the manufacturer. While we strive for accuracy, LEER is not responsible for errors, omissions, or discrepancies in manufacturer-supplied-content.
Product Overview
The ReadyLIFT 3"F / 2"R SST Lift Kit w/Bilstein 6112 Coilovers is a premium suspension system designed specifically for 2005–2023 Toyota Tacoma 2WD and 4WD models (excluding TRD Pro). Developed in partnership with Bilstein, this complete SST system combines ReadyLIFT engineering with Bilstein’s renowned 6112 performance coilover assemblies to deliver exceptional on-road comfort, off-road capability, and suspension control.
Unlike standard spacer lifts, the 69-5531 kit includes pre-assembled Bilstein 6112 front coilover assemblies featuring a large 60mm monotube shock body and matched springs. ReadyLIFT engineers added a CNC-machined billet aluminum top hat that provides an additional 0.5 inch of lift, resulting in a true 3 inches of front lift while eliminating the need for spring compressors during installation.
The rear suspension utilizes OE-style 2-inch cast lift blocks and extended U-bolts to create a balanced stance while maintaining ride quality and load-carrying capability. Combined with differential drop spacers and sway bar spacers, this system is engineered to provide improved ground clearance, larger tire fitment, and outstanding suspension performance for daily driving, overlanding, and off-road adventures. Now Available at LEER!
Features & Specifications
Product Type: SST Suspension Lift Kit
Shock Series: Bilstein 6112 Coilover Assemblies
Front Lift Height: 3 Inches
Rear Lift Height: 2 Inches
Construction: Billet aluminum, cast iron, and heavy-duty steel components
Finish: Corrosion-resistant finish
Mounting Type: Bolt-on installation
Fitment: Select Toyota Tacoma applications
Excludes:
- Toyota Tacoma TRD Pro Models
- Toyota 4Runner Applications
- Toyota FJ Cruiser Applications
Design Features:
- Bilstein 6112 front coilover assemblies
- 60mm monotube shock design
- CNC-machined billet aluminum top hats
- Differential drop spacers
- Front sway bar spacers
- OE-style cast rear lift blocks
- Pre-assembled front suspension components
Functionality:
- Provides 3 inches of front lift
- Provides 2 inches of rear lift
- Improves ground clearance
- Supports larger tire fitment
- Enhances ride quality and suspension control
- Maintains factory drivability
Available Options
The ReadyLIFT 3"F / 2"R SST Lift Kit w/Bilstein 6112 Coilovers is available in:
Vehicle Fitments
- 2005–2023 Toyota Tacoma 2WD
- 2005–2023 Toyota Tacoma 4WD
- TRD Models
- SR5 Models
- Sport Models
- Off-Road Models
Finish Options
- Bilstein zinc-plated shock finish
- Billet aluminum top hat construction
- Cast iron rear lift blocks
- Corrosion-resistant hardware
- Heavy-duty steel mounting components
Configurations
- 3-inch front lift configuration
- 2-inch rear lift configuration
- Bilstein 6112 coilover package
- Daily driving suspension setup
- Overland vehicle configuration
- Off-road performance suspension setup
- Larger tire clearance package
- Bolt-on installation system
- Trail-ready suspension package
- Premium ride quality configuration
Choose the ReadyLIFT 3"F / 2"R SST Lift Kit w/Bilstein 6112 Coilovers if you want premium suspension performance, improved ride quality, and a true 3-inch front lift for your Toyota Tacoma.
Why Choose the ReadyLIFT 3"F / 2"R SST Lift Kit w/Bilstein 6112 Coilovers?
Includes Bilstein 6112 front coilover assemblies featuring large 60mm monotube shocks for superior ride control and damping performance.
- Provides a true 3 inches of front lift through ReadyLIFT's exclusive billet top hat design that adds an additional 0.5 inch above the Bilstein system.
- Comes pre-assembled and pre-set for faster installation without requiring spring compressor tools.
- Includes differential drop spacers to help maintain proper CV axle geometry on 4WD models.
- Supports up to 33-inch tires with popular fitments including 285/70R17 and 285/65R18 combinations.
- Maintains excellent ride quality while providing increased ground clearance and improved off-road capability.

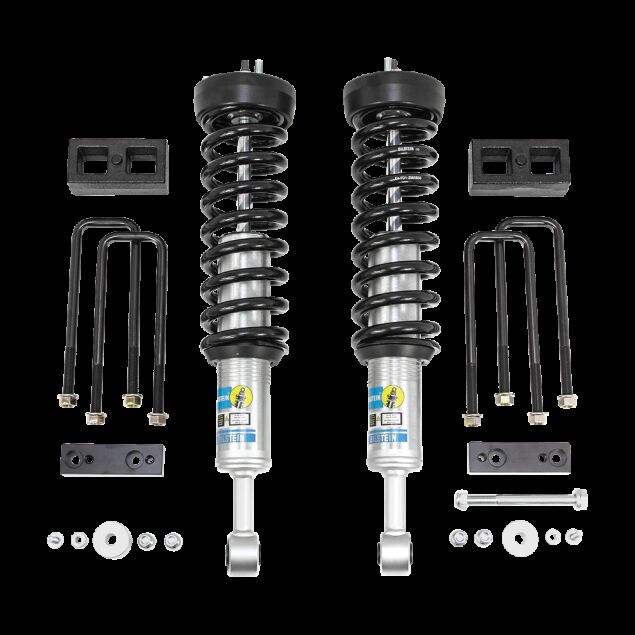

What’s Included
- Pre-assembled Bilstein 6112 front coilover assemblies
- ReadyLIFT billet aluminum top hats
- 2-inch OE-style cast rear lift blocks
- Extended U-bolts
- Differential drop spacers
- Front sway bar spacers
- Installation hardware
- Installation instructions
Installation Notes
- Professional installation is recommended
- Alignment is required after installation
- Designed specifically for 2005–2023 Toyota Tacoma 2WD and 4WD applications (excluding TRD Pro)
- Pre-assembled coilovers eliminate the need for spring compressor tools during installation.
- Supports up to 33-inch tires with proper wheel specifications.
- Differential drop spacers included for proper driveline geometry on 4WD models.
- Installation time is typically 4–5 hours for experienced installers.
- Periodic inspection of suspension hardware is recommended
- Compatible with daily driving, overlanding, towing, and off-road applications
Bilstein 6112 Performance
The Bilstein 6112 system utilizes a large 60mm monotube shock body with digressive piston technology for improved damping control, superior heat dissipation, and enhanced ride comfort. When combined with ReadyLIFT's SST engineering, the result is a suspension system that delivers excellent on-road handling and outstanding off-road capability.
Warranty Information
ReadyLIFT Warranty
ReadyLIFT suspension products are backed by a limited warranty covering defects in materials and workmanship for the original purchaser.
Bilstein Warranty
Bilstein shock absorbers are covered under Bilstein's applicable warranty program for defects in materials and workmanship. Warranty coverage varies by application and usage.
