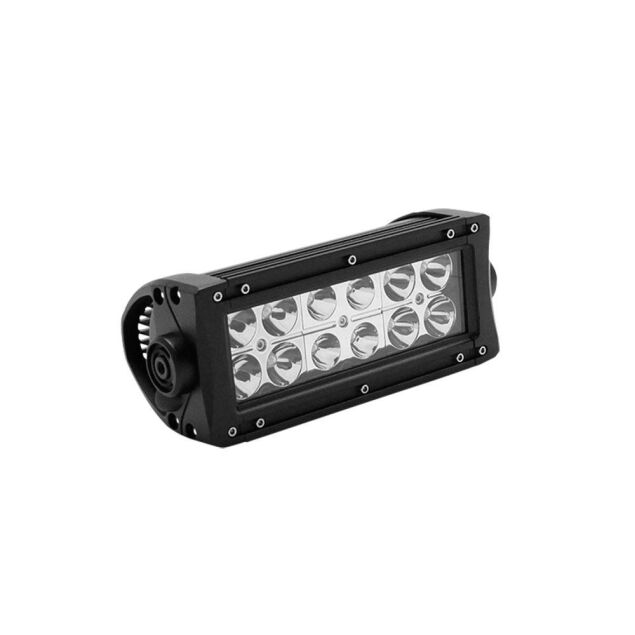

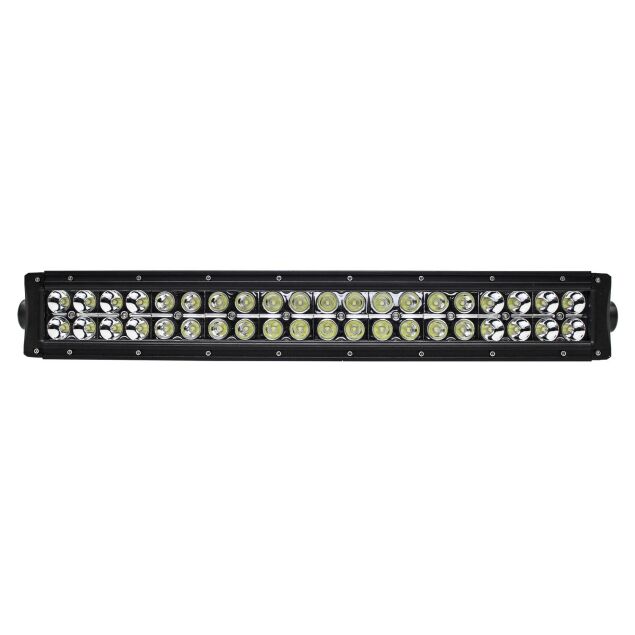

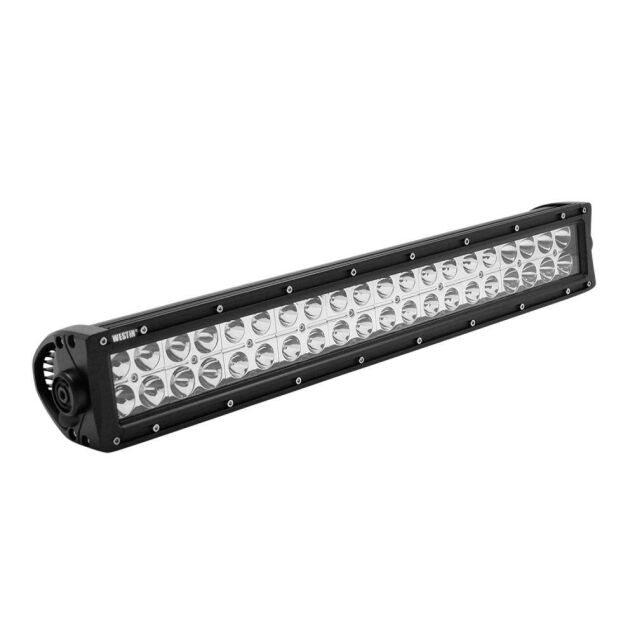

Westin EF2 Double Row LED Light Bar for Trucks & SUVs



Westin EF2 Double Row LED Light Bar gives trucks, SUVs, and off-road builds a durable auxiliary lighting upgrade with strong output and practical value. Built for customers who want dependable visibility without moving into premium-priced lighting, the EF2 series delivers a no-nonsense light bar platform for trails, jobsites, rural roads, and low-light driving. Its double-row design provides a broader lighting presence than slim single-row options, making it a useful choice when coverage and output are both priorities.

The EF2 series is powered by 3-watt Epistar LED chips and is available in multiple sizes to match different mounting locations and lighting needs. Depending on the selected configuration, output ranges from approximately 2,150 to 19,200 lumens. This gives customers the flexibility to choose a compact auxiliary light for smaller spaces or a larger full-width bar for maximum forward illumination.

Beam pattern choices allow the EF2 to be matched to the way the vehicle is used. Spot beam configurations help project light farther down a trail, road, or work area, while combo beam configurations blend spot and flood lighting for both distance and wider coverage. That flexibility makes the EF2 useful for off-road driving, worksite lighting, camp access, and general auxiliary visibility.

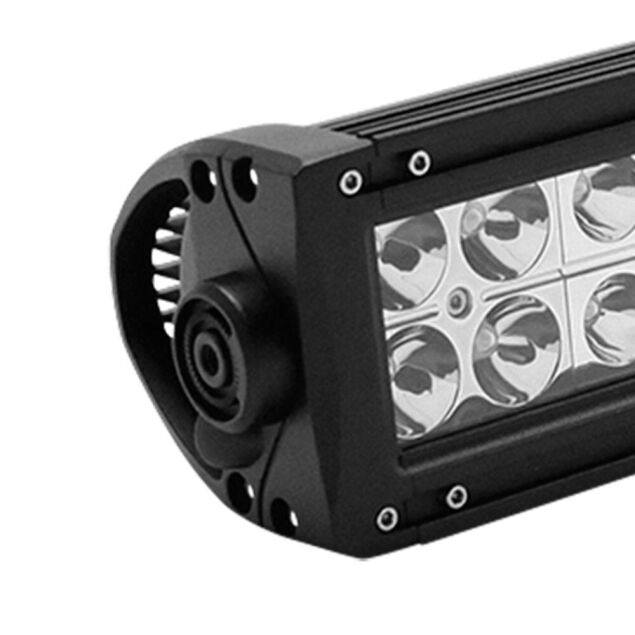

The 6063 extruded aluminum housing gives the light bar a strong, corrosion-resistant structure for exterior mounting. Oversized heat sinks help manage temperature during operation, supporting consistent performance during extended use. A scratch-resistant polycarbonate lens helps shield the LEDs from debris, brush, and harsh driving environments.

The sealed design helps resist dust and moisture, making the EF2 suitable for demanding outdoor conditions. Exposed polished fasteners give the light bar a rugged, industrial appearance that pairs well with off-road bumpers, grille guards, roof racks, and utility accessories. For customers who want lighting that looks tough and works hard, the EF2 fits naturally into trail-ready and work-focused builds.

Available from compact 6-inch lights up to full-width 50-inch light bars, the EF2 lineup gives customers a wide range of mounting possibilities. Smaller sizes work well for tight spaces, auxiliary corner lighting, and grille guard setups, while larger bars provide broader coverage for bumpers, racks, and roof-mounted applications. Whether customers are upgrading for off-road visibility, worksite use, nighttime driving, or dependable lighting value, the EF2 Double Row LED Light Bar delivers rugged performance in a versatile package. Now Available at LEER!



---



Features & Specifications

Product Type: Double-row LED light bar

Brand: Westin

Series: EF2

LED Type: 3-watt Epistar LEDs

Beam Pattern Options: Spot and combo spot plus flood patterns depending on configuration

Output Range: Approximately 2,150 to 19,200 lumens depending on size and configuration

Housing Material: 6063 extruded aluminum with oversized heat sinks

Lens Material: Scratch-resistant polycarbonate

Voltage: 10-30V

Sealing: Dust and moisture resistant design

Mounting Style: Universal mounting

Size Range: Available from 6-inch to 50-inch light bar sizes

Applications: Off-road, worksite, auxiliary, and nighttime driving lighting

Functionality:

• Adds dependable auxiliary lighting for trucks, SUVs, work vehicles, and off-road builds.
• Uses a double-row LED layout to support stronger output and broader coverage than many single-row setups.
• Provides spot and combo beam choices so customers can match lighting performance to their driving or work needs.
• Supports bumper, grille guard, roof rack, and other compatible exterior mounting locations.
• Helps improve visibility on trails, jobsites, rural roads, campsites, and low-light driving routes.
• Protects the lighting system with a 6063 extruded aluminum housing and scratch-resistant polycarbonate lens.
• Uses oversized heat sinks to help manage operating temperatures during extended lighting use.
• Offers multiple size options for compact auxiliary installs, mid-size setups, and full-width lighting coverage.



---



Available Options

The Westin EF2 Double Row LED Light Bar is available in multiple sizes and beam patterns:

• 6-inch Light Bar -- Compact auxiliary lighting for smaller mounting areas, bumper pockets, grille guards, and tight accessory spaces.
• 12-inch Light Bar -- A small-format option for customers who want added light output while keeping the installation compact.
• 20-inch Light Bar -- A mid-size choice for bumper, grille guard, or rack mounting with balanced output and manageable size.
• 30-inch Light Bar -- A versatile option for customers who want stronger coverage across the front of the vehicle without moving to a full-width bar.
• 40-inch Light Bar -- A wide lighting option for larger vehicle applications, roof racks, and broader forward illumination.
• 50-inch Light Bar -- A full-width option for maximum output and coverage on roof, rack, or large front-end mounting setups.
• Spot Beam Pattern -- Designed for customers who want longer-distance forward projection.
• Combo Beam Pattern -- Designed for customers who want a blend of long-distance visibility and wider flood-style coverage.

Choose a smaller EF2 light bar for compact mounting areas and supporting auxiliary light, or choose a larger EF2 light bar for broader coverage and stronger output across trails, worksites, and full-width vehicle lighting setups.



---



Why Choose

This product is ideal for customers who want a budget-friendly workhorse light bar with durable construction, flexible sizing, and dependable output.

• Double-row LED design provides strong illumination and broader coverage for demanding low-light use.
• 3-watt Epistar LEDs deliver solid performance across compact, mid-size, and full-width configurations.
• Multiple size options make it easier to match the light bar to the vehicle and mounting location.
• Spot and combo beam choices help customers tailor the lighting setup for distance, spread, or balanced coverage.
• 6063 extruded aluminum housing supports long-term exterior durability in rugged environments.
• Oversized heat sinks help manage temperature and support consistent performance during extended operation.
• Scratch-resistant polycarbonate lens helps protect against debris, trail hazards, and worksite conditions.
• Strong value makes the EF2 a practical choice for off-road upgrades, jobsite vehicles, and everyday auxiliary lighting.



---



What's Included

• Westin EF2 Double Row LED Light Bar in the selected size and beam pattern

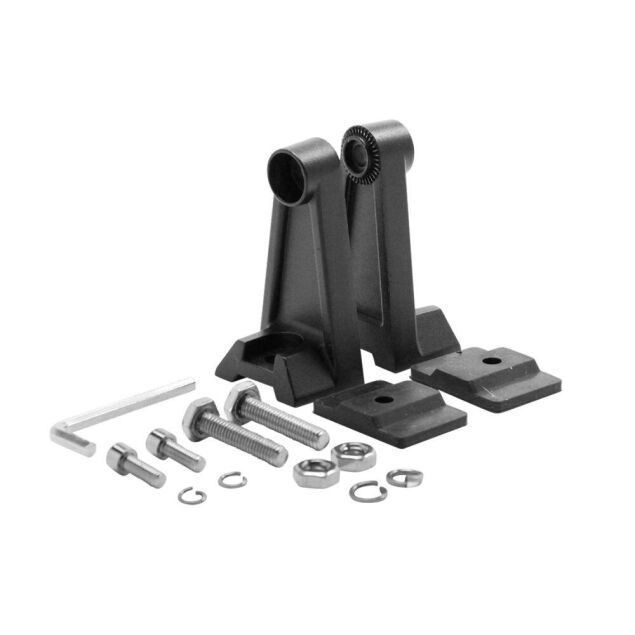

• Mounting brackets
• Mounting hardware
• Pigtail wiring connector

Note: Confirm included components before installation.



---



Installation Notes

• Confirm selected size, beam pattern, mounting space, bracket clearance, and wiring route before installation.
• Universal mounting compatibility depends on the selected vehicle, bumper, grille guard, roof rack, or custom accessory location.
• Route wiring away from sharp edges, moving parts, heat sources, pinch points, and areas exposed to excessive abrasion.
• Professional installation is recommended for customers who are not comfortable with auxiliary lighting, wiring, switching, or custom mounting work.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Westin EF2 Double Row LED Light Bars are backed by a limited lifetime warranty covering defects in materials and workmanship under normal use. Proof of purchase may be required for warranty service, and coverage may depend on product condition, installation, and current warranty terms.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, tampering, impact damage outside warranty terms, non-compliant use, or damage caused by wiring, mounting, or operation outside the intended application.
