Rigid Radiance Plus SR-Series LED Light Bar for Trucks & SUVs



RIGID Radiance Plus SR-Series LED Light Bar combines a slim single-row housing, forward-projecting Broad Spot optics, and selectable RGBW backlighting for customers who want both useful illumination and a customizable appearance. Built around the low-profile SR-Series shape, it fits bumpers, grille openings, racks, and other locations where vertical space is limited. The design suits trucks, SUVs, off-road vehicles, powersports builds, and work equipment that need a clean bar with more visual flexibility than a conventional light.

The main beam uses optimized Broad Spot optics to blend forward reach with usable width. This pattern supports trail travel, backroads, work areas, camp access, and general off-road visibility without being as narrow as a dedicated spot or as short-range as a pure flood. The single-row layout keeps the housing visually light and easier to integrate into modern bumpers and grille systems.

RGBW backlighting provides eight selectable choices: red, green, blue, light blue, purple, amber, white, and a rotating mode. A dedicated control wire allows the backlight to operate independently from the primary forward beam. Customers can coordinate the bar with a custom build, create a parked accent, or select a visible marker color where permitted, while keeping the main beam available for actual driving illumination.

A high-grade aluminum alloy housing and heat sink support structural strength and thermal control. The impact-resistant polycarbonate lens, pressure-equalizing vent, and IP68 dust and water ingress protection help the light withstand changing weather, vibration, dust, and trail exposure. Over-voltage, under-voltage, reverse polarity, and radio-frequency protection add safeguards for a properly designed installation.

Lengths from 10 inches through 50 inches cover compact auxiliary locations, mid-size bumper installations, and wide roof or rack layouts. Every size retains the low-profile SR-Series form and fits compatible SR-Series mounts and covers. Output, current draw, dimensions, bracket spacing, and vehicle electrical demand vary by length, so the final choice should be based on both desired coverage and available installation space.

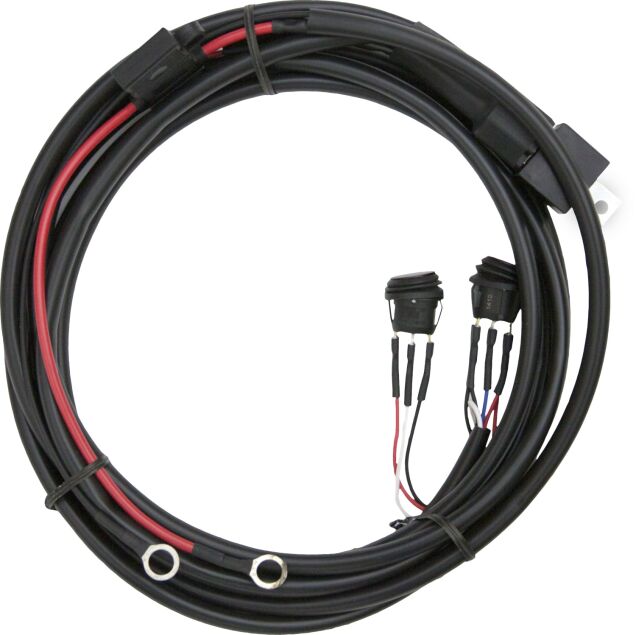

The wiring harness is selected separately, allowing customers to choose controls that suit the main beam and backlight functions. Careful circuit planning is important because the two lighting functions require dedicated connections and appropriate switching. Whether customers are upgrading for Broad Spot trail visibility, a slim mounting profile, customizable RGBW styling, or a coordinated full-width lighting build, the RIGID Radiance Plus SR-Series LED Light Bar delivers practical performance with distinctive backlighting. Now Available at LEER!



---



Features & Specifications

Product Type: Low-profile single-row LED light bar

Brand: RIGID Industries

Series: Radiance Plus SR-Series

Beam Pattern: Broad Spot

Backlight Options: Red, green, blue, light blue, purple, amber, white, and rotating

Backlight Control: Dedicated independent circuit

Voltage Range: 9V to 15V DC

Housing: High-grade aluminum alloy housing and heat sink

Lens: Impact-resistant polycarbonate

Ingress Protection: IP68 dust and water ingress protection

Electrical Protection: Over-voltage, under-voltage, reverse polarity, and RFI or EMI protection

LED Lifespan: 50,000 hours or more

Available Lengths: 10 inch, 20 inch, 30 inch, 40 inch, and 50 inch

Mount Compatibility: Fits compatible SR-Series mounts and light covers

Wiring Harness: Sold separately

Functionality:

• Adds balanced forward illumination through optimized Broad Spot optics.
• Provides eight selectable RGBW backlight choices for a customizable appearance.
• Allows the backlight and main beam to be controlled independently.
• Fits low-profile bumper, grille, rack, roof, and powersports locations.
• Scales from compact 10-inch installations to full-width 50-inch layouts.
• Works with compatible SR-Series mounts and covers.
• Protects the electronics with sealed alloy construction and an impact-resistant lens.
• Supports trail, backroad, worksite, camp-access, and general auxiliary lighting.



---



Available Options

The RIGID Radiance Plus SR-Series LED Light Bar is available in five lengths:

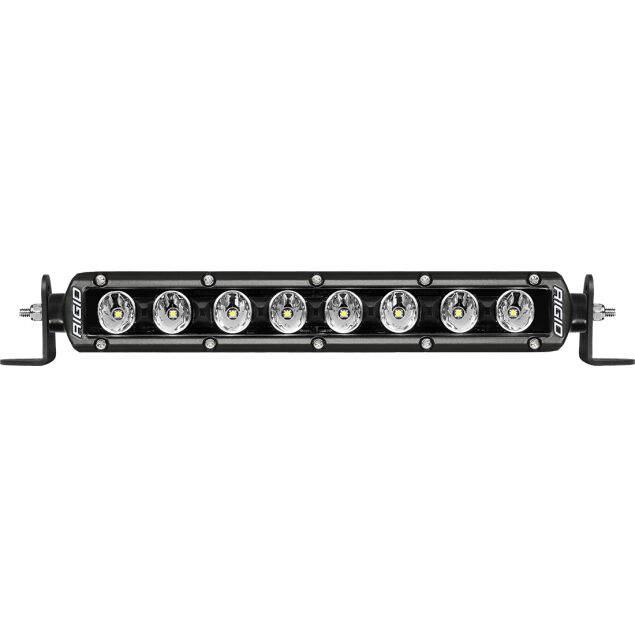

• 10 Inch - Compact lighting for grille openings, bumper pockets, powersports vehicles, and focused auxiliary locations.
• 20 Inch - A versatile mid-size bar for bumpers, grille channels, and compact rack installations.

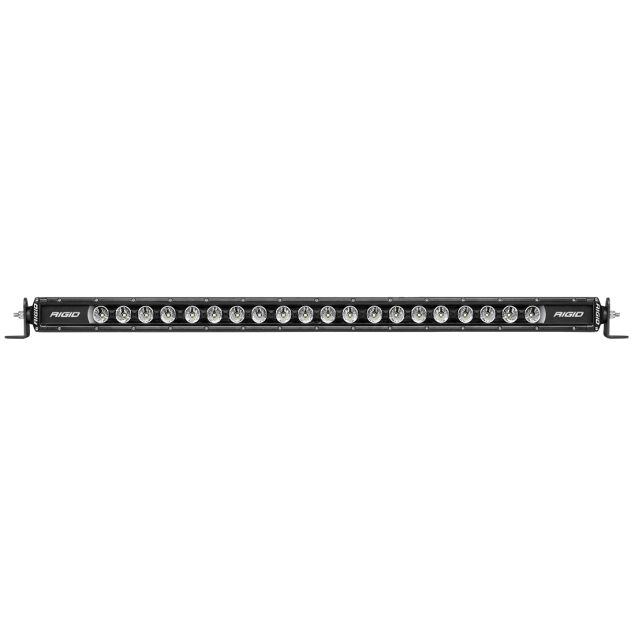

• 30 Inch - A balanced choice for customers who want more illuminated width without a full-width bar.

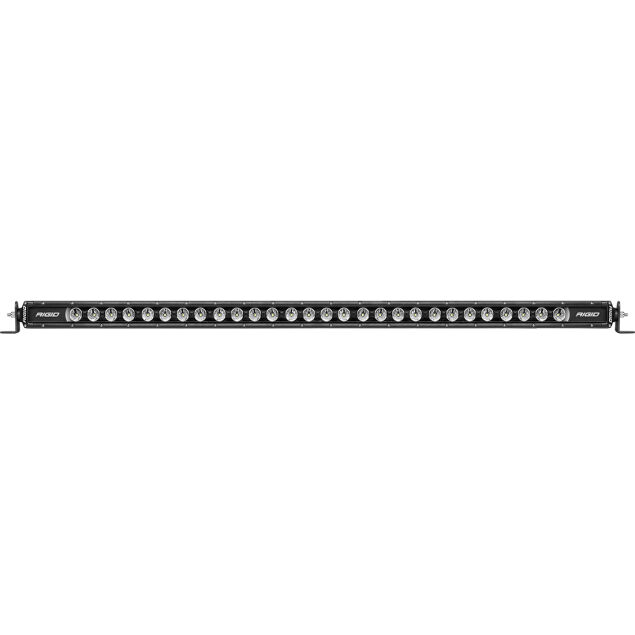

• 40 Inch - A wide option for larger bumpers, racks, and roof systems.

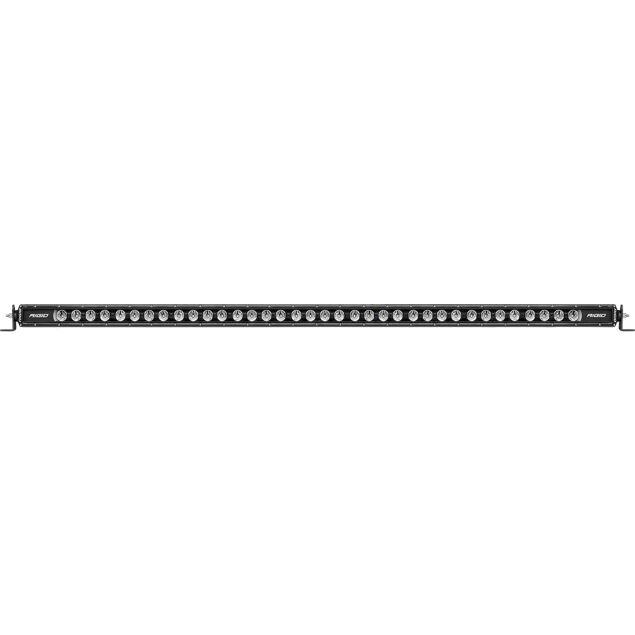

• 50 Inch - A full-width choice for broad roof, rack, and high-coverage vehicle builds.

Choose the 10-inch or 20-inch bar for tight mounting areas, the 30-inch bar for balanced coverage, or the 40-inch and 50-inch bars for wide installations with greater overall presence.



---



Why Choose

This product is ideal for customers who want a slim Broad Spot light bar with independently controlled multicolor backlighting.

• Broad Spot optics balance distance and width for mixed trail, backroad, and work use.
• Eight backlight choices let customers coordinate the bar with different builds and settings.
• Independent control keeps the RGBW feature separate from the main forward beam.
• The low-profile single-row housing fits locations where taller bars are difficult to package.
• Five lengths cover compact auxiliary use through full-width roof and rack installations.
• SR-Series mount and cover compatibility provides useful accessory flexibility.
• IP68 sealing and an impact-resistant lens support harsh exterior environments.
• Electrical safeguards help protect the light when it is installed with suitable wiring and controls.



---



What's Included

• RIGID Radiance Plus SR-Series LED Light Bar in the selected length
• Mounting brackets
• Mounting hardware
• Installation documentation

Note: Confirm included components before installation.



---



Installation Notes

• Select a compatible wiring harness, relay, fuse, and switches that provide separate control for the main beam and RGBW backlight.
• Confirm bar length, bracket spacing, mounting clearance, wiring path, and final aiming before installation.
• Route wiring away from sharp edges, heat sources, moving components, pinch points, and locations exposed to repeated abrasion.
• Backlight colors and forward auxiliary lighting may be regulated, so confirm local requirements before public-road operation.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

RIGID Radiance Plus SR-Series lights are covered by a limited 10-year warranty under the applicable terms. Proof of purchase may be required, and service can depend on inspection of the housing, lens, wiring, brackets, and installation condition.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, tampering, impact damage outside the warranty terms, or operation outside the intended application.
