The ORACLE Trigger 4 PLUS Wireless Accessory Control System is an advanced wireless switching solution that simplifies the installation and operation of aftermarket vehicle accessories. Designed to eliminate the need for running wires through the firewall or mounting traditional switch panels in the cab, the Trigger 4 PLUS allows users to control auxiliary lighting, air compressors, train horns, rock lights, refrigerators, and other 12V accessories from a wireless RF remote or Bluetooth-enabled smartphone app.
Built around a compact waterproof control module, the Trigger 4 PLUS features four fused accessory circuits, onboard circuit protection, and app-based customization. The included RF remote can be mounted to flat or round surfaces and operates both inside and outside the vehicle, making it ideal for trucks, Jeeps, UTVs, overland rigs, and off-road builds.
Unlike traditional switch systems that require extensive wiring and dashboard modifications, the Trigger 4 PLUS installs directly under the hood and communicates wirelessly with the included remote and smartphone app. Multiple Trigger systems can even be linked together to control up to 24 accessories from a single interface. Now Available at LEER!
Features & Specifications
Product Type: Wireless Accessory Control System
Brand: ORACLE Lighting / Trigger
Input Voltage: 12V–24V DC
Control Method: RF Remote & Bluetooth App
Number of Circuits: 4 Fused Outputs
Housing: Waterproof Aluminum Control Module
Warranty: 3-Year Limited Warranty
Electrical Specifications
- Two 30-Amp Circuits
- Two 10-Amp Circuits
- 12–24V Input Compatibility
- Built-In Fuse Protection
- LED Circuit Status Indicators
- Waterproof Output Connectors
- Manual Override Buttons on Control Module
Design Features
- Wireless RF remote control
- Bluetooth smartphone app control
- No firewall wiring required
- Waterproof controller housing
- Ambient-backlit remote
- Round and flat surface mounting options
- Custom accessory naming within app
- Toggle or momentary switch programming
- Expandable accessory control system
- Weather-resistant construction
Functionality
- Controls auxiliary lighting
- Operates air compressors
- Controls train horns
- Activates rock lights
- Controls light bars
- Operates power accessories
- Supports dimming functions
- Supports flashing functions
- Allows remote operation outside vehicle
- Supports multiple controller expansion
Available Options
Universal Configuration
TRIGGER 4 PLUS Wireless Accessory Control System
Compatible with:
- Trucks
- Jeeps
- SUVs
- UTVs
- Side-by-Sides
- Overland Vehicles
- Off-Road Vehicles
- Custom Builds
- Marine and Utility Applications (12V/24V systems)
Controller Features
- 4-circuit wireless controller
- Bluetooth app integration
- RF remote operation
- Waterproof housing
- Expandable multi-controller setup
- Momentary or latching operation
- Dimming control functionality
- Flashing control functionality
Choose the ORACLE Trigger 4 PLUS Wireless Accessory Control System if you want a clean, professional accessory control solution without the complexity of routing switch wires through the firewall.
Why Choose the ORACLE Trigger 4 PLUS?
Eliminates traditional switch panel wiring by allowing accessories to be controlled wirelessly through the included RF remote and Bluetooth app.
- Four fused circuits provide versatile accessory control, including two 30-amp and two 10-amp outputs for a wide range of electrical accessories.
- Bluetooth app control provides advanced functionality, including accessory naming, dimming, flashing modes, and momentary/toggle switching options.
- Waterproof construction and sealed connectors allow installation in harsh environments including off-road, overland, and marine applications.
- Expandable architecture supports up to 24 accessories by linking multiple Trigger controllers together.
- RF remote works both inside and outside the vehicle, making it ideal for campsite lighting, recovery situations, and off-road use.
What's Included
- Wireless RF Remote Control
- Universal Remote Mount
- Trigger 4 PLUS Control Module
- (2) 30-Amp Output Harnesses
- (2) 10-Amp Output Harnesses
- Waterproof Connectors
- Fuse Protection System
- Installation Hardware
- Installation Instructions
Installation Notes
- Professional installation is recommended.
- The Trigger 4 PLUS mounts under the hood and connects directly to the vehicle battery, eliminating the need to route switch wiring into the passenger compartment.
- Compatible with both 12V and 24V electrical systems.

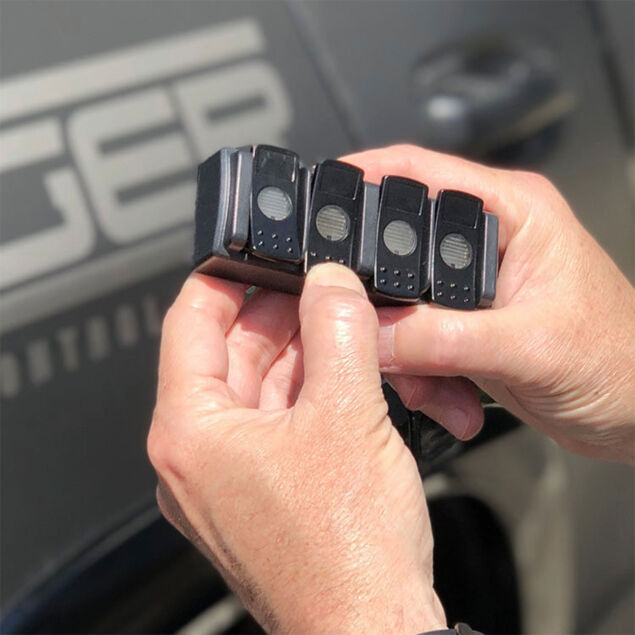

- The included RF remote mounts to flat surfaces, dashboards, roll cages, and other round mounting surfaces.
- The free TRIGGER ACS PLUS App is available for iOS and Android devices and enables expanded accessory control and customization.
- Users should never install larger fuses than the factory-specified circuit ratings, as doing so may damage the controller and void warranty coverage.
Warranty Information
ORACLE Lighting Warranty
The ORACLE Trigger 4 PLUS Wireless Accessory Control System is backed by a 3-Year Limited Warranty covering defects in materials and workmanship.
3-year limited warranty applies to qualifying ORACLE Trigger products.
Excludes damage caused by improper installation, misuse, wiring modifications, accidents, or use beyond rated electrical capacities.
Damage caused by installing oversized fuses is not covered under warranty.
Labor, installation costs, shipping charges, and consequential damages are not covered.
Proof of purchase is required for warranty claims.
