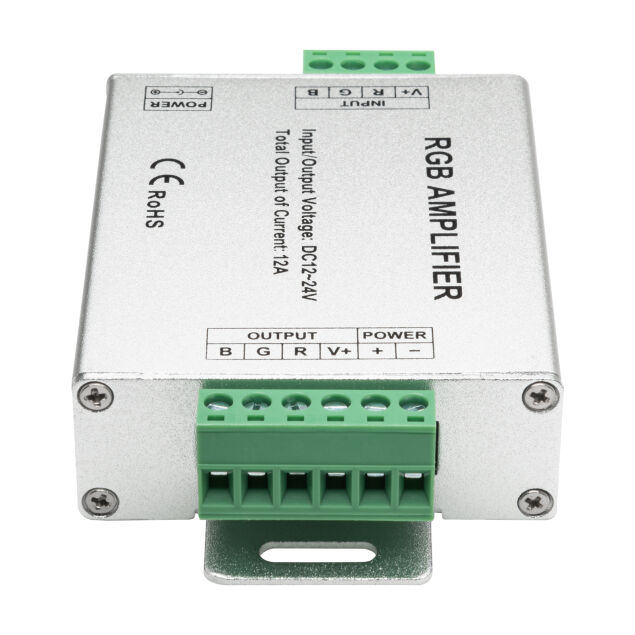

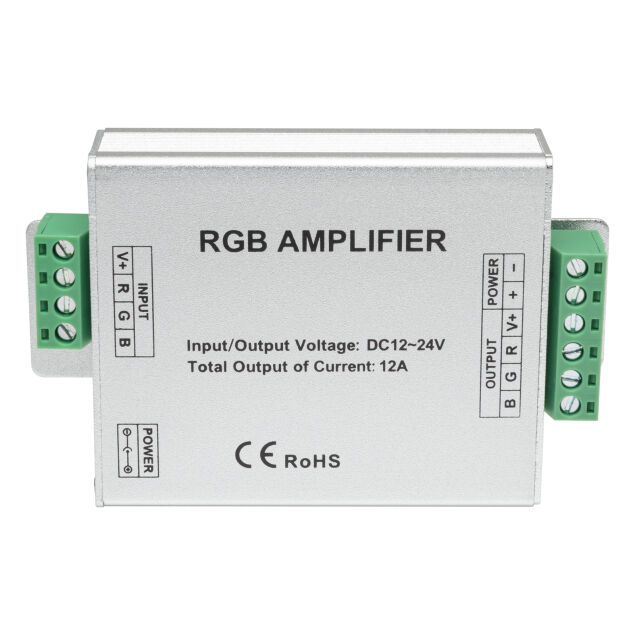

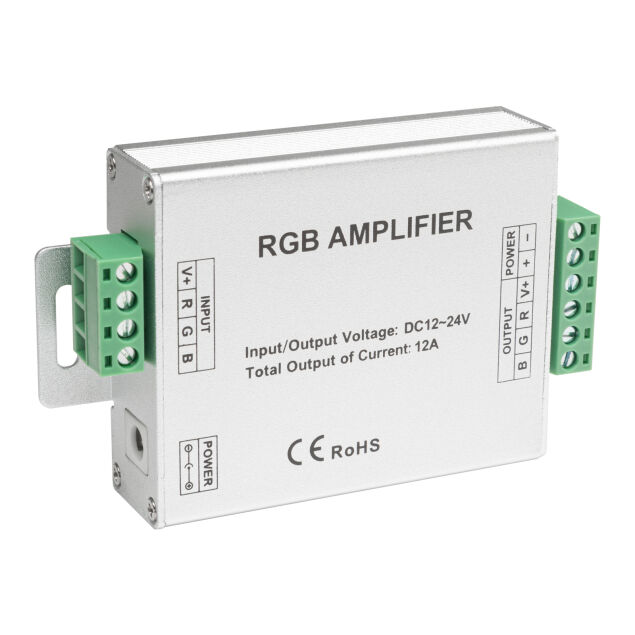

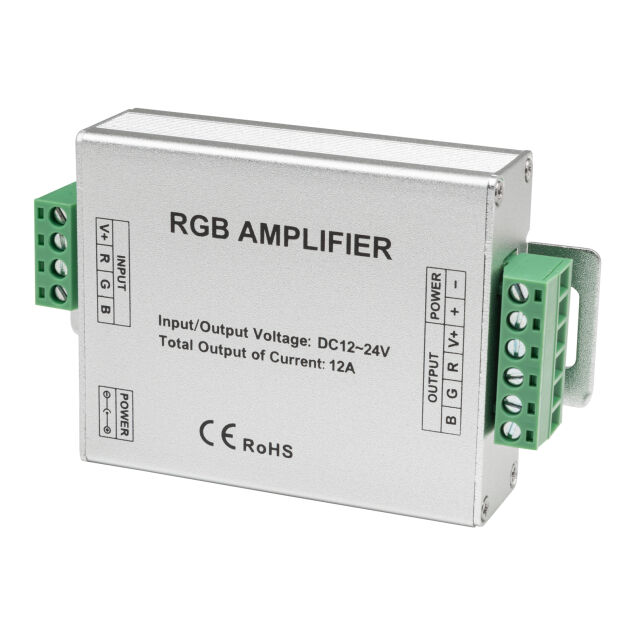

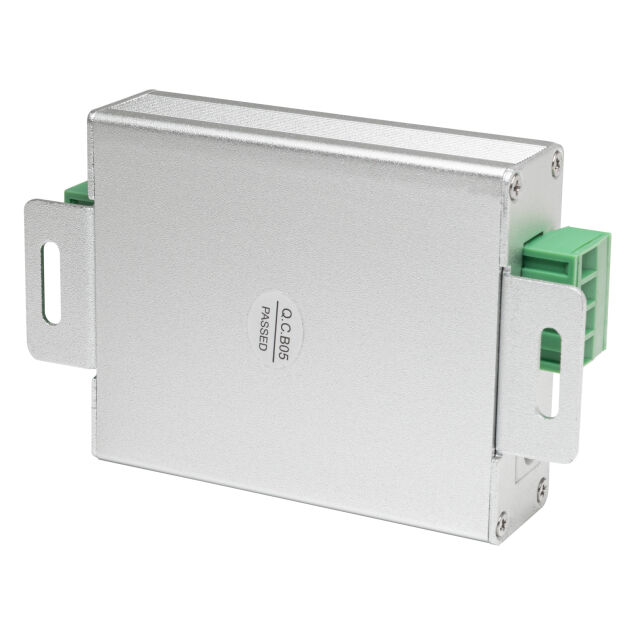

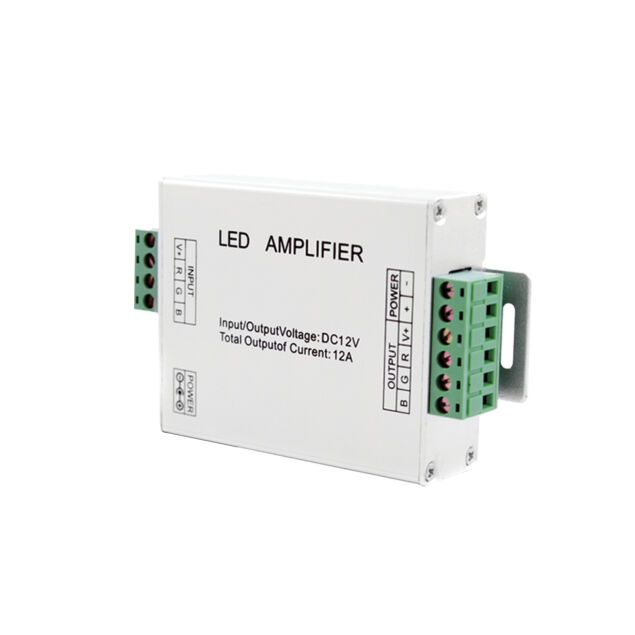

The Oracle RGB LED Signal Amplifier is designed for custom RGB lighting systems that need more load capacity than a standard RGB controller can provide. This amplifier extends the signal and increases load capability for ORACLE RGB controllers, making it useful for larger LED strip installations, multi-section lighting layouts, and custom automotive lighting builds. ORACLE lists this product as Part #1605-001.
Built for 3-channel RGB lighting, this amplifier supports 12A total output, with 4A per channel across red, green, and blue channels. ORACLE lists the input current as 12VDC, with an operating range of 8V–16V on the official product page.
This signal amplifier is especially useful when an RGB lighting system exceeds a controller’s normal output capacity. Retailer specifications describe the unit as increasing load capability and extending signal for RGB controllers, with use cases such as extended RGB Flex Strip installations.
Additional features include 144W output power, 3-channel output, low static power consumption, and compact dimensions of approximately 3.8 inches long, 1.7 inches wide, and 0.70 inches high. Retailer listings also note RoHS compliance, FCC and CE certification, and cULus classification.
Engineered as a universal RGB lighting accessory, this amplifier is not limited to one vehicle platform. Fitment depends on the RGB lighting system, controller output, wire routing, total amperage draw, and installation environment.
Installation requires integrating the amplifier into a compatible RGB lighting circuit and supplying appropriate power. Professional installation is recommended for larger lighting systems, custom wiring, or any installation where total current draw needs to be calculated carefully.
Whether you're expanding an RGB strip setup, supporting a longer lighting run, or building a larger custom ColorSHIFT-style lighting system, the Oracle RGB LED Signal Amplifier provides the additional signal support needed for higher-load RGB applications. Now Available at LEER!
Features & Specifications
Product Type: RGB LED signal amplifier
Material: Compact electronic amplifier housing with RGB wiring terminals
Finish Options: Application-specific electronic housing
Mounting Type: Custom electrical installation
Fitment: Universal RGB LED lighting applications
Design: 3-channel RGB controller signal amplifier
Key Dimensions: Approximately 3.8 in. L x 1.7 in. W x 0.70 in. H
Functionality:
- RGB controller signal amplification
- Increased RGB lighting load capacity
- 12A total output
- 4A per channel
- 3-channel RGB output
- 144W output power
- 12VDC input operation
- Low static power consumption
- Custom RGB lighting expansion
Available Options
The Oracle RGB LED Signal Amplifier is available in:
Vehicle Fitments:
- Universal RGB LED lighting systems
- Custom vehicle lighting applications
- RGB LED strip installations
- Extended lighting runs
- Show vehicle lighting builds
Finish Options:
- Application-specific electronic housing
Configurations:
- RGB LED Signal Amplifier, ORACLE Part #1605-001
Choose this amplifier when your RGB LED lighting system exceeds the output capacity of your controller or requires signal extension for a larger custom lighting layout.
Why Choose Oracle RGB LED Signal Amplifier?
This product is ideal for customers who want to expand an RGB lighting system beyond the limits of a standard controller.
- Signal amplification supports longer or higher-load RGB lighting setups
- 12A total output helps power larger custom lighting systems
- 3-channel RGB design works with compatible RGB controllers
- Compact size supports easier integration into custom installations
What’s Included
- Oracle RGB LED Signal Amplifier
- Application-specific wiring terminals/components
- Installation instructions
Installation Notes
- Designed for compatible RGB LED lighting systems
- Confirm total lighting load before installation
- Do not exceed 4A per channel or 12A total output
- Use appropriate wire gauge and fuse protection for the lighting system
- Mount the amplifier away from excessive heat, moisture, moving components, and abrasion points
- Professional installation is recommended for custom RGB wiring, long lighting runs, or high-current systems
- Verify controller compatibility, input voltage, output load, and wiring layout before ordering
Warranty Information
Oracle Warranty
Oracle products are backed by a limited warranty, covering defects in materials and workmanship.
2-year warranty coverage is listed by multiple retailers for ORACLE Part #1605-001
Excludes damage from improper installation, overload, misuse, accidents, unauthorized modifications, wiring errors, incorrect voltage use, water exposure, corrosion from improper mounting, or normal wear
Proof of purchase required for warranty claims
