ORACLE Lighting ColorSHIFT RGB+W Underbody Wheel Well Rock Light Kit



ORACLE Lighting ColorSHIFT RGB+W Underbody Wheel Well Rock Light Kit combines practical white illumination with a full spectrum of customizable color for trucks, SUVs, off-road vehicles, trailers, and specialty builds. Oversized pods are designed to illuminate broad wheel-well and underbody areas while adding a dramatic accent when the vehicle is parked or used in controlled off-road environments. Customers can move from true white task lighting to custom color effects without installing separate lighting systems.

The dedicated 6000K white mode is the key functional advantage of the RGB+W design. Separate white output provides a cleaner utility light than a color-mixed RGB approximation, making it useful for checking tires, suspension, recovery points, cargo, and nearby terrain. When appearance is the priority, thousands of ColorSHIFT combinations allow the same pods to match a build theme, event, campsite, or show display.

Each pod uses 22 RGBW LEDs arranged across three emitter areas to create an extra-wide 230-degree beam. This broad spread is intended to cover more of the wheel well and surrounding ground with fewer dark areas than a narrow rock-light pattern. The pods produce more than 2,000 lumens in white mode across the system rating, providing useful visibility for trail-side work and low-speed maneuvering.

Control is available through a Bluetooth smartphone app and an included wireless RF remote. Customers can adjust colors, brightness, strobing patterns, and music-responsive effects, while a pre-wired manual on and off switch provides simple system control. This combination makes the kit easy to tailor for functional use, a subtle parked accent, or a more animated display without rewiring the lights.

Aluminum housings with black powder-coated finishes and IP68 plug-and-play connections are built for exposed vehicle locations. Each pod includes an 11-foot lead, and the battery connection uses ring terminals with an inline fuse for organized power delivery. Rubber mounts help the oversized pods sit against curved mounting points, while optional extension cables may be useful on long-wheelbase vehicles or installations with indirect wire routing.

Four-piece and eight-piece kits let customers select the coverage level that suits the vehicle. Four pods can provide focused lighting for smaller platforms or selected wheel areas, while eight pods can place two lights near each wheel for fuller truck and SUV coverage. Whether customers are upgrading for wheel-well visibility, trail-side repairs, campsite lighting, underbody styling, or show-ready customization, ORACLE Lighting ColorSHIFT RGB+W Underbody Wheel Well Rock Light Kit delivers broad coverage, true white utility, and flexible wireless control. Now Available at LEER!



---



Features & Specifications

Product Type: RGB+W underbody and wheel-well rock light kit

Brand: ORACLE Lighting

Series: ColorSHIFT RGB+W

Kit Sizes: Four-pod and eight-pod configurations

LED Quantity: 22 RGBW LEDs per pod

White Mode: True 6000K white

Beam Angle: 230 degrees

White Output: More than 2,000 lumens total

Power: 7W per pod and 28W for a four-pod system

Input Voltage: 9V to 32V DC

Control: Bluetooth smartphone app, wireless RF remote, and pre-wired manual switch

Housing: Aluminum with black powder-coated finish

Ingress Protection: IP68

Pod Wire Length: 11 feet per pod

Functionality:

• Illuminates wheel wells, suspension, tires, frame areas, recovery points, and nearby ground
• Provides a dedicated 6000K white mode for inspections, repairs, loading, and trail-side tasks
• Creates thousands of RGB accent colors for custom styling and event displays
• Spreads light across a wide area with a 230-degree beam and three-emitter pod layout
• Allows color, brightness, pattern, and music-responsive control from a compatible smartphone
• Provides quick wireless adjustments with the included RF remote
• Supports exposed installations with IP68 pods and waterproof plug-and-play connections
• Adapts to small and large vehicles through four-pod and eight-pod system choices



---



Available Options

The ORACLE Lighting ColorSHIFT RGB+W Underbody Wheel Well Rock Light Kit is available in two coverage configurations:

• Four-Piece Kit - Suits smaller vehicles, focused front or rear coverage, or customers who want one broad-output pod at each selected wheel area.
• Eight-Piece Kit - Suits larger trucks and SUVs or customers who want two pods near each wheel for fuller underbody and wheel-well coverage.
• Bluetooth App Control - Provides detailed color selection, brightness adjustment, strobing, custom effects, and music-responsive operation.
• Wireless RF Remote Control - Provides fast color and effect changes without opening the smartphone app.
• True White and RGB Modes - Allows customers to switch between practical 6000K illumination and full-color accent lighting.

Choose the Four-Piece Kit for focused coverage on a compact build, or choose the Eight-Piece Kit for a larger vehicle and a more complete wheel-well lighting layout.



---



Why Choose

This product is ideal for customers who want ultra-wide wheel-well coverage, true white task lighting, and fully adjustable ColorSHIFT effects in one rugged system.

• Combines dedicated white LEDs with full RGB color instead of relying on color mixing for utility light
• Uses a 230-degree beam to cover broad wheel-well areas with fewer dark spots
• Offers smartphone, RF remote, and manual switch control for flexible operation
• Includes four-pod and eight-pod choices for different vehicle sizes and coverage goals
• Uses IP68 plug-and-play connections for exposed off-road and underbody environments
• Includes long pod leads that support organized routing around the vehicle
• Adds both practical trail-side visibility and high-impact custom styling
• Provides aluminum housings and curved-mounting point rubber mounts for durable installation



---

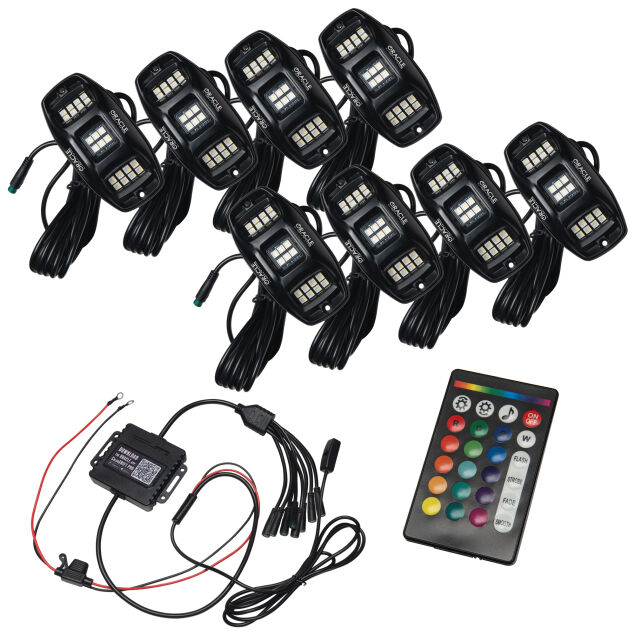

What's Included

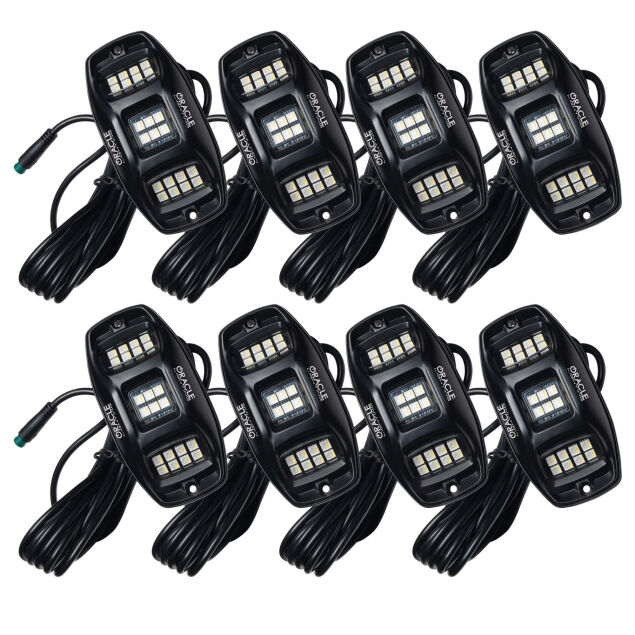

• Four or eight oversized ORACLE ColorSHIFT RGB+W rock light pods, depending on the selected kit

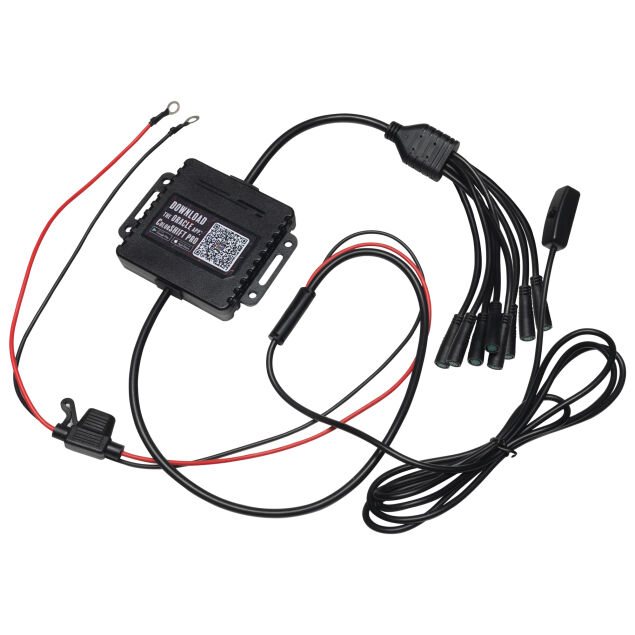

• Bluetooth control module with splitter

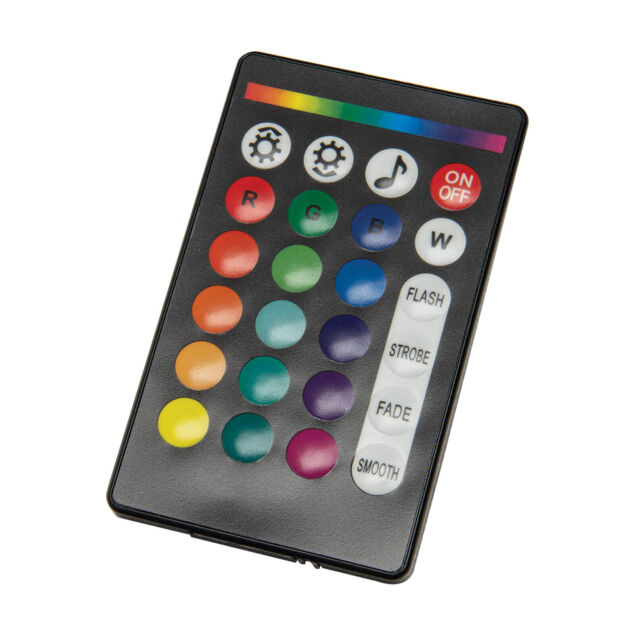

• Wireless RF remote control pad

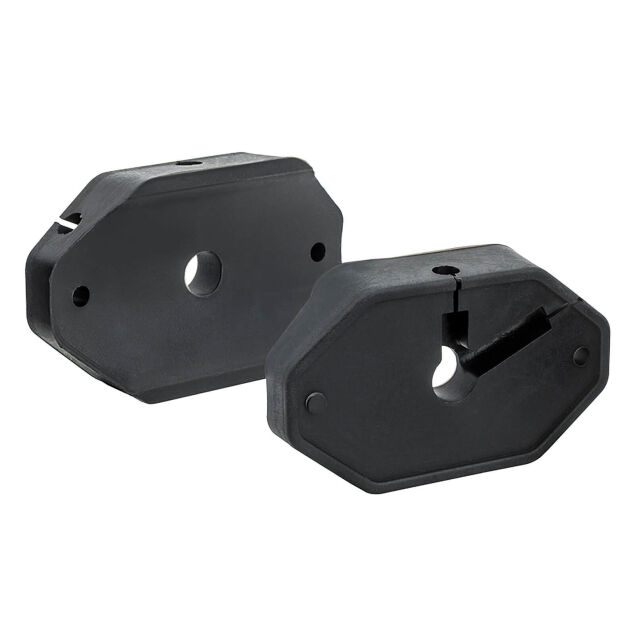

• Rubber mounts for curved mounting mounting points
• Pre-wired on and off switch
• Battery leads with ring terminals and inline fuse
• Waterproof plug-and-play connection components
• Installation hardware

Note: Confirm included components before installation.



---



Installation Notes

• Plan pod placement, controller location, battery connection, and all wire routes before mounting the system.
• Route the 11-foot pod leads away from exhaust heat, steering, suspension travel, tires, sharp edges, and direct trail impact.
• Use additional extension cables when the vehicle length or protected routing path exceeds the supplied lead reach.
• Test white mode, RGB colors, the app, RF remote, and manual switch before completing final wire protection and mounting checks.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

ORACLE Lighting covers the ColorSHIFT RGB+W rock light kit with a one-year limited warranty against qualifying defects in materials and workmanship.

Warranty coverage typically excludes improper installation, misuse, modification, electrical faults, damaged connectors, water intrusion caused by installation errors, collision or trail impact, tampering, and non-compliant use. Proof of purchase may be required for a claim.
