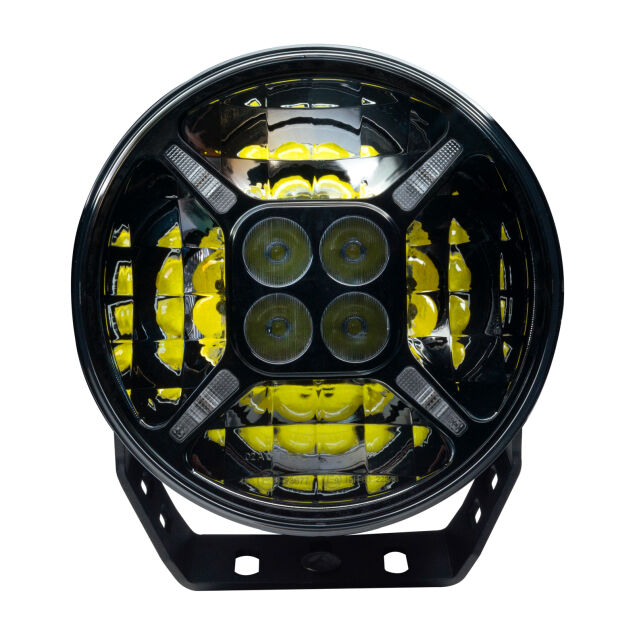

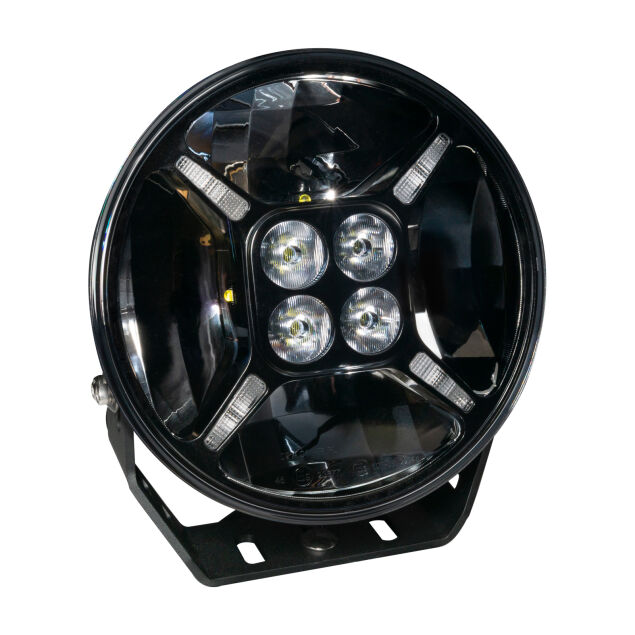

ORACLE 9" EXO Series 60W Round LED Spotlight



ORACLE EXO 9 Inch Multifunction 120W LED Spotlight gives trucks, SUVs, and off-road builds a large round lighting upgrade with substantial output and an unmistakable front-end presence. The 9-inch housing is designed for customers who have room for a full-size auxiliary lamp and want stronger visual impact than a compact pod or smaller round light can provide. It fits naturally into reinforced bumper, grille guard, A-pillar, and rack layouts built around serious nighttime visibility.

A combination of TIR lens technology and reflector-facing LED optics forms a controlled 30-degree beam with reach approaching 500 meters. The dual-optic layout concentrates light where customers need to see farther ahead, helping illuminate open trails, remote access roads, and wide terrain without relying on a broad unfocused glow. That beam character makes the EXO 9 Inch Spotlight especially useful on vehicles that travel beyond the limits of factory lighting.

The integrated marker ring uses selectable amber and white LEDs for a multifunction appearance. With the proper wiring, the ring can operate as a daytime running light, parking light, or turn signal while the primary spotlight remains on its own circuit. Customers can choose a clean white signature, a warmer amber look, or a wiring plan that supports the desired signaling function.

The 120-watt light produces 12,000 raw lumens and 9,600 effective lumens with an 8.5-amp draw at 12 volts. Peak intensity of 282,500 candela supports the focused beam, while the 9V - 36V input range gives installers flexibility across many vehicle electrical systems. The combination is intended for customers who need more output and presence than the smaller EXO model can deliver.

A blacked-out IP68-rated housing protects the lighting assembly against dust and water ingress, and electronic thermal management helps control heat during extended use. Under-voltage, over-voltage, and reverse-polarity protection add safeguards for the electrical system. The heavy-duty U bracket and stainless steel 304 hardware provide a sturdy universal post-mount foundation when installed on a properly reinforced surface.

The EXO 9 Inch Spotlight is a strong match for overland vehicles, off-road trucks, utility builds, and custom SUVs with the space and electrical capacity for a large auxiliary lamp. Its focused beam, selectable marker functions, and bold round profile bring performance and style together in one assembly. Whether customers are upgrading for long-range trail lighting, remote-road travel, work-area approach visibility, or a commanding custom look, the ORACLE EXO 9 Inch Multifunction 120W LED Spotlight delivers high-output illumination with multifunction marker-light control. Now Available at LEER!



---



Features & Specifications

Product Type: Multifunction round LED spotlight

Brand: ORACLE Lighting

Series: EXO Series

Light Size: 9-inch round housing

Raw Lumens: 12,000

Effective Lumens: 9,600

Power: 120W with 8.5A draw at 12V DC

Peak Intensity: 282,500 candela

Beam Pattern: 30-degree focused beam with reach up to approximately 500 meters

Optics: TIR lens and reflector-facing LED technology

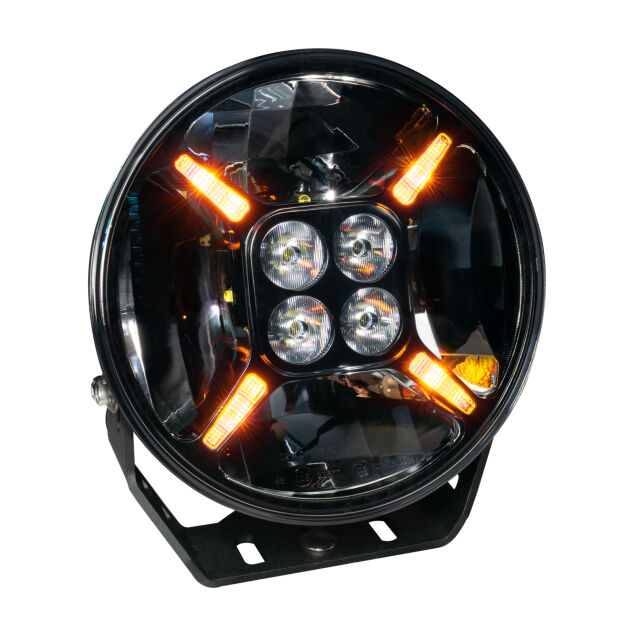

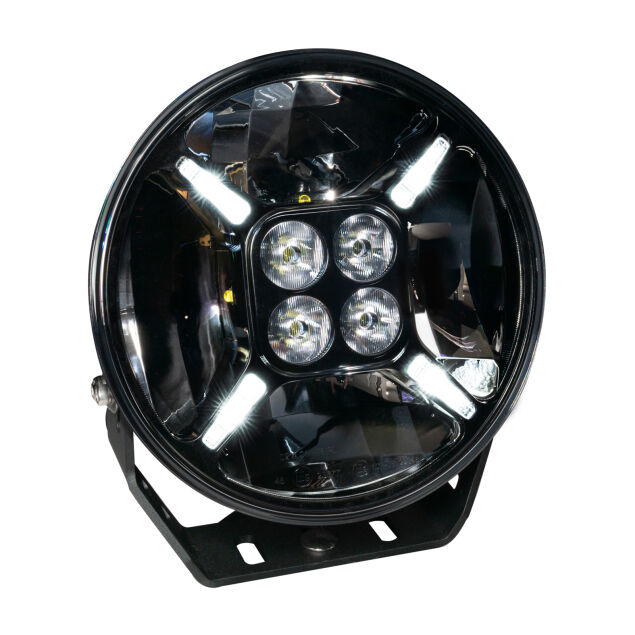

Marker Lighting: Selectable amber and white LED ring

Input Voltage: 9V - 36V DC

Durability: IP68-rated housing

LED Lifespan: 80,000+ hours

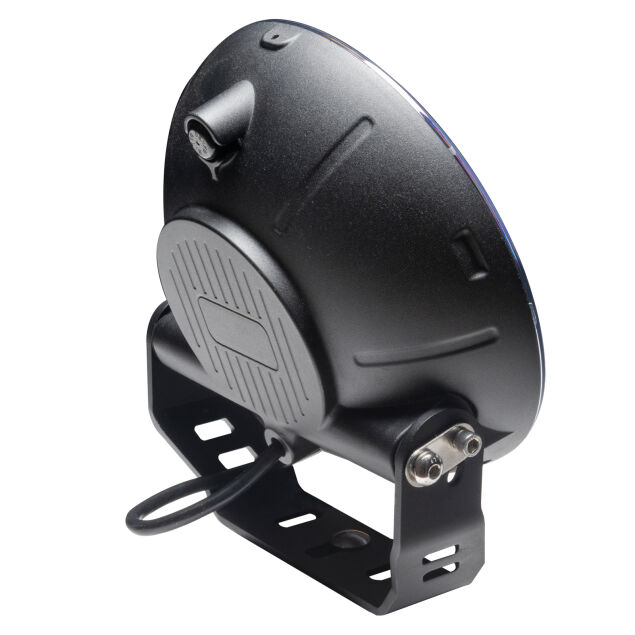

Mounting Style: Universal post mount with heavy-duty U bracket

Functionality:

• Projects high-output forward light for open trails, access roads, and remote travel
• Adds selectable amber or white marker lighting around the main spotlight
• Supports parking-light, daytime running, or turn-signal operation with suitable wiring
• Creates a commanding round-light appearance on larger off-road and overland builds
• Fits reinforced bumper, grille guard, A-pillar, rack, and custom post-mount locations
• Uses thermal and electrical protection features for demanding vehicle environments
• Provides a 9V - 36V operating range for broad electrical-system compatibility
• Combines long-range beam performance with a blacked-out multifunction design



---



Why Choose

This product is ideal for customers who want a large multifunction spotlight with high-output long-range performance and selectable amber or white marker lighting.

• Large 9-inch housing creates substantial visual presence on trucks and SUVs
• 12,000 raw lumens support demanding auxiliary lighting applications
• Dual TIR and reflector optics form a controlled beam with strong forward reach
• Selectable amber and white marker lighting expands appearance and signaling options
• IP68 protection supports use in dust, water, mud, and changing weather conditions
• Electronic thermal management helps protect performance during extended operation
• Heavy-duty post-mount hardware supports reinforced custom installations
• High-output design suits customers who have the space and electrical capacity for a full-size spotlight



---



What's Included

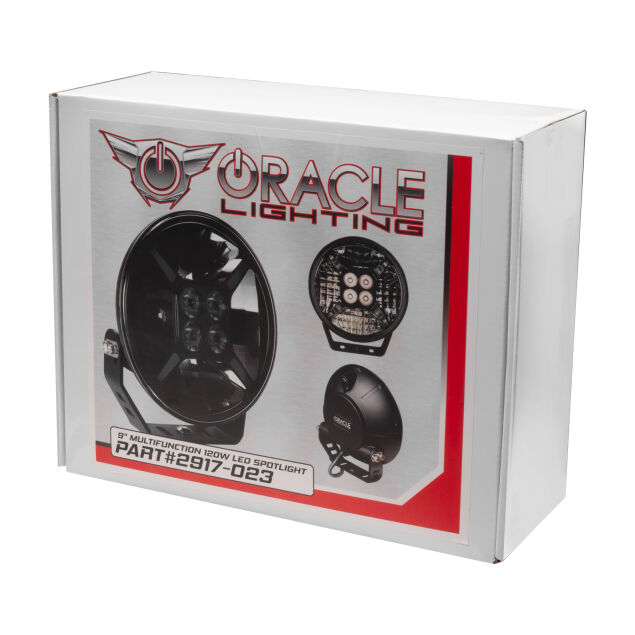

• One ORACLE EXO 9 Inch Multifunction 120W LED Spotlight
• Heavy-duty U mounting bracket
• Stainless steel 304 mounting hardware

Note: Confirm included components before installation.



---



Installation Notes

• Mount the light to a reinforced surface designed to handle the size, weight, and vibration of a 9-inch auxiliary lamp.
• Plan independent circuits for the primary spotlight and marker-light functions when separate operation is desired.
• Use properly rated relays, switches, fusing, wire gauge, and weather-resistant connections for the 120W electrical load.
• Aim the beam after final tightening and verify clearance around body panels, racks, windshields, accessories, and moving components.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

ORACLE EXO spotlights carry a 1-year limited warranty under the applicable product terms. Warranty service may require proof of purchase and inspection of the product.

Coverage typically excludes improper installation, misuse, unauthorized modification, electrical damage, impact damage, tampering, or operation outside the stated product requirements.
