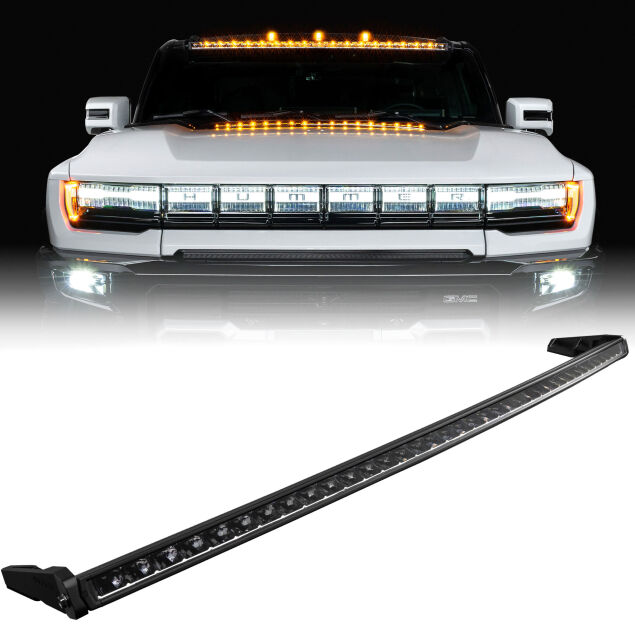

ORACLE 50" Roof Mount Curved Light Bar w/Brackets

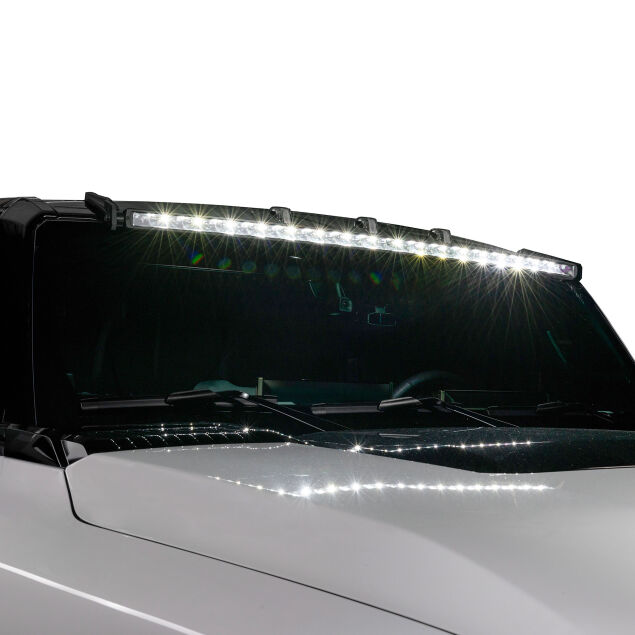

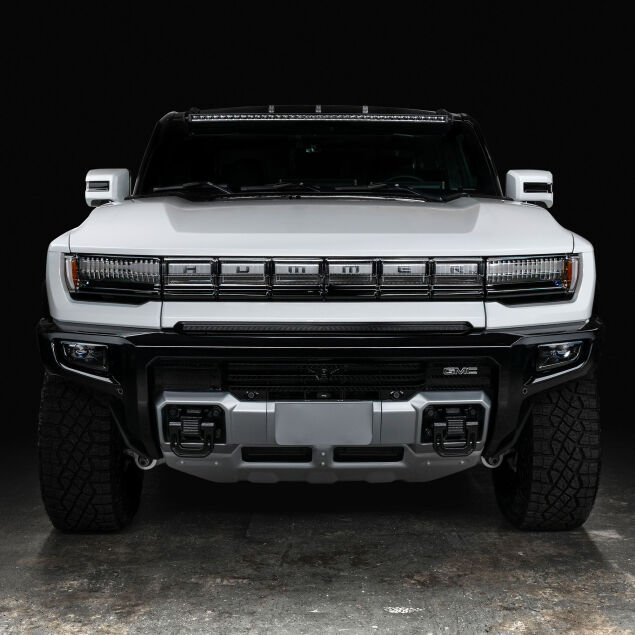

The ORACLE 50" Roof Mount Curved Light Bar w/Brackets is designed specifically for 2022–2025 Hummer EV owners who want a powerful roof-mounted lighting upgrade with clean, vehicle-specific fitment. Unlike a generic roof light bar setup, this system uses a low-profile curved design that follows the windshield line for a more integrated appearance and improved aerodynamics. ORACLE notes that the design helps reduce wind noise and does not block the factory cab clearance lights.

Built for serious forward lighting performance, this system produces 22,200 raw lumens, 18,800 effective lumens, and 252W total output. The 50-inch curved bar uses 36 x 7W main LEDs with precision reflector-facing technology to optimize usable light output and deliver long-range visibility from the roofline.

The driving beam pattern is engineered for distance and usable spread, with a 50-degree driving beam, 5500K–6000K color temperature, 16A draw at 12V DC, and maximum projection rated at 1 lux at 460 meters. This makes the system well suited for off-road driving, overlanding, rural visibility, worksite use, and nighttime trail navigation.

For added function and style, the system includes selectable amber or white clearance lights. These can be wired to factory AUX switches, parking lights, a DRL circuit, or left disconnected if the clearance feature is not needed. The system is also designed so it does not interfere with hardtop removal.

Durability features include a polycarbonate outer housing, 6030 aluminum lamp housing, plated polycarbonate reflector, Lexan polycarbonate lens, polyester powder coat finish, stainless steel anti-fog breather valves, molded IP68 waterproof connectors, and an IP69 ingress protection rating. ORACLE also lists under-voltage, over-voltage, reverse polarity protection, electronic thermal management, and a 50,000+ hour LED lifespan.

Whether you're building a trail-ready Hummer EV, adding long-range roofline lighting, or upgrading your truck with a low-profile auxiliary light system, the ORACLE 50" Roof Mount Curved Light Bar w/Brackets delivers powerful performance with a clean, application-specific design. Now Available at LEER!

Features & Specifications

Product Type: Roof mount curved LED light bar with brackets

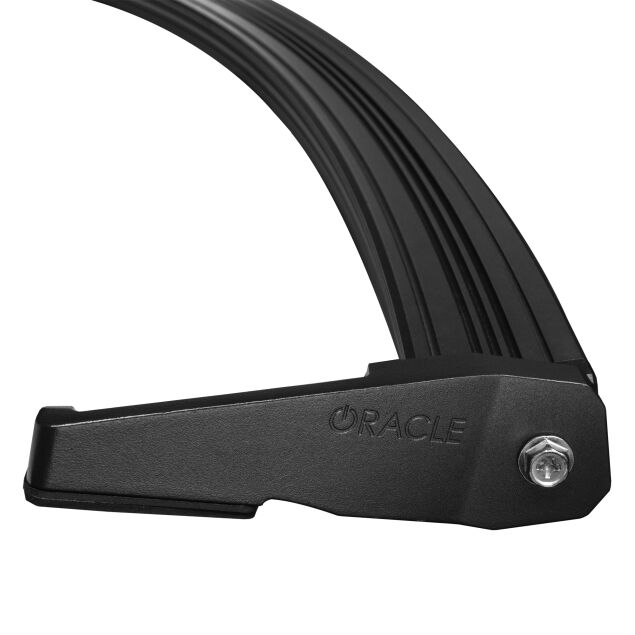

Material: Polycarbonate outer housing, 6030 aluminum lamp housing, plated polycarbonate reflector, Lexan polycarbonate lens, cast aluminum brackets
Finish Options: Polyester powder coat light bar finish with black powder coat brackets
Mounting Type: Roof-mounted light bar with factory roof rack mounting position installation
Fitment: Vehicle-specific 2022–2025 Hummer EV applications

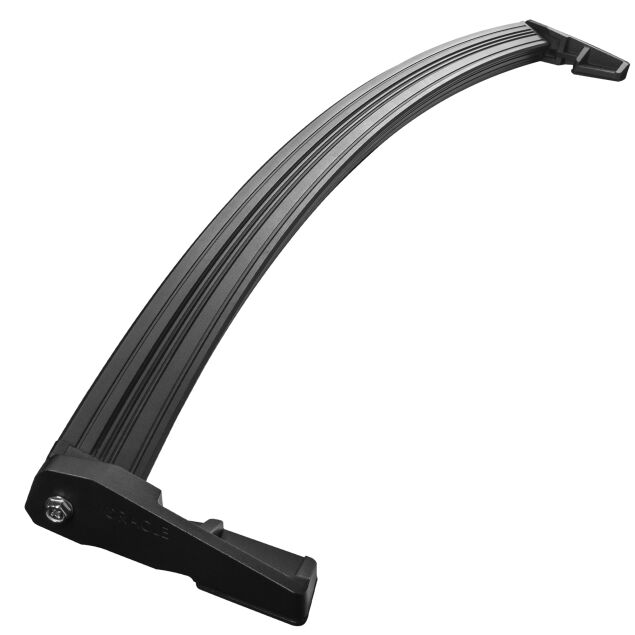

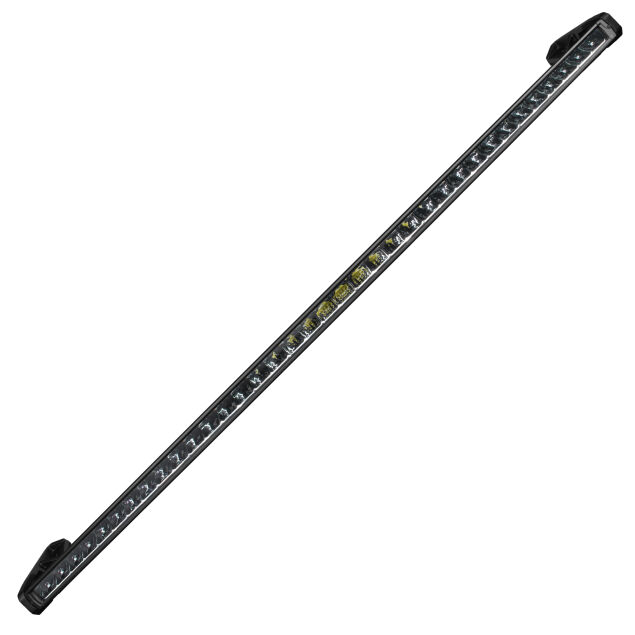

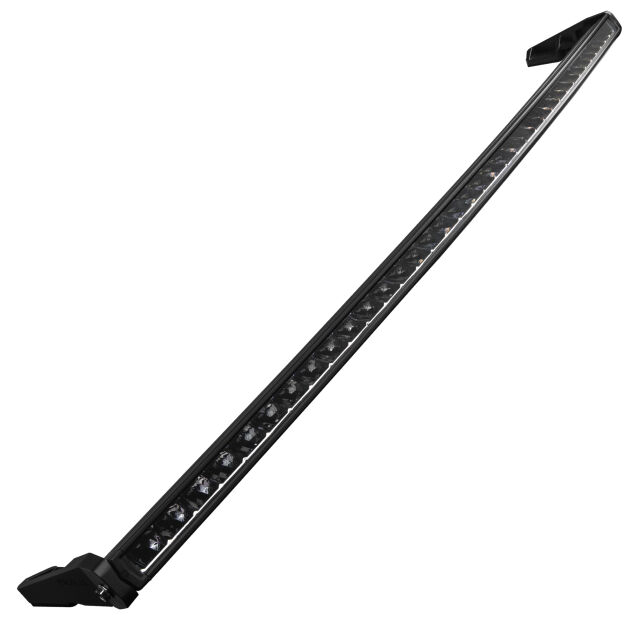

Design: Low-profile 50-inch curved roof light bar with CAD-designed brackets and integrated selectable clearance lights
Key Dimensions: 50-inch curved light bar
Functionality:

• 22,200 raw lumens
• 18,800 effective lumens
• 252W total wattage
• 36 x 7W main LEDs
• 16A draw at 12V DC
• 50-degree driving beam
• 1 lux projection at 460 meters
• 5500K–6000K color temperature

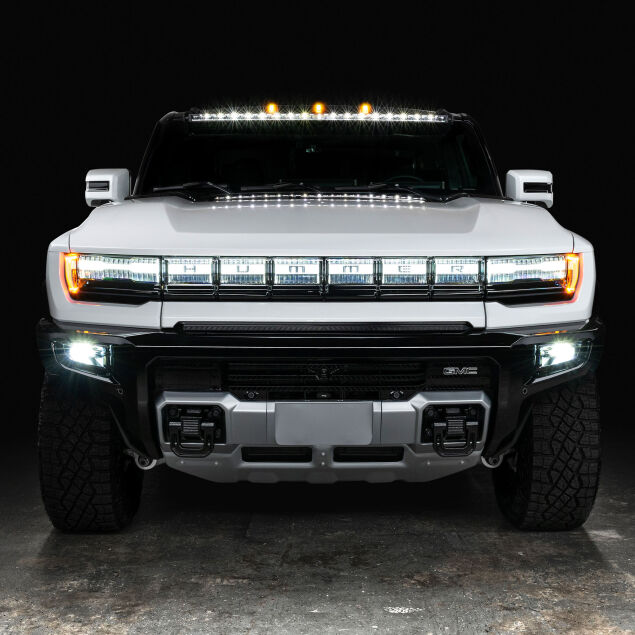

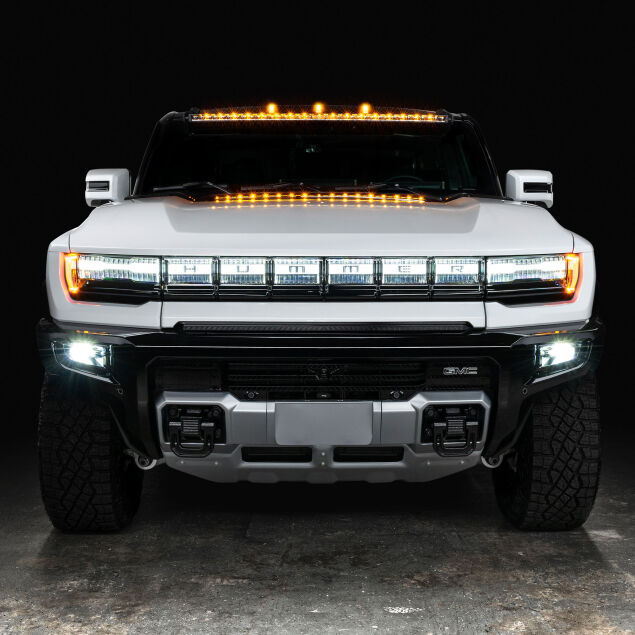

• Selectable amber or white clearance lights

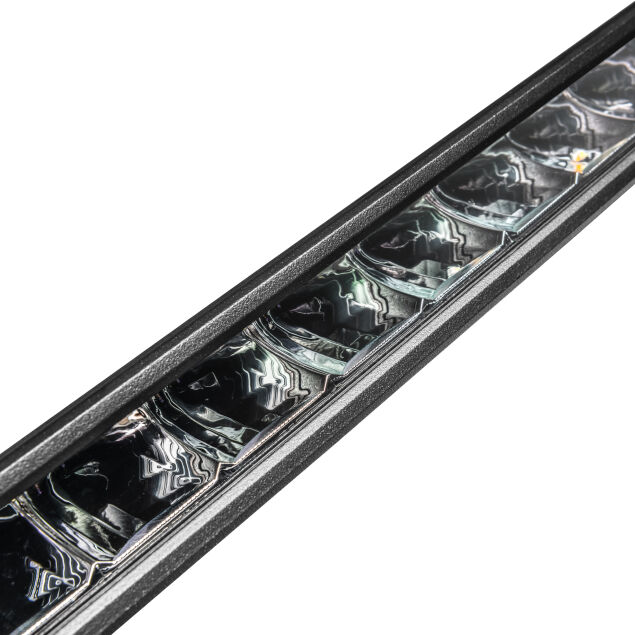

• Precision reflector-facing technology
• Electronic thermal management
• Under-voltage, over-voltage, and reverse polarity protection
• Molded IP68 waterproof connectors
• IP69 ingress protection rating
• 50,000+ hour LED lifespan
• Low-profile aerodynamic roof mounting
• Factory cab clearance light visibility maintained
• Hardtop removal compatibility

Available Options

The ORACLE 50" Roof Mount Curved Light Bar w/Brackets is available in:

Vehicle Fitments:

• 2022–2025 Hummer EV

Finish Options:

• Black powder coat brackets
  Polyester powder coat light bar finish

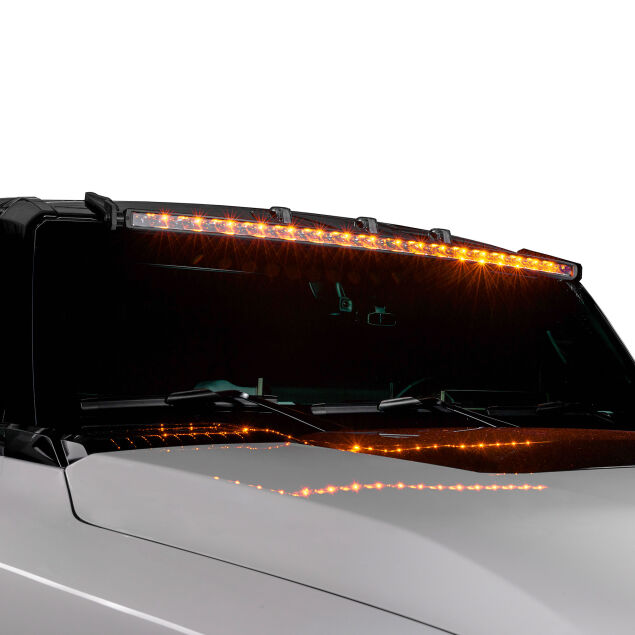

  Selectable amber or white clearance lights

Configurations:

• 2022–2025 Hummer EV 50" Roof Mount Curved Light Bar w/Brackets, ORACLE Part #6923-023

Choose this system for a vehicle-specific Hummer EV roof light bar setup with low-profile mounting, long-range output, and selectable clearance light functionality.

Why Choose ORACLE 50" Roof Mount Curved Light Bar w/Brackets?

This product is ideal for Hummer EV owners who want a high-output roof light bar with cleaner fitment than a universal setup.

• Curved 50-inch design follows the Hummer EV windshield line
• 22,200 raw lumens deliver powerful long-range visibility

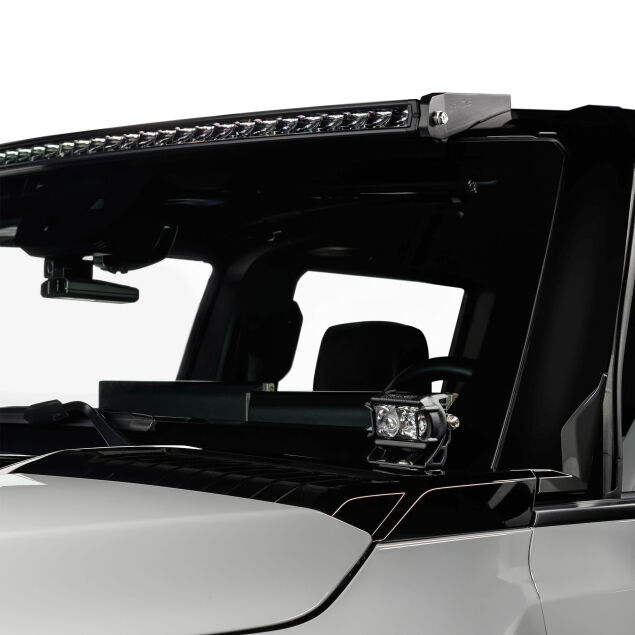

• Low-profile brackets help reduce wind noise and improve appearance
• Selectable amber or white clearance lights add functional versatility

What’s Included

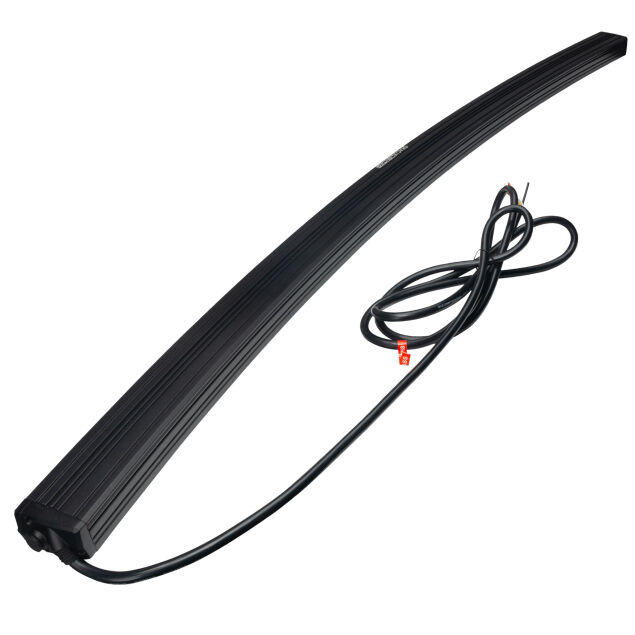

• One 2022–2025 Hummer EV 50" Roof Mount Curved Light Bar
• Two mounting brackets

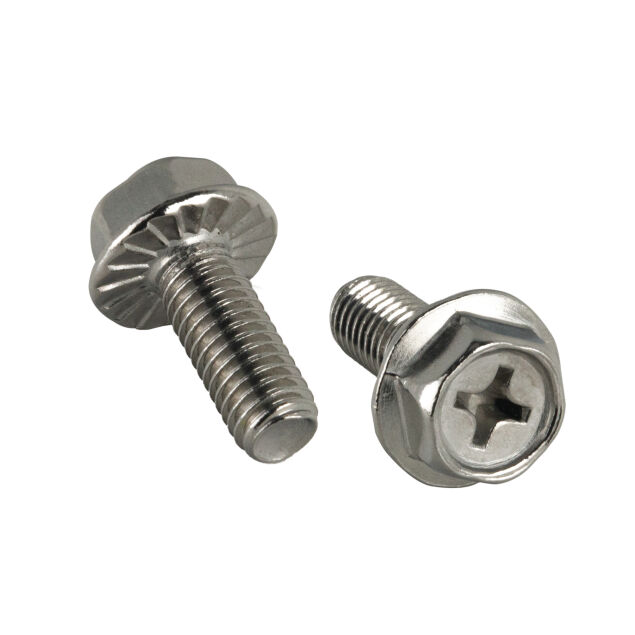

• Mounting hardware

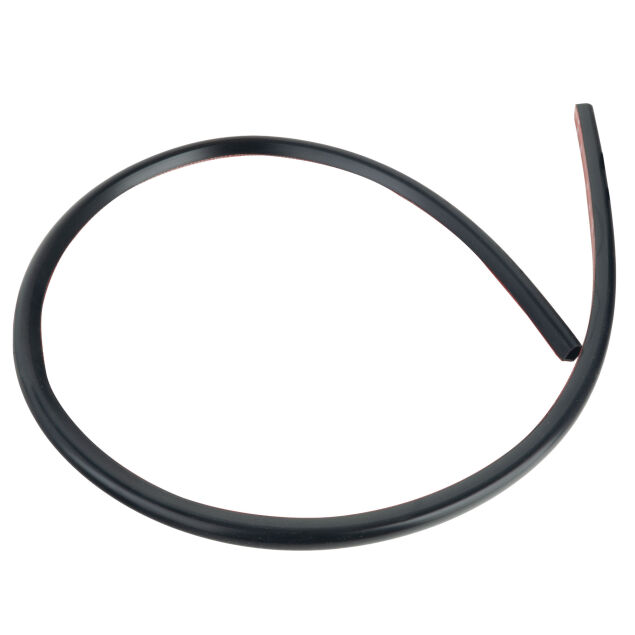

• Weather gasket
• Installation instructions

Installation Notes

• Designed for 2022–2025 Hummer EV applications
• Mounts to factory roof rack mounting positions
• Estimated installation time is approximately 1 hour
• Can connect to factory AUX switches, though extending 16AWG cables may be required
• For vehicles without factory AUX switches, ORACLE recommends Roof Light Bar Switched
• Harness Part #5897-504, TRIGGER 4 PLUS Controller Part #2100, or TRIGGER 6 SHOOTER Controller Part #3001
• Low-profile design does not block factory cab clearance lights
• Designed not to interfere with hardtop removal
• Avoid high-powered car washes with overhead brushes
• Professional installation is recommended for wiring, light alignment, and AUX switch or controller integration
• Verify vehicle year, roof configuration, wiring setup, and intended control method before ordering
• Check local laws before using auxiliary off-road lighting on public roads

Warranty Information

ORACLE Warranty

ORACLE products are backed by a limited warranty, covering defects in materials and workmanship.

1-year warranty coverage listed for the ORACLE 50" Roof Mount Curved Light Bar w/Brackets
Excludes damage from improper installation, misuse, accidents, unauthorized modifications, wiring errors, incorrect voltage use, impact damage, off-road abuse, car wash damage, roof mounting interference, water intrusion caused by improper installation, or normal wear
Proof of purchase required for warranty claims
