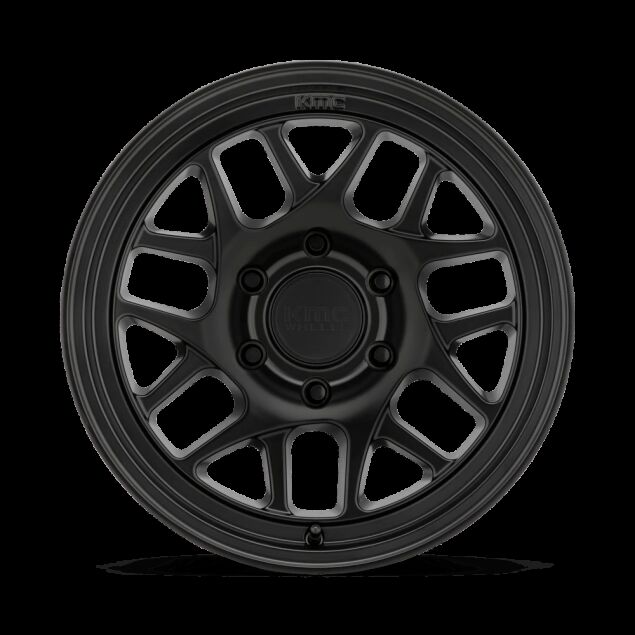

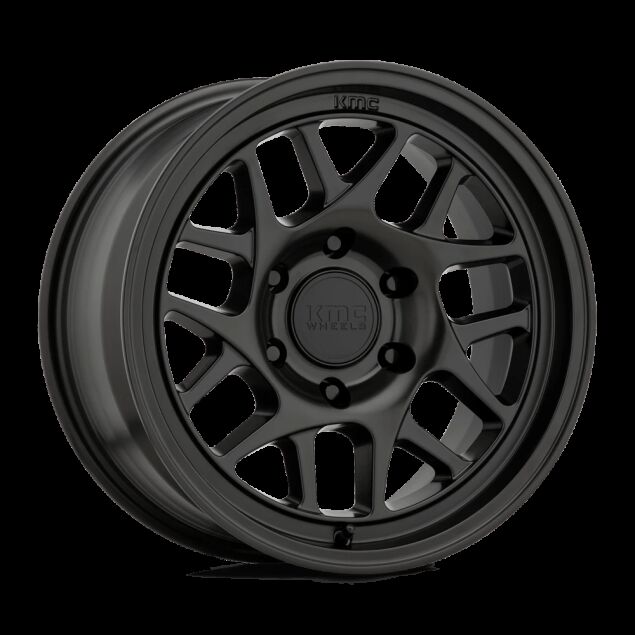

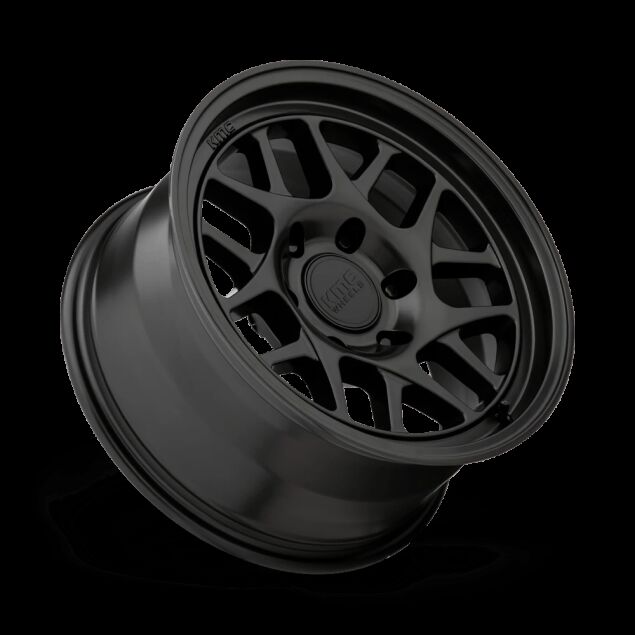

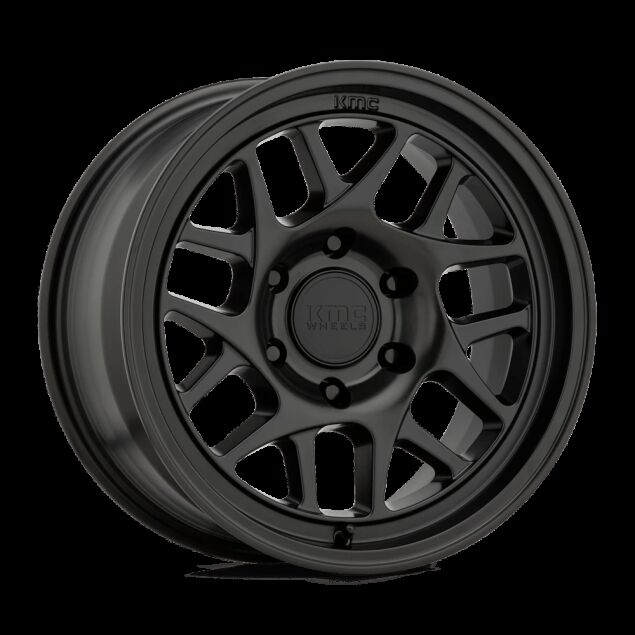

KMC KM717 Bully OL Wheel - Satin Black



The KMC KM717 Bully OL Wheel in Satin Black is made for off-road truck and SUV customers who want a bead retention wheel for customers who spend time beyond pavement. It brings KMC style into a wheel package that can support a clean build, a stronger stance, and a more finished look around the tire. The design feels purposeful without turning the vehicle into a purely show-focused build.

The KM717 Bully OL uses a rugged split-spoke face paired with bead retention technology that helps the wheel look substantial from straight-on and angled views. That visual structure matters because wheels change the way a vehicle sits, even before tires, lift height, or trim details are considered. Customers get a wheel that looks intentional on the vehicle rather than a simple replacement for factory equipment.

The Satin Black finish gives the wheel a clean, dark look that pairs naturally with modern trim, larger tires, and rugged vehicle styling. The finish also helps define the wheel from the tire bead to the center cap, making the spoke shape easier to read on the vehicle. Customers can use it to add contrast, simplify the overall color palette, or reinforce a more custom look.

This wheel uses cast aluminum construction, giving it a practical foundation for trail-focused tire support and rugged stance. Available sizing includes 16x8 in. and 17x8.5 in. with 18 mm offset support. The dimensions let customers choose a stance that fits the vehicle application while keeping the wheel selection tied to real fitment details.

The Bully OL design includes KMC BRS bead retention technology, a 360-degree groove system in the bead seat that helps the tire stay engaged at lower trail pressures. That feature supports customers who air down for off-road traction but still want a wheel that mounts without the exposed hardware of a true beadlock. It gives the KM717 Bully OL a more capable trail personality while keeping the appearance clean.

Whether customers are upgrading for trail driving, overlanding, or stronger off-road stance, the KM717 Bully OL delivers off-road traction confidence with everyday wheel usability. Now Available at LEER!



---



Features & Specifications

Product Type: Aftermarket wheel

Brand: KMC Wheels

Series: KM717 Bully OL

Finish: Satin Black

Construction: Cast aluminum

Wheel Size: 16x8 in. and 17x8.5 in.

Offset: 18 mm

Backspacing: 4.5 to 5.46 in.

Bolt Pattern: 5X127, 6X139.7, 5X150, 6X135, 6X114.3, 6X120, and 5X139.7

Center Bore: 66.06 to 110.1 mm

Load Rating: 2500 lb

Lip Size: 1.39 to 1.43 in.

Center Cap: 1538S01 and 1538S11

TPMS Compatibility: TPMS compatible

Functionality:

• Adds a finished KMC wheel upgrade for truck, SUV, and off-road applications.
• Helps change vehicle stance through application-matched size, offset, and bolt pattern selection.
• Uses the Satin Black finish to support a cleaner, more customized exterior look.
• Pairs well with daily-driven builds that need both style and practical fitment discipline.
• Supports trail use with bead retention grooves that help grip the tire bead at lower pressures.
• Offers an off-road look without the exposed hardware profile of a true beadlock wheel.
• Keeps the final appearance clean with a matching KMC center cap.



---



Available Options

The KM717 Bully OL in Satin Black is available in multiple configurations:

• Wheel Sizes - 16x8 in. and 17x8.5 in. sizing helps customers match the wheel to the stance, tire package, and vehicle application.
• Fitment Patterns - multiple bolt patterns and center bores are available so customers can match the KM717 Bully OL to supported applications.

Choose larger diameter sizing for more visual presence, or choose smaller diameter sizing for a more tire-forward setup.



---



Why Choose

This product is ideal for customers who want off-road-ready style with fitment-focused KMC design.

• Gives the vehicle a more complete custom appearance without relying on unnecessary exterior changes.
• Provides a recognizable KMC design language that works across daily-driven and enthusiast builds.
• Lets customers match wheel sizing and bolt pattern details to supported vehicle applications.
• Uses the Satin Black finish to create a clear visual direction for the build.
• Supports tire and stance planning when customers are upgrading from factory wheels.
• Keeps the center area clean with a matching cap designed for the wheel.
• Adds bead retention support for lower-pressure trail use without the complexity of beadlock hardware.
• Helps customers build a truck, SUV, or crossover that looks more intentional from every angle.



---



What's Included

• One KMC KM717 Bully OL Wheel in Satin Black
• Matching KMC center cap
• Application-specific wheel specifications matched to the selected option

Note: Confirm included components before installation.



---



Installation Notes

• Confirm wheel diameter, width, bolt pattern, center bore, offset, and brake clearance before installation.
• Use the correct lug hardware, torque procedure, and hub-centric rings when the selected application requires them.
• Check tire size, suspension clearance, fender clearance, and load requirements before driving.
• Air-down use requires careful tire pressure management and inspection before returning to road speeds.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

KMC Wheels warranty coverage includes structural coverage under normal and intended use for the original retail purchaser, with finish coverage identified separately for the wheel finish. Warranty coverage typically requires proper installation, correct maintenance, and proof of purchase.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Finish care, cleaning products, winter exposure, and road chemicals can affect appearance over time, so customers should maintain the wheels with appropriate wheel care practices.
