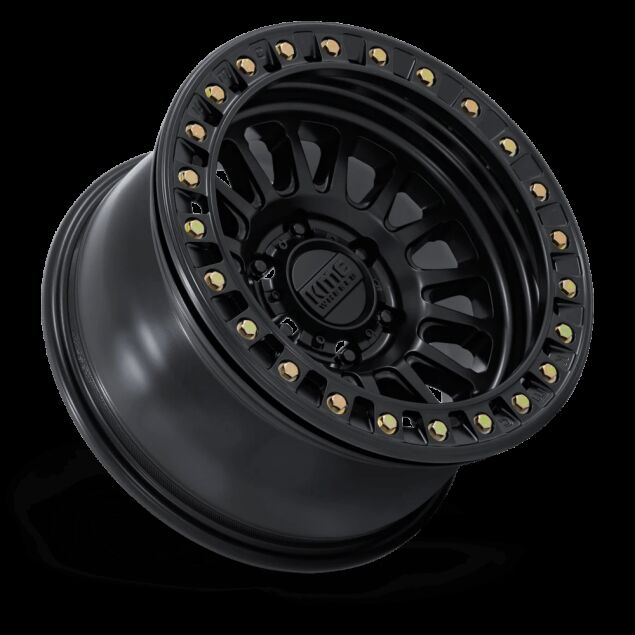

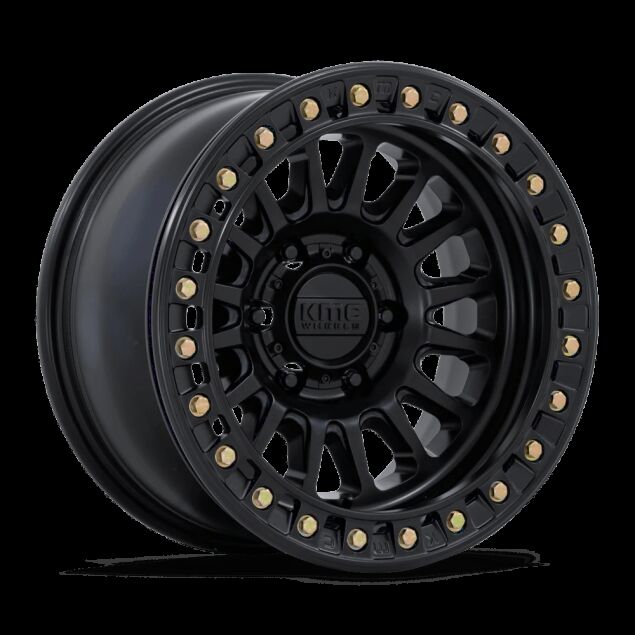

KMC KM239 Impact Beadlock Wheel - Matte Black

The KMC KM239 Impact Beadlock Wheel - Matte Black gives truck and SUV customers a serious wheel upgrade with the stance, finish, and hardware presence expected from KMC off-road design. Built around the KM239 Impact Beadlock platform, it suits customers who want their wheel choice to look intentional on the vehicle rather than simply fill the fender opening. The Matte Black finish helps set the tone of the build while keeping the wheel focused on trail use, tire clearance, and confident vehicle style.

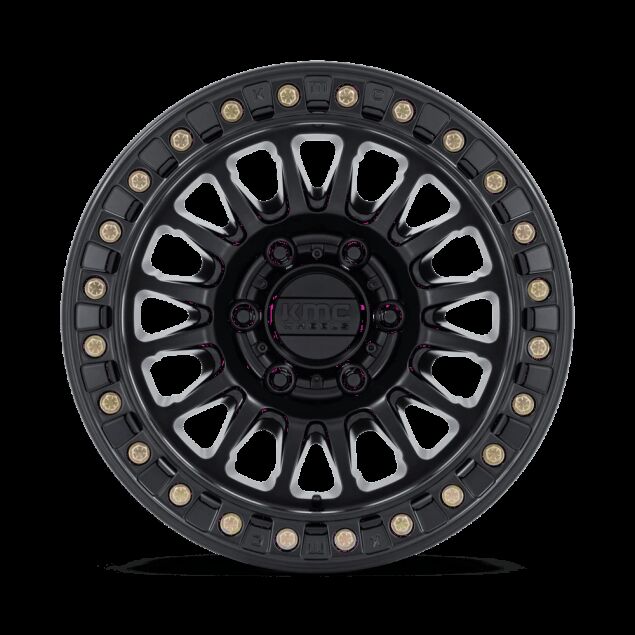

The Impact face uses tightly grouped spokes, a pronounced lip, and cutouts that give the wheel a purposeful trail look while helping the design shed debris quickly. The matte black finish gives the wheel a low-glare, aggressive look that works well with black trim, armor, and off-road tire packages. Customers building around larger all-terrain or mud-terrain tires can use the wheel's size, bolt pattern, and offset choices to create a more purposeful stance without losing sight of proper fitment. The overall shape gives the vehicle visual depth from the side and a more aggressive face from the front corner.

The functional beadlock design is built for low-pressure trail use, helping keep the tire bead locked in when terrain gets rough and tire pressure drops. This matters most when customers leave pavement, lower tire pressure, and need the wheel and tire package to stay predictable over uneven terrain. The design is not just decorative; the wheel's form, ring detail, and fitment range all support the way off-road trucks and SUVs are actually used. For customers who split time between work, travel, and weekend trail driving, the right wheel choice can change both appearance and confidence.

Fitment coverage in this finish includes 17x9 sizing with 9 in width coverage, -38 mm, -12 mm, +1 mm, +25 mm offsets, and 5x127, 6x135, 6x139.7, 8x165.1 bolt pattern coverage. Load rating coverage is 2650 to 4000 lbs, which lets customers match the wheel to a lighter trail build or a heavier truck application when the selected fitment allows. The Cast Aluminum construction gives the wheel a solid foundation, and the 71.5 mm, 87.1 mm, 108 mm, 125.1 mm centerbore coverage helps support vehicle-specific matching when paired with the correct hardware and tire package.

This wheel works best for customers who want a product that looks at home on lifted trucks, trail-ready SUVs, overland builds, and vehicles running more aggressive tire sidewalls. It can support a daily-driven build visually, but true fitment depends on suspension height, tire size, wheel position, brake clearance, and the exact vehicle application. Customers should treat the wheel as part of a complete vehicle setup rather than a standalone appearance change, especially when moving to wider tires or a more aggressive offset.

Whether customers are upgrading for trail driving, off-road traction, overlanding, or a stronger truck stance, the KMC KM239 Impact Beadlock Wheel delivers rugged KMC style with serious wheel hardware. Now Available at LEER!

Features & Specifications

Product Type: True Beadlock Wheel

Brand: KMC Wheels

Series: KM239 Impact Beadlock

Finish: Matte Black

Beadlock: True beadlock design for off-road use

Material: Cast Aluminum

Wheel Size: 17x9

Wheel Width: 9 in

Bolt Pattern: 5x127, 6x135, 6x139.7, 8x165.1

Offset: -38 mm, -12 mm, +1 mm, +25 mm

Backspacing: 3.5 in, 4.53 in, 5.04 in, 5.98 in

Centerbore: 71.5 mm, 87.1 mm, 108 mm, 125.1 mm

Load Rating: 2650 to 4000 lbs

Vehicle Fitment: Truck, Jeep, and off-road SUV applications; verify vehicle, trim, brake clearance, wheel position, tire size, and suspension setup before ordering

TPMS: TPMS-compatible

Warranty: lifetime structural warranty, one year finish warranty

Functionality:

• Supports aired-down off-road traction with true beadlock tire retention.
• Gives trail vehicles a technical multi-spoke appearance with a deep outer lip.
• Uses cutout details that help move debris away from the wheel face.
• Covers 5-lug, 6-lug, and 8-lug applications when matched by fitment.
• Offers several offset choices for stance, clearance, and tire package goals.
• Works with TPMS equipment on compatible vehicles.
• Provides load ratings that support both lighter and heavier truck applications.

Available Options

The KMC KM239 Impact Beadlock Wheel is available in multiple configurations:

• Wheel Size - Choose from 17x9 sizing to match the desired tire sidewall, stance, and brake-clearance needs.
• Offset Range - Offset choices include -38 mm, -12 mm, +1 mm, +25 mm, giving customers room to tune tire position and fender stance when the vehicle application supports it.
• Bolt Pattern Coverage - Bolt pattern coverage includes 5x127, 6x135, 6x139.7, 8x165.1, with final fitment matched by vehicle, wheel position, and hardware requirements.
• Load Rating Coverage - Load rating coverage is 2650 to 4000 lbs, allowing the selected wheel to match the demands of the vehicle application.

Choose the offset and bolt pattern that match the vehicle application, or choose a more aggressive offset when the suspension, tire size, and fender clearance support the stance goal.

Why Choose

This product is ideal for customers who want true beadlock function, aggressive KMC styling, and fitment options for trail-focused trucks and SUVs.

• True beadlock hardware supports low-pressure trail driving.
• The multi-spoke face creates a precise and technical off-road look.
• The deep lip adds visual depth and a more planted stance.
• Debris-shedding cutouts suit mud, sand, rock, and trail environments.
• Multiple load ratings help support different truck and SUV applications.
• The single 17x9 size keeps the wheel focused for popular off-road tire packages.
• The finish gives customers a clear choice between bright machined detail and dark matte style.
• KMC styling helps the vehicle look purpose-built instead of purely decorative.

What's Included

• One KMC KM239 Impact Beadlock Wheel in the selected size, bolt pattern, offset, and Matte Black finish
• Beadlock ring and related hardware when supplied with the selected wheel
• KMC center cap when supplied with the selected wheel
• Manufacturer-supplied wheel packaging and documentation when included

Note: Confirm included components before installation.

Installation Notes

• Confirm fitment by vehicle year, trim, drivetrain, wheel position, tire size, suspension setup, brake clearance, and hub requirements before installation.
• Professional mounting, balancing, and torque procedures are recommended, especially when pairing the wheel with larger all-terrain or mud-terrain tires.
• True beadlock wheels are intended for off-road use, and customers should verify local rules before using them on public roads.
• Beadlock ring hardware should be installed, inspected, and maintained using the correct sequence and torque practices for the selected wheel.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.

Warranty Information

KMC Wheels limited warranty coverage includes protection against structural failure under normal and intended use for as long as the original retail purchaser owns the product. Finish warranty coverage is one year for this wheel finish.

Warranty coverage typically excludes improper installation, misuse, modifications, incorrect hardware, overloading, impact damage outside warranty terms, racing damage, tampering, or non-compliant use. Proof of purchase may be required for warranty claims.
