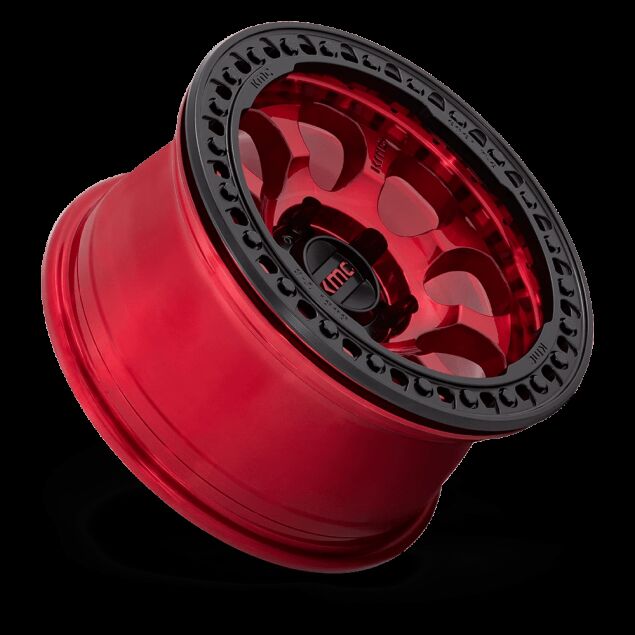

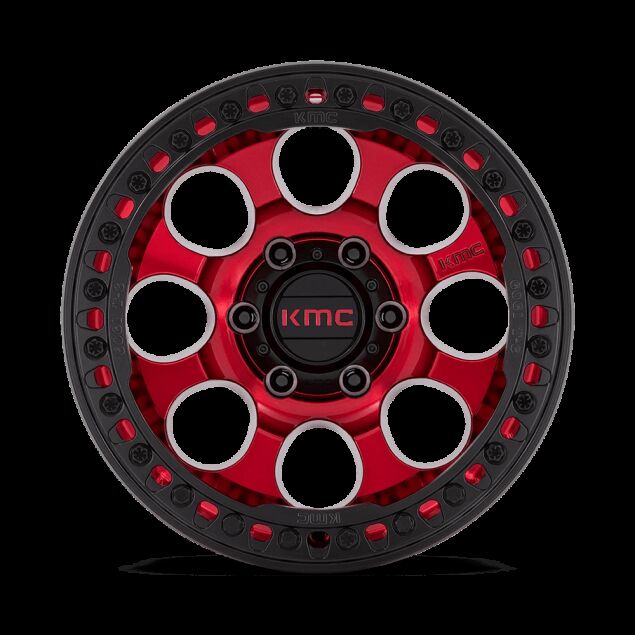

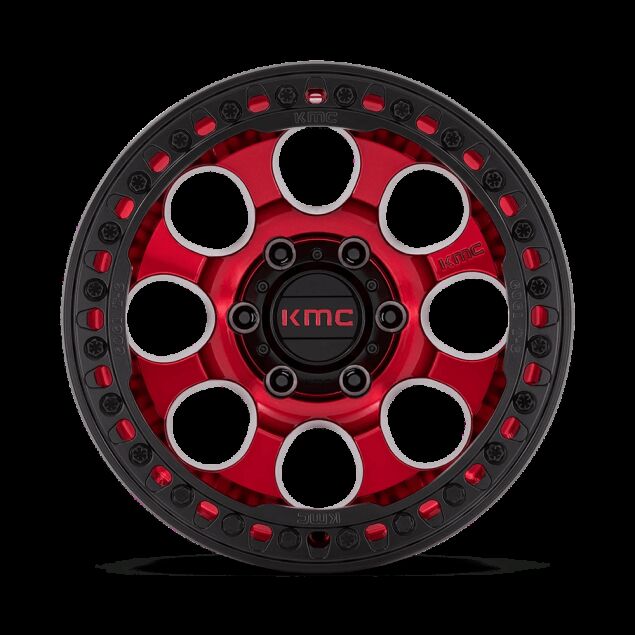

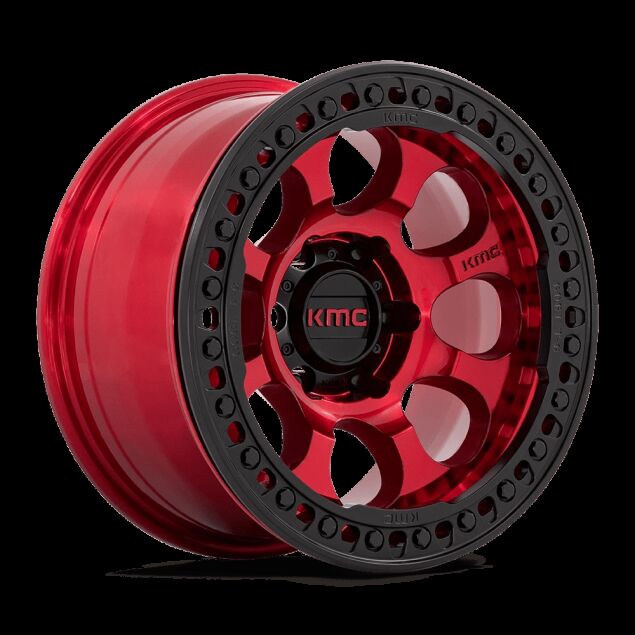

KMC KM237 Riot Beadlock Wheel - Candy Red with Satin Black Ring



The KMC KM237 Riot Beadlock Wheel - Candy Red with Satin Black Ring gives truck and SUV customers a serious wheel upgrade with the stance, finish, and hardware presence expected from KMC off-road design. Built around the KM237 Riot Beadlock platform, it suits customers who want their wheel choice to look intentional on the vehicle rather than simply fill the fender opening. The Candy Red with Satin Black Ring finish helps set the tone of the build while keeping the wheel focused on trail use, tire clearance, and confident vehicle style.

The Riot design balances open round windows with sculpted spoke areas, giving the wheel a rugged look without hiding the depth of the barrel or the beadlock hardware. The candy red finish creates a bold motorsport look, and the satin black ring frames the beadlock hardware with strong contrast. Customers building around larger all-terrain or mud-terrain tires can use the wheel's size, bolt pattern, and offset choices to create a more purposeful stance without losing sight of proper fitment. The overall shape gives the vehicle visual depth from the side and a more aggressive face from the front corner.

The true beadlock construction helps secure the tire bead when customers air down for off-road traction, while the forged 6061-T6 beadlock ring adds a purposeful competition-inspired detail around the outer lip. This matters most when customers leave pavement, lower tire pressure, and need the wheel and tire package to stay predictable over uneven terrain. The design is not just decorative; the wheel's form, ring detail, and fitment range all support the way off-road trucks and SUVs are actually used. For customers who split time between work, travel, and weekend trail driving, the right wheel choice can change both appearance and confidence.

Fitment coverage in this finish includes 17x8.5, 17x9 sizing with 8.5 in, 9 in width coverage, -38 mm, -12 mm offsets, and 6x135, 6x139.7 bolt pattern coverage. Load rating coverage is 2500 lbs, which lets customers match the wheel to a lighter trail build or a heavier truck application when the selected fitment allows. The Cast Aluminum construction gives the wheel a solid foundation, and the 87.1 mm, 108 mm centerbore coverage helps support vehicle-specific matching when paired with the correct hardware and tire package.

This wheel works best for customers who want a product that looks at home on lifted trucks, trail-ready SUVs, overland builds, and vehicles running more aggressive tire sidewalls. It can support a daily-driven build visually, but true fitment depends on suspension height, tire size, wheel position, brake clearance, and the exact vehicle application. Customers should treat the wheel as part of a complete vehicle setup rather than a standalone appearance change, especially when moving to wider tires or a more aggressive offset.

Whether customers are upgrading for trail driving, off-road traction, overlanding, or a stronger truck stance, the KMC KM237 Riot Beadlock Wheel delivers rugged KMC style with serious wheel hardware. Now Available at LEER!



---



Features & Specifications

Product Type: True Beadlock Wheel

Brand: KMC Wheels

Series: KM237 Riot Beadlock

Finish: Candy Red with Satin Black Ring

Beadlock: True beadlock design for off-road use

Material: Cast Aluminum

Wheel Size: 17x8.5, 17x9

Wheel Width: 8.5 in, 9 in

Bolt Pattern: 6x135, 6x139.7

Offset: -38 mm, -12 mm

Backspacing: 3.5 in, 4.53 in, 4.75 in

Centerbore: 87.1 mm, 108 mm

Load Rating: 2500 lbs

Vehicle Fitment: Truck, Jeep, and off-road SUV applications; verify vehicle, trim, brake clearance, wheel position, tire size, and suspension setup before ordering

TPMS: TPMS-compatible

Warranty: lifetime structural warranty, one year finish warranty

Functionality:

• Supports aired-down off-road driving where true beadlock tire retention is desired.
• Adds a deep concave KMC look that works with lifted and trail-built vehicles.
• Pairs a rugged round-hole design with visible beadlock hardware for authentic off-road style.
• Helps customers match tire width, stance, and wheel position through multiple offsets.
• Works with common 5-lug and 6-lug truck and SUV applications when matched correctly.
• Offers TPMS-compatible fitment for modern vehicle builds.
• Provides a strong cast aluminum wheel with a forged beadlock ring for off-road use.



---



Available Options

The KMC KM237 Riot Beadlock Wheel is available in multiple configurations:

• Wheel Size - Choose from 17x8.5, 17x9 sizing to match the desired tire sidewall, stance, and brake-clearance needs.
• Offset Range - Offset choices include -38 mm, -12 mm, giving customers room to tune tire position and fender stance when the vehicle application supports it.
• Bolt Pattern Coverage - Bolt pattern coverage includes 6x135, 6x139.7, with final fitment matched by vehicle, wheel position, and hardware requirements.
• Load Rating Coverage - Load rating coverage is 2500 lbs, allowing the selected wheel to match the demands of the vehicle application.

Choose the offset and bolt pattern that match the vehicle application, or choose a more aggressive offset when the suspension, tire size, and fender clearance support the stance goal.



---



Why Choose

This product is ideal for customers who want true beadlock function, aggressive KMC styling, and fitment options for trail-focused trucks and SUVs.

• True beadlock construction supports low-pressure off-road traction.
• Deep concave styling gives the vehicle a stronger trail-ready stance.
• Round-hole visual details create a classic off-road look with modern KMC shaping.
• Multiple offset choices help fine-tune clearance and tire position.
• The finish adds a distinct appearance without changing the proven wheel design.
• KMC Pro Cap styling completes the wheel with a finished center detail.
• TPMS compatibility helps support modern vehicle wheel upgrades.
• The design suits trail builds, overland rigs, and aggressive weekend vehicles.



---



What's Included

• One KMC KM237 Riot Beadlock Wheel in the selected size, bolt pattern, offset, and Candy Red with Satin Black Ring finish
• Beadlock ring and related hardware when supplied with the selected wheel
• KMC center cap when supplied with the selected wheel
• Manufacturer-supplied wheel packaging and documentation when included

Note: Confirm included components before installation.



---



Installation Notes

• Confirm fitment by vehicle year, trim, drivetrain, wheel position, tire size, suspension setup, brake clearance, and hub requirements before installation.
• Professional mounting, balancing, and torque procedures are recommended, especially when pairing the wheel with larger all-terrain or mud-terrain tires.
• True beadlock wheels are intended for off-road use, and customers should verify local rules before using them on public roads.
• Beadlock ring hardware should be installed, inspected, and maintained using the correct sequence and torque practices for the selected wheel.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

KMC Wheels limited warranty coverage includes protection against structural failure under normal and intended use for as long as the original retail purchaser owns the product. Finish warranty coverage is one year for this wheel finish.

Warranty coverage typically excludes improper installation, misuse, modifications, incorrect hardware, overloading, impact damage outside warranty terms, racing damage, tampering, or non-compliant use. Proof of purchase may be required for warranty claims.
