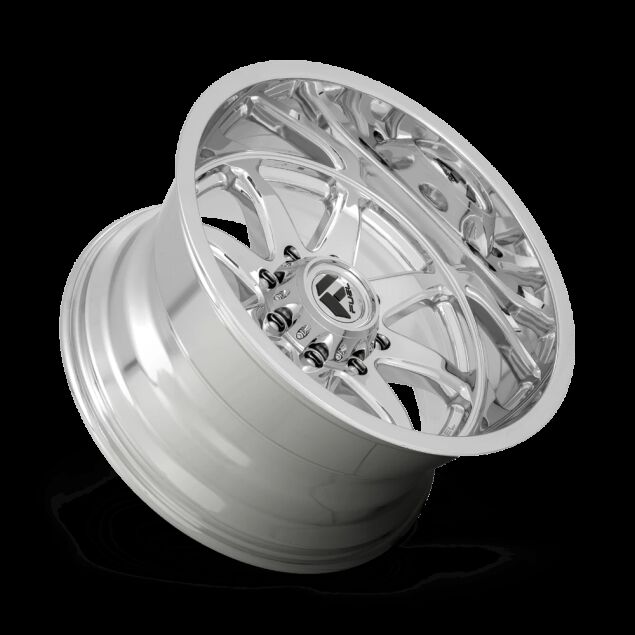

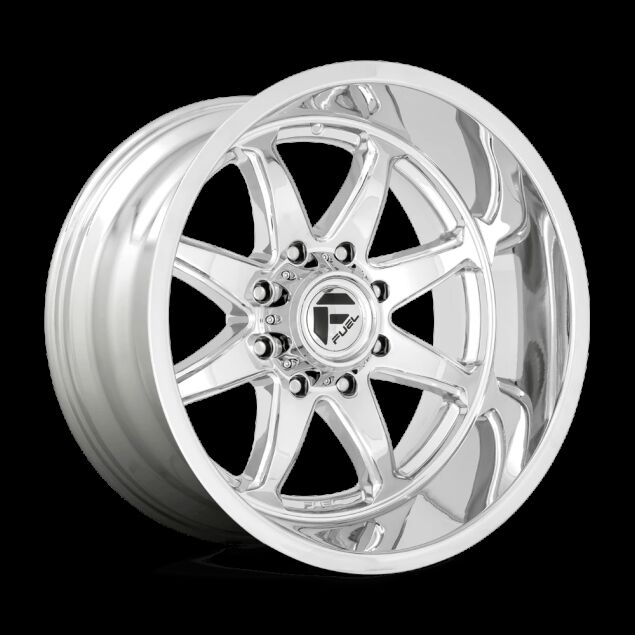

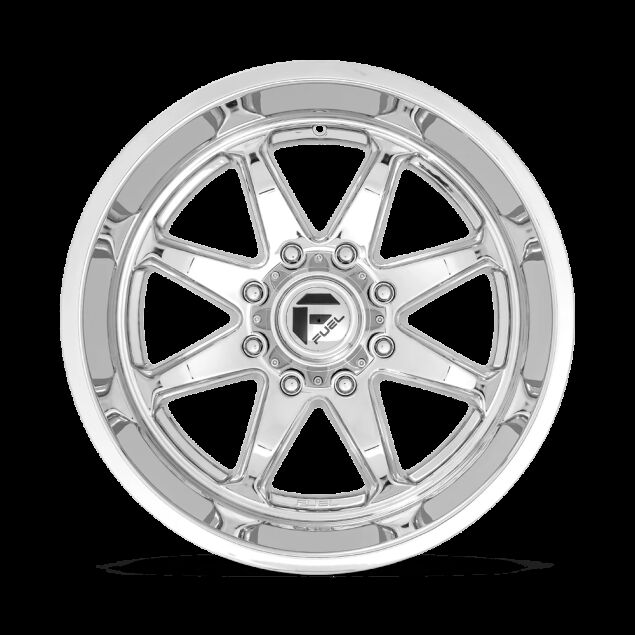

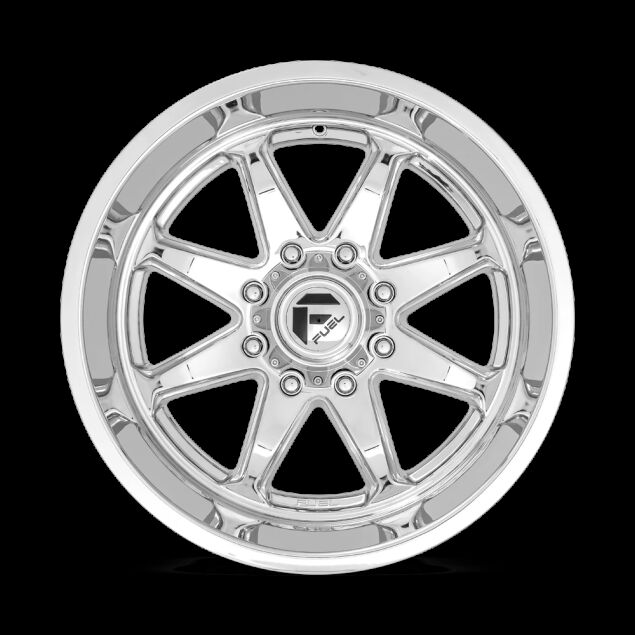

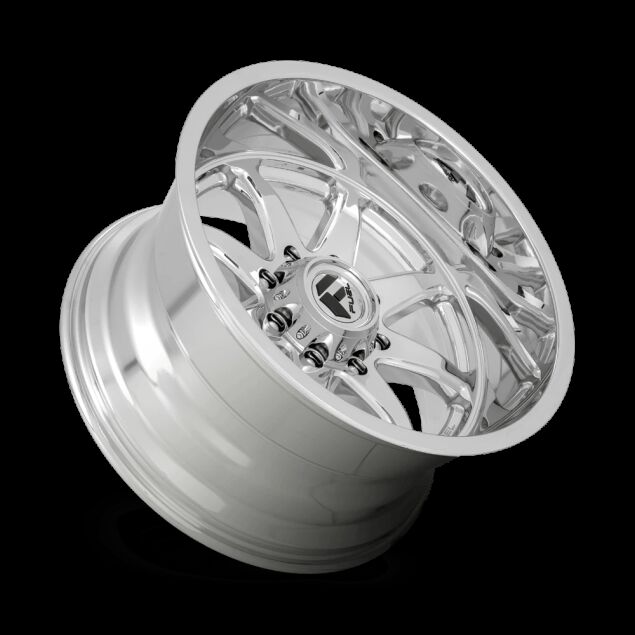

Fuel Hammer Wheel - Chrome

The Fuel Off-Road Hammer Wheel gives truck and SUV customers a bold Fuel Off-Road wheel option with the Chrome finish and a stance-focused design. This wheel family is built for customers who want their vehicle to look more planted, more capable, and more customized without losing the practical fitment choices required for a proper wheel upgrade.

The Hammer design helps transform the side profile of the vehicle with a more aggressive aftermarket presence. Its spoke layout, lip detail, and finish treatment work together to support lifted trucks, leveled daily drivers, tow rigs, overland builds, and SUV projects that need a wheel with real visual impact.

Each configuration in this family uses cast aluminum construction with cast aluminum material. That construction gives customers a durable wheel foundation for everyday driving, weekend trail use, work-truck duty, and appearance-focused builds where strength, fitment, and finish all matter.

This product family includes 20-inch to 22-inch diameter choices and 9-inch to 12-inch width choices, with offset choices of -44, -18, and +1 mm. Those dimensions help customers dial in tire clearance, brake clearance, suspension stance, and the amount of wheel poke or tucked-in fit they want from the final setup.

Vehicle fitment depends on bolt pattern, hub bore, wheel diameter, width, offset, backspacing, tire size, brake package, and suspension setup. Customers should choose the configuration matched to their vehicle application and build goals before installation so the finished wheel and tire package fits, clears, and performs as intended.

Whether customers are upgrading for daily driving, trail-ready style, towing presence, overland builds, larger tires, or a cleaner custom stance, the Fuel Off-Road Hammer Wheel delivers Fuel Off-Road attitude with application-specific fitment choices. Now Available at LEER!

Features & Specifications

Product Type: Aftermarket wheel

Brand: Fuel Off-Road

Series: Hammer

Style Number: D748 HAMMER

Finish: Chrome

Construction: Cast Aluminum

Material: Cast Aluminum

Diameter Options: 20-inch to 22-inch

Width Options: 9-inch to 12-inch

Bolt Pattern Options: 5X150, 6X135, 6X139.7, 8X165.1, 8X170, and 8X180

Offset Options: -44, -18, and +1 mm

Backspacing Options: 4.77, 4.79, and 5.04 inches

Center Bore Options: 87.1, 106.1, 110.1, 124.2, and 125.1 mm

Load Rating: 2500 and 3700 lbs depending on configuration

Metric Load Rating: 1133 and 1678 kg depending on configuration

Lip Depth: 2.33, 3.59, 3.6, and 5.62 inches

TPMS Compatible: Yes

Vehicle Fitment: Configuration-specific fitment for supported truck and SUV applications

Functionality:

• Updates the vehicle stance with a more aggressive aftermarket wheel profile.
• Supports lifted, leveled, and customized truck or SUV builds when properly matched to the vehicle.
• Provides multiple diameter, width, bolt pattern, and offset choices for application-specific fitment.
• Helps customers pair the wheel setup with tire size, suspension height, and clearance goals.
• Cast aluminum construction supports daily use, work use, and recreation-focused builds.
• TPMS-compatible design supports modern vehicle monitoring systems when paired with the correct sensors.
• Finish-specific styling helps the wheel coordinate with blacked-out, chrome, color-accented, or adventure-focused builds.

Available Options

The Fuel Off-Road Hammer Wheel is available in multiple fitment and stance configurations:

• Wheel Diameter and Width: Choose from 20-inch to 22-inch diameter choices and 9-inch to 12-inch width choices to match the customer's tire package, ride height, and desired sidewall profile.
• Bolt Pattern: Select the bolt pattern matched to the supported vehicle application. Available bolt pattern choices include 5X150, 6X135, 6X139.7, 8X165.1, 8X170, and 8X180.
• Offset and Backspacing: Offset choices of -44, -18, and +1 mm and backspacing choices of 4.77, 4.79, and 5.04 inches help determine stance, clearance, and how the wheel sits in relation to the fender.
• Center Bore and Load Rating: Center bore and load rating vary by configuration, with load ratings of 2500 and 3700 lbs depending on configuration. Choose the version matched to the vehicle and intended use.

Choose the configuration that matches the vehicle bolt pattern first, then confirm diameter, width, offset, backspacing, hub bore, tire clearance, and load requirements before installation.

Why Choose

The Fuel Off-Road Hammer Wheel is ideal for customers who want a wheel upgrade that combines Fuel Off-Road styling with application-focused fitment choices.

• Distinct Hammer styling gives the vehicle a stronger aftermarket look.
• Chrome finish helps define the appearance of the build.
• Multiple fitment choices support a wide range of truck and SUV applications.
• Offset and backspacing choices help customers tune stance and clearance.
• Cast aluminum construction provides a practical foundation for daily and recreational use.
• TPMS compatibility supports modern vehicle monitoring requirements when installed with compatible sensors.
• Load rating options help customers select a wheel appropriate for the vehicle application.
• LEER makes it easier to shop the wheel family alongside other truck and SUV upgrades.

What's Included

• One Fuel Off-Road Hammer wheel in the chosen configuration.
• Finish and sizing matched to the selected wheel configuration.
• Center cap or cap components may vary by configuration when applicable.
• Vehicle-specific fitment details based on the selected application.
• Lug nuts, valve stems, TPMS sensors, tires, and installation hardware are not confirmed as included unless separately specified.

Note: Confirm included components before installation.

Installation Notes

• Confirm bolt pattern, center bore, offset, backspacing, brake clearance, suspension setup, and tire size before mounting tires or installing the wheels.
• Professional test fitting is recommended before final installation, especially on lifted vehicles, vehicles with oversized tires, or applications with brake and suspension modifications.
• Use proper lug hardware, torque procedures, TPMS components, and re-torque practices according to the vehicle and wheel installer requirements.
• Check for fender, suspension, steering, and inner liner clearance through the full range of steering and suspension travel.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.

Warranty Information

Fuel Off-Road wheel warranty coverage is represented here using the warranty fields confirmed for these wheel configurations: lifetime structural warranty coverage and one-year finish warranty coverage. Coverage terms, exclusions, claim requirements, and remedies may vary by product condition, installation, use, and the manufacturer warranty process.

Warranty coverage typically excludes improper installation, misuse, modifications, incorrect fitment selection, impact damage, racing use, neglect, corrosion from improper maintenance, cosmetic wear outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
