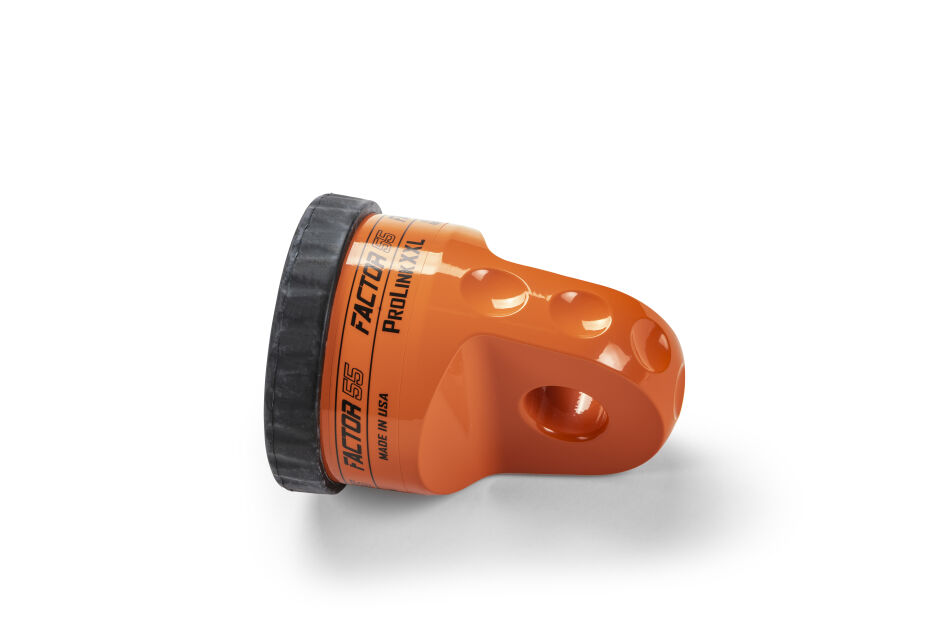

Factor 55 ProLink XXL Orange Winch Shackle Mount brings Factor 55 recovery design to customers who want a stronger, cleaner alternative to a conventional winch hook in a orange finish. This winch shackle mount is built to create a secure shackle-ready line end while keeping the front of the winch setup tidy.
The XXL version scales the ProLink design for larger line diameters, heavier shackles, and more demanding recovery loads. It is built for customers outfitting bigger trucks, expedition rigs, and severe-duty winch systems.
Its larger billet body and oversized titanium pin are built for more demanding recovery hardware, making it a strong fit for bigger front-end winch systems. The selected finish helps the severe-duty design still look polished and intentional on the vehicle.
Whether customers are upgrading a trail rig, refreshing a working recovery setup, or building a cleaner front-end winch package, this Factor 55 hardware is ready for the next pull. Now Available at LEER!
Features & Specifications
Rope Compatibility: Steel cable or synthetic rope up to 1/2 in. diameter
Construction: Billet 6061 aluminum with 3/4 in. titanium double-shear pin
Shackle Compatibility: Works with 3/4 in. and 7/8 in. shackles
Load Rating: 24,000 lbs. max load rating; ultimate failure greater than 63,000 lbs.
Application: Large overland, severe-duty, and military-style recovery systems
Weight: 40 oz.
Finish: Orange
Why Choose
Built for customers who want a more secure, more refined recovery setup.
- Extra-large format supports heavier winch lines and more demanding recovery hardware.
- Closed-link shackle interface helps upgrade severe-duty winch setups.
- Billet-and-titanium construction is designed for high-load environments.
- Finish options help large trucks and expedition builds keep a coordinated front-end look.
What's Included
- One ProLink XXL shackle mount in the selected finish
- EPDM rubber guards
- Titanium pin and snap ring hardware
Please verify the selected winch line, shackle, and vehicle recovery setup before installation.
Installation Notes
- Verify rope diameter, shackle size, and fairlead compatibility before installation.
- Inspect the larger pin hardware and line eye carefully after heavy pulls.
- Use proper recovery procedures and align the winch line with the intended load path.
Customers are responsible for confirming proper installation, compatible recovery hardware, and safe winching practices before use.
Warranty Information
Factor 55 warranty terms are not listed in this page content. Customers should retain proof of purchase and review current Factor 55 warranty guidance for the most up-to-date coverage details.
