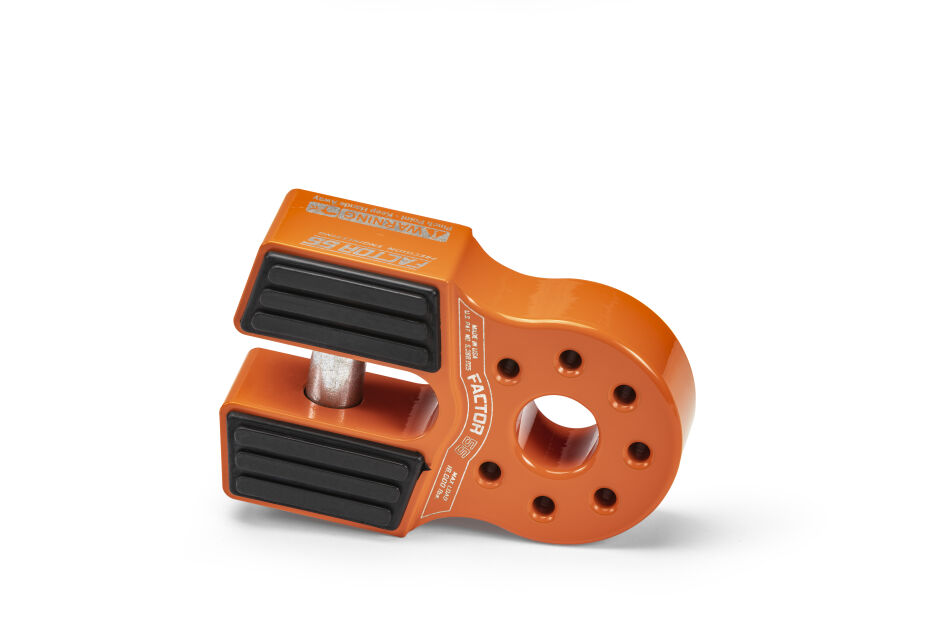

Factor 55 FlatLink Orange Winch Shackle Mount brings Factor 55 recovery design to customers who want a stronger, cleaner alternative to a conventional winch hook in a orange finish. This folding winch shackle mount is built to create a secure shackle-ready line end while keeping the front of the winch setup tidy.
The folding FlatLink design stows neatly against the fairlead, helping reduce protrusion at the front of the vehicle while preserving a quick, trail-ready recovery connection. It is a strong fit for trucks and SUVs that see regular recovery use and want a low-profile line-end upgrade.
Billet aluminum construction, titanium pin hardware, and EPDM rubber guards support long-term durability and a quieter stowed position. The selected finish adds a strong custom look while maintaining compatibility with steel cable or synthetic rope applications up to the rated diameter.
Whether customers are upgrading a trail rig, refreshing a working recovery setup, or building a cleaner front-end winch package, this Factor 55 hardware is ready for the next pull. Now Available at LEER!
Features & Specifications
Rope Compatibility: Steel cable or synthetic winch rope up to 3/8 in. diameter
Construction: Precision-machined 6000 series aluminum with titanium double-shear pin
Profile: Less than 1.75 in. thick when folded flat
Load Rating: 16,000 lbs. max load rating; ultimate failure greater than 40,000 lbs.
Protection: EPDM rubber guards help protect alloy fairleads and reduce rattle
Weight: 23 oz.
Finish: Orange
Why Choose
Built for customers who want a more secure, more refined recovery setup.
- Folding layout delivers a cleaner front-end profile than a conventional winch hook.
- Closed shackle mounting point helps create a more secure recovery connection.
- Quick installation works with steel cable or synthetic rope setups.
- Compact stowage helps protect approach angle when the winch is not in use.
What's Included
- One FlatLink shackle mount in the selected finish
- Integrated rubber guards
- Titanium double-shear pin and internal snap ring
Please verify the selected winch line, shackle, and vehicle recovery setup before installation.
Installation Notes
- Designed for use with steel cable or synthetic rope up to the listed diameter.
- Verify fairlead type, line eye condition, and shackle compatibility before loading the system.
- Inspect pin retention and rubber guards during normal recovery gear service intervals.
Customers are responsible for confirming proper installation, compatible recovery hardware, and safe winching practices before use.
Warranty Information
Factor 55 warranty terms are not listed in this page content. Customers should retain proof of purchase and review current Factor 55 warranty guidance for the most up-to-date coverage details.
