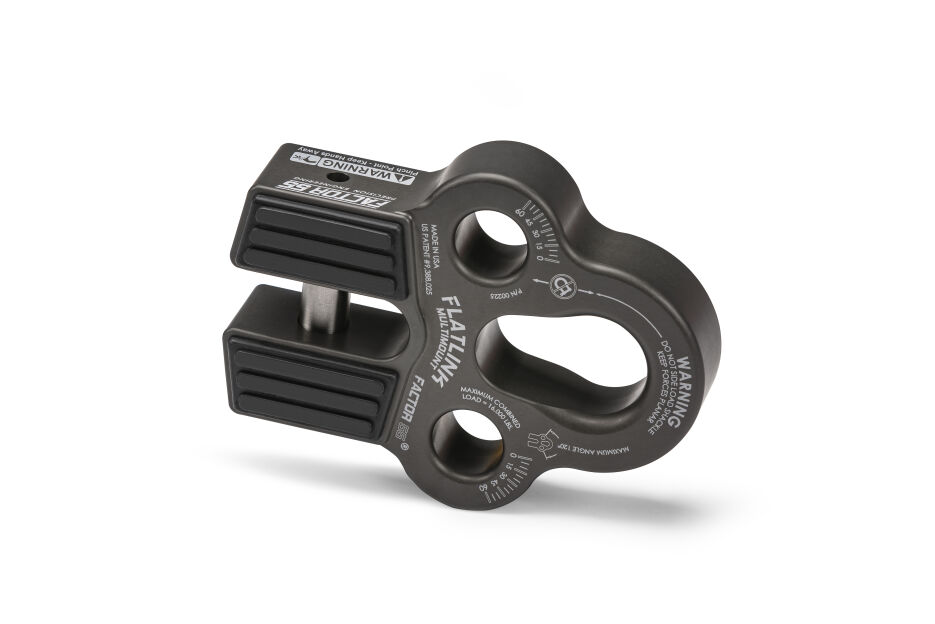

Factor 55 FlatLink MultiMount Gray Winch Shackle Mount brings Factor 55 recovery design to customers who want a stronger, cleaner alternative to a conventional winch hook in a gray finish. This folding winch shackle mount is built to create a secure shackle-ready line end while keeping the front of the winch setup tidy.
The MultiMount layout is designed for difficult off-camber recoveries where pull direction matters. Multiple shackle positions help support bridle-style or angled recoveries while maintaining a secure centered pull option when the job calls for a conventional setup.
Billet aluminum construction, titanium pin hardware, and integrated EPDM pads help this mount stand up to repeated recovery work. The selected finish adds a custom look while the multiple shackle positions bring added control to angled or bridle-style pulls.
Whether customers are upgrading a trail rig, refreshing a working recovery setup, or building a cleaner front-end winch package, this Factor 55 hardware is ready for the next pull. Now Available at LEER!
Features & Specifications
Rope Compatibility: Steel cable or synthetic winch rope up to 3/8 in. diameter
Construction: Precision CNC-machined 6000 series aluminum with 5/8 in. titanium double-shear pin
Profile: Approx. 1.75 in. thick when folded flat
Shackle Compatibility: Common 3/4 in. screw pin shackles plus pin ends of 7/8 in. and 1 in. shackles
Load Rating: 16,000 lbs. max load; 40,000 lbs. ultimate strength
Weight: 32 oz.
Finish: Gray
Why Choose
Built for customers who want a more secure, more refined recovery setup.
- Multiple shackle mounting positions support off-camber and bridle-style recovery setups.
- Fold-flat design keeps the front of the winch setup tidy when stowed.
- No-splice design makes it easier to upgrade a truck or SUV winch line end.
- Heavy-duty billet construction is built for repeated recovery work.
What's Included
- One FlatLink MultiMount shackle mount in the selected finish
- Integrated EPDM rubber pads
- Titanium pin hardware
Please verify the selected winch line, shackle, and vehicle recovery setup before installation.
Installation Notes
- Check shackle size, fairlead clearance, and tow-hook clearance before loading the winch line.
- Keep forces aligned with the intended recovery direction and avoid side-loading the shackle.
- Inspect the pin, snap ring, and line eye regularly for wear.
Customers are responsible for confirming proper installation, compatible recovery hardware, and safe winching practices before use.
Warranty Information
Factor 55 warranty terms are not listed in this page content. Customers should retain proof of purchase and review current Factor 55 warranty guidance for the most up-to-date coverage details.
