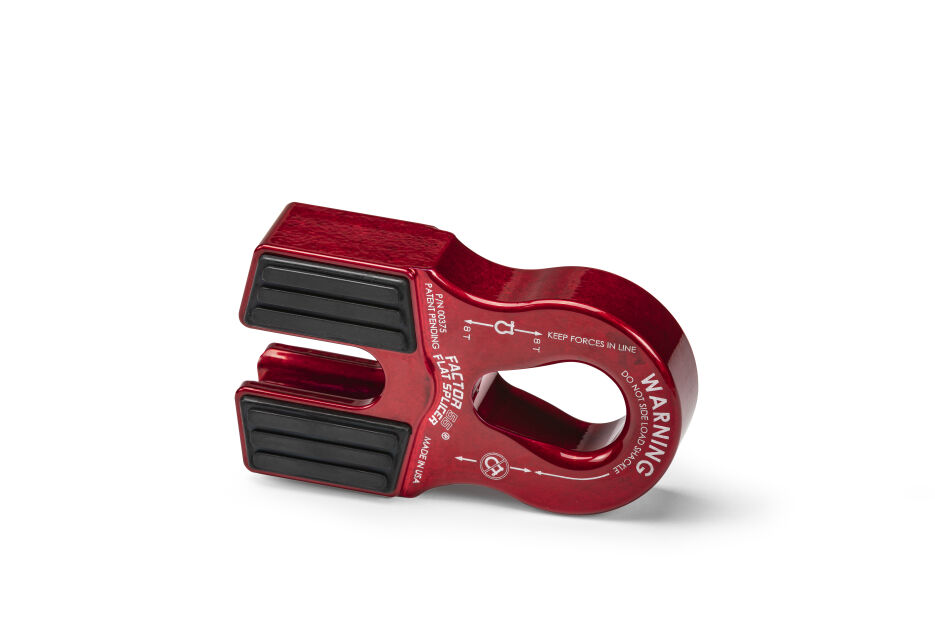

Factor 55 Flat Splicer Red Winch Shackle Mount brings Factor 55 recovery design to customers who want a stronger, cleaner alternative to a conventional winch hook in a red finish. This splice-on winch shackle mount is built to create a secure shackle-ready line end while keeping the front of the winch setup tidy.
The Flat Splicer combines a fold-flat profile with a splice-on design that helps protect the rope end from impact, abrasion, and UV exposure. It is aimed at customers who want a compact front-end profile and who are comfortable with synthetic rope splicing.
Integrated EPDM pads help protect the fairlead, and the selected finish adds a bold custom look to the front of the winch setup. Because it is designed for synthetic rope splicing, it suits customers who want a specialized rope-end solution with full line-end protection.
Whether customers are upgrading a trail rig, refreshing a working recovery setup, or building a cleaner front-end winch package, this Factor 55 hardware is ready for the next pull. Now Available at LEER!
Features & Specifications
Rope Compatibility: Synthetic winch rope up to 1/2 in. diameter
Construction: Precision CNC-machined 6000 series aluminum
Profile: Approx. 1.75 in. thick when folded flat
Shackle Compatibility: Common 3/4 in. screw pin shackles plus pin ends of 7/8 in. and 1 in. shackles
Protection: Integrated EPDM rubber pads help protect fairleads
Weight: 20 oz.
Finish: Red
Why Choose
Built for customers who want a more secure, more refined recovery setup.
- Fold-flat design helps reduce frontal protrusion at the fairlead.
- Machined rope path helps shield the rope end from impact, abrasion, and UV exposure.
- Works with common shackle sizes used in truck and SUV recovery setups.
- Hard anodized and powder-coated finishes add durability and a bold visual finish.
What's Included
- One Flat Splicer shackle mount in the selected finish
Please verify the selected winch line, shackle, and vehicle recovery setup before installation.
Installation Notes
- Requires synthetic rope splicing knowledge before installation.
- Confirm rope diameter, shackle size, and fairlead clearance before use.
- Inspect rope condition and recovery hardware regularly as part of normal maintenance.
Customers are responsible for confirming proper installation, compatible recovery hardware, and safe winching practices before use.
Warranty Information
Factor 55 warranty terms are not listed in this page content. Customers should retain proof of purchase and review current Factor 55 warranty guidance for the most up-to-date coverage details.
