Diode Dynamics Stage Series Light Bar - Standard Mount



Diode Dynamics Stage Series Light Bar gives truck, SUV, UTV, work-vehicle, and custom-build customers adding standard-mount auxiliary lightbars a clean lighting upgrade built around useful output, matched fitment, and a finished appearance that belongs on the vehicle. It is made for customers who want more confidence after dark without turning the front or rear of the vehicle into a cluttered collection of universal parts.

The core benefit is adding scalable LED lightbar output with standard side-mount brackets and a broad range of sizes, beam patterns, color temperatures, and output levels for the vehicle use case. The lighting, hardware, and mounting approach work together so customers get a practical improvement they can feel during poor weather, dark roads, trail use, work-site tasks, or vehicle staging.

Diode Dynamics lighting uses focused optics, sealed construction, and purpose-shaped beam patterns to create usable output instead of scattered glare. The result is a lighting upgrade that looks deliberate and performs with the consistency customers expect from a premium LED system.

The standard-mount Stage Series lineup includes sizes and configurations such as SS6, SS10, SS20, SS30, SS40, and SS50 in the chunk, with white or selective-yellow output and beam patterns including driving, fog, combo, flood, and spot where available. Larger bars can support more advanced output control depending on model.

Standard mounting uses side brackets or matched hardware to position the bar on a bumper, rack, grille opening, bed rack, roof setup, or custom mounting point. A strong mounting panel, clean wiring route, and final beam aiming are critical to getting dependable performance from the finished installation.

Whether customers are upgrading for long-distance visibility, broad trail coverage, overland travel, work lighting, or a complete auxiliary lighting package, the Diode Dynamics Stage Series Light Bar delivers a clean, useful lighting solution with the output, fit, and durability expected from Diode Dynamics. Now Available at LEER!



---



Features & Specifications

Product Type: Standard-mount LED lightbar

Brand: Diode Dynamics

Series: Stage Series

Mounting Style: Standard mount

Available Sizes: SS6, SS10, SS20, SS30, SS40, and SS50 represented in the chunk

Beam Patterns: Driving, fog, combo, flood, and spot depending on selected configuration

Color Temperature: 6000K white or 3000K selective yellow

Intrusion Rating: IP69K waterproof and high-pressure rated on listed configurations

Functionality:

• Adds powerful auxiliary lighting for dark roads, open trails, work sites, and low-light travel
• Uses TIR optics to focus output into beam patterns selected for real driving conditions
• Supports white or selective-yellow output choices depending on the selected lightbar configuration
• Provides beam choices such as driving, fog, combo, flood, and spot on compatible sizes
• Includes backlight capability on supported Stage Series lightbar configurations for accent lighting
• Uses sealed construction with an IP69K waterproof and high-pressure intrusion rating on listed configurations
• Lets customers scale output and size from compact bars to larger forward-lighting setups



---



Available Options

The Stage Series Standard Mount Light Bar is available in multiple configurations:

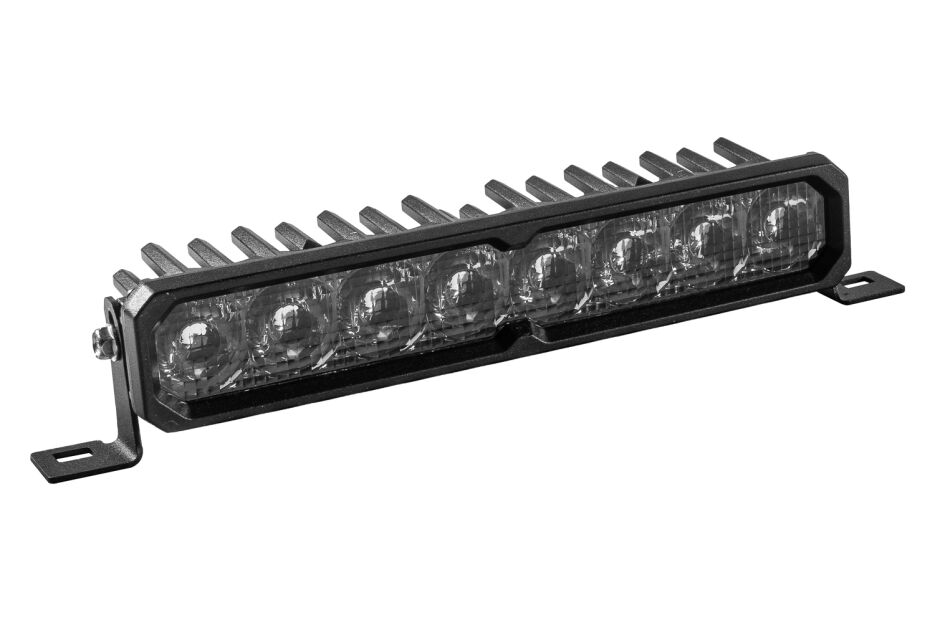

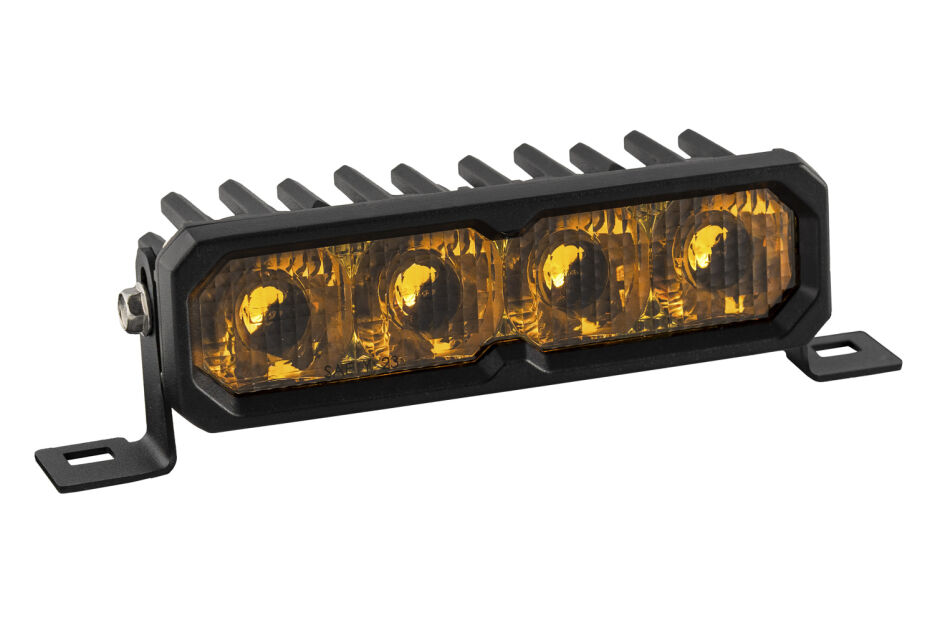

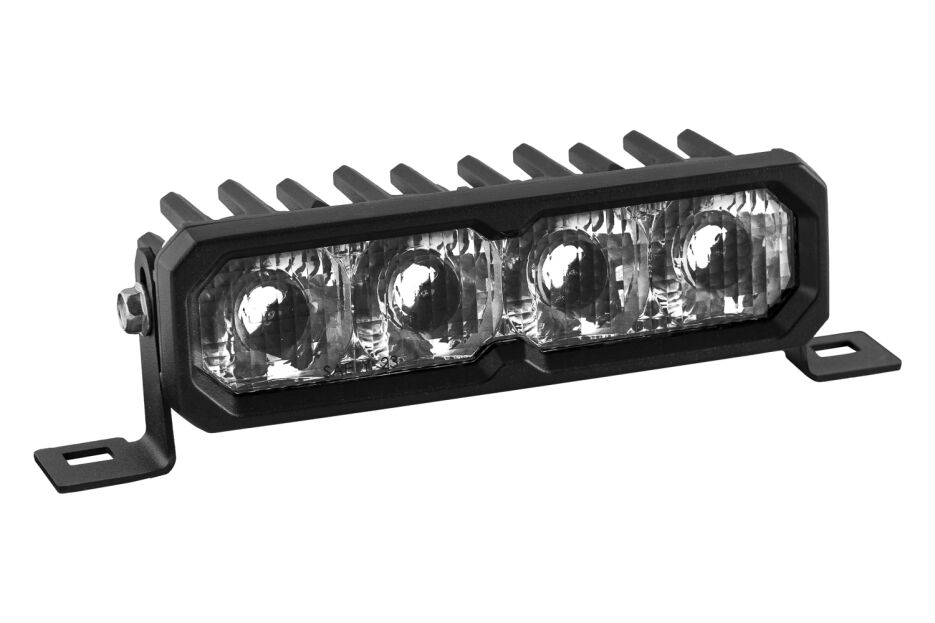

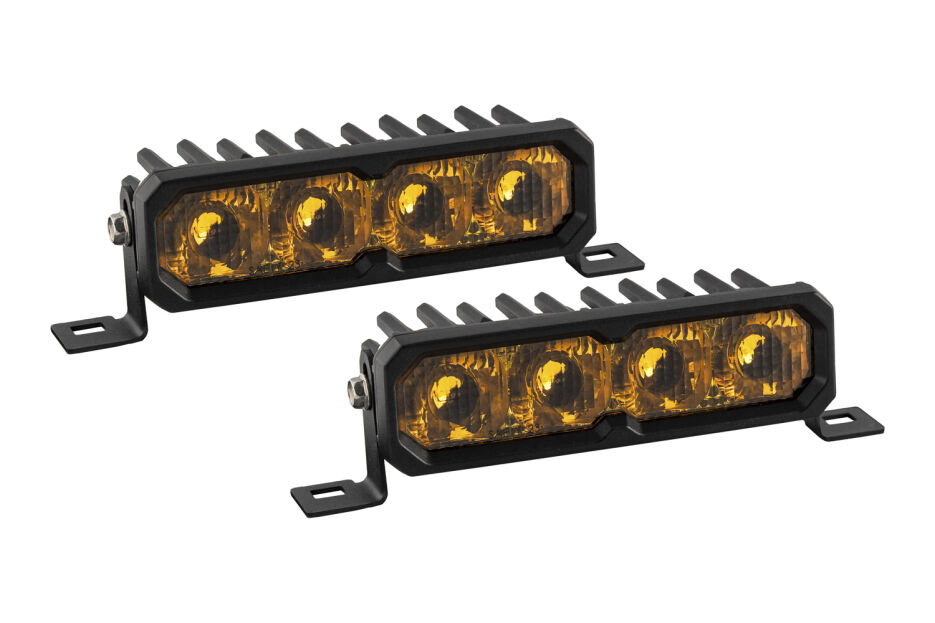

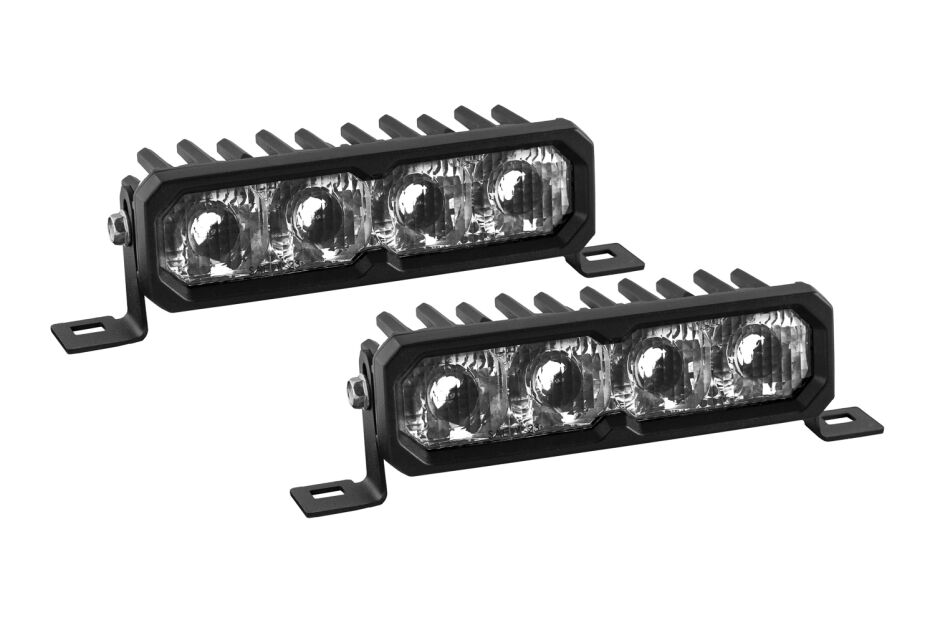

• SS6 -- compact 6-inch lightbar for tight locations and smaller mounting locations
• SS10 -- 10-inch lightbar for grille, bumper, UTV, and shock-mount style applications

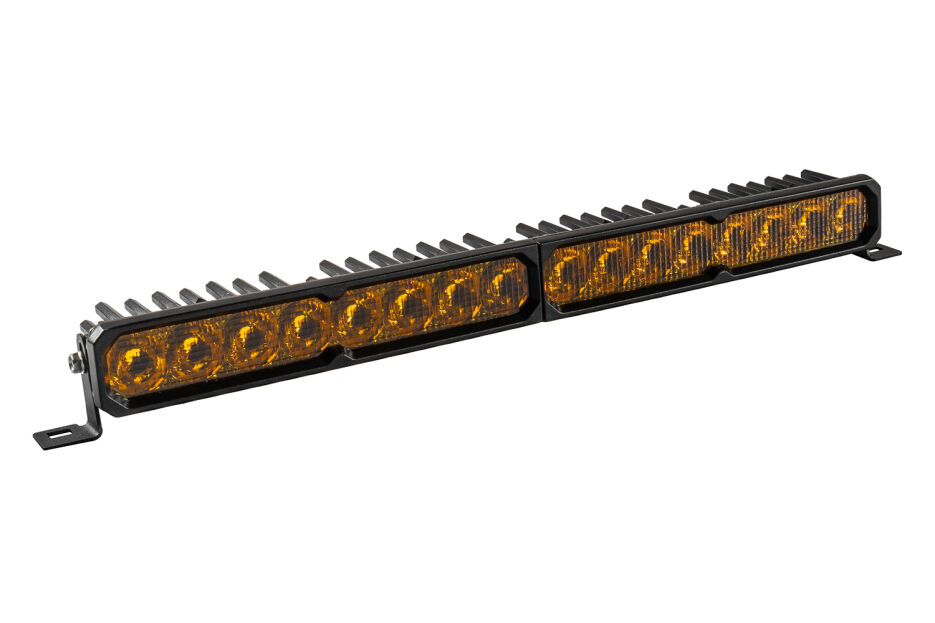

• SS20 -- 20-inch lightbar for balanced front-end lighting
• SS30 -- 30-inch lightbar for wider forward coverage and higher-output builds
• SS40 -- 40-inch lightbar for larger roof, rack, and bumper setups
• SS50 -- 50-inch lightbar for maximum width on compatible full-size lighting builds
• Beam Choices -- driving, fog, combo, flood, and spot patterns depending on the selected size
• Color Choices -- white or selective-yellow output depending on the selected configuration

Choose the size for the mounting location, the beam pattern for the lighting task, and the color temperature for the conditions customers expect to face.



---



Why Choose

This product is ideal for customers who want scalable Stage Series output with standard mounting flexibility.

• Creates a stronger auxiliary lighting system for vehicles used after dark
• Gives customers beam-pattern choices for distance, spread, fog use, or work-area coverage
• Supports different sizes and output levels without changing the overall Stage Series look
• Pairs modern optics with sealed housings for demanding vehicle environments
• Adds a clean lighting upgrade for trucks, SUVs, UTVs, racks, bumpers, and custom mounts
• Provides white and selective-yellow choices to suit appearance and visibility preferences
• Works well for trail builds, overland rigs, work vehicles, and utility-focused setups



---



What's Included

• Stage Series lightbar in the selected size, beam, color, and output configuration
• Standard side-mount brackets or hardware supplied with the selected lightbar
• Wiring components supplied with the selected configuration

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the mounting panel can support the selected lightbar size and weight
• Choose the beam pattern for the intended use and aim the lightbar after installation
• Route wiring through protected paths away from heat, moving parts, and sharp edges

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics limited lifetime warranty support applies to eligible lighting products when they are installed and used within warranty terms. Coverage typically excludes improper installation, misuse, modifications, electrical issues, tampering, impact damage outside warranty terms, or non-compliant use; proof of purchase may be required for warranty claims.
