Diode Dynamics Stage Series C1R/C2R Trailer Wiring Harness

Configuration

7-Pin Dual Output 7-Pin Single Output 4-Pin Single Output

  • Free Shipping

    This product qualifies for free shipping.

  • Fast Fulfillment
  • Military Discount

    For all active, reservist, veteran, and retired U.S. military personnel.

    Verify Military Status


Disclaimer: Product information and images are provided by the manufacturer. While we strive for accuracy, LEER is not responsible for errors, omissions, or discrepancies in manufacturer-supplied-content.

Product Overview



Diode Dynamics Stage Series C1R/C2R Trailer Wiring Harness is built for customers connecting compatible Diode Dynamics C1R or C2R rear lighting to trailer wiring. The harness powers compatible red-feature rear pods and helps them interact with trailer wiring functions for everyday use. It gives customers a cleaner, more integrated way to add useful lighting control or replacement lighting without turning the vehicle into a complicated custom wiring project.

The main value is everyday confidence. When matched with compatible pods, the harness can support red running-light behavior, brake-light functions, reverse-light operation, and compatible strobing features where applicable. Instead of leaving extra lights, lamp assemblies, or accessory wiring feeling unfinished, this upgrade helps the lighting system behave with a polished, intentional feel that belongs on a finished truck, SUV, Jeep, car, or powersports build.

Diode Dynamics designs these components for customers who care about fit, durability, and simple operation. The black wiring and accessory hardware keep the installation looking tidy, while the application-specific or universal layout helps support dependable connections in demanding automotive environments.

These versions let customers match the trailer connector style and output count to the compatible HitchMount or rear pod arrangement. The result is a practical upgrade with differences focused on connection style, mounting location, light function, or vehicle match.

The lineup includes 7-pin dual-output, 7-pin single-output, and 4-pin single-output versions for different rear lighting layouts. Customers should confirm the selected application before installation so the connector style, mounting location, wiring path, and lighting function match the vehicle and the rest of the Diode Dynamics setup.

Whether customers are upgrading for hitch lighting, red rear accent lighting, brake-light visibility, or reverse-light upgrades, the Diode Dynamics Stage Series C1R/C2R Trailer Wiring Harness delivers a practical, well-integrated solution for a cleaner lighting build. Now Available at LEER!





Features & Specifications

Product Type: C1R/C2R trailer wiring harness

Brand: Diode Dynamics

Operating Voltage: 9-16V

Operating Temperature: -40C to 85C (-40F to 185F)

Color: Black

Output Options: 7-pin dual-output, 7-pin single-output, and 4-pin single-output

Functionality:

  • Connects compatible C1R or C2R pods to trailer wiring.
  • Supports rear lighting functions when paired with compatible Diode Dynamics pods.
  • Helps provide a cleaner hitch-area wiring path than custom routing.
  • Offers versions for one-light and two-light rear accessory layouts.
  • Supports selected applications with red accent, brake, and reverse-light behavior.
  • Keeps compatible HitchMount or rear pod installations more organized.
  • Helps customers complete a rear lighting system with parts designed to work together.





Available Options

The Stage Series C1R/C2R Trailer Wiring Harness is available in connector and output options:

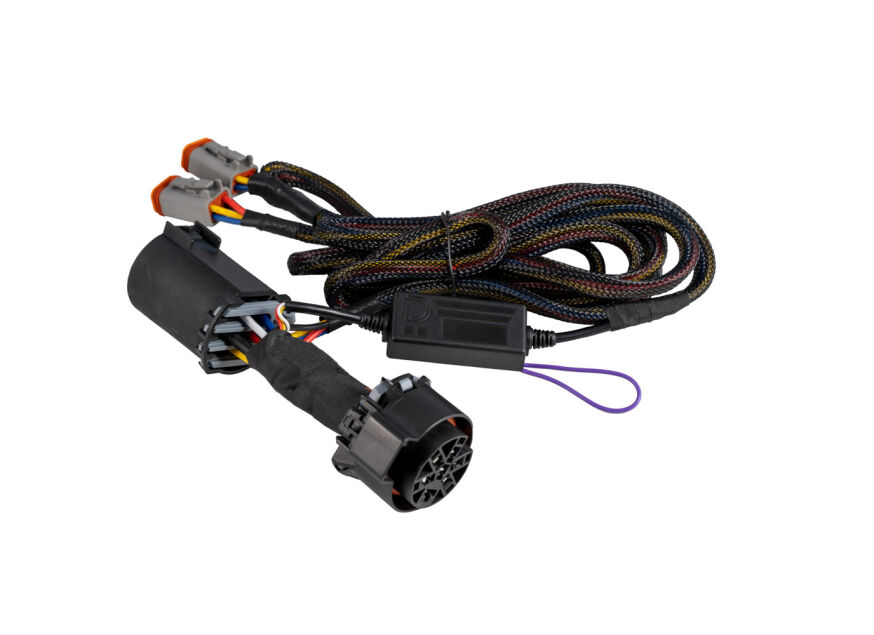

  • 7-pin Dual-Output -- matches compatible paired C1R or C2R pod installations that need two outputs

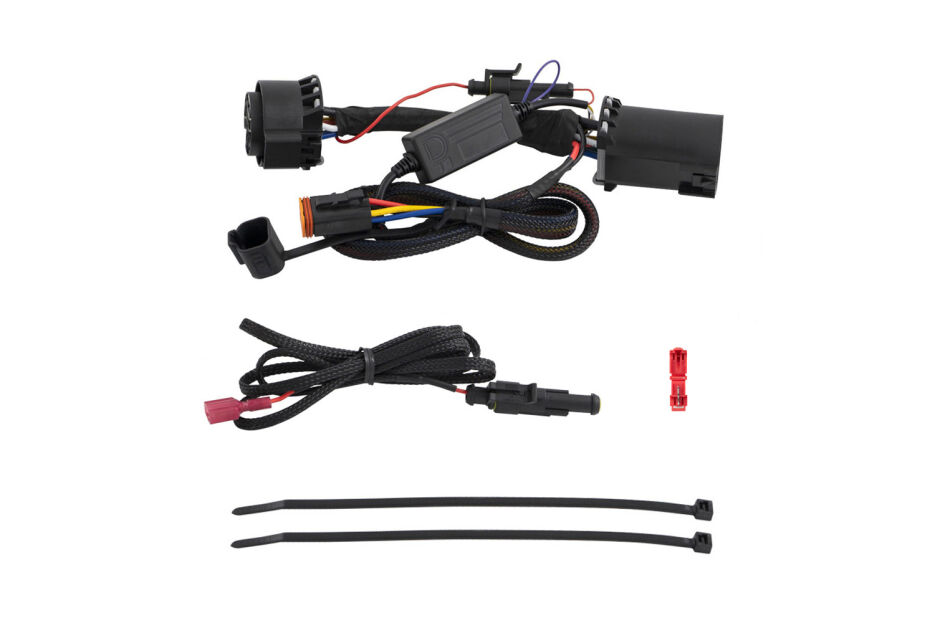

  • 7-pin Single-Output -- matches a compatible single C1R or C2R pod installation using a 7-pin trailer connection

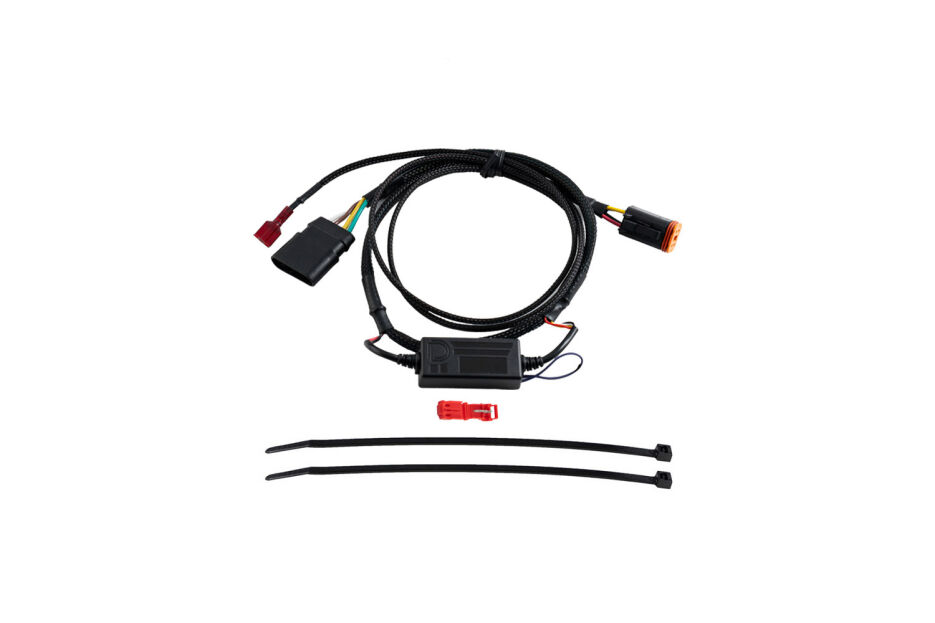

  • 4-pin Single-Output -- matches a compatible single C1R or C2R pod installation using a 4-pin trailer connection

Choose the dual-output harness for paired rear pods, or choose the single-output 7-pin or 4-pin harness for one compatible pod.





Why Choose

This product is ideal for customers who want a purpose-built trailer wiring connection for compatible C1R or C2R rear lighting.

  • Designed for customers who prefer purpose-built wiring over one-off electrical improvisation.
  • Helps reduce exposed wiring and keeps lighting upgrades easier to service later.
  • Useful for truck, SUV, Jeep, and off-road lighting builds that need clean signal or power routing.
  • Pairs with compatible Diode Dynamics lights for a more integrated installation.
  • Keeps connections organized around the selected lighting function.
  • Supports a cleaner final appearance than loose wiring near visible mounting areas.
  • Gives installers a more straightforward starting point for accessory lighting work.





What's Included

  • One C1R/C2R trailer wiring harness

Note: Confirm included components before installation.





Installation Notes

  • Confirm the trailer connector style, pod model, and desired lighting functions before installation.
  • Verify red running, brake, reverse, and strobing functions only where supported by the selected light and harness.
  • Secure the harness away from the hitch, exhaust, suspension, and sharp edges.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.





Warranty Information

Warranty coverage is handled through Diode Dynamics and may vary by product type and application. Coverage typically applies to defects in materials or workmanship under normal use within the stated warranty period for the product.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
