Diode Dynamics SSC1 LED Pod - Flush Mount



Diode Dynamics SSC1 LED Pod - Flush Mount gives customers a very compact LED pod with SAE fog capability, making it a strong choice when a larger auxiliary light would be too bulky. The Stage Series C1 format uses a single-LED housing that is small enough for tight vehicle locations while still delivering a useful fog beam. It works well for customers who want extra visibility without making the front end look crowded.

The flush-mount layout supports clean installation into bumpers, panels, truck beds, and other locations where a recessed appearance matters. Customers can use the pod for fog-light upgrades, auxiliary bumper lighting, motorcycle lighting, UTV lighting, or custom vehicle builds where size and output need to be balanced carefully. The compact housing also helps the light blend into modern truck and SUV styling when a subtle, purposeful upgrade is preferred.

The SSC1 SAE Fog pattern is designed for a wide, low beam that helps light the foreground and road edges. White output gives the pod a crisp modern look that pairs well with factory LED lighting, while selective yellow gives the vehicle a warmer, high-contrast appearance that many customers prefer for rain, snow, dust, and poor-weather use. Single and pair options make the pod easy to match to the project.

A built-in backlight gives the pod a second visual function when the main beam is not active. The accent look can help tie the lighting into the vehicle's styling, especially on custom front-end builds or accessory lighting layouts.

The compact form factor does not eliminate the need for proper installation planning. Customers should confirm mounting clearance, wire routing, switch control, fuse protection, and beam aiming before final installation. Flush versions require careful cutout measurement, while standard-mount versions should be checked for bracket strength, vibration, and aim adjustment once installed.

Whether customers are upgrading for fog-light performance, compact auxiliary visibility, or a cleaner custom lighting layout, the Diode Dynamics SSC1 LED Pod - Flush Mount delivers a small, versatile pod with real vehicle-upgrade value. Now Available at LEER!



---



Features & Specifications

Product Type: Compact LED pod light

Brand: Diode Dynamics

Series: Stage Series C1

Mounting Style: Flush mount

Beam Pattern: SAE Fog

Color Temperature: 6000K white and 3000K selective yellow options

Raw Lumens: 1,980 per pod

Power: Main beam 19.2 watts, backlight 0.3 watt

Operating Voltage: 9-16V

Intrusion Rating: IP69K waterproof, high pressure

Functionality:

• Adds compact SAE fog lighting where a full-size pod or lightbar may not fit.
• Improves low, wide foreground visibility with a purpose-built fog beam pattern.
• Provides an accent backlight alongside the main beam for added visual character.
• Supports white or selective yellow output to suit vehicle styling and poor-weather contrast preferences.
• Uses an integrated Deutsch-style connector for a more professional electrical connection.
• Fits a wide range of auxiliary lighting locations on trucks, SUVs, motorcycles, and UTVs.
• Keeps the lighting package small, clean, and easy to integrate into tight mounting areas.



---



Available Options

The Diode Dynamics SSC1 LED Pod - Flush Mount is available in multiple configurations:

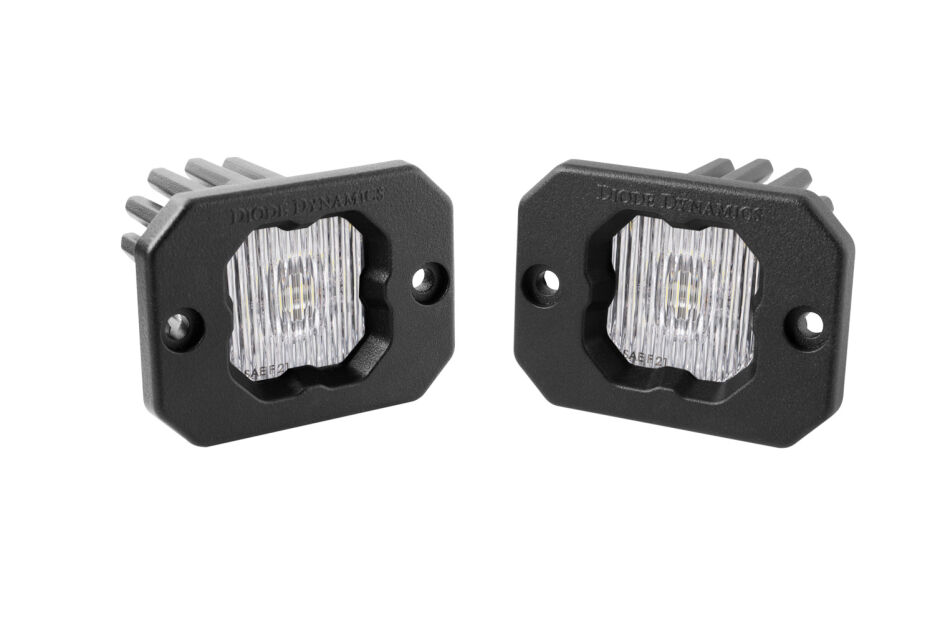

• White SAE Fog Pair -- A pair of cool-white flush-mount SSC1 pods for symmetrical fog-light or auxiliary lighting upgrades.

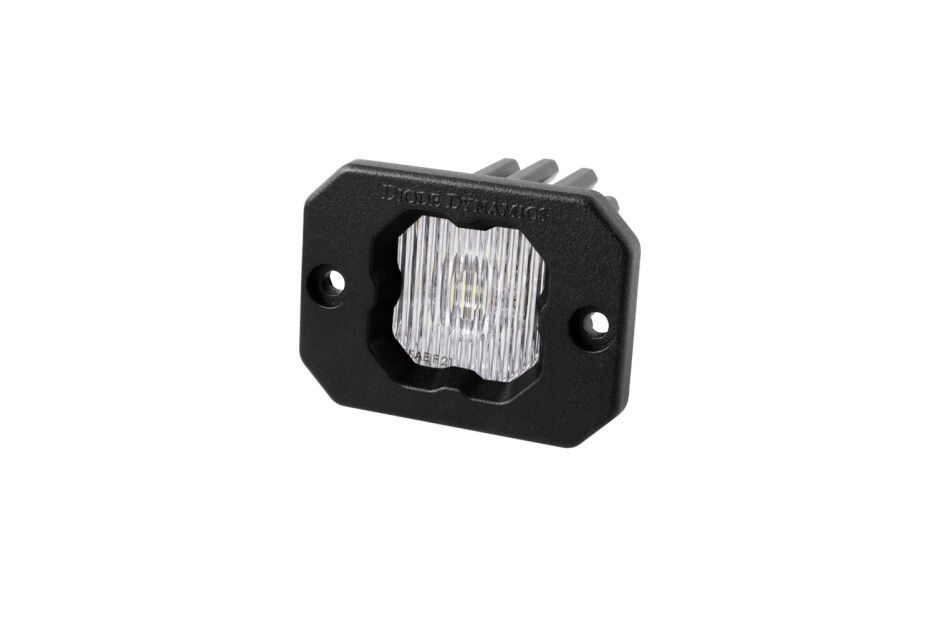

• White SAE Fog Single -- A single cool-white flush-mount SSC1 pod for replacement, custom layouts, or one-sided accessory lighting.

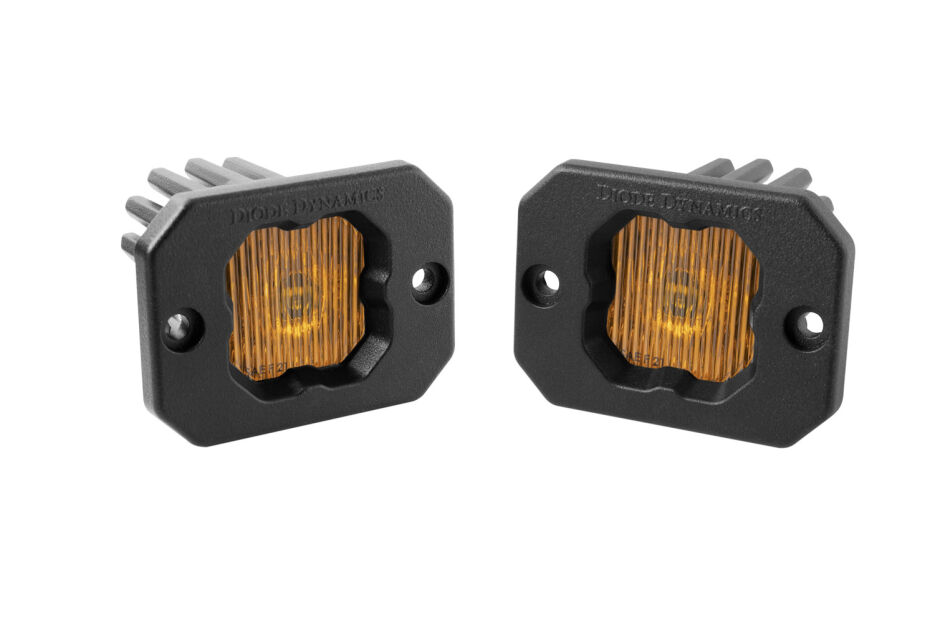

• Yellow SAE Fog Pair -- A pair of selective-yellow flush-mount SSC1 pods for customers who prefer added contrast in poor weather or dusty conditions.

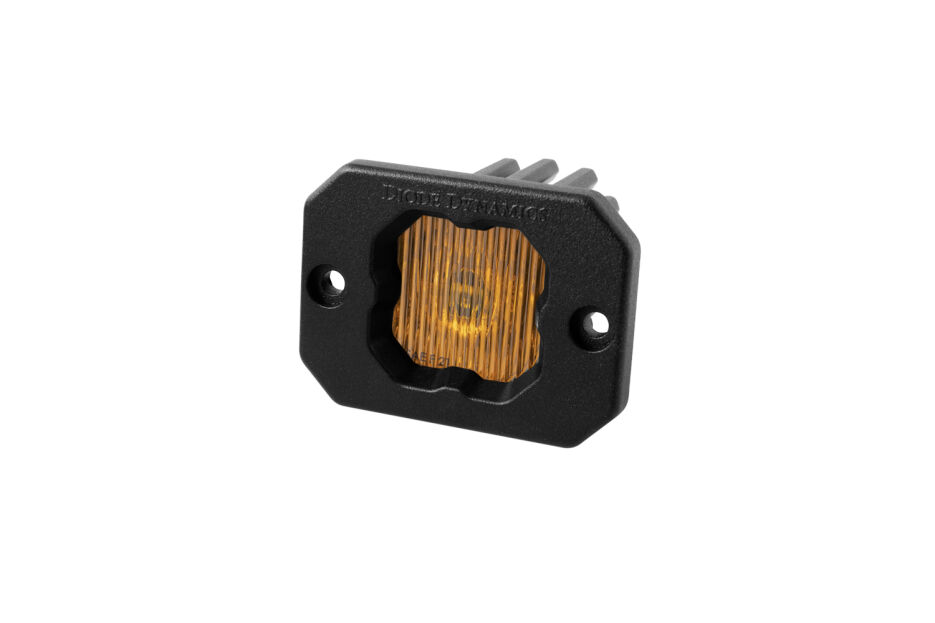

• Yellow SAE Fog Single -- A single selective-yellow flush-mount SSC1 pod for compact custom installations or matching an existing setup.

Choose a pair for a balanced left-and-right lighting upgrade, or choose a single pod for replacement and custom auxiliary lighting needs.



---



Why Choose

This product is ideal for customers who want compact SAE fog lighting with a clean, versatile pod format.

• Small SSC1 packaging fits areas where larger pods can look bulky or interfere with vehicle lines.
• The SAE Fog pattern provides a wide, controlled beam for low foreground visibility.
• White and selective yellow options help match the lighting to vehicle style and weather preferences.
• Backlight functionality adds an accent-light look without requiring a separate accent pod.
• Durable materials and IP69K sealing support demanding outdoor vehicle use.
• Single and pair options make the pod useful for replacement, custom installs, and balanced upgrades.
• The Deutsch-style connection supports a professional wiring approach.



---



What's Included

• Stage Series C1 LED pod or pods in the selected quantity
• Deutsch-style wire pigtail or pigtails
• Mounting bracket or flush-mount hardware for the selected configuration
• Installation hardware

Note: Confirm included components before installation.



---



Installation Notes

• Confirm mounting clearance, wire routing, and beam orientation before drilling or tightening hardware.
• Use a compatible harness, switch, fuse protection, and weather-resistant electrical routing.
• Aim SAE fog configurations according to applicable rules and vehicle height.
• Flush-mount installations require careful cutout planning and should be measured before permanent modification.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics carries a Limited Lifetime Warranty on select products. Warranty support may require diagnosis, proof of purchase, and review of the product's condition before replacement or other coverage is approved.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Keep purchase records and installation details available for any warranty claim.
