Diode Dynamics SS5 CrossLink Universal Lightbar Kit



The Diode Dynamics SS5 CrossLink Universal Lightbar Kit turns individual SS5 LED pods into a connected lightbar that can be built for straight or curved mounting layouts. It is designed for customers who like the output and optics of SS5 pods but want a cleaner bar-style package for a roof rack, bumper, grille guard, or custom mount.

CrossLink technology uses rigid linking hardware to connect SS5 pods into a unified assembly. The system gives customers the flexibility to build a lightbar with the beam control of individual pods, while still achieving the visual impact and installation convenience of a single larger lighting system.

This universal kit range includes 3-pod, 4-pod, 5-pod, 6-pod, 7-pod and 8-pod lengths, with listed bar lengths from 18.5 inches to 50 inches. Pod count, hardware quantity, and harness pieces vary by selected configuration, so customers should choose the bar length that matches the available mounting room and desired lighting footprint.

Sport and Pro output levels allow customers to balance current draw and output intensity. Sport configurations use 40W main beam pods, while Pro configurations use 90W main beam pods. White 6000K and yellow 3000K color temperatures support different driving conditions, and driving or combo beam choices help tune the usable light pattern.

The linked SS5 pods use advanced TIR optics, pin-fin heatsinks, integrated Deutsch-style connectors, and durable powdercoated aluminum housings. The selectable backlight adds accent visibility on compatible configurations, while the main beam delivers the forward lighting performance customers expect from the SS5 platform.

Customers should confirm available room, hardware needs, and lighting goals before installation so the finished upgrade feels intentional on the vehicle.

Whether customers are upgrading for overlanding, trail work, open-desert visibility, or a configurable rack-mounted lightbar, the Diode Dynamics SS5 CrossLink Universal Lightbar Kit gives the build a flexible linked-pod lighting foundation. Now Available at LEER!



---



Features & Specifications

Product Type: Universal linked SS5 LED lightbar kit

Brand: Diode Dynamics

Lightbar Lengths: 18.5-inch, 25-inch, 31.5-inch, 37.5-inch, 44-inch, and 50-inch configurations

Pod Count: 3, 4, 5, 6, 7, or 8 linked SS5 pods

Output Range: 3,700 to 9,700 measured lumens per pod by selected configuration

Operating Voltage: 9-16V

Ingress Rating: IP69K waterproof and high-pressure rated

Functionality:

• Creates a linked lightbar from SS5 LED pod modules
• Supports straight and curved layout potential through CrossLink hardware
• Allows different lengths for bumpers, racks, grille guards, and custom mounts
• Offers Sport and Pro output choices for different lighting goals
• Provides white and yellow output choices for clear-weather or foul-weather use
• Combines bar-style mounting with individual pod beam performance
• Supports driving and combo beam patterns for distance and mixed coverage



---



Available Options

The Diode Dynamics SS5 CrossLink Universal Lightbar Kit is available in multiple configurations:

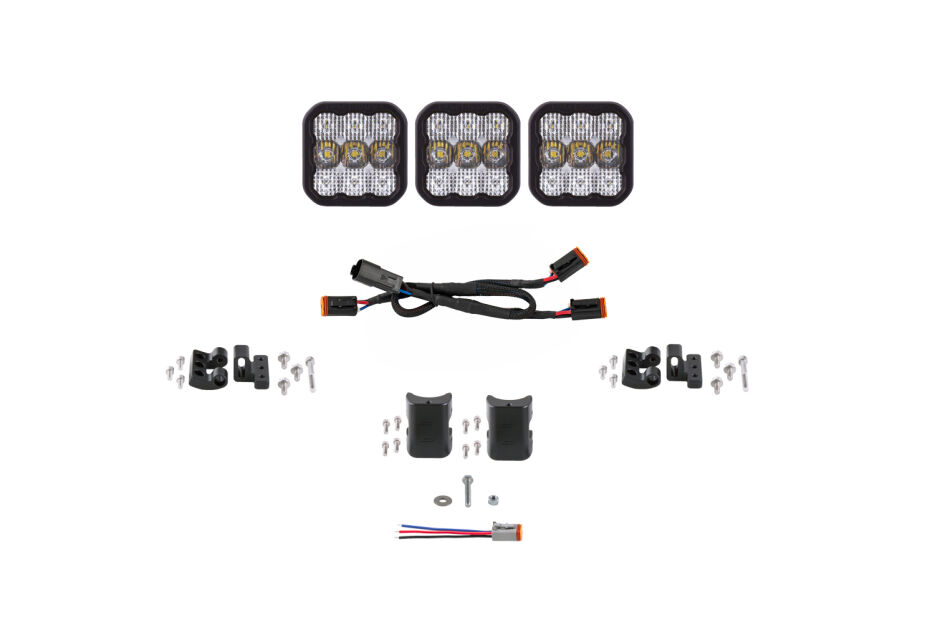

• 3-pod 18.5-inch lightbar -- compact linked SS5 setup for tighter mounting areas

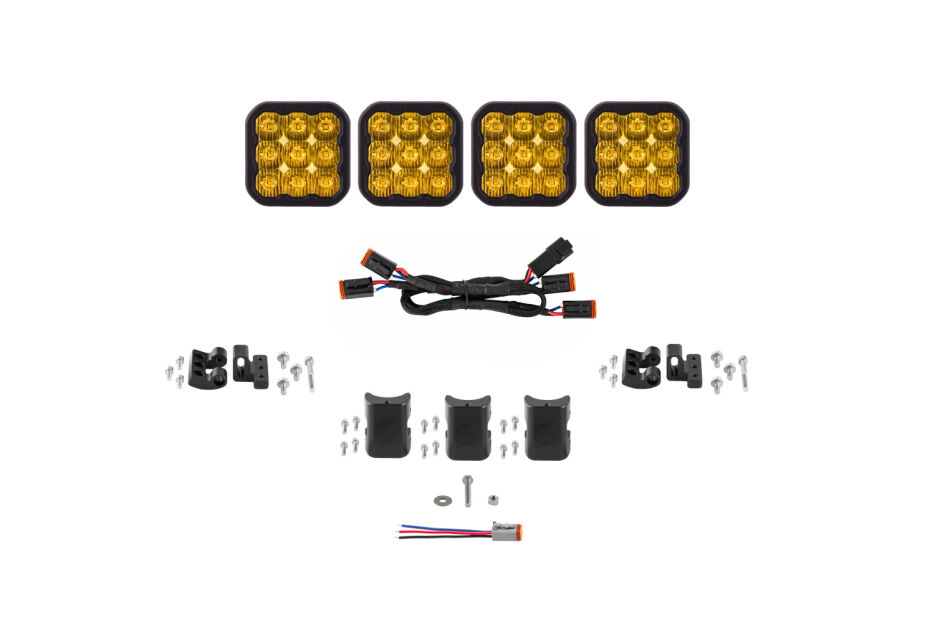

• 4-pod 25-inch lightbar -- balanced bar length for bumpers, grille guards, and mid-width rack locations

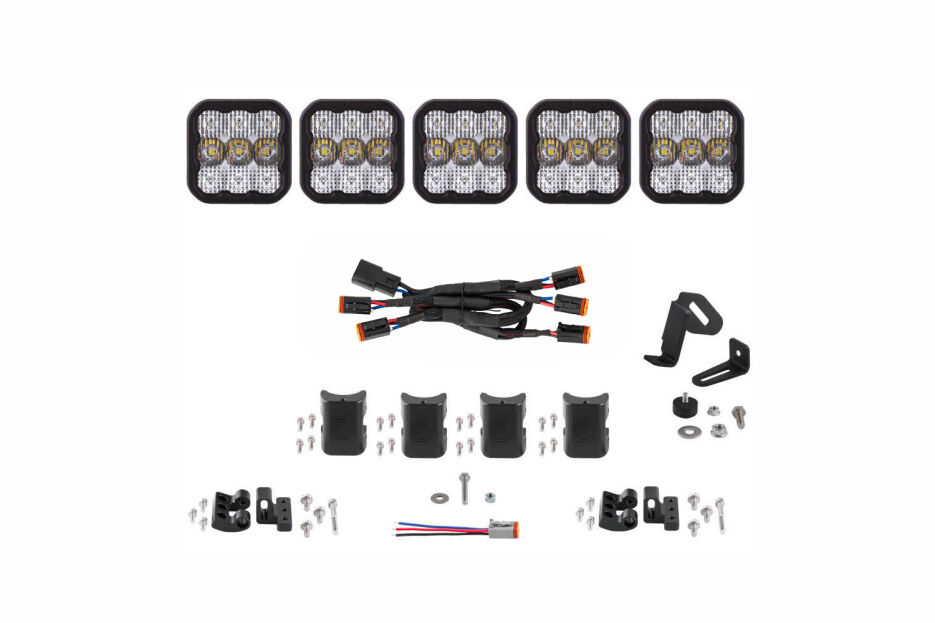

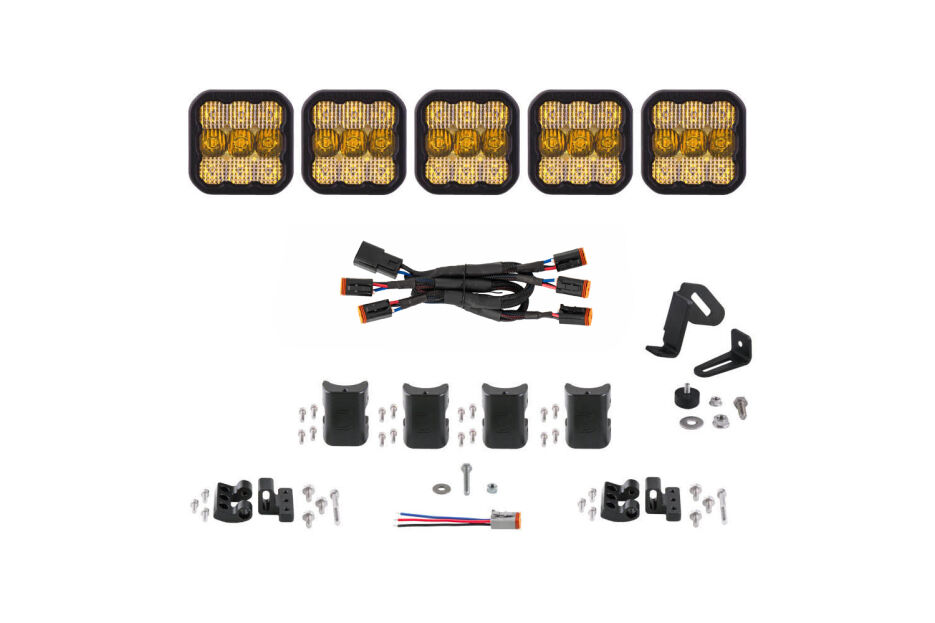

• 5-pod 31.5-inch lightbar -- wider coverage for customers with more mounting room and higher output goals

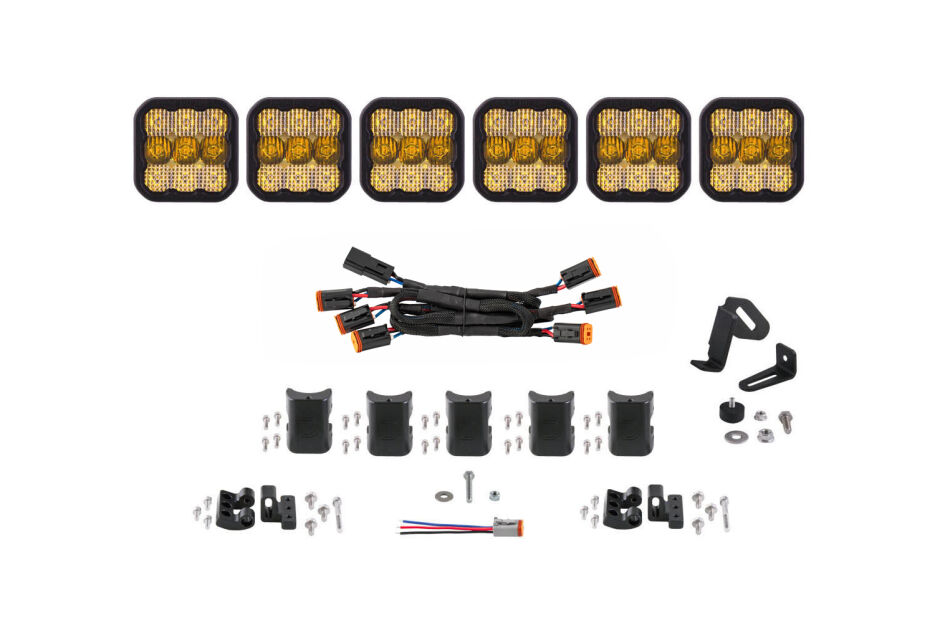

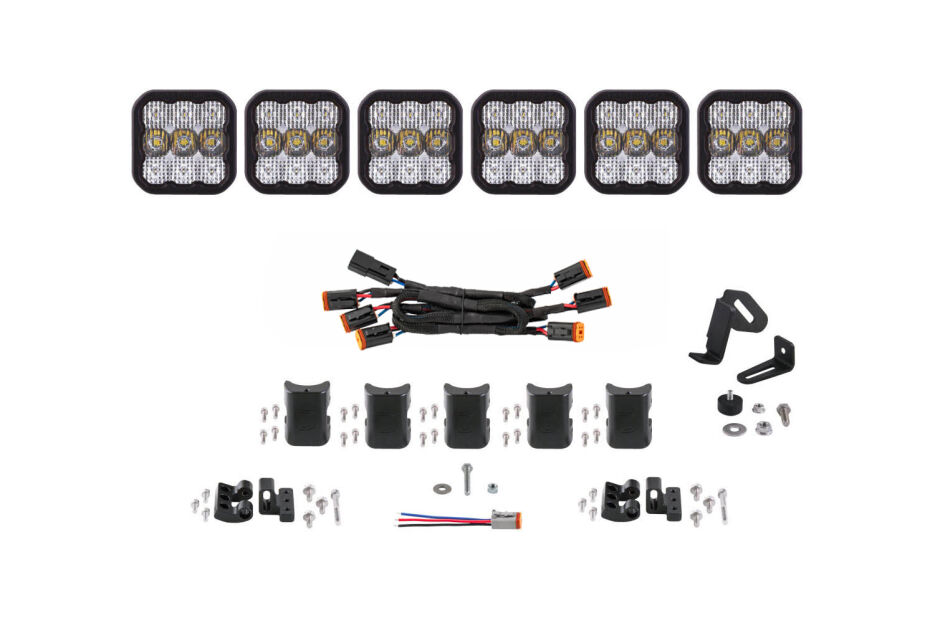

• 6-pod 37.5-inch lightbar -- stronger linked-pod package for larger vehicles and open-terrain use

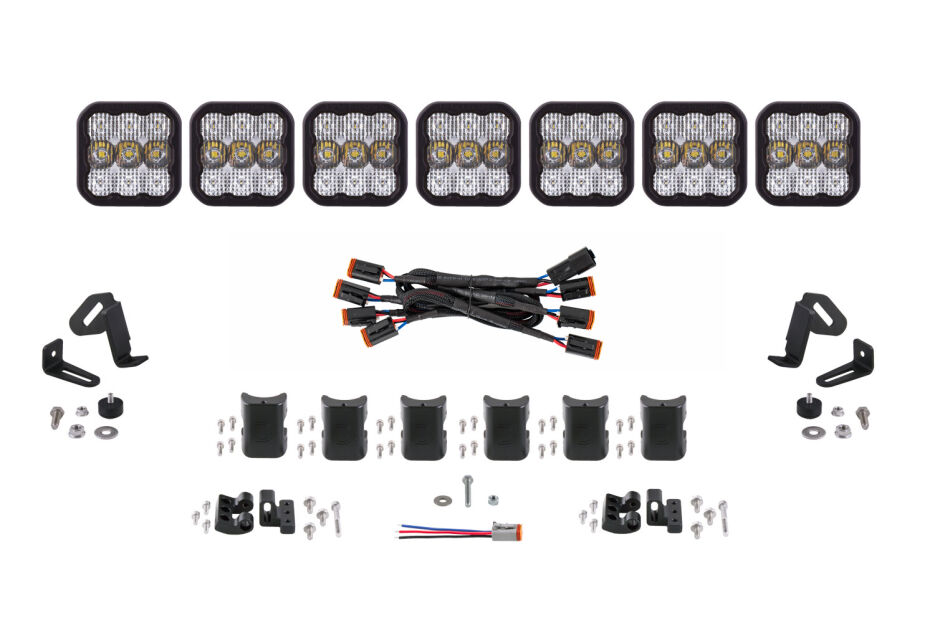

• 7-pod 44-inch lightbar -- versitle full-width lighting package for medium sized vehicles

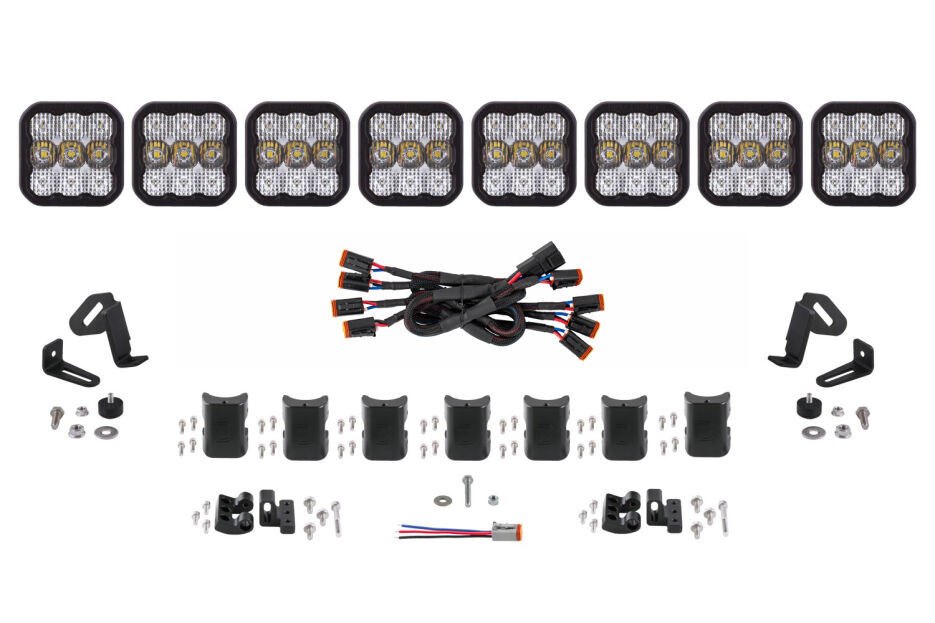

• 8-pod 50-inch lightbar -- full-width lighting package for customers who want maximum SS5 lightbar presence
• Sport, Pro, white, yellow, driving, and combo choices -- output level, color temperature, and beam pattern choices that tune the final lightbar to the vehicle

Choose a shorter lightbar for compact mounting areas, choose a longer lightbar for more output and width, and choose the output, lens color, and beam pattern that match the vehicle use.



---



Why Choose

This product is ideal for customers who want a modular linked-pod lightbar that can be scaled around available mounting room.

• Builds a bar-style lighting system without giving up SS5 pod optics
• Lets customers size the lightbar to the vehicle instead of forcing one width
• Supports rack, bumper, and custom mounting strategies with one lighting platform
• Offers excellent flexibility for mixed-use trucks, SUVs, and powersports-style builds
• Allows a clean upgrade path from compact lighting to full-width output
• Combines durable exterior construction with high-output auxiliary lighting performance



---

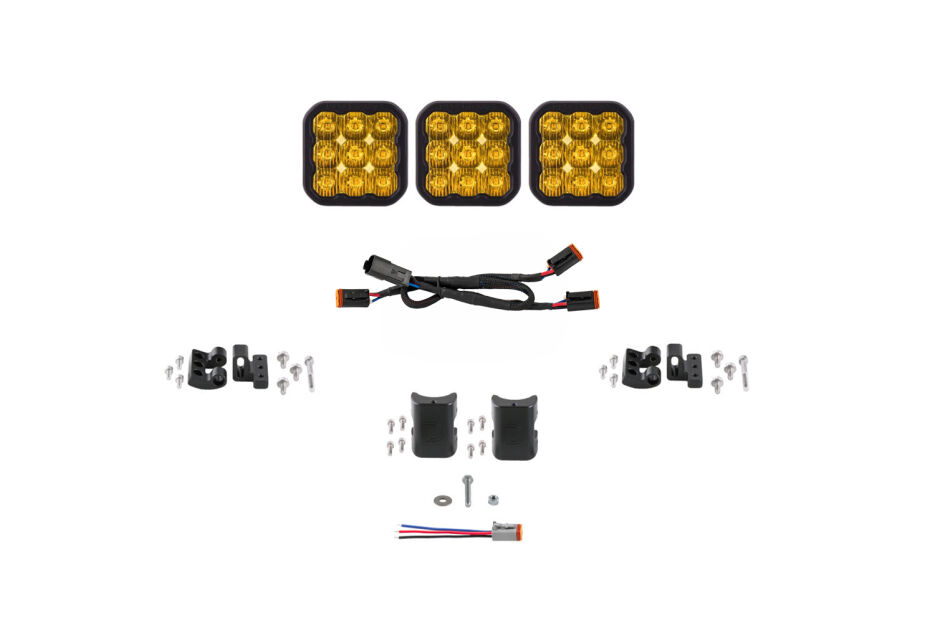

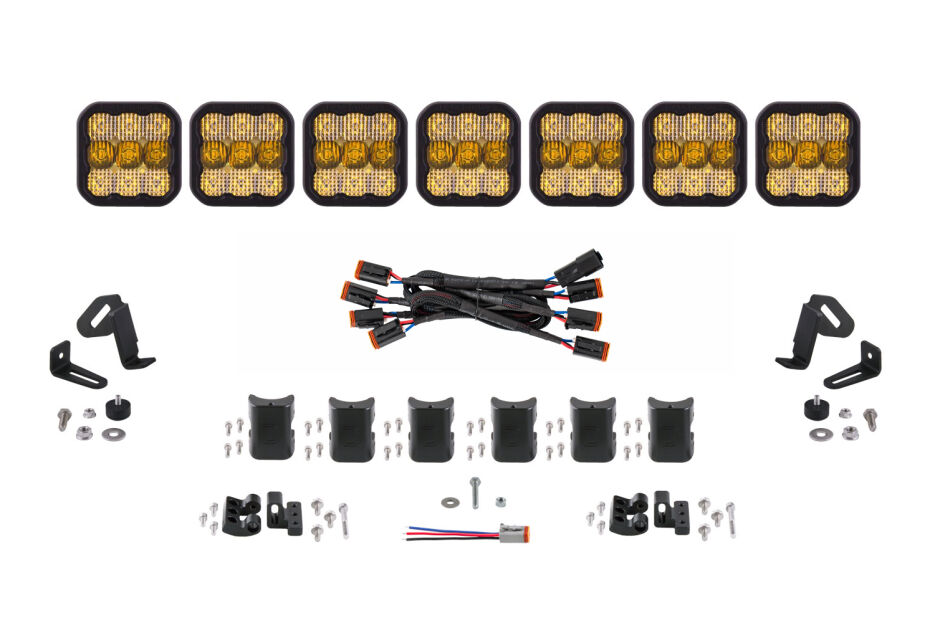

What's Included

• Three to eight Stage Series 5-inch LED pods depending on selected lightbar length
• CrossLink hardware matched to the selected pod count
• One CrossLink endmount kit
• Connecting harness components matched to the selected lightbar length
• One Deutsch-style wire pigtail

Note: Confirm included components before installation.



---



Installation Notes

• Confirm available mounting width, bracket compatibility, and wiring capacity before installation.
• Longer 5-pod through 8-pod lightbars may require support hardware for proper stability.
• Route harnesses securely and confirm all linked pods, backlights, and main beams operate before final aiming.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics Stage Series LED lighting is backed by replacement warranty coverage and limited warranty support for qualifying products. Coverage may require troubleshooting before replacement or service, and proof of purchase may be required for warranty claims.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Customers should keep installation documentation and purchase records for warranty review.

Customers should inspect the product before installation, follow the installation notes for the selected vehicle, and keep all original order details available if warranty support is needed later. Maintaining clean wiring, secure mounting, and original hardware helps simplify future service review.
