Diode Dynamics Solid-State Relay Harness



Diode Dynamics Solid-State Relay Harness allows compatible lighting devices to draw power directly from the battery while using factory signals for activation. It is built for customers working with modern vehicles where factory circuits may flicker, shut off, or trigger warnings when aftermarket lighting draws power directly.

Solid-state switching provides a cleaner alternative to a traditional mechanical relay for many lighting projects. The harness is designed to help reduce flicker and warning issues while preserving factory signal control for multicolor, switchback, or single-color lighting systems.

This group includes multicolor and switchback-oriented relay harness options. One version is designed around multicolor controllers with Deutsch plugs, while the switchback version is designed for switchback and single-color drivers with multiple factory signal inputs.

The harnesses support up to 8 amps at 12 volts, or 96 watts DC, and use waterproof and shockproof construction for demanding vehicle environments. Operating voltage is 5-16V, giving the harness flexibility across compatible automotive signal applications.

Installation requires direct battery power, factory signal pickups, and careful routing of the harness. Customers should confirm the lighting system type, signal count, connector style, and total draw before final installation and testing.

Whether customers are upgrading for multicolor lighting control, switchback lighting, or cleaner factory-signal activation, the Diode Dynamics Solid-State Relay Harness delivers a focused lighting solution with clean integration and confident everyday usability. Now Available at LEER! The upgrade is especially useful for customers who want a finished result that looks intentional rather than improvised. Its compact, application-matched design helps the finished installation blend naturally with the vehicle. The result is a practical electrical or lighting upgrade that supports a cleaner final build.



---



Features & Specifications

Product Type: Solid-state relay harness

Brand: Diode Dynamics

Operating Voltage: 5-16V

Power Capacity: Up to 8 amps at 12 volts or 96 watts DC

Intrusion Rating: IP68 waterproof

Fitment Style: Universal compatible lighting applications

Functionality:

• Allows compatible lighting to draw power directly from the battery
• Uses factory signals to activate aftermarket lighting without relying on high current from the factory circuit
• Helps reduce flicker and warning issues in monitored vehicle circuits
• Supports multicolor controllers, switchback products, and single-color drivers depending on configuration
• Uses sealed solid-state modules for durable vehicle installation
• Provides a cleaner control solution than improvised relay wiring



---



Available Options

The Diode Dynamics Solid-State Relay Harness is available in multiple configurations:

• Multicolor Solid-State Relay Harness - designed to power multicolor controllers with Deutsch plugs while using factory signals for activation
• Switchback Solid-State Relay Harness - designed to power switchback and single-color drivers with multiple factory signal inputs
• Single-module layout - suited for one compatible controller or lighting circuit
• Pair/module harness layout - suited for lighting systems that require multiple signal pickups and direct battery power

Choose the configuration that matches the vehicle, lighting circuit, connector style, and control need for the most direct installation path.



---



Why Choose

This product is ideal for customers who want a cleaner way to power aftermarket lighting while preserving factory signal control.

• Helps modern vehicles avoid flicker and shutoff issues from monitored factory circuits
• Provides direct battery power for compatible lighting accessories
• Uses solid-state switching for long-term reliability
• Supports a cleaner installation than building a relay circuit from separate parts
• Offers application flexibility for multicolor, switchback, and single-color systems
• Works well for customers building a polished lighting system with factory-style activation



---

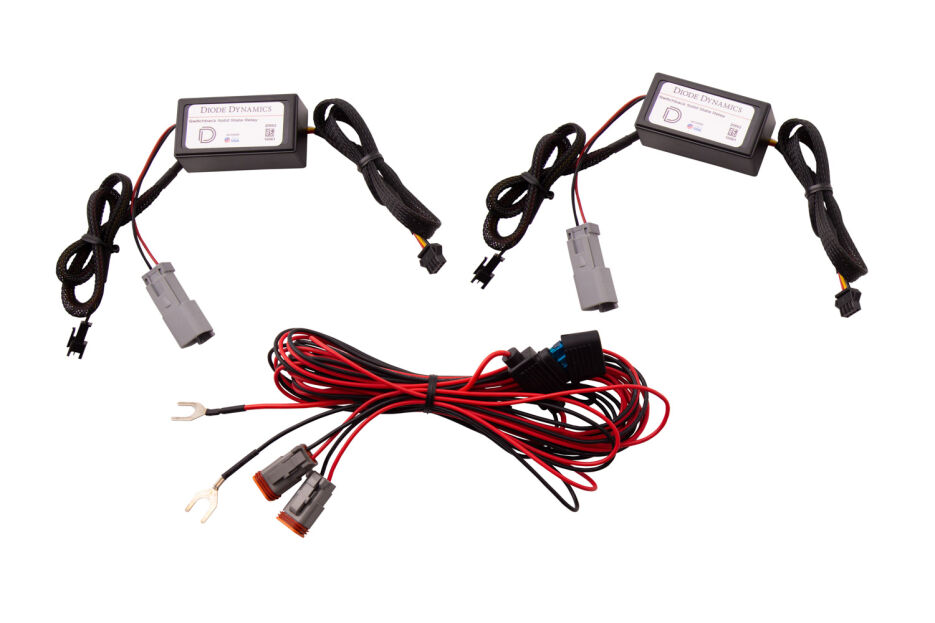

What's Included

• Solid-state relay module or modules in the selected configuration
• Fused battery input wire when supplied with the selected configuration
• Connector leads matched to the selected harness type
• Installation guide when supplied

Note: Confirm included components before installation.



---



Installation Notes

• Confirm total lighting draw does not exceed harness capacity
• Route battery input wiring safely and use the supplied or required fuse protection
• Confirm factory signal wire functions before making connections
• Test activation behavior, brightness, and any warning indicators before final reassembly

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics products are typically backed by a 3-year replacement limited warranty, with coverage handled through troubleshooting and replacement when warranty terms apply.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.

Warranty eligibility, claim handling, and replacement decisions are subject to brand review and the warranty terms in effect for the purchased product.
