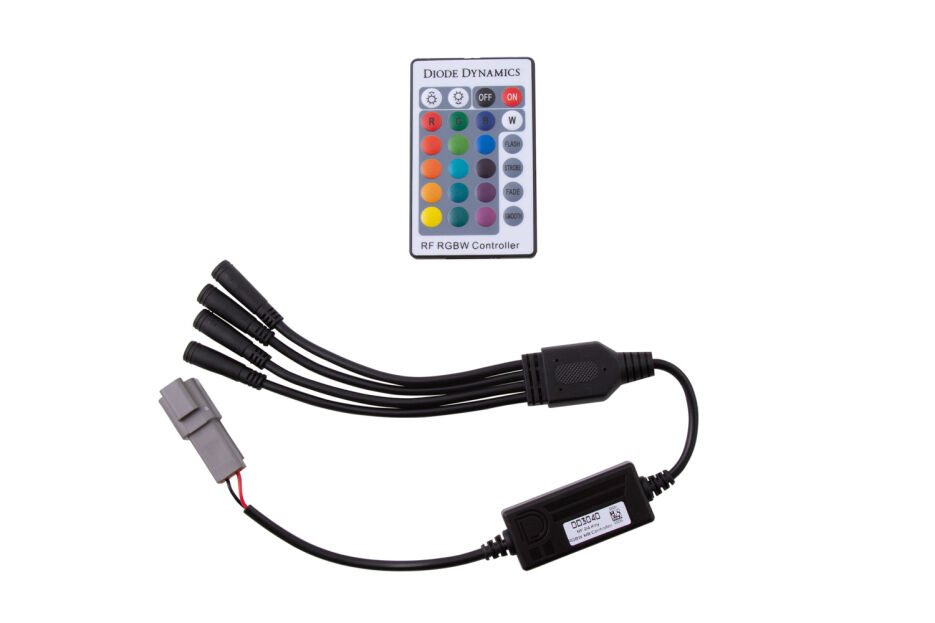

Diode Dynamics RGBW 24-Key M8 RF Controller gives customers radio-frequency remote control over compatible RGBW lighting products. It is built for drivers who want multicolor accent lighting with true white capability, preset patterns, and a compact controller that can integrate with Diode Dynamics multicolor products.
Unlike simple RGB control, the RGBW format includes an independent white channel for a clean white output when color effects are not needed. Customers can choose from 16 static color options, adjust brightness, or select preset color-changing modes through the included remote.
Four M8-style outputs support multiple lighting accessories from one controller, with JST adapters included for compatible product connections. Output capacity is rated up to 8 amps total, with 2 amps per connection, giving the controller a clear electrical limit for planning the build.
The compact enclosure is designed for demanding vehicle environments, with waterproof and shockproof construction. That matters for accent lighting projects where the controller may be mounted near vehicle lighting areas, underbody zones, engine-bay edges, or protected exterior locations.
Installation is designed around plug-and-play input and output connectors, but customers should still confirm power supply, output load, connector style, and mounting location. Proper planning helps the controller perform reliably and keeps wiring organized.
Whether customers are upgrading for RGBW accents, true white lighting, or remote-controlled multicolor effects, the Diode Dynamics RGBW 24-Key M8 RF Controller delivers a focused lighting solution with clean integration and confident everyday usability. Now Available at LEER! The upgrade is especially useful for customers who want a finished result that looks intentional rather than improvised. Its compact, application-matched design helps the finished installation blend naturally with the vehicle.
Features & Specifications
Product Type: RGBW RF controller
Brand: Diode Dynamics
Operating Voltage: 9-16V
Input Power: 96 watts
Intrusion Rating: IP67 weatherproof
Connector Quantity: Four M8-style outputs
Output Capacity: Up to 8 amps total, 2 amps per connection
Functionality:
- Controls compatible RGBW products with an RF remote
- Provides 16 static color options and a true white channel
- Supports four preset color-changing modes
- Allows brightness adjustment for the desired lighting effect
- Uses four M8-style outputs with JST adapters included
- Supports up to 8 amps total output for compatible lighting accessories
Why Choose
This product is ideal for customers who want reliable remote control over RGBW accent lighting with true white functionality.
- Combines multicolor effects with a dedicated white lighting option
- Keeps control simple through the included 24-key RF remote
- Supports multiple lighting accessories from one compact controller
- Provides weatherproof protection for vehicle-focused installations
- Helps customers create a cleaner accent-lighting system with fewer loose parts
- Works well for rock lights, accent lighting, and custom RGBW installations
What's Included
- One RGBW 24-Key Controller
- One RGBW 24-Key Remote
- One CR 2025 3V battery
- One Deutsch DT pigtail
- Installation and troubleshooting card
- JST-to-M8 adapter wires when supplied with the selected package
Note: Confirm included components before installation.
Installation Notes
- Confirm total output load before installation
- Mount the controller securely in a protected location
- Verify connector compatibility with the RGBW lighting products being controlled
- Test color, true white, brightness, and pattern functions before final wire management
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Diode Dynamics products are typically backed by a 3-year replacement limited warranty, with coverage handled through troubleshooting and replacement when warranty terms apply.
Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
Warranty eligibility, claim handling, and replacement decisions are subject to brand review and the warranty terms in effect for the purchased product.
