Diode Dynamics Reverse Light Wiring Kit is a reverse light wiring harness kit built for customers connecting compatible backlit Diode Dynamics lights to vehicle backup and running light signals. It allows compatible lights with backlight functionality to operate as a red accent with tail lights and switch to a high-power backup light when the vehicle is in reverse. It gives lighting installs a cleaner connection path while keeping the finished upgrade organized and serviceable.
The kit is built for Diode Dynamics lights with backlight functionality and uses dual Deutsch DT output connectors. For customers adding pods, RGBW accents, rock lights, fog lights, or CrossLink hardware, matched wiring support helps reduce guesswork and keeps the installation focused on the lighting upgrade.
High-capacity 14AWG and 18AWG wiring, a 10A waterproof fuse, and a universal harness layout help support simple everyday operation when installed with compatible lighting. The compact layout helps the wiring blend into engine bay, bumper, rack, and underbody installations, while still being straightforward to route near existing harness paths.
The harness includes the core components needed for the wiring connection, including a universal wiring harness, zip ties, and T-taps. The Diode Dynamics design gives customers a purpose-built option instead of a loose-wire workaround, which is useful when upgrading existing lighting or adding a new lighting function.
Installation involves connecting to vehicle wiring signals and should be handled carefully so the main beam, red accent function, and override switch work as intended. Customers should verify connector style, output needs, wire length, and vehicle-side wiring before installation. Careful routing helps protect wiring from heat, abrasion, suspension movement, and steering components.
Whether customers are upgrading for backup lighting, rear visibility, accent lighting, or cleaner reverse-light control, the Diode Dynamics Reverse Light Wiring Kit helps complete the installation with a cleaner connection and dependable compatibility. Now Available at LEER!
Features & Specifications
Product Type: Wiring accessory kit
Brand: Diode Dynamics
Vehicle Fitment: Universal fitment
Connector Style: Dual Deutsch DT output connectors
Wire Gauge: 14AWG and 18AWG
Fuse: 10A waterproof fuse
Operating Voltage: 9-16V
Operating Temperature: -40C to 85C
Functionality:
- Connects compatible backlit lights to vehicle backup wiring
- Allows red accent operation with tail light function when paired with suitable pods
- Automatically switches compatible lights to backup light operation when the vehicle is in reverse
- Includes a toggle switch to override vehicle signals and turn on the main beam anytime
- Uses dual Deutsch DT output connectors for compatible lighting
- Adds fused protection for the lighting electrical system
Why Choose
This product is ideal for customers who want integrated reverse and running light control for compatible Diode Dynamics lights.
- Adds a cleaner control strategy for compatible rear-facing auxiliary lights
- Helps combine red accent lighting and reverse lighting in one wiring kit
- Provides a fused wiring path for added electrical protection
- Includes installation hardware to help complete the wiring job
- Supports simple everyday operation once installed correctly
- Useful for trucks and SUVs that need more functional rear lighting
What's Included

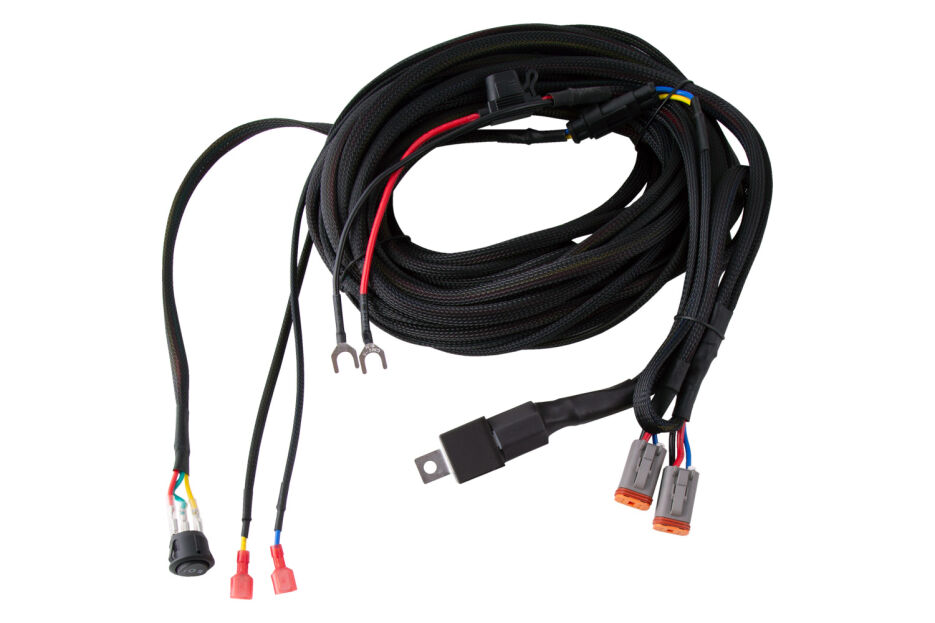

- One universal wiring harness
- Ten zip ties
- Two T-taps
Note: Confirm included components before installation.
Installation Notes
- Verify compatibility with the selected Diode Dynamics lights before installation.
- Connect vehicle signal wires carefully and test running light, reverse light, and override functions.
- Route wiring away from heat sources, sharp edges, and moving components.
- Confirm all lighting functions before final reassembly.
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Diode Dynamics products are backed by a 3 Year Replacement Limited Warranty for qualifying defects in materials or workmanship. Warranty coverage is handled under the brand warranty terms and may require troubleshooting before replacement approval.
Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
