Diode Dynamics Light Duty Offroad Wiring Harness



Diode Dynamics Light Duty Offroad Wiring Harness gives customers adding compact Stage Series lighting to trucks, SUVs, and off-road builds a lighter-duty harness option for powering compatible auxiliary lights from the battery. It is made for customers who want a neat wiring solution for smaller light bars, pods, and backlit lighting setups without turning a lighting upgrade into guesswork.

The harness routes power from the vehicle battery to compatible off-road lighting through switch-controlled wiring and Deutsch DT output connectors. Instead of leaving customers to work around undersized home-built wiring or mismatched connectors for smaller auxiliary lighting, it provides a light duty harness matched to lower-current Stage Series lighting applications for a cleaner result when customers are adding compact pods or smaller Stage Series light bars and do not need a heavier harness.

Two harness styles are represented: a dual-output 2-pin version for non-backlit lights and a dual-output 4-pin version for backlit LED pods. The harnesses use high-capacity wiring, Deutsch DT output connectors, black protective sheathing, and 15A fuse protection where applicable. Customers can match the accessory to the light, housing, circuit, connector, or vehicle application before installation begins.

Customers can choose the 2-pin harness for non-backlit lights or the 4-pin harness when the lighting requires backlight functionality. Universal fitment supports custom lighting layouts when the chosen harness matches the lights, connector type, and power demand. The right version helps the finished upgrade stay cleaner, easier to service, and better matched to the job.

Whether customers are upgrading for smaller trail lights, compact light bars, campsite visibility, or cleaner accessory wiring, the Diode Dynamics Light Duty Offroad Wiring Harness delivers a tidy power solution for compatible compact lighting upgrades. Now Available at LEER!



---



Features & Specifications

Product Type: Off-road lighting wiring harness

Brand: Diode Dynamics

Vehicle Fitment: Universal fitment

Connector Style: Deutsch DT output connectors

Fuse Protection: 15A waterproof fuse on applicable harnesses

Output Type: Dual-output versions

Functionality:

• Powers compatible Stage Series lighting from the vehicle battery
• Supports smaller Stage Series light bars with the 2-pin harness version
• Supports backlit Stage Series LED pods with the 4-pin harness version
• Provides dual outputs for two-light layouts
• Uses Deutsch DT connectors for compatibility with matching Diode Dynamics lighting
• Keeps wiring cleaner than a generic handmade harness
• Helps protect the circuit with fuse protection where applicable
• Fits compact truck and SUV lighting upgrades where heavy-duty capacity is not required



---



Available Options

The Diode Dynamics Light Duty Offroad Wiring Harness is available in multiple versions:

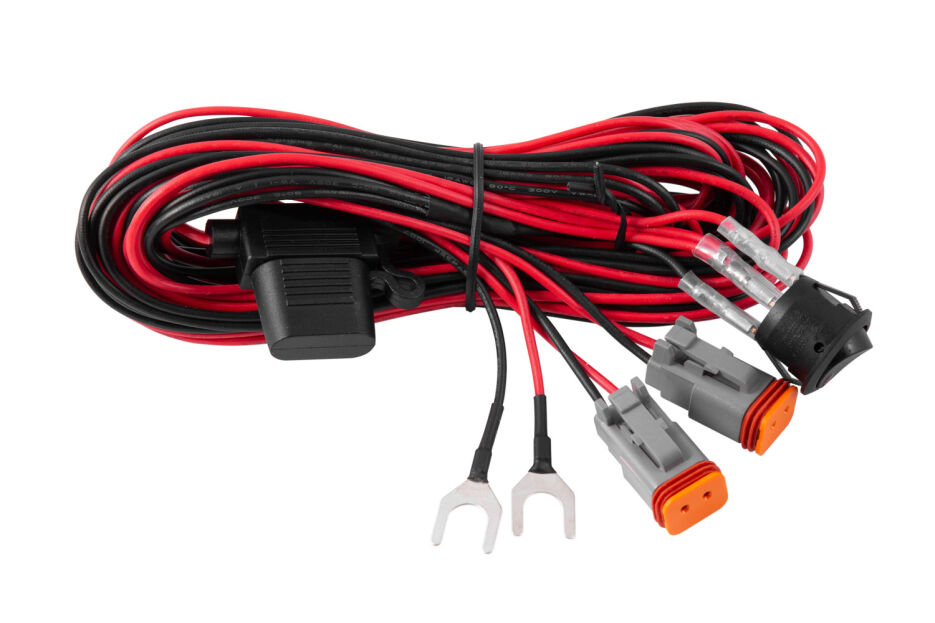

• Light Duty Dual Output 2-Pin -- designed for compatible Stage Series lights without backlight functionality, including smaller light bars

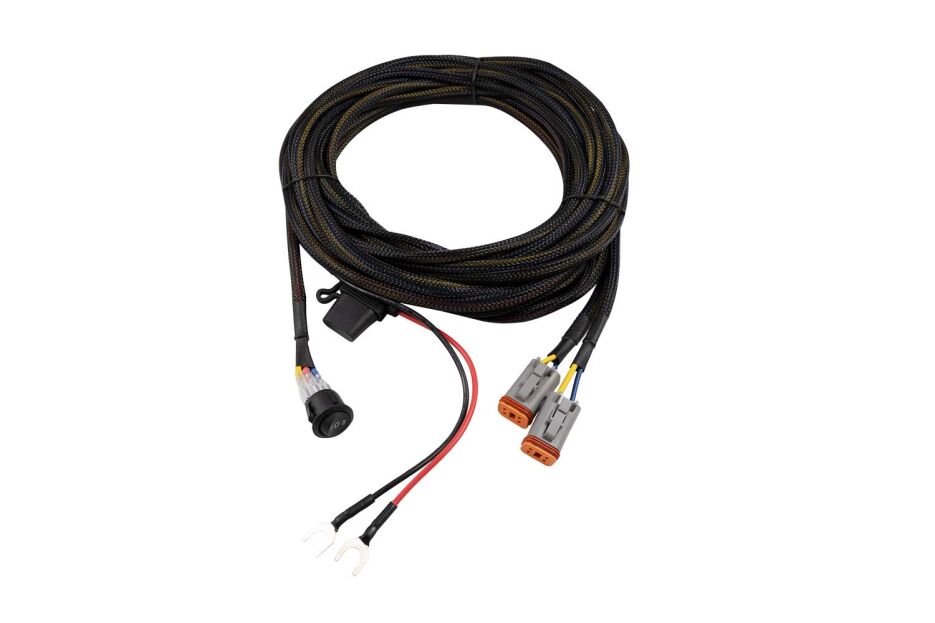

• Light Duty Dual Output 4-Pin -- designed for compatible Stage Series LED pods with backlight functionality and main beam control

Choose the 2-pin harness for non-backlit lighting, or choose the 4-pin harness when the selected Stage Series pods include backlight functionality.



---



Why Choose

This product is ideal for customers who want a clean wiring path for compact auxiliary lights.

• Matches the needs of smaller lighting layouts without unnecessary heavy hardware
• Gives customers a brand-matched harness for compatible Diode Dynamics lights
• Keeps battery power, switching, and outputs organized
• Supports dual-light installations in one harness package
• Makes the difference between backlit and non-backlit lighting easier to manage
• Helps reduce installation clutter under the hood and behind the bumper
• Provides a practical option for everyday trail and utility lighting upgrades



---



What's Included

• Light duty dual-output wiring harness in the selected 2-pin or 4-pin version
• Toggle switch when supplied with the selected harness
• Fuse protection and relay components where included with the selected harness

Note: Confirm included components before installation.



---



Installation Notes

• Confirm whether the lights require a 2-pin or 4-pin harness before installation.
• Route wiring securely away from hot components, moving parts, and sharp edges.
• Check current demand against the harness rating and the selected lighting.
• Test the switch, main beam, and backlight operation where applicable before final reassembly.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics backs this product with a 3 Year Replacement Limited Warranty. Warranty support is intended to address defects in materials or workmanship after basic troubleshooting.

Coverage typically excludes improper installation, misuse, modifications, electrical issues caused by incorrect wiring, overloading, tampering, impact damage outside warranty terms, or non-compliant use.

Proof of purchase may be required for warranty claims. Customers should keep the purchase record and inspect all parts before installation so any warranty concern can be reviewed with accurate product and order details.
