Diode Dynamics LED Toggle Switch



Diode Dynamics LED Toggle Switch is a compact illuminated switch for standard 12V accessory control. It is designed for customers wiring auxiliary lighting, accents, or other low-voltage accessories that need a simple on and off control point inside the vehicle or in a custom panel.

The circular design clips into a 3/4-inch mounting hole, creating a clean installation when the switch location is planned correctly. Its illuminated face gives customers a visible control indicator, making it easier to identify the switch in low-light cabins or accessory panels.

This group includes multiple LED color choices so the switch can be matched to the look of the cabin, panel, or accessory system. Green, amber, red, and blue options are represented, while the core two-position switch function remains the same across the group.

Standard male spade terminals support straightforward connection with compatible insulated female spade connectors. The switch is intended to interrupt a positive signal, and the LED indicator can be activated by connecting the switch to ground in the proper circuit layout.

Installation requires a properly sized mounting hole, secure terminal connections, and attention to circuit protection. Customers should plan the accessory current draw and wiring path before mounting the switch or connecting it to the accessory harness.

Whether customers are upgrading for auxiliary lighting control, accessory switching, or a clean illuminated control point, the Diode Dynamics LED Toggle Switch delivers a focused lighting solution with clean integration and confident everyday usability. Now Available at LEER! The upgrade is especially useful for customers who want a finished result that looks intentional rather than improvised. Its compact, application-matched design helps the finished installation blend naturally with the vehicle. The result is a practical electrical or lighting upgrade that supports a cleaner final build.



---



Features & Specifications

Product Type: LED toggle switch

Brand: Diode Dynamics

Fitment Style: Universal 12V applications

Switch Positions: Two

Terminal Quantity: Three

Terminal Type: Male spade

LED Color Options: Green, amber, red, and blue

Functionality:

• Provides simple on and off control for compatible 12V accessories
• Adds an illuminated switch face for quick visual identification
• Fits a 3/4-inch circular mounting hole when installed correctly
• Uses standard male spade terminals for straightforward electrical connection
• Supports auxiliary lighting, accent lighting, and custom accessory panels
• Allows color matching to the desired cabin or control-panel look



---



Available Options

The Diode Dynamics LED Toggle Switch is available in multiple configurations:

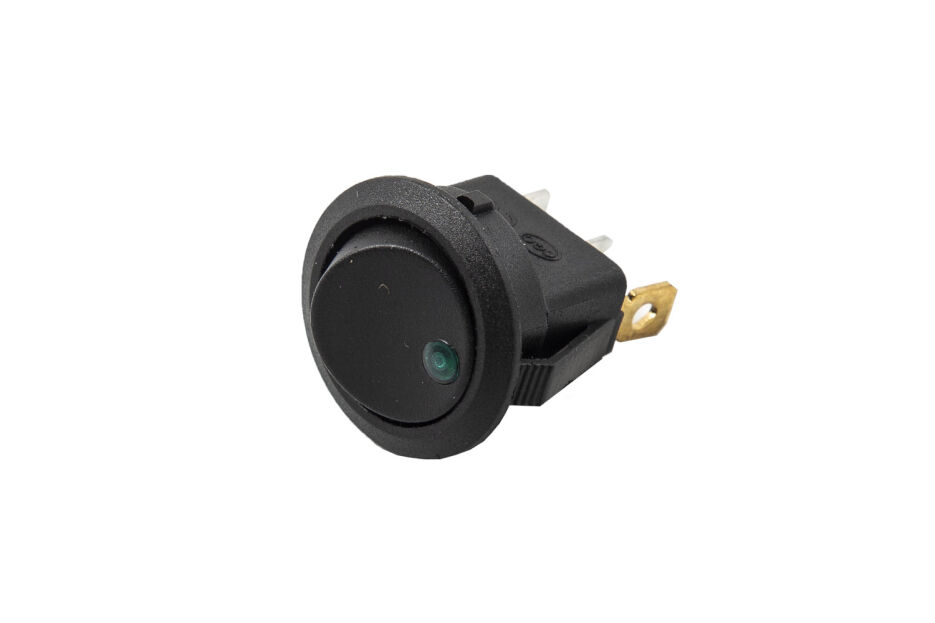

• Green LED - a clean indicator color for a simple auxiliary lighting control point

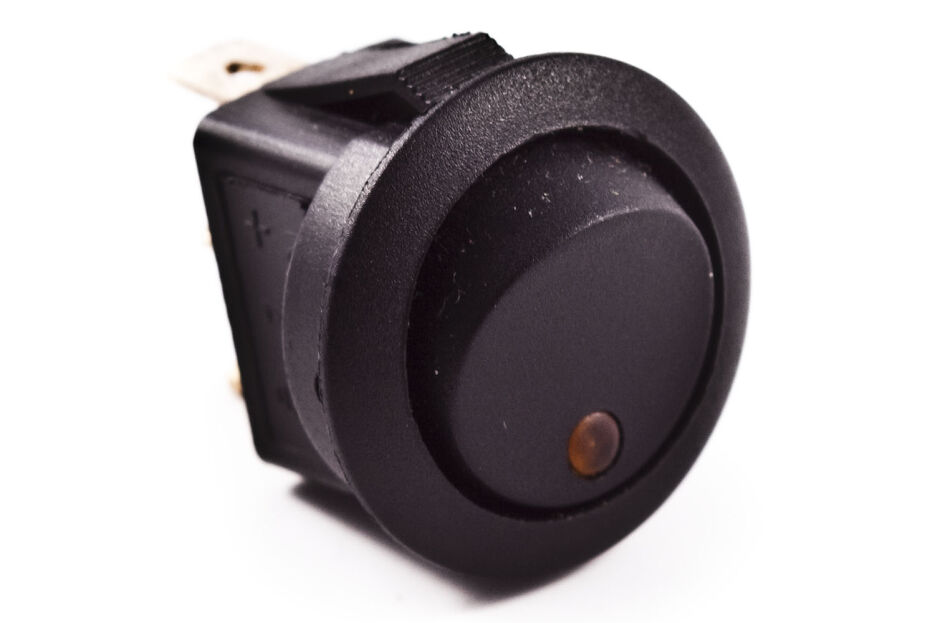

• Amber LED - a warm indicator color that pairs well with signal or marker-light related controls

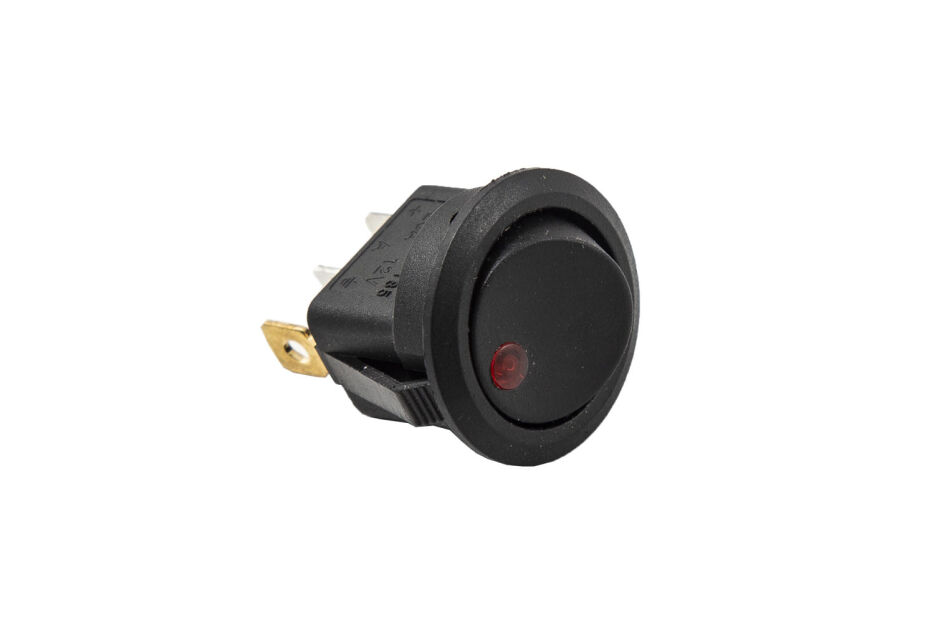

• Red LED - a high-visibility indicator color for accessories that need quick recognition
• Blue LED - a cool indicator color for custom panels and modern cabin lighting themes

Choose the configuration that matches the vehicle, lighting circuit, connector style, and control need for the most direct installation path.



---



Why Choose

This product is ideal for customers who want a simple illuminated control switch for standard 12V accessory circuits.

• Gives customers a clean switch option for lighting and accessory projects
• Provides multiple indicator colors for a more finished interior appearance
• Uses common terminal styling for easier wiring with compatible connectors
• Keeps control simple with a two-position switch design
• Works well in custom panels, accessory harnesses, and auxiliary lighting builds
• Helps avoid mismatched generic switches in a polished installation



---



What's Included

• One illuminated LED toggle switch in the selected color
• Three male spade terminals integrated with the switch
• Installation instructions or product guide when supplied

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the circuit load and accessory requirements before installation
• Mount in a properly sized 3/4-inch hole when panel mounting is used
• Use compatible insulated female spade connectors
• Protect the circuit with appropriate fusing for the accessory being controlled

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics products are typically backed by a 3-year replacement limited warranty, with coverage handled through troubleshooting and replacement when warranty terms apply.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.

Warranty eligibility, claim handling, and replacement decisions are subject to brand review and the warranty terms in effect for the purchased product.
