Diode Dynamics HitchMount LED Pod Reverse Kit - C1



The Diode Dynamics HitchMount LED Pod Reverse Kit - C1 is built for customers who want a fast, clean way to add more light from the rear of a truck or SUV. It gives customers a purposeful way to add Diode Dynamics auxiliary lighting while keeping the upgrade matched to the vehicle, the mounting location, and the lighting job at hand.

HitchMount LED Pod Reverse Kit centers on a receiver-mounted C1 reverse light that helps illuminate the area behind the vehicle without bumper cutting. The result is a lighting upgrade that feels intentional on the vehicle instead of looking like a universal add-on, with the hardware and lamp placement working together for a cleaner finished install.

The product is designed around trailer hitch receiver, making it useful for customers who want added visibility without changing the overall shape of the vehicle. That placement helps direct light where it is needed for dark roads, trail approaches, work sites, campsites, trailer hookup areas, and low-light recovery tasks.

Real configuration choices include 7-pin harness kit, No-harness kit, 4-pin reverse kit, Vehicle-specific kit and related lighting selections that let customers match the kit to how the vehicle is used. The choices focus on output, light color, beam behavior, wiring style, or kit layout rather than forcing every driver into one lighting setup.

Installation is supported by snap-in HitchMount design installs into compatible receiver openings with trailer-harness wiring where included. Customers should still confirm the selected vehicle application, bumper or receiver style, wiring needs, and lamp compatibility before installation so the final setup matches the vehicle and the intended lighting use.

Whether customers are upgrading for trail driving, work-site visibility, towing support, campsite setup, or a cleaner auxiliary lighting package, the HitchMount LED Pod Reverse Kit brings focused lighting function to the vehicle. Now Available at LEER!



---



Features & Specifications

Product Type: Hitch-mounted reverse light kit

Brand: Diode Dynamics

Series: Stage Series C1

Vehicle Fitment: 2-inch and 2.5-inch receiver applications with selected vehicle-specific harness options

Mounting Location: Trailer hitch receiver

Material: C1 LED pod with snap-in receiver adapter

Finish: Black housing with clear lens

Measured Output: 1 030 lm

Input Power: 12.8

Beam Pattern: Flood 80 x50

Color Temperature: 6000K

Lens Color: Clear

Intrusion Rating: IP69K Waterproof High Pressure

Operating Voltage: 9-16V

Mounting Hardware Included: Yes

Each setup should be matched to the vehicle application, lighting position, wiring requirements, and intended use before installation.

Functionality:

• Adds reverse light output from the hitch receiver
• Helps illuminate trailers, driveways, campsites, and work areas
• Installs without cutting into the bumper on compatible receivers
• Supports 2-inch and 2.5-inch receiver use with the included adapter
• Provides a compact rear lighting upgrade for trucks and SUVs
• Works as an added visibility aid when backing up at night



---



Available Options

The HitchMount LED Pod Reverse Kit is available in multiple configurations:

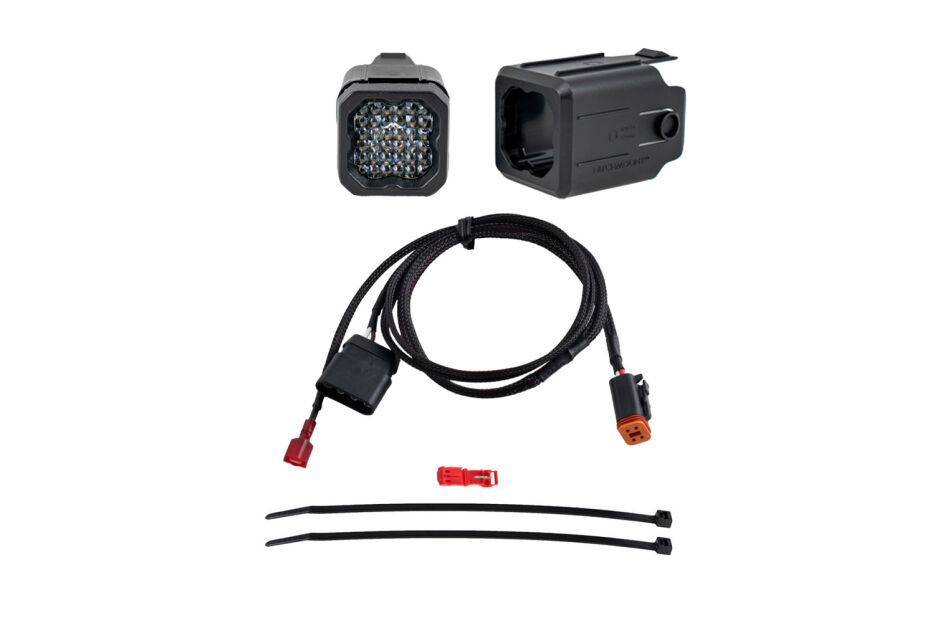

• 7-pin harness kit - a trailer-harness package for compatible vehicles with 7-pin wiring

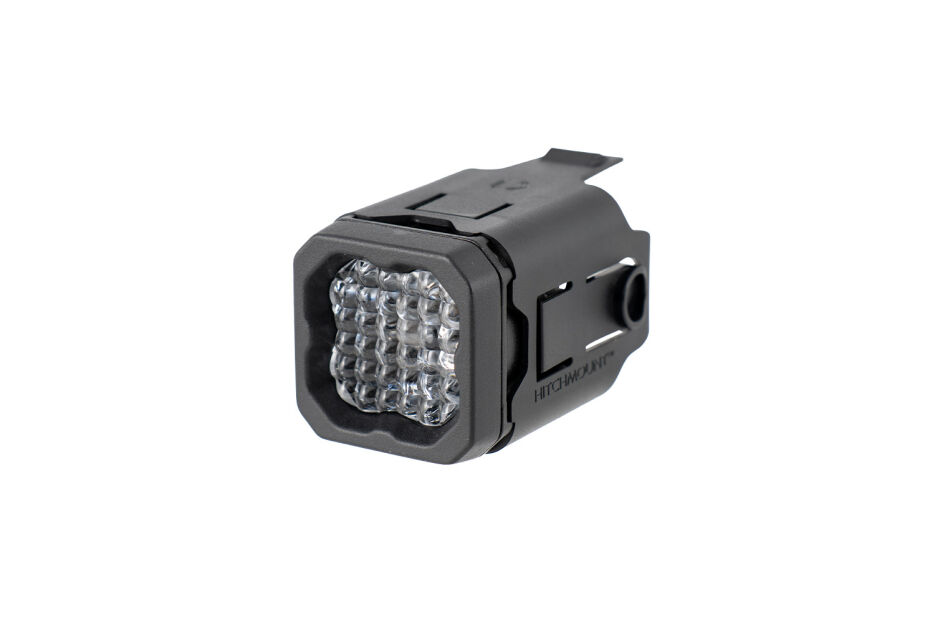

• No-harness kit - a pod and mount package for customers supplying their own wiring solution

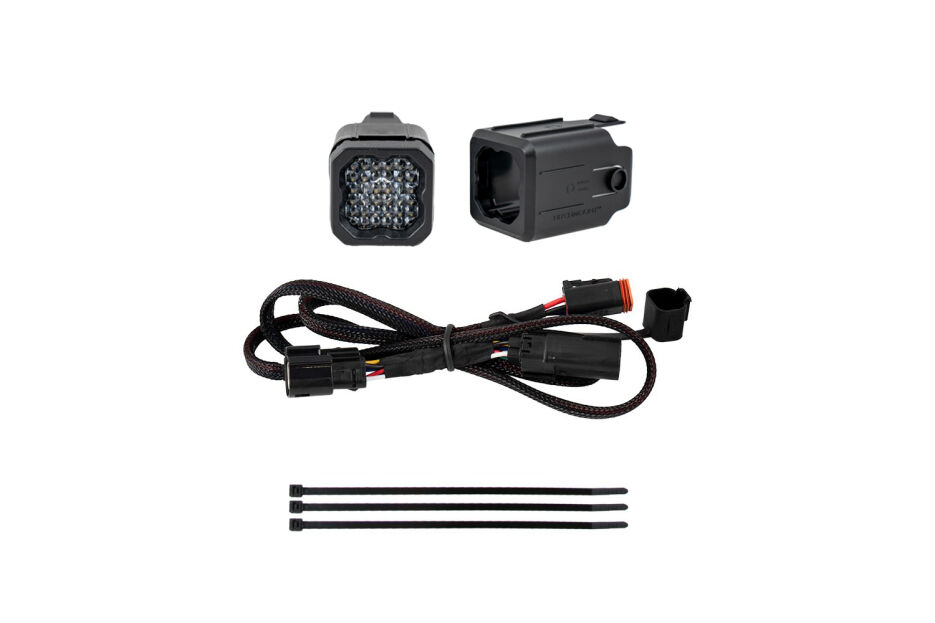

• 4-pin reverse kit - a 4-pin option for compatible trailer wiring setups

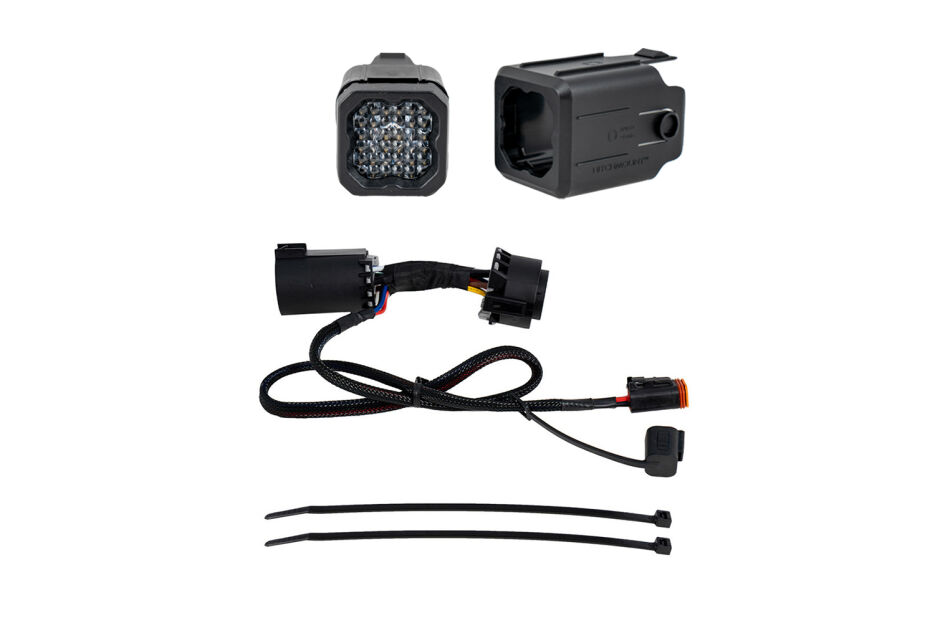

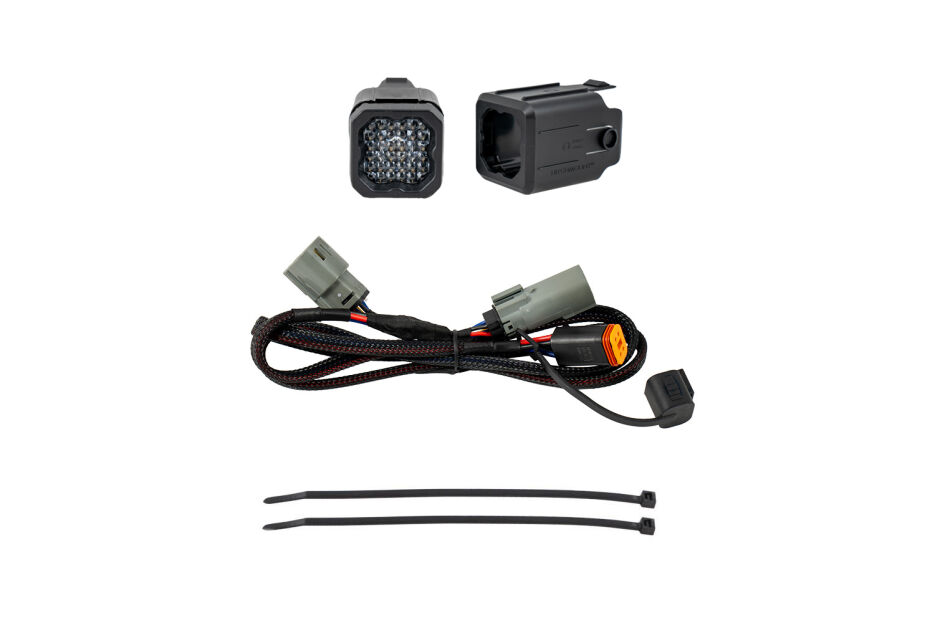

• Vehicle-specific kit - a harness-focused option built around selected applications

Choose a harness-equipped kit for plug-in convenience, or choose the no-harness version when the vehicle already has a planned wiring solution.



---



Why Choose

This product is ideal for customers who want a receiver-mounted C1 reverse light that helps illuminate the area behind the vehicle without bumper cutting.

• Adds useful rear light while keeping the bumper intact
• Keeps the lighting package centered and easy to remove if needed
• Supports a quick upgrade for tow vehicles and daily drivers
• Helps customers see obstacles, trailer couplers, and dark ground behind the vehicle
• Offers harness choices for different wiring setups
• Provides a clean, compact look in the receiver opening



---



What's Included

• One C1 HitchMount LED pod
• Snap-in 2.5-inch receiver adapter
• Trailer harness where included by the selected configuration
• Zip ties
• Installation guide

Note: Confirm included components before installation.



---



Installation Notes

• Designed for compatible 2-inch and 2.5-inch trailer hitch receivers
• Confirm wiring style, receiver size, and vehicle application before installation
• Do not use the receiver for towing while the HitchMount is installed

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics carries a Lifetime Limited Warranty on select Stage Series LED pods and off-road mounting brackets, with warranty terms depending on the exact product and purchase date.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.

Warranty review may require documentation, product inspection, or troubleshooting steps before a remedy is approved. Customers should keep the original purchase record and install the product according to the supplied instructions.
