Diode Dynamics DT 4-Pin Backlight Tap Wire Kit



Diode Dynamics DT 4-Pin Backlight Tap Wire Kit is a Deutsch DT adapter wire kit with backlight tap built for customers connecting SS3 Backlit Fog Light Kits to factory fog light connector sizes. It converts a 4-pin DT-style plug to a supported factory connector size while providing the wiring needed for compatible backlight functionality. It gives lighting installs a cleaner connection path while keeping the finished upgrade organized and serviceable.

The adapter wires are compatible with Diode Dynamics SS3 Backlit Fog Light Kits and support H11, 9006, 5202, PSX26W, and DJ70 connector sizes by selected configuration. For customers adding pods, RGBW accents, rock lights, fog lights, or CrossLink hardware, matched wiring support helps reduce guesswork and keeps the installation focused on the lighting upgrade.

Black insulation sleeving helps protect the wires, while the 18AWG backlight wire supports the backlight connection used in compatible SS3 backlit fog light installs. The compact layout helps the wiring blend into engine bay, bumper, rack, and underbody installations, while still being straightforward to route near existing harness paths.

The group includes multiple factory connector sizes so customers can match the tap wire kit to the vehicle-side fog light connector used in the application. The Diode Dynamics design gives customers a purpose-built option instead of a loose-wire workaround, which is useful when upgrading existing lighting or adding a new lighting function.

Installation should begin by confirming the factory connector size and SS3 backlit kit requirements before connecting the DT-style plug and backlight tap. Customers should verify connector style, output needs, wire length, and vehicle-side wiring before installation. Careful routing helps protect wiring from heat, abrasion, suspension movement, and steering components.

Whether customers are upgrading for SS3 backlit fog light installation, connector matching, or cleaner vehicle-side wiring, the Diode Dynamics DT 4-Pin Backlight Tap Wire Kit helps complete the installation with a cleaner connection and dependable compatibility. Now Available at LEER!



---



Features & Specifications

Product Type: Wiring accessory kit

Brand: Diode Dynamics

Vehicle Fitment: Universal fitment with connector-size selection

Connector Style: 4-pin DT-style plug to selected factory connector

Connector Options: H11, 9006, 5202, PSX26W, and DJ70

Backlight Wire: 18AWG

Operating Voltage: 9-16V

Operating Temperature: -40C to 85C

Included Quantity: Two adapter wires

Functionality:

• Connects a 4-pin DT-style SS3 backlit connector to a supported factory connector size
• Supports SS3 Backlit Fog Light Kit installations
• Provides a backlight tap wire for compatible backlight function
• Helps reduce custom wiring when the correct factory connector is selected
• Uses black insulation sleeving to help protect the wires
• Allows connector-size matching across H11, 9006, 5202, PSX26W, and DJ70 applications



---



Available Options

The DT 4-Pin Backlight Tap Wire Kit is available in multiple configurations:

• 9006 DT 4-Pin Backlight Tap Wire Kit -- matches supported 9006-size factory connector applications
• H11 DT 4-Pin Backlight Tap Wire Kit -- matches supported H11-size factory connector applications
• 5202 DT 4-Pin Backlight Tap Wire Kit -- matches supported 5202-size factory connector applications
• PSX26W DT 4-Pin Backlight Tap Wire Kit -- matches supported PSX26W-size factory connector applications
• DJ70 DT 4-Pin Backlight Tap Wire Kit -- matches supported DJ70-size factory connector applications

Choose the connector size that matches the factory fog light connector, or choose a different listed size when the vehicle application requires that connector style.



---



Why Choose

This product is ideal for customers who want connector-size matching for SS3 Backlit Fog Light Kit installs.

• Helps keep lighting wiring organized around supported Diode Dynamics components
• Supports clean routing when the correct connector style is already part of the install
• Reduces the need to piece together a custom wiring solution from loose components
• Works well for customers refreshing or expanding an existing lighting setup
• Keeps the accessory compact so it can fit into tight installation areas
• Pairs with lighting upgrades where dependable connectors matter as much as the lamps
• Helps simplify service or troubleshooting by giving each connection a clear purpose



---



What's Included

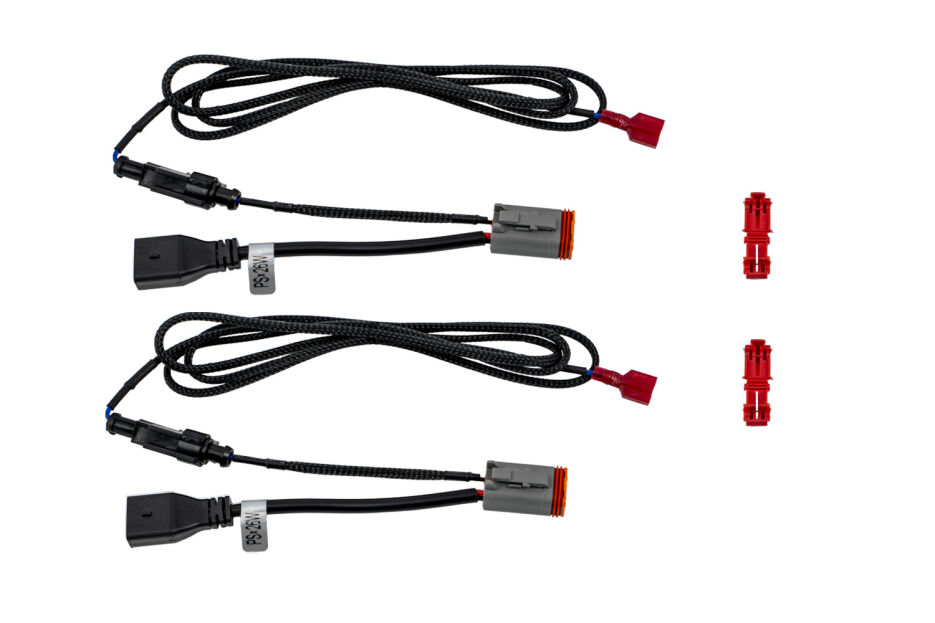

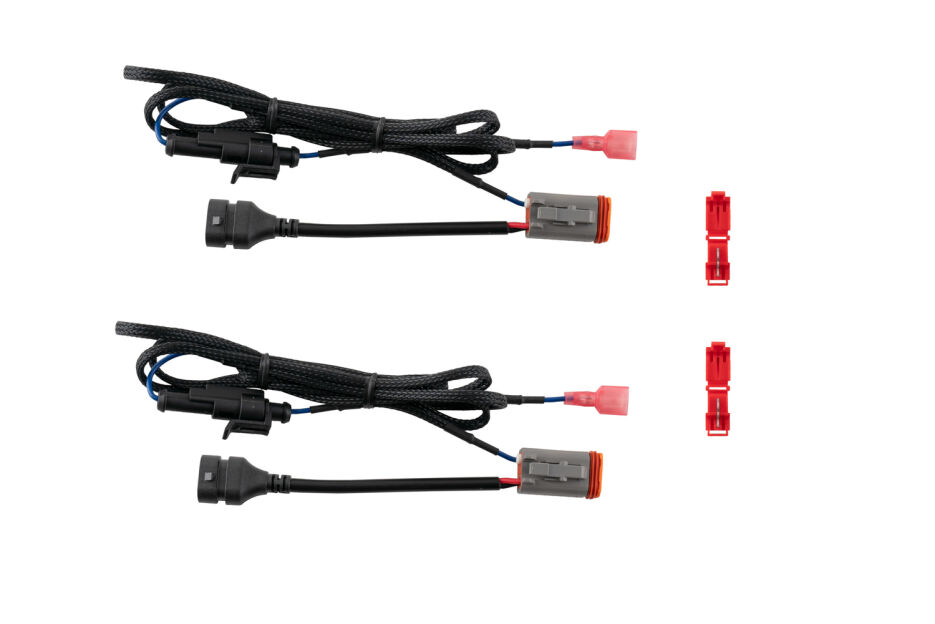

• Two DT 4-pin backlight tap adapter wires in the selected connector size

Note: Confirm included components before installation.



---



Installation Notes

• Verify the vehicle-side factory connector size before installation.
• Use with compatible SS3 Backlit Fog Light Kits.
• Route the backlight tap wire for the lighting function being used.
• Confirm main beam and backlight operation before final reassembly.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics products are backed by a 3 Year Replacement Limited Warranty for qualifying defects in materials or workmanship. Warranty coverage is handled under the brand warranty terms and may require troubleshooting before replacement approval.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
