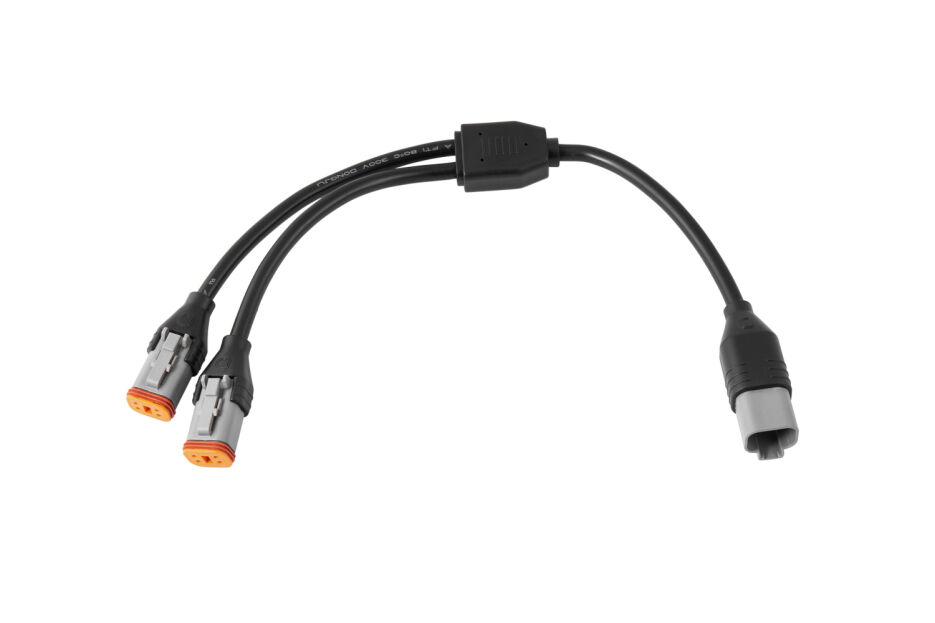

Diode Dynamics Deutsch DT 4-Pin Splitter Wire



Diode Dynamics Deutsch DT 4-Pin Splitter Wire is a 2-way splitter wiring accessory built for customers splitting DT 4-pin power for compatible Stage Series LED pods with backlight functionality. It splits a DT 4-pin power connection into two outputs so compatible backlit pods can be powered from a supported wiring setup. It gives lighting installs a cleaner connection path while keeping the finished upgrade organized and serviceable.

The splitter is intended for Diode Dynamics Stage Series LED Pods with backlight functionality. For customers adding pods, RGBW accents, rock lights, fog lights, or CrossLink hardware, matched wiring support helps reduce guesswork and keeps the installation focused on the lighting upgrade.

The 16-inch splitter uses standard Deutsch DT 4-pin connectors, heavy-duty 14AWG wire, and over-molded connectors to help provide strain relief and protection from the elements. The compact layout helps the wiring blend into engine bay, bumper, rack, and underbody installations, while still being straightforward to route near existing harness paths.

The splitter includes one female DT connector and two male connectors, giving customers a compact 2-way output for compatible auxiliary lighting. The Diode Dynamics design gives customers a purpose-built option instead of a loose-wire workaround, which is useful when upgrading existing lighting or adding a new lighting function.

Installation should account for current draw, because the splitter safely powers up to 20A of auxiliary lamps when used within the supported range. Customers should verify connector style, output needs, wire length, and vehicle-side wiring before installation. Careful routing helps protect wiring from heat, abrasion, suspension movement, and steering components.

Whether customers are upgrading for backlit pod wiring, auxiliary lighting expansion, or cleaner dual-output routing, the Diode Dynamics Deutsch DT 4-Pin Splitter Wire helps complete the installation with a cleaner connection and dependable compatibility. Now Available at LEER!



---



Features & Specifications

Product Type: Wiring accessory kit

Brand: Diode Dynamics

Vehicle Fitment: Universal fitment

Connector Style: Deutsch DT 4-pin

Wire Gauge: 14AWG

Length: 16 inches

Operating Voltage: 9-16V

Operating Temperature: -40C to 85C

Current Capacity: Up to 20A of auxiliary lamps

Functionality:

• Splits a compatible DT 4-pin power connection into two outputs
• Supports Stage Series LED Pods with backlight functionality
• Uses standard Deutsch DT 4-pin connectors
• Provides one female connector and two male connectors
• Helps power two compatible auxiliary lamps from a supported wiring layout
• Supports clean routing with a compact 16-inch splitter length



---



Why Choose

This product is ideal for customers who want a compact 2-way splitter for compatible DT 4-pin backlit pod wiring.

• Helps keep lighting wiring organized around supported Diode Dynamics components
• Supports clean routing when the correct connector style is already part of the install
• Reduces the need to piece together a custom wiring solution from loose components
• Works well for customers refreshing or expanding an existing lighting setup
• Keeps the accessory compact so it can fit into tight installation areas
• Pairs with lighting upgrades where dependable connectors matter as much as the lamps
• Helps simplify service or troubleshooting by giving each connection a clear purpose



---



What's Included

• One Deutsch DT 4-pin splitter wire

Note: Confirm included components before installation.



---



Installation Notes

• Verify that the connected auxiliary lamps are within the supported current range.
• Use with compatible Stage Series LED Pods with backlight functionality.
• Route wiring away from heat sources, sharp edges, and moving components.
• Confirm main beam and backlight operation before final reassembly.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics products are backed by a 3 Year Replacement Limited Warranty for qualifying defects in materials or workmanship. Warranty coverage is handled under the brand warranty terms and may require troubleshooting before replacement approval.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
