Diode Dynamics C2R Flush Mount LED Pod



Diode Dynamics C2R Flush Mount LED Pod is built for customers who want compact rear-facing lighting with more function than a simple work light. The C2R combines a high-power white main beam, a high-power red main beam, and a low-power red accent light in a small flush-mount pod that can support reverse, brake, and running-light style applications.

The compact dual-LED form factor helps the C2R fit into tight areas where a larger pod or light bar would be difficult to package. Bumpers, bed racks, roll bars, and other flat mounting panels can benefit from a light that sits cleanly while still delivering practical output for backing up, signaling, and rear visibility around the vehicle.

Patented TIR optics help control the light more efficiently than basic reflector designs. The flood optic is shaped to spread usable illumination across a broad area, making it especially helpful when customers need more rearward visibility while backing into a campsite, lining up a trailer, loading gear after dark, or moving around a jobsite at night.

The flush-mount design gives the installation a clean, integrated appearance. A powdercoated aluminum housing, polycarbonate lens, rubber gasket, and passive pin-fin heatsink work together to support durability and thermal management. IP69K waterproof and high-pressure intrusion rating details add confidence for vehicles that see wet roads, washdowns, dirt, and trail conditions.

This product is offered as a single pod or as a pair, so customers can match the quantity to the build. A single pod can suit focused custom lighting projects, while a pair provides balanced lighting across a rear bumper, rack, or utility mounting area. The included wiring pigtail supports independent control of the white, high-power red, low-power red, and ground connections.

Whether customers are upgrading for brighter reverse visibility, a more noticeable rear lighting setup, or compact flush-mounted utility lighting, the Diode Dynamics C2R Flush Mount LED Pod delivers triple-function performance in a small package. Now Available at LEER!



---



Features & Specifications

Product Type: Flush mount LED pod

Brand: Diode Dynamics

Raw Output: 2900 lm

Color Temperature: 6000K white output

Beam Pattern: Flood, 80x50 degree

Input Power: Reverse: 18.3 watts, Brake: 3.3 watts, Parking: 0.36 watts

Operating Voltage: 9-30V

Intrusion Rating: IP69K Waterproof, High Pressure

Functionality:

• Adds a high-power white main beam for improved reverse and utility visibility.
• Adds a high-power red main beam for rear brake-light style visibility.
• Adds a low-power red accent light for secondary running-light style use.
• Fits tight mounting locations where larger lighting would be difficult to place.
• Provides a clean flush-mount appearance on bumpers, racks, and custom panels.
• Supports independent wiring of the white, red, accent, and ground functions.



---



Available Options

The C2R Flush Mount LED Pod is available in multiple versions:

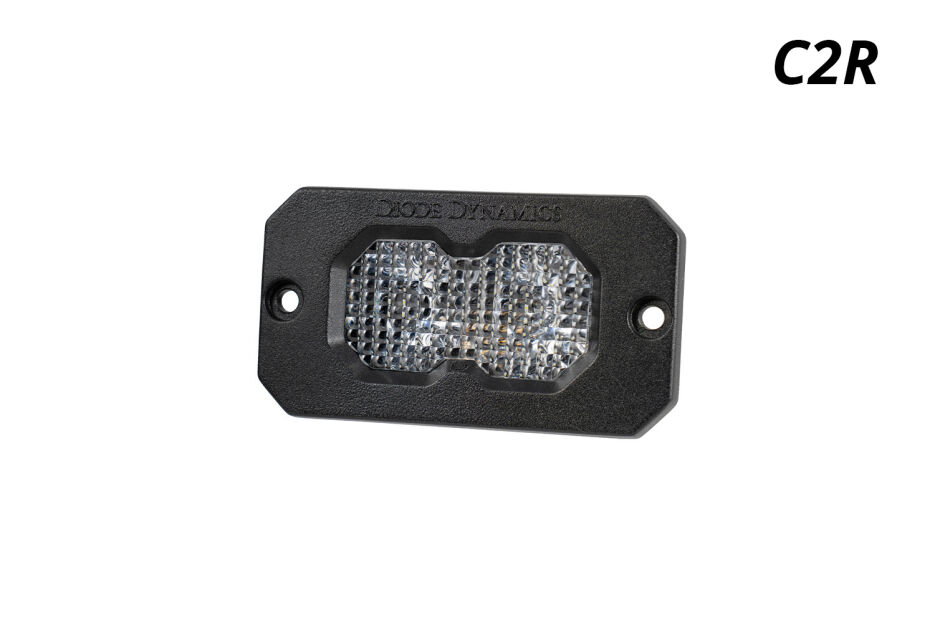

• Single Pod -- one C2R flush-mount pod for custom installations, replacement needs, or focused rear lighting projects

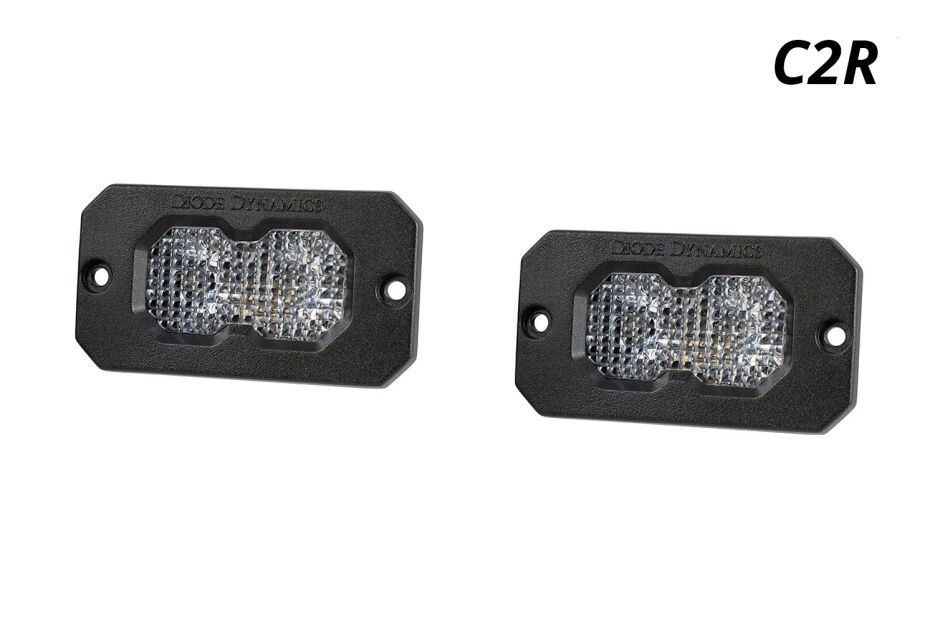

• Pair -- two C2R flush-mount pods for balanced rear lighting across a bumper, rack, or utility mounting area

Choose the single pod for a focused custom install, or choose the pair when customers want symmetrical rear lighting and a more complete flush-mount upgrade.



---



Why Choose

This product is ideal for customers who want compact rear-facing lighting with reverse, brake, and accent functions.

• Combines three useful lighting roles in one compact pod.
• Helps improve visibility when backing up, staging, or working behind the vehicle.
• Flush-mount styling keeps the finished install clean and low profile.
• Durable construction supports demanding truck and SUV use.
• Useful for bumpers, bed racks, roll bars, trailers, and custom rear lighting builds.
• Single and pair options make it easier to match the project layout.



---



What's Included

• One or two Stage Series C2R LED Pods depending on selected quantity
• Deutsch-style wire pigtail or pigtails
• Mounting brackets and hardware

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the mounting point, clearance, and wiring plan before cutting or mounting.
• Wire the white, high-power red, low-power red, and ground leads according to the intended lighting functions.
• Professional installation is recommended when integrating the pod with reverse, brake, or running-light circuits.
• Check local rules before using auxiliary lighting on public roads.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics backs this product with a Limited Lifetime Warranty. Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, tampering, impact damage outside warranty terms, or non-compliant use; proof of purchase may be required for warranty claims.
