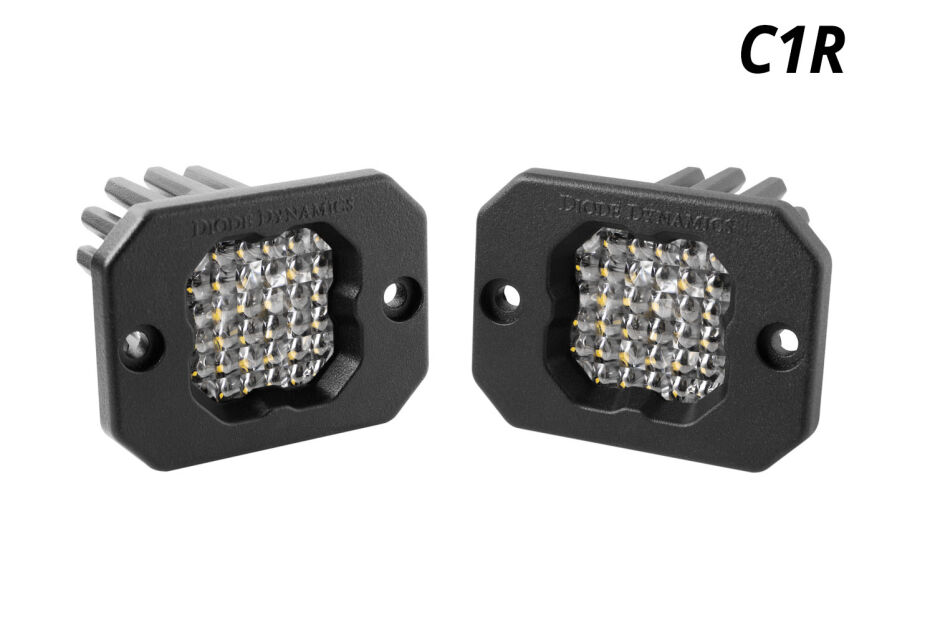

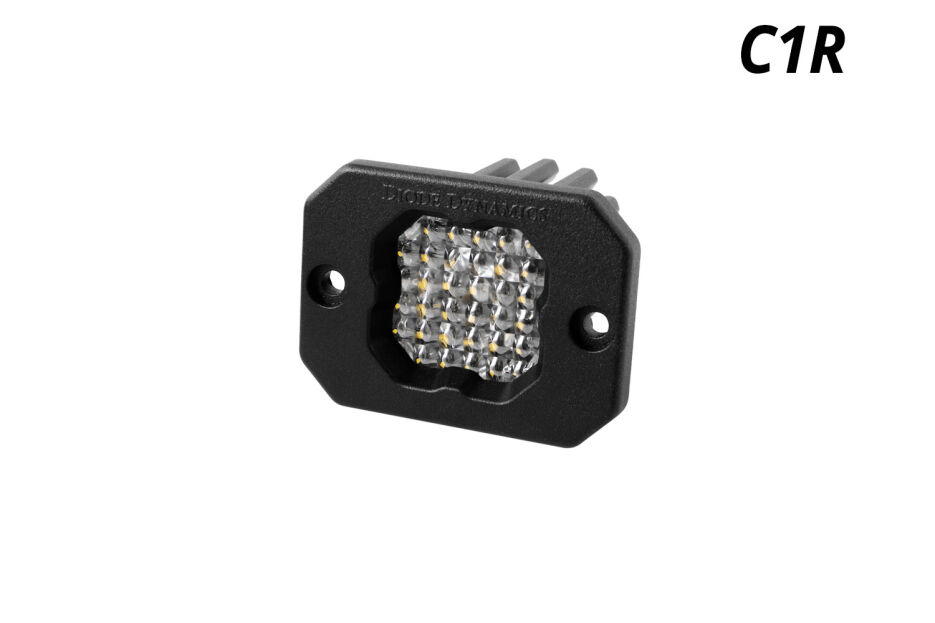

Diode Dynamics C1R LED Pod - Flush Mount



Diode Dynamics C1R LED Pod - Flush Mount gives customers a focused flush-mount triple-function LED pod for builds that need dependable lighting hardware. It is shaped for real vehicle use, with a black appearance that fits well onvehicle builds where lighting parts need to look intentional.

The product is built around a white flood main beam, a high-power red brake-light function, and a low-power red accent light in an ultra-compact flush-mount housing. That makes it a practical upgrade for drivers who want more usable light, cleaner accessory placement,. It also gives the finished installation a more deliberate feel because the selected part supports light placement, wiring access, long-term service, and the way the vehicle is actually used.

The flush mount format is ideal when customers want the C1R lighting functions integrated into a bumper, truck bed, panel, or custom mounting surface. Customers can use it to improve visibility around the vehicle,support work after dark, or finish a lighting system. The design keeps the finished appearance tidy on trail rigs, work trucks,and daily drivers.

The flush design helps the light sit close to the mounting surface for a cleaner, more built-in appearance than a raised pod bracket. This helps the product serve a real job on the vehicle.

Single and pair configurations are available so customers can use one centered light or create balanced lighting across both sides of a rear bumper or utility area. These choices help customers match the product to real vehicle use.

The pod uses custom-engineered TIR optics, an integrated Deutsch-style connector, a 4-pin 6-inch pigtail with bare leads, and a pin-fin heatsink design for thermal management. Whether customers are upgrading for flush-mounted reverse lighting, added brake visibility, or a clean red accent light, the Diode Dynamics C1R LED Pod - Flush Mount delivers a clean, useful improvement. Now Available at LEER!



---



Features & Specifications

Product Type: Flush-mount triple-function LED pod

Brand: Diode Dynamics

Series: Stage Series C1R

Mounting Style: Flush mount

Light Functions: White flood main beam, high-power red brake light, and low-power red accent light

Raw Output: 1450 lm

Input Power: 15 watts

Operating Voltage: 9-16V

Water Resistance: IP69K waterproof, high pressure

Color Temperature: 6000K white main beam

Functionality:

• Adds usable illumination for reversing, trail spotting, work areas, cargo access, or low-light vehicle tasks.
• Supports clean auxiliary lighting layouts where compact housings are easier to package than a larger light bar.
• Helps improve visibility around the vehicle during nighttime setup, loading, backing, and off-road maneuvering.
• Works with Diode Dynamics Stage Series ecosystem components for a consistent lighting appearance.
• Keeps the lighting upgrade focused on practical placement instead of oversized add-on styling.
• Allows customers to tailor light placement to the selected mount, bracket, harness, or vehicle application.



---



Available Options

The Diode Dynamics C1R LED Pod - Flush Mount is available in multiple quantity configurations:

• Single pod -- best for a centered flush-mount lighting location or a smaller custom panel.
• Pair of pods -- best for matching left and right lighting positions or a wider rear-lighting layout.

Choose the single pod for a compact built-in upgrade, or choose the pair for balanced flush-mount lighting across the vehicle.



---



Why Choose

This product is ideal for customers who want triple-function C1R lighting with a cleaner built-in mount style.

• Compact packaging helps place light where a larger lamp or light bar may not fit cleanly.
• Purposeful beam and lens choices support practical lighting instead of purely decorative output.
• Black housings and brackets keep the installed look understated on modern truck and SUV builds.
• Confirmed voltage, temperature, and water-intrusion ratings support use in demanding vehicle environments.
• Diode Dynamics components integrate well with other Stage Series lighting accessories.
• The product helps customers solve a real visibility or installation problem with a polished component.



---



What's Included

• Selected C1R flush mount LED pod configuration
• Flush-mount hardware
• 4-pin 6-inch pigtail with bare leads

Note: Confirm included components before installation.



---



Installation Notes

• Confirm the mounting surface has enough depth and clearance before cutting or drilling for a flush-mount installation.
• Wire the yellow, red, blue, and black leads to the intended high-power red, white main beam, low-power red, and ground circuits.
• Verify that the selected panel or bumper location will not interfere with cargo, suspension, exhaust, or recovery equipment.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics products are backed by a 3 Year Worry-Free Warranty. Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.

Proof of purchase may be required for warranty claims. Customers should keep installation records and confirm that all wiring, hardware, and vehicle-use conditions follow the product instructions before requesting warranty support.
