Diode Dynamics Add-On Foglight Wiring Harness



Diode Dynamics Add-On Foglight Wiring Harness is a fog light wiring harness kit built for customers adding fog lights to vehicles without factory fog light wiring. It lets compatible fog lights operate automatically with factory-like behavior, using activation and deactivation wiring along with a switch. It gives lighting installs a cleaner connection path while keeping the finished upgrade organized and serviceable.

Configurations support non-backlit Stage Series lighting products, backlit Stage Series lighting products, and connector options for fog lamps, LED pods, and related auxiliary lighting. For customers adding pods, RGBW accents, rock lights, fog lights, or CrossLink hardware, matched wiring support helps reduce guesswork and keeps the installation focused on the lighting upgrade.

High-capacity 16AWG wiring, a waterproof fuse, and compatibility with factory-installed auxiliary switches help make the harness suitable for clean add-on fog light control. The compact layout helps the wiring blend into engine bay, bumper, rack, and underbody installations, while still being straightforward to route near existing harness paths.

The group includes DT 2-pin, DT 4-pin, H11, 9006, and 5202 output connector configurations so customers can select the harness that matches the lights being installed. The Diode Dynamics design gives customers a purpose-built option instead of a loose-wire workaround, which is useful when upgrading existing lighting or adding a new lighting function.

Installation includes connecting activation, deactivation, power, and switching circuits so the fog lights turn on with the desired vehicle signal and turn off when required. Customers should verify connector style, output needs, wire length, and vehicle-side wiring before installation. Careful routing helps protect wiring from heat, abrasion, suspension movement, and steering components.

Whether customers are upgrading for fog light upgrades, auxiliary lighting control, or cleaner factory-like operation, the Diode Dynamics Add-On Foglight Wiring Harness helps complete the installation with a cleaner connection and dependable compatibility. Now Available at LEER!



---



Features & Specifications

Product Type: Wiring accessory kit

Brand: Diode Dynamics

Vehicle Fitment: Universal fitment

Wire Gauge: 16AWG

Fuse: 15A waterproof fuse on confirmed configurations

Connector Options: DT 2-pin, DT 4-pin, H11, 9006, and 5202

Color: Black

Included Quantity: One harness

Functionality:

• Adds fog light wiring to vehicles without factory fog light wiring
• Allows compatible fog lights to turn on automatically with selected vehicle lighting signals
• Supports high beam deactivation wiring when connected properly
• Works with factory-installed auxiliary switch banks on compatible vehicles
• Offers multiple output connector configurations for different lighting setups
• Supports compatible fog lamps, LED pods, and Stage Series lighting products



---



Available Options

The Add-On Foglight Wiring Harness is available in multiple configurations:

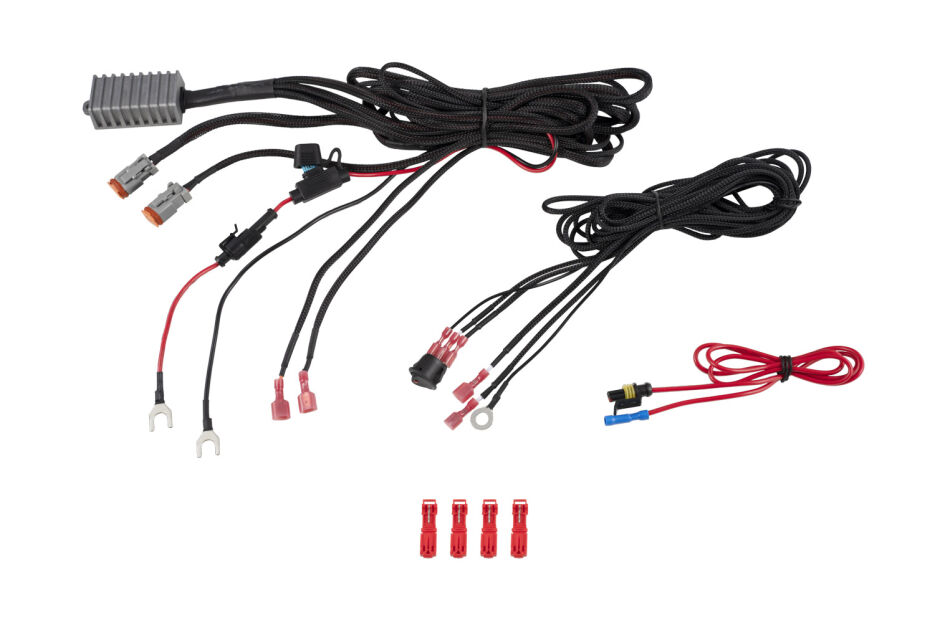

• DT 2-Pin Foglight Wiring Harness -- supports non-backlit Stage Series lighting products with dual Deutsch DT 2-pin outputs

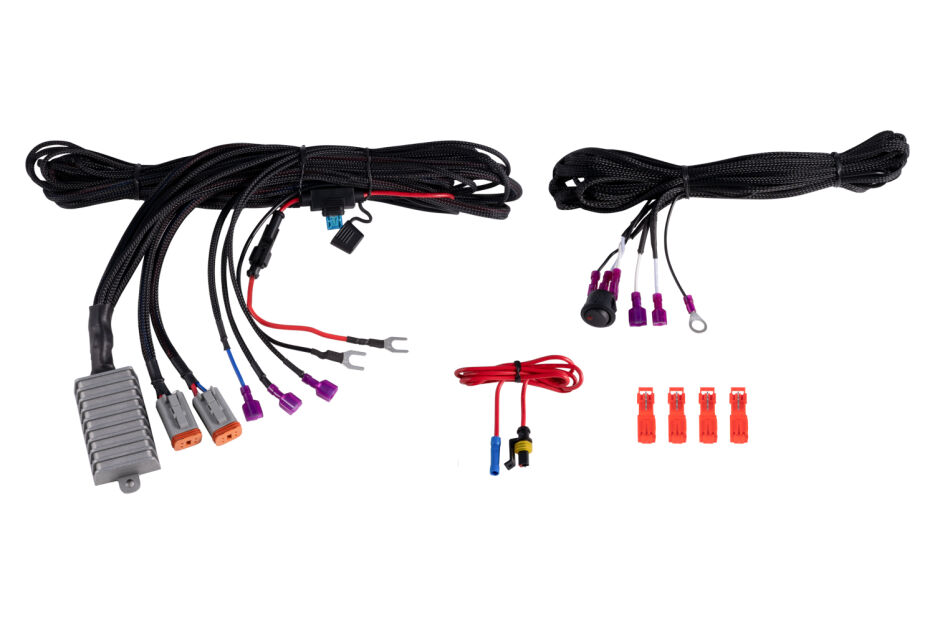

• DT 4-Pin Foglight Wiring Harness -- supports backlit Stage Series lighting products with dual Deutsch DT 4-pin outputs
• H11 Foglight Wiring Harness -- matches supported lighting setups that use H11-size output connectors
• 9006 Foglight Wiring Harness -- matches supported lighting setups that use 9006-size output connectors
• 5202 Foglight Wiring Harness -- matches supported lighting setups that use 5202-size output connectors

Choose DT 2-pin for non-backlit Stage Series lights, DT 4-pin for backlit Stage Series lights, or choose H11, 9006, or 5202 when the fog light connector size requires it.



---



Why Choose

This product is ideal for customers who want factory-like fog light operation for vehicles without factory fog light wiring.

• Adds fog light control without relying on a basic manual-only switch setup
• Helps compatible fog lights operate with selected vehicle lighting signals
• Supports automatic deactivation wiring when connected to the high beam circuit
• Works with factory auxiliary switch banks on compatible vehicles
• Gives customers multiple connector options for different light configurations
• Uses high-capacity wiring and fused protection for auxiliary lighting use



---



What's Included

• One add-on foglight wiring harness in the selected connector configuration

Note: Confirm included components before installation.



---



Installation Notes

• Verify connector style and lighting compatibility before installation.
• Connect activation and deactivation wires for the desired vehicle lighting behavior.
• Route wiring away from heat sources, sharp edges, and moving components.
• Confirm fog light operation with the selected switch and vehicle lighting signals before final reassembly.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Diode Dynamics products are backed by a 3 Year Replacement Limited Warranty for qualifying defects in materials or workmanship. Warranty coverage is handled under the brand warranty terms and may require troubleshooting before replacement approval.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
