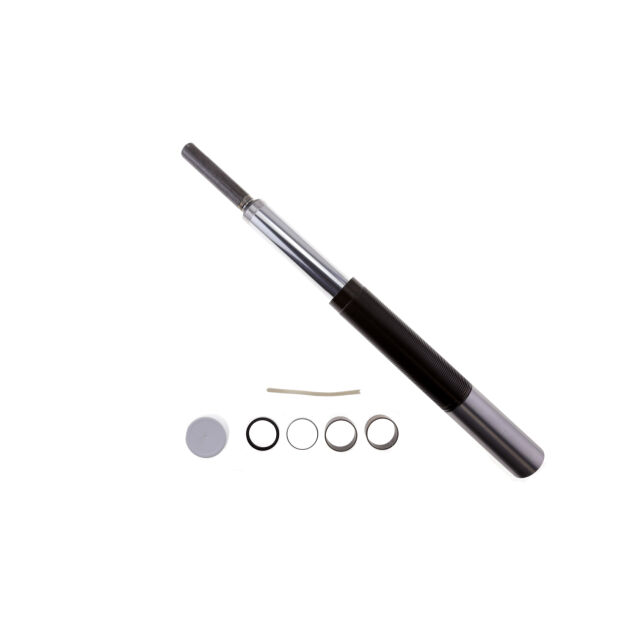

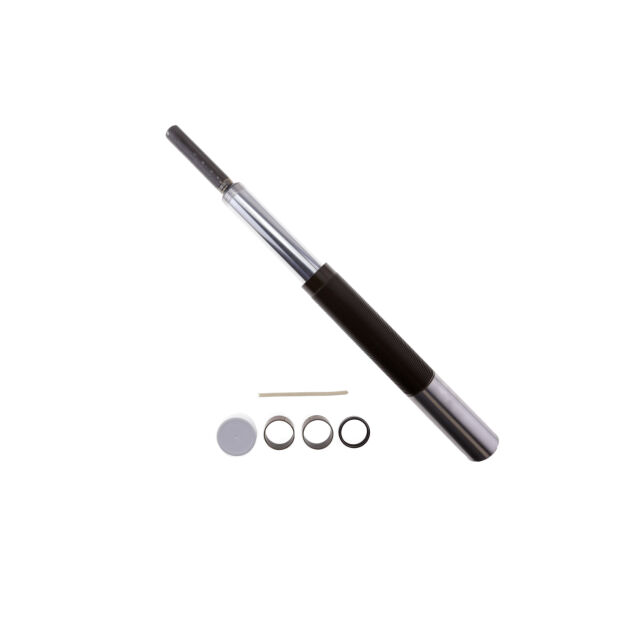

Bilstein Universal Motorsports Strut Suspension Strut Assembly



The Bilstein Universal Motorsports Strut Suspension Strut Assembly is a race-focused strut platform for custom motorsports MacPherson strut applications. It gives fabricators and racers a 36mm monotube foundation for building a MacPherson-style suspension around specific chassis needs rather than forcing a standard street replacement into competition use.

The universal motorsports design is built for customers who need flexibility in a dedicated performance build. A semi-finished mounting approach and threaded body layout support fabrication work, ride-height planning, and race setup decisions when the chassis requires more than a direct-replacement component.

The olive-drab zinc finish gives the strut a purposeful motorsports appearance while supporting demanding shop and track environments. Valving choices across the group allow builders to align damping character with vehicle weight, suspension geometry, and driver preference.

Because this is a universal motorsports component, fitment is determined by the build rather than a standard year, make, and model application. Customers should treat it as a professional fabrication part that requires careful measurement, setup knowledge, and correct supporting hardware.

For racers moving beyond traditional replacement struts, the Universal Motorsports Strut layout offers a more serious starting point. It helps experienced builders create a suspension package with stronger control, more setup freedom, and a cleaner motorsports foundation.

The selected configuration should support the way the vehicle is actually driven, from normal road miles to the specific performance or service goal behind the upgrade. Matching the part to the vehicle, spring package, and installation plan helps customers get the intended Bilstein feel instead of a generic replacement result. This approach also helps shops communicate the benefit clearly, because the suspension change is tied to real use rather than a vague parts swap. Whether customers are upgrading for custom fabrication, race car setup, or MacPherson strut development, Bilstein Universal Motorsports Strut Suspension Strut Assembly delivers controlled suspension performance with Bilstein ride quality. Now Available at LEER!



---



Features & Specifications

Product Type: Suspension Strut Assembly

Brand: Bilstein

Series: Universal Motorsports Strut

Finish: Olive-Drab Zinc

Internal Design: Monotube

Body Design: Threaded Body (Coilover)

Piston Diameter: 36mm

Body Material: Steel

Boot Included: No

Spring Seat Included: No

Lower Mount Type: Housing

Upper Mount Type: Stem

Collapsed Length: 13.29 in.

Extended Length: 19.86 in.

Adjustable Damping: Non-Adjustable

Vehicle Fitment: Universal or motorsports applications; match by measurements and build requirements

Universal motorsports struts require measurement and setup planning before installation. Builders should match length, valving, mounting strategy, spring package, and chassis clearance before committing to final fabrication.

Functionality:

• Provides a universal 36mm monotube strut platform for fabrication builds
• Supports MacPherson-style motorsports suspension development
• Threaded body layout helps builders plan ride-height and spring setup
• Multiple valving choices help tune the car to weight and track demands
• Semi-finished mounting areas support custom fabrication work
• Useful for race cars that need more freedom than direct-replacement parts
• Gives experienced builders a focused motorsports starting point



---



Available Options

The Bilstein Universal Motorsports Strut Suspension Strut Assembly is available in multiple configurations:

• 6.6 trvl LT 380/180 -- 36mm universal strut valving with compression 1700 and rebound 3785; best for builders selecting damping character around vehicle weight and track setup
• 6.6 trvl LT 300/180 -- 36mm universal strut valving with compression 1665 and rebound 3055; best for builders selecting damping character around vehicle weight and track setup
• 6.6 trvl LT 300/120 -- 36mm universal strut valving with compression 1255 and rebound 2790; best for builders selecting damping character around vehicle weight and track setup
• 6.6 trvl LT 300/100 -- 36mm universal strut valving with compression 1000 and rebound 3050; best for builders selecting damping character around vehicle weight and track setup
• 6.6 trvl LT 180/100 -- 36mm universal strut valving with compression 960 and rebound 1735; best for builders selecting damping character around vehicle weight and track setup

Choose the softer valving options for lighter race builds or compliance-focused tuning, or choose the firmer valving options for builds that need more damping control.



---



Why Choose

This product is ideal for customers who want a universal motorsports strut platform for custom MacPherson-style builds.

• Gives experienced builders a flexible strut platform
• 36mm monotube construction supports race-focused damping control
• Threaded body layout helps with ride-height planning
• Multiple valving choices support chassis tuning
• Semi-finished mounting areas suit fabrication-focused work
• Useful when no standard direct-fit part matches the build
• Purposeful olive-drab zinc finish fits motorsports hardware



---



What's Included

• One universal motorsports strut assembly

Note: Confirm included components before installation.



---



Installation Notes

• Measure the build carefully before selecting mounting hardware, spring package, and ride-height setup
• Professional fabrication is required for the semi-finished mounting areas and custom chassis application
• Confirm stroke, valving, and clearance before final assembly

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Warranty coverage for motorsports-oriented suspension components can vary by series, use, and installation conditions. Competition use, impact damage, improper setup, modification, or installation outside the intended application may limit coverage.

Coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Customers should keep purchase records and confirm the applicable coverage terms for the selected configuration.
