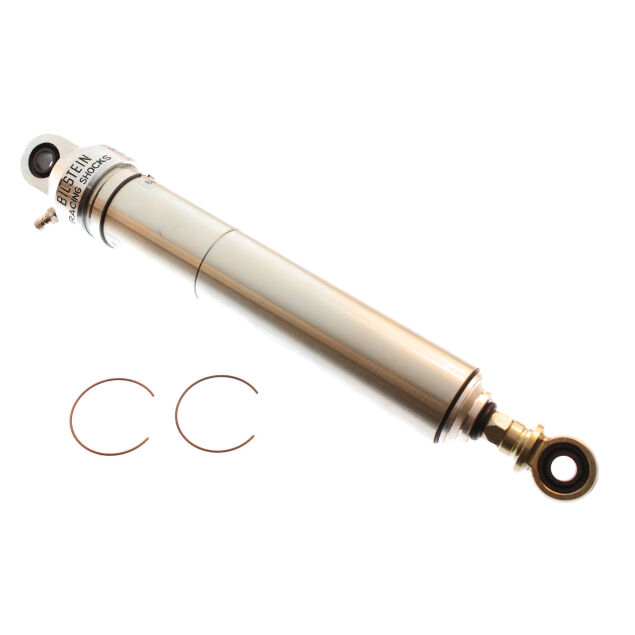

Bilstein SNS Series Shock Absorber



Bilstein SNS Series Shock Absorber is a smooth body motorsports shock absorber for racers who need all-steel construction with rebuild capability. It is built for customers who need suspension hardware that can live in demanding environments while still giving builders the information needed to match the damper to a specific setup. The result is a focused upgrade for off-road, motorsports, and custom suspension projects where ordinary replacement shocks are not the goal.

The nickel plated finish and compact smooth body layout give the shock a clean race-ready appearance without adding spring-seat hardware. The design gives race teams, fabricators, and serious recreational drivers a damper that can be selected around ride height, travel, and mounting needs instead of forcing the suspension around a generic part. That flexibility is valuable on custom trucks, trail rigs, recreational off-road vehicles, and competition builds where packaging room and wheel travel both matter.

The group uses 46mm monotube construction, eye 12.7mm upper and lower mounts, no spring seat, and collapsed lengths from 11.48 to 15.16in with extended lengths from 16.32 to 23.44in. These details help customers compare the shock against their suspension layout before installation, especially when a build requires a specific collapsed length, extended length, mount type, or reservoir arrangement. Fitment is matched by the selected vehicle or custom application rather than by a universal promise.

Custom linear and custom digressive damping choices allow customers to select a shock that works with the vehicle setup and rule package while preserving rebuild service options. Customers can focus on the length, travel, damping character, and mounting layout that support the way the vehicle is driven. A shorter setup may suit tighter packaging, while longer travel versions can help builds that need more suspension movement and more room to manage rough terrain.

In real use, the Bilstein SNS Series Shock Absorber is aimed at customers who care about control, serviceability, and repeatable suspension feel. It is a strong choice for builds that spend time on uneven terrain, in the desert, on rocks, around track terrain, or under a vehicle that needs more deliberate suspension tuning than an everyday replacement damper can provide.

Whether customers are upgrading for all-steel damper requirements, serviceable race shocks, or custom motorsports suspension packages, the Bilstein SNS Series Shock Absorber delivers rebuildable steel-body damping with custom linear or digressive choices. Now Available at LEER!



---



Features & Specifications

Product Type: Suspension shock absorber

Brand: Bilstein

Series: SNS Series

Finish: Nickel plated

Internal Design: Monotube

Piston Diameter: 46mm

Collapsed Length Range: 11.48 to 15.16 in.

Extended Length Range: 16.32 to 23.44 in.

Mount Type: Eye 12.7mm upper and lower mounts

Damping Options: Custom linear and custom digressive compression and rebound

Spring Seat Included: No

Functionality:

• Supports custom suspension tuning for vehicles built around SNS Series shock dimensions
• Helps manage wheel control during rough terrain, repeated impacts, and changing terrain conditions
• Works well for motorsports, rock crawling, desert driving, lifted truck, and custom fabrication projects when dimensions match
• Allows builders to match collapsed length, extended length, mount style, and travel to the suspension layout
• Uses monotube shock technology for consistent damping feel during demanding use
• Gives race teams and experienced builders a serviceable foundation for specialized suspension setups



---



Available Options

The Bilstein SNS Series Shock Absorber is available in multiple configurations:

• Custom digressive versions -- support racers who want a firmer initial damping response
• Custom linear versions -- support customers who want a more proportional damping response
• Length range options -- cover multiple body lengths so customers can match shock dimensions to suspension travel and chassis packaging

Choose custom digressive damping for stronger initial response, or choose custom linear damping for a steadier damping curve through shock movement.



---



Why Choose

This product is ideal for customers who want motorsports-grade suspension control with fitment matched to the build.

• Purpose-built for customers who are planning a serious suspension upgrade rather than a simple appearance change
• Gives builders a clear path to match shock length, travel, and mounting layout to custom suspension geometry
• Supports vehicles that see repeated impacts, rough terrain, and demanding off-road environments
• Pairs well with fabrication-focused builds where suspension packaging and service access matter
• Helps customers move beyond generic replacement dampers toward a more specialized performance setup
• Backed by Bilstein motorsports engineering for customers who value proven damper design



---



What's Included

• One Bilstein SNS Series shock absorber in the selected length and damping configuration

Note: Confirm included components before installation.



---



Installation Notes

• Confirm length, mount diameter, damping style, and chassis clearance before installation
• Use compatible eye-mount hardware and spacers for the suspension layout
• Rebuild and valve-service work should be handled by qualified motorsports suspension technicians

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Bilstein warranty coverage varies by product type, application, and service conditions. Motorsports parts should be installed, assembled, and serviced by qualified technicians using the correct tools, compatible components, and accepted damper-service practices.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
