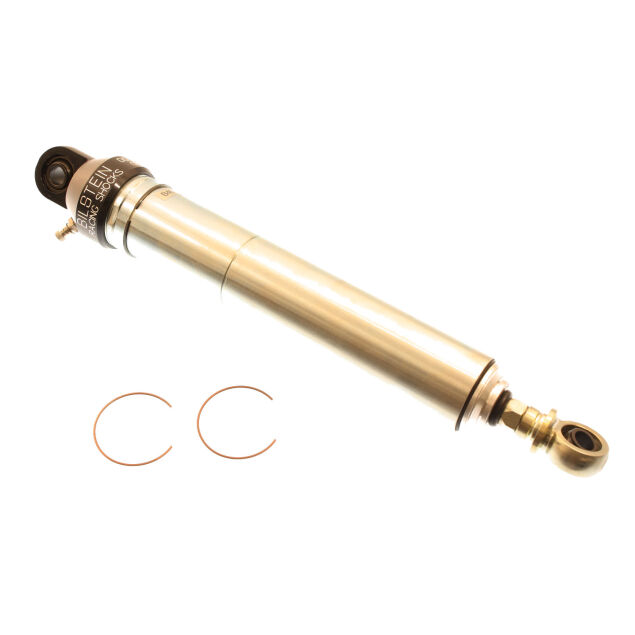

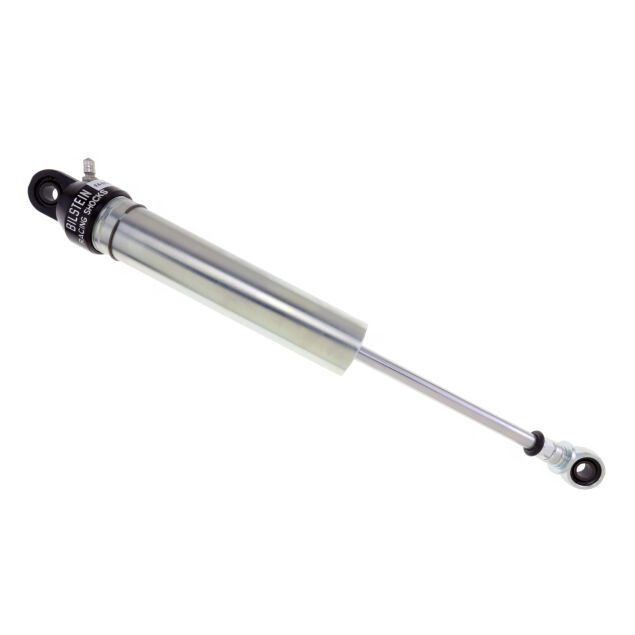

Bilstein SN Series Shock Absorber



Bilstein SN Series Shock Absorber is a steel-construction motorsports shock absorber for customers who need a rebuildable smooth body damper with a billet aluminum cap. It is built for customers who need suspension hardware that can live in demanding environments while still giving builders the information needed to match the damper to a specific setup. The result is a focused upgrade for off-road, motorsports, and custom suspension projects where ordinary replacement shocks are not the goal.

The nickel plated finish gives the shock a purposeful competition look, while the smooth body design keeps packaging clean in custom suspension layouts. The design gives race teams, fabricators, and serious recreational drivers a damper that can be selected around ride height, travel, and mounting needs instead of forcing the suspension around a generic part. That flexibility is valuable on custom trucks, trail rigs, recreational off-road vehicles, and competition builds where packaging room and wheel travel both matter.

The group uses 46mm monotube construction, multiple eye or 1/2in heim mount layouts, no spring seat, and collapsed lengths from 11.48 to 15.08in with extended lengths from 16.32 to 23.60in. These details help customers compare the shock against their suspension layout before installation, especially when a build requires a specific collapsed length, extended length, mount type, or reservoir arrangement. Fitment is matched by the selected vehicle or custom application rather than by a universal promise.

Linear and digressive versions give customers a way to choose damping feel, while the multiple length and mount combinations help match sanctioning rules and chassis requirements. Customers can focus on the length, travel, damping character, and mounting layout that support the way the vehicle is driven. A shorter setup may suit tighter packaging, while longer travel versions can help builds that need more suspension movement and more room to manage rough terrain.

In real use, the Bilstein SN Series Shock Absorber is aimed at customers who care about control, serviceability, and repeatable suspension feel. It is a strong choice for builds that spend time on uneven terrain, in the desert, on rocks, around track terrain, or under a vehicle that needs more deliberate suspension tuning than an everyday replacement damper can provide.

Whether customers are upgrading for sanctioned racing, steel-body damper requirements, or custom motorsports suspension service, the Bilstein SN Series Shock Absorber delivers rebuildable steel-body shock control with multiple damping and mount choices. Now Available at LEER!



---



Features & Specifications

Product Type: Suspension shock absorber

Brand: Bilstein

Series: SN Series

Finish: Nickel plated

Internal Design: Monotube

Piston Diameter: 46mm

Collapsed Length Range: 11.48 to 15.08 in.

Extended Length Range: 16.32 to 23.60 in.

Mount Types: Eye 12.7mm and 1/2in heim options

Damping Options: Linear and digressive compression and rebound

Spring Seat Included: No

Functionality:

• Supports custom suspension tuning for vehicles built around SN Series shock dimensions
• Helps manage wheel control during rough terrain, repeated impacts, and changing terrain conditions
• Works well for motorsports, rock crawling, desert driving, lifted truck, and custom fabrication projects when dimensions match
• Allows builders to match collapsed length, extended length, mount style, and travel to the suspension layout
• Uses monotube shock technology for consistent damping feel during demanding use
• Gives race teams and experienced builders a serviceable foundation for specialized suspension setups



---



Available Options

The Bilstein SN Series Shock Absorber is available in multiple configurations:

• Digressive damping versions -- suit racers who want stronger initial control and a more responsive damping feel
• Linear damping versions -- suit customers who want a steadier damping curve through shock movement
• Eye 12.7mm mount versions -- fit builds designed around conventional eye-style mounts
• 1/2in heim mount versions -- fit custom suspension layouts that use spherical bearing style mounting
• Length range options -- help customers match shock dimensions to chassis packaging and suspension travel

Choose the damping profile and mount style that match the suspension rules, chassis layout, and driving feel needed for the build.



---



Why Choose

This product is ideal for customers who want motorsports-grade suspension control with fitment matched to the build.

• Purpose-built for customers who are planning a serious suspension upgrade rather than a simple appearance change
• Gives builders a clear path to match shock length, travel, and mounting layout to custom suspension geometry
• Supports vehicles that see repeated impacts, rough terrain, and demanding off-road environments
• Pairs well with fabrication-focused builds where suspension packaging and service access matter
• Helps customers move beyond generic replacement dampers toward a more specialized performance setup
• Backed by Bilstein motorsports engineering for customers who value proven damper design



---



What's Included

• One Bilstein SN Series shock absorber in the selected length, damping, and mount configuration

Note: Confirm included components before installation.



---



Installation Notes

• Confirm mount type, shock length, damping style, and chassis clearance before installation
• Use compatible hardware, spacers, and brackets for the suspension layout
• Rebuild and valve-service work should be performed by qualified motorsports suspension technicians

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Bilstein warranty coverage varies by product type, application, and service conditions. Motorsports parts should be installed, assembled, and serviced by qualified technicians using the correct tools, compatible components, and accepted damper-service practices.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
