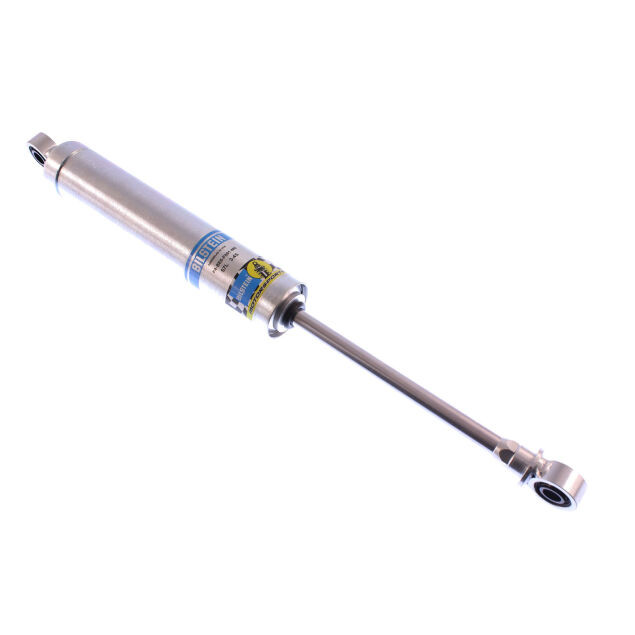

Bilstein SLS Series Shock Absorber - Zinc



The Bilstein SLS Series Shock Absorber is built for racers who need a sealed steel body monotube damper with straightforward setup choices. It suits motorsports applications where sanctioning rules do not allow or do not require rebuild capability. The zinc plated finish gives the shock a practical race-hardware look while helping protect the steel body.

A 46mm piston and smooth body non-coilover layout keep the SLS Series focused on controlled damping rather than extra adjustment complexity. The design is useful for customers who want consistent fade-free behavior in a simpler sealed package. Standard 1/2in graphite heims support common motorsports mounting needs.

The grouped options include 7 inch and 9 inch standard body versions with multiple linear valving choices. The 7 inch shocks use a 13.15 inch collapsed length and 20.08 inch extended length, while the 9 inch option uses a 14.88 inch collapsed length and 23.52 inch extended length. Customers can match stroke length and valving to vehicle weight, suspension travel, and track conditions.

The SLS Series is a practical option for race cars that need durability and consistent damping without the service planning of a fully rebuildable shock. It can also be converted to a coilover design when the correct kit is used, giving builders flexibility across more than one chassis layout. That makes it useful for racers who want simple hardware with meaningful setup options.

Customers should choose the length and valving based on suspension travel, ride height, and class rules. The available 3-4S, 4-2S, and 5-1.5S options give teams different compression and rebound balances. When the setup is matched correctly, the SLS Series helps the car stay composed through changing track conditions.

Whether customers are upgrading for sealed shock rules, oval-track consistency, or motorsports chassis control, the SLS Series Shock Absorber delivers durable 46mm monotube performance. Now Available at LEER!



---



Features & Specifications

Product Type: Suspension shock absorber

Brand: Bilstein

Series: SLS Series

Body Design: Smooth body non-coilover

Internal Design: Monotube

Piston Diameter: 46mm

Finish: Zinc plated

Stroke Length: 6.93 inch and 8.64 inch options

Valving Identifiers: 3-4S, 4-2S, and 5-1.5S

Mount Type: 1/2in heim upper and lower mounts

Functionality:

• Supports sealed shock motorsports classes.
• Provides linear valving choices for chassis tuning.
• Uses a 46mm monotube layout for consistent control.
• Works for non-coilover layouts and can support conversion with the correct kit.
• Helps manage suspension feel on dirt and asphalt track conditions.
• Offers defined length choices for chassis setup.



---



Available Options

The SLS Series Shock Absorber is available in multiple configurations:

• S7L 3-4S -- 7 inch standard body steel option for customers needing 3-4S valving.
• S7L 4-2S -- 7 inch standard body steel option for customers needing 4-2S valving.
• S9L 5-1.5S -- 9 inch standard body steel option for customers needing 5-1.5S valving with additional length.

Choose a 7 inch S7L option for shorter travel layouts, or choose the 9 inch S9L option when the chassis needs more length and travel.



---



Why Choose

This product is ideal for customers who want durable steel monotube control for classes that do not require rebuild capability.

• Fits customers who need a durable sealed steel body shock.
• Keeps the damper package simple and race-focused.
• Offers multiple valving choices without excess complexity.
• Provides zinc plated protection and motorsports appearance.
• Supports common heim-mounted race chassis layouts.
• Helps racers stay within classes that limit rebuildable shock use.



---



What's Included

• One Bilstein SLS Series shock absorber in the chosen length and valving.

Note: Confirm included components before installation.



---



Installation Notes

• Confirm class rules, stroke length, valving, and mount size before installation.
• Coilover conversion requires the correct kit and setup parts.
• Cycle the suspension to verify clearance and bump stop protection.
