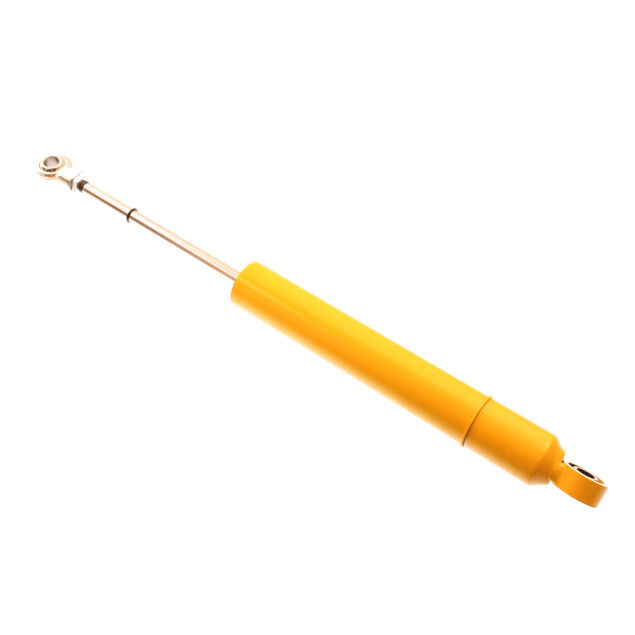

Bilstein M Series Shock Absorber - Yellow



The Bilstein M Series Shock Absorber is built for racers who need a lightweight monotube damper with straightforward tuning choices. It is aimed at stock cars, IMCA and UMP Modifieds, midgets, mini-sprints, modified lites, and dwarf cars. The yellow finish gives the shock a classic Bilstein race appearance while the steel body supports the demands of dirt and asphalt competition.

A 36mm monotube design helps deliver consistent damping behavior when the suspension is working through fast transitions, corner entry, and uneven track conditions. The M Series is offered with multiple valve settings, allowing customers to match suspension feel to car weight, track grip, and driving style. That range gives race teams a practical tuning path without changing to a more complex damper package.

The grouped M Series options use an 8 inch stroke with 13.90 inch collapsed length and 21.89 inch extended length. Eye 12.7mm mounts at both ends make the layout familiar for many motorsports chassis. The shock can also support coilover conversion when the right kit is used, which gives customers flexibility across multiple race platforms.

This shock is especially useful for racers who want consistent handling and control in a durable package. The available valving identifiers let customers choose a compression and rebound balance that fits the car and the track. That makes the M Series a practical option for tuning corner attitude, drive-off grip, and overall chassis feel.

Customers should think of the M Series as a focused racing component rather than a street replacement part. The value is in its simple body design, clear length data, and multiple damping choices. For race cars that need repeatable feel and easy setup planning, the M Series keeps the damper package direct and useful.

Whether customers are upgrading for dirt track tuning, asphalt racing, or lightweight motorsports control, the M Series Shock Absorber delivers consistent damping with race-ready adjustability through valving choice. Now Available at LEER!



---



Features & Specifications

Product Type: Suspension shock absorber

Brand: Bilstein

Series: M Series

Body Design: Steel monotube body with 36mm piston

Finish: Yellow paint

Stroke Length: 8 inch

Collapsed Length: 13.90 inch

Extended Length: 21.89 inch

Mount Type: Eye 12.7mm upper and lower mounts

Valving Identifiers: 3020, 3030, 4010, 4040, 5030, 5050, and 5555

Functionality:

• Supports stock car, modified, midget, and compact race applications.
• Lets customers tune suspension response through available valving choices.
• Helps maintain fade-free control during repeated track cycles.
• Works for dirt and asphalt platforms when length and mounts match.
• Provides known 8 inch travel dimensions for chassis setup.
• Can support coilover conversion with the proper kit.
• Pairs a simple steel body with race-focused damping options.



---



Available Options

The M Series Shock Absorber is available in multiple configurations:

• S8M-3030 -- 8 inch standard body option with 3030 valving for balanced race setup work.
• S8M-5555 -- 8 inch standard body option with 5555 valving for customers needing a firmer matched valve selection.
• S8M-4040 -- 8 inch standard body option with 4040 valving for midrange compression and rebound balance.
• S8M-5050 -- 8 inch standard body option with 5050 valving for a matched higher-control feel.
• S8M-4010 -- 8 inch standard body option with 4010 valving for builds that need a stronger compression bias.
• S8M-3020 -- 8 inch standard body option with 3020 valving for lighter rebound control needs.
• S8M-5030 -- 8 inch standard body option with 5030 valving for customers tuning around stronger compression than rebound.

Choose a softer valve balance for lighter cars or slicker tracks, or choose a firmer valve balance for added control when track grip, speed, or chassis load increases.



---



Why Choose

This product is ideal for customers who want lightweight fade-free handling with multiple valving choices.

• Offers multiple valve choices for race-day setup changes.
• Keeps the damper package lightweight and direct.
• Supports consistent handling in common oval-track platforms.
• Uses familiar eye mounts for straightforward race chassis planning.
• Gives customers clear travel and length information.
• Works across dirt and asphalt race applications.
• Delivers Bilstein monotube control in a practical motorsports format.



---



What's Included

• One Bilstein M Series shock absorber in the chosen valving.

Note: Confirm included components before installation.



---



Installation Notes

• Confirm sanctioning rules, valving choice, mount size, stroke, and ride height before installation.
• Coilover conversion requires the correct kit and setup parts.
• Cycle the suspension to verify clearance, droop, and bump stop protection.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Warranty coverage can vary by product, application, and use. Coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.

Proof of purchase may be required for warranty claims. Customers should retain purchase records and inspect suspension components after hard use, racing, or off-road operation.
