Bilstein M 9200 Bypass Shock Absorber - 4-Tube



The Bilstein M 9200 Bypass Shock Absorber - 4-Tube gives customers a focused suspension solution for off-road racers who need external bypass control for severe terrain. It is built for shoppers who want the right damper style for a real vehicle or race chassis rather than a generic one-size-fits-all part. The result is a cleaner path to better suspension control, whether the goal is comfort restoration, sharper handling, or a more controlled competition setup.

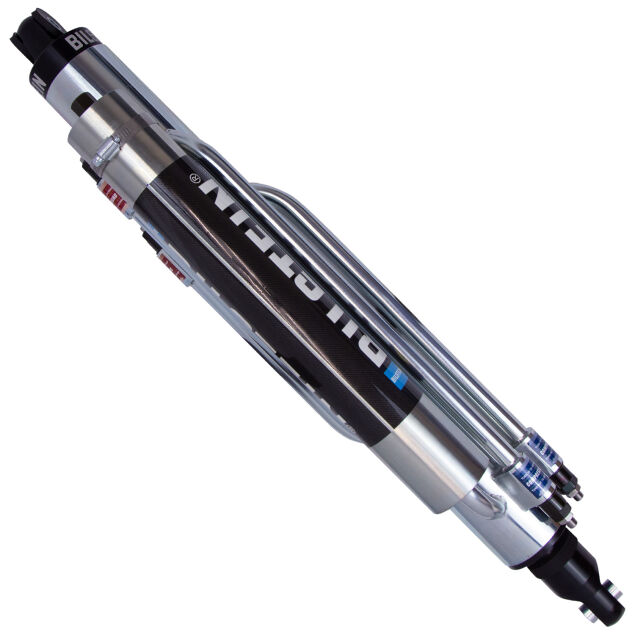

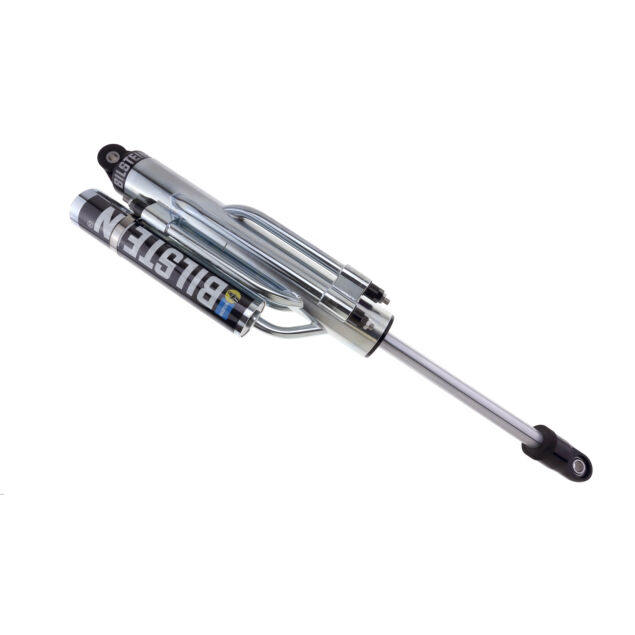

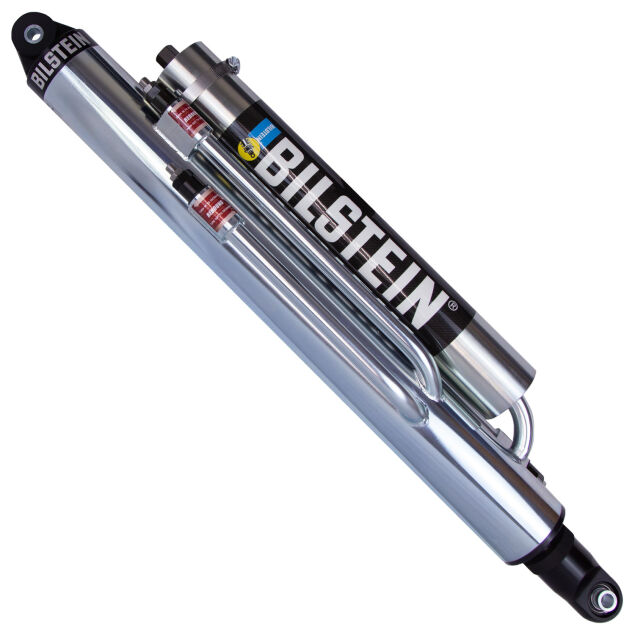

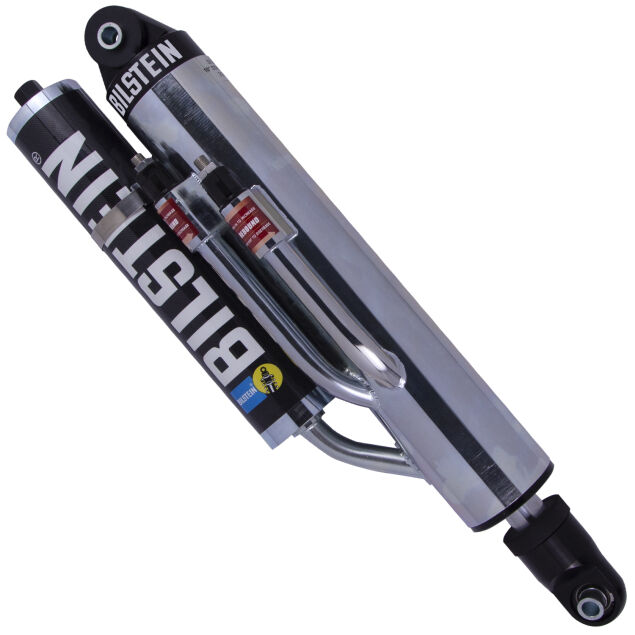

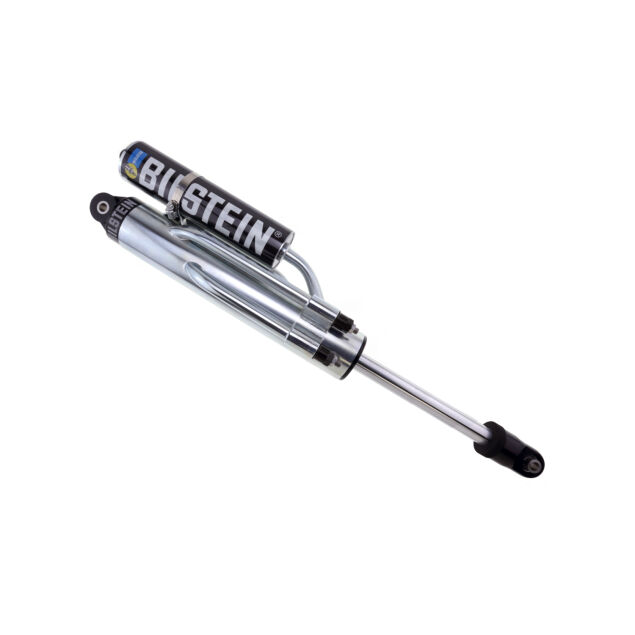

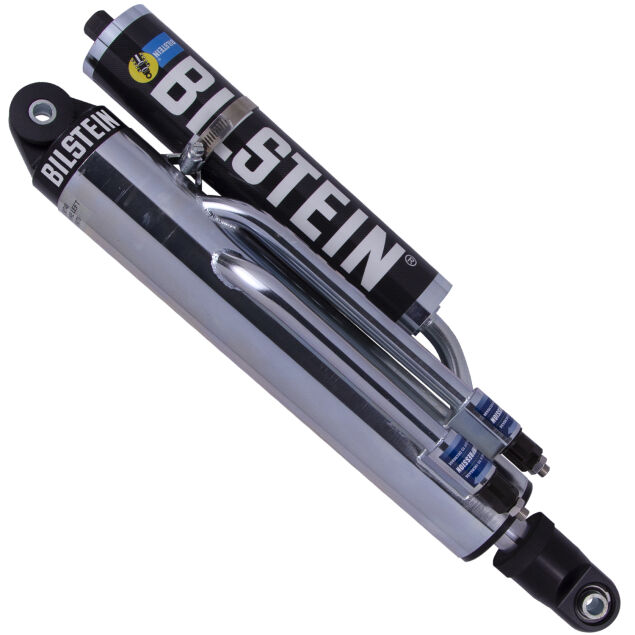

At its core, the product is a 4-tube bypass screw-top shock absorber with piggyback reservoir that provides position-sensitive damping with adjustable compression and rebound control. That purpose matters because suspension upgrades change how a vehicle feels every mile, from small road inputs to larger weight transfers. Customers get a component that is easy to understand by role: it is here to manage motion, support the intended setup, and help the vehicle feel more composed.

The zinc plated finish gives the product a clean, application-appropriate appearance and helps the component feel at home in a finished suspension service. The 70mm monotube bypass design with 1-1/8 in shaft, reservoir, and eye-to-eye mounts keeps the design tied to its real application instead of relying on cosmetic language alone. When customers are replacing worn components or building a more specialized suspension package, those details help confirm that the product belongs in the plan.

Fitment and setup are matched to custom off-road racing applications, so the product should be chosen around the vehicle, chassis, mounting style, and suspension goal. For daily-driven OE replacement parts, that means preserving the ride character customers expect from the vehicle. For motorsport and off-road components, that means selecting the correct length, mount type, adjustment style, and service parts before the suspension is assembled.

Several real choices may appear within this group, including 10 in travel, 12 in and 14 in travel, 16 in and 18 in travel. Those choices are not just catalog differences; they affect how the component fits, how it is tuned, and how it supports the intended suspension package. Customers should match those choices to the build goal, the available space, and the amount of tuning control they want.

In real use, the Bilstein M 9200 Bypass Shock Absorber - 4-Tube supports desert racing, short-course off-road racing, custom long-travel builds, and terrain tuning with a design that fits the way the suspension will be driven, serviced, and tuned. Whether customers are upgrading for desert racing, short-course off-road racing, custom long-travel builds, and terrain tuning, the Bilstein M 9200 Bypass Shock Absorber - 4-Tube delivers provides position-sensitive damping with adjustable compression and rebound control. Now Available at LEER!



---



Features & Specifications

Product Type: Off-road bypass shock absorber

Brand: Bilstein

Series: M 9200 (Bypass)

Body Design: 4-tube bypass screw top

Finish: Zinc Plated

Piston Diameter: 70mm

Shaft Diameter: 1-1/8 in

Reservoir: Yes

Mount Type: Eye-to-eye

Adjustability: Compression and rebound adjustment

Travel Length: 10 in to 18 in options

Functionality:

• Provides position-sensitive damping for changing terrain inputs.
• Allows compression and rebound tuning through bypass adjusters.
• Supports long-travel off-road suspension packages.
• Uses a piggyback reservoir to increase oil volume and heat capacity.
• Helps control bottoming, pitch, and chassis movement in severe terrain.
• Supports owner rebuildable and revalvable race service.
• Works well when paired with a matching coilover or coil carrier setup.



---



Available Options

The Bilstein M 9200 Bypass Shock Absorber - 4-Tube is available in multiple configurations:

• 10 in travel: A compact bypass option for builds with tighter packaging needs.
• 12 in and 14 in travel: Mid-length options for balanced travel, control, and installation space.
• 16 in and 18 in travel: Longer bypass options for custom long-travel off-road race suspension packages.
• 4-tube bypass body: Four external bypass tubes support position-sensitive tuning across multiple zones of suspension travel.

Choose the shorter or simpler options for compact packaging and easier setup, or choose the longer, more adjustable, or broader tuning options when the build calls for more suspension travel and control.



---



Why Choose

This product is ideal for customers who want external bypass tunability, long-travel control, and serious off-road racing durability.

• Position-sensitive damping helps the suspension feel controlled through different travel zones.
• Multiple travel lengths make the shock easier to match to custom chassis builds.
• Four-tube body gives racers more tuning range than a basic smooth-body shock.
• Reservoir design supports demanding off-road heat loads.
• Zinc plated finish supports durability around dirt, rocks, and service cycles.
• A strong option for customers building race-focused trucks or buggies.
• Works as part of a complete high-performance off-road suspension package.



---



What's Included

• Bilstein M 9200 Bypass Shock Absorber
• Piggyback reservoir
• Eye-to-eye mount configuration

Note: Confirm included components before installation.



---



Installation Notes

• Confirm compressed length, extended length, mount spacing, and reservoir clearance before installation.
• Bypass tube settings should be tuned as part of the complete off-road suspension package.
• Welding, fabrication, or custom mounts may be required on custom race vehicles.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Warranty coverage for motorsport and custom competition products is handled under applicable Bilstein terms. Coverage can be affected by improper installation, misuse, modifications, electrical issues where applicable, overloading, tampering, impact damage outside warranty terms, racing wear, or non-compliant use; proof of purchase may be required for claims.
