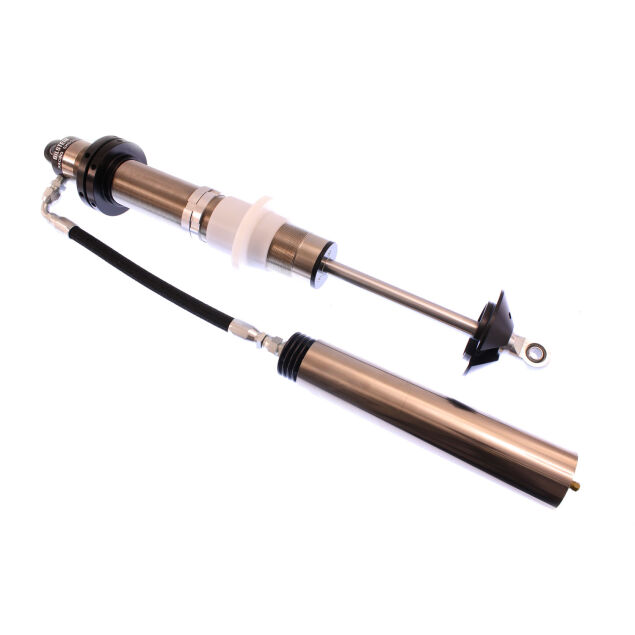

Bilstein M 9100 Coilover Shock Absorber - Nickel



The Bilstein M 9100 Coilover Shock Absorber is built for customers creating high-travel off-road suspension systems that need spring support and damping in one package. It suits lifted trucks, custom trucks, rock crawling, and off-road racing applications where travel, heat control, and chassis control are all priorities. The nickel plated finish gives the coilover a clean motorsports look for exposed suspension hardware.

A threaded body screw top coilover layout gives builders a way to package the spring around the shock body while keeping ride height and suspension movement tied together. The reservoir design increases oil capacity and helps the monotube damper maintain more consistent behavior under repeated hard use. That makes the M 9100 Coilover a serious choice for vehicles that see rocks, ruts, whoops, and high-speed compression events.

The grouped options cover 10 inch, 12 inch, 14 inch, and 17 inch travel choices, with 46mm and 60mm piston diameter versions represented. A 22mm shaft, spring seat included, and 1/2in heim mounts at both ends support custom off-road suspension planning. Customers can choose the travel range that best matches wheel travel, ride height, and chassis packaging.

This coilover format is valuable when customers need the damper and spring to work as an integrated unit. It can simplify custom suspension packaging compared with separate spring and shock layouts, especially on long-travel builds. The spring seat included in this group confirms its role in coilover suspension systems.

Because the M 9100 Coilover is a custom application component, careful measuring is essential. Builders should confirm collapsed length, extended length, spring clearance, reservoir routing, bump stop engagement, and tire clearance before installation. When matched correctly, it supports controlled suspension movement across demanding off-road terrain.

Whether customers are upgrading for high-travel coilover suspension, rock crawling, or off-road racing, the M 9100 Coilover Shock Absorber delivers reservoir-equipped Bilstein performance. Now Available at LEER!



---



Features & Specifications

Product Type: Suspension shock absorber

Brand: Bilstein

Series: M 9100 Coilover

Body Design: Threaded body screw top coilover

Internal Design: Monotube

Reservoir: Yes

Finish: Nickel plated

Piston Diameter: 46mm and 60mm options

Shaft Diameter: 22mm

Travel Options: 10 inch, 12 inch, 14 inch, and 17 inch

Spring Seat Included: Yes

Mount Type: 1/2in heim upper and lower mounts

Functionality:

• Supports coilover suspension systems on custom off-road vehicles.
• Combines spring support and damping in one package.
• Provides reservoir capacity for repeated rough-terrain impacts.
• Offers multiple travel lengths for custom fabrication.
• Helps manage heat and oil foaming in demanding use.
• Works for rock crawling, lifted trucks, and off-road racing builds.
• Uses heim mounts for race-style installation.



---



Available Options

The M 9100 Coilover Shock Absorber is available in multiple configurations:

• 10 inch travel coilover -- Compact M 9100 coilover option for tighter custom suspension packaging.
• 12 inch travel coilover -- Midrange option for customers needing more wheel travel in a coilover layout.
• 14 inch travel coilover -- Longer travel option for high-clearance off-road builds.
• 17 inch travel coilover -- Longest coilover option in this group for high-travel custom suspension designs.
• 46mm piston versions -- Coilover versions matched to the 46mm M 9100 piston layout.
• 60mm piston versions -- Coilover versions matched to the larger 60mm M 9100 piston layout.

Choose shorter travel for compact suspension packaging, choose longer travel for high-travel builds, and choose the piston diameter that matches the damper layout required by the vehicle.



---



Why Choose

This product is ideal for customers who want combined spring support and reservoir damping for demanding off-road use.

• Gives customers a serious reservoir coilover for custom off-road suspension.
• Offers 10 to 17 inch travel choices for different wheel travel goals.
• Includes spring seat support for coilover use.
• Provides 46mm and 60mm piston diameter choices.
• Uses a nickel plated finish for durable exposed hardware.
• Helps control suspension movement under harsh terrain loads.
• Fits customers building beyond direct-fit shock packages.



---



What's Included

• One Bilstein M 9100 Coilover shock absorber in the chosen travel and piston configuration.

Note: Confirm included components before installation.



---



Installation Notes

• Confirm spring size, travel length, collapsed length, extended length, reservoir placement, and mount clearance before installation.
• Custom applications may require fabricated mounts, spring hardware planning, and bump stop setup.
• Cycle the suspension through full travel before final use.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Warranty coverage can vary by product, application, and use. Coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.

Proof of purchase may be required for warranty claims. Customers should retain purchase records and inspect suspension components after hard use, racing, or off-road operation.
