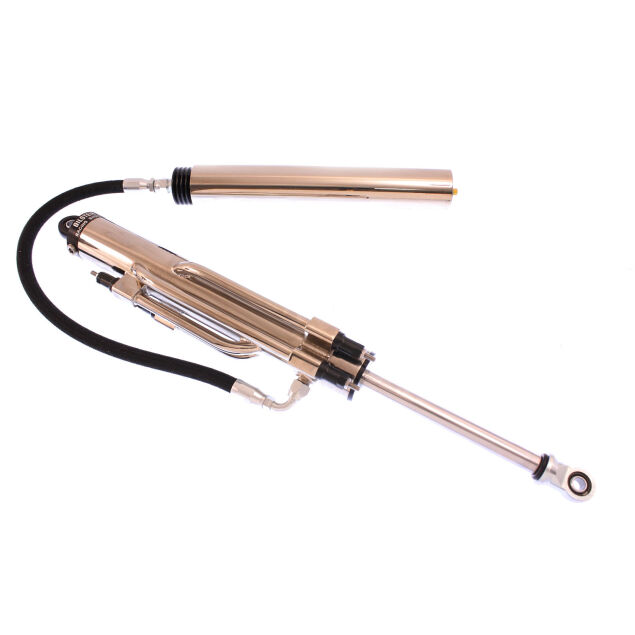

Bilstein M 9100 Bypass Shock Absorber - 4-Tube



Bilstein M 9100 Bypass Shock Absorber in this 4-tube layout is built for serious off-road suspension systems that need a larger bypass package and more tuning potential. It is built for customers who need suspension hardware that can live in demanding environments while still giving builders the information needed to match the damper to a specific setup. The result is a focused upgrade for off-road, motorsports, and custom suspension projects where ordinary replacement shocks are not the goal.

The nickel plated finish gives the shock a clean motorsports look, while the 4-tube bypass screw-top body and reservoir support demanding rough-terrain control. The design gives race teams, fabricators, and serious recreational drivers a damper that can be selected around ride height, travel, and mounting needs instead of forcing the suspension around a generic part. That flexibility is valuable on custom trucks, trail rigs, recreational off-road vehicles, and competition builds where packaging room and wheel travel both matter.

This group uses 60mm piston construction, monotube internal design, external reservoir support, eye-to-eye 1/2in heim mounts, and travel lengths from 9.77 to 17.14in. These details help customers compare the shock against their suspension layout before installation, especially when a build requires a specific collapsed length, extended length, mount type, or reservoir arrangement. Fitment is matched by the selected vehicle or custom application rather than by a universal promise.

Multiple travel lengths let customers choose a package for compact setups or long-travel suspension systems, while the 4-tube body gives experienced tuners a broader platform for bypass adjustment. Customers can focus on the length, travel, damping character, and mounting layout that support the way the vehicle is driven. A shorter setup may suit tighter packaging, while longer travel versions can help builds that need more suspension movement and more room to manage rough terrain.

In real use, the Bilstein M 9100 Bypass Shock Absorber is aimed at customers who care about control, serviceability, and repeatable suspension feel. It is a strong choice for builds that spend time on uneven terrain, in the desert, on rocks, around track terrain, or under a vehicle that needs more deliberate suspension tuning than an everyday replacement damper can provide.

Whether customers are upgrading for desert terrain, high-travel suspension packages, lifted truck performance, or custom off-road racing builds, the Bilstein M 9100 Bypass Shock Absorber delivers large-body bypass control with reservoir-backed tuning potential. Now Available at LEER!



---



Features & Specifications

Product Type: Bypass suspension shock absorber

Brand: Bilstein

Series: M 9100 Bypass

Finish: Nickel plated

Body Design: 4-tube bypass screw top

Internal Design: Monotube

Piston Diameter: 60mm

Reservoir: Yes

Collapsed Length Range: 19.73 to 26.22 in.

Extended Length Range: 29.50 to 43.36 in.

Travel Range: 9.77 to 17.14 in.

Mount Type: Eye-to-eye with 1/2in heim mounts

Functionality:

• Supports custom suspension tuning for vehicles built around M 9100 Bypass shock dimensions
• Helps manage wheel control during rough terrain, repeated impacts, and changing terrain conditions
• Works well for motorsports, rock crawling, desert driving, lifted truck, and custom fabrication projects when dimensions match
• Allows builders to match collapsed length, extended length, mount style, and travel to the suspension layout
• Uses monotube shock technology for consistent damping feel during demanding use
• Gives race teams and experienced builders a serviceable foundation for specialized suspension setups



---



Available Options

The Bilstein M 9100 Bypass Shock Absorber is available in multiple configurations:

• 9.77in travel 4-tube version -- compact choice for builds with limited packaging space
• 12.13in travel 4-tube version -- balanced choice for custom off-road layouts with moderate suspension movement
• 14.14in travel 4-tube version -- mid-long travel choice for larger suspension systems
• 17.14in travel 4-tube version -- long-travel choice for aggressive custom off-road builds

Choose the shorter travel version for tighter packaging, or choose the longer travel versions for suspension systems designed around greater movement and bypass tuning range.



---



Why Choose

This product is ideal for customers who want motorsports-grade suspension control with fitment matched to the build.

• Purpose-built for customers who are planning a serious suspension upgrade rather than a simple appearance change
• Gives builders a clear path to match shock length, travel, and mounting layout to custom suspension geometry
• Supports vehicles that see repeated impacts, rough terrain, and demanding off-road environments
• Pairs well with fabrication-focused builds where suspension packaging and service access matter
• Helps customers move beyond generic replacement dampers toward a more specialized performance setup
• Backed by Bilstein motorsports engineering for customers who value proven damper design



---



What's Included

• One Bilstein M 9100 4-tube bypass shock absorber in the selected travel length
• External reservoir assembly integrated with the selected shock configuration

Note: Confirm included components before installation.



---



Installation Notes

• Confirm travel, collapsed length, extended length, bypass body clearance, and reservoir placement before installation
• Custom mounting tabs and fabrication may be required for large-body bypass shock installation
• Cycle the suspension before final use to verify tire, chassis, hose, and bypass tube clearance

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Bilstein warranty coverage varies by product type, application, and service conditions. Motorsports parts should be installed, assembled, and serviced by qualified technicians using the correct tools, compatible components, and accepted damper-service practices.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
