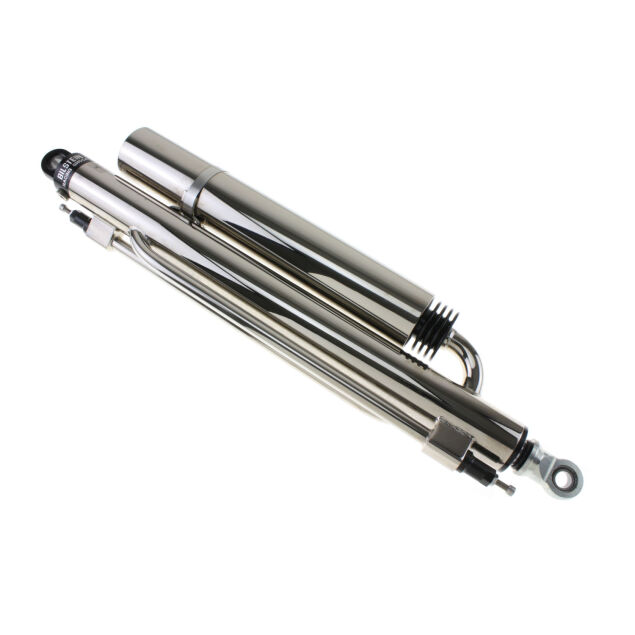

Bilstein M 9100 Bypass Shock Absorber - 2-Tube



Bilstein M 9100 Bypass Shock Absorber is a 2-tube bypass shock for lifted trucks, custom trucks, rock crawling, and off-road racing applications that need more tuning range than a standard damper. It is built for customers who need suspension hardware that can live in demanding environments while still giving builders the information needed to match the damper to a specific setup. The result is a focused upgrade for off-road, motorsports, and custom suspension projects where ordinary replacement shocks are not the goal.

The nickel plated finish gives the shock a clean performance look, while the bypass body and reservoir layout support demanding suspension work where heat, repeated movement, and terrain changes matter. The design gives race teams, fabricators, and serious recreational drivers a damper that can be selected around ride height, travel, and mounting needs instead of forcing the suspension around a generic part. That flexibility is valuable on custom trucks, trail rigs, recreational off-road vehicles, and competition builds where packaging room and wheel travel both matter.

This group uses a 46mm monotube internal design, 2-tube bypass screw-top body, external reservoir, eye-to-eye 1/2in heim mounting, and travel lengths from 9.79 to 17.14in. These details help customers compare the shock against their suspension layout before installation, especially when a build requires a specific collapsed length, extended length, mount type, or reservoir arrangement. Fitment is matched by the selected vehicle or custom application rather than by a universal promise.

Multiple travel lengths allow builders to choose a compact 10in-class shock or step into longer travel options for suspension systems with more movement. Customers can focus on the length, travel, damping character, and mounting layout that support the way the vehicle is driven. A shorter setup may suit tighter packaging, while longer travel versions can help builds that need more suspension movement and more room to manage rough terrain.

In real use, the Bilstein M 9100 Bypass Shock Absorber is aimed at customers who care about control, serviceability, and repeatable suspension feel. It is a strong choice for builds that spend time on uneven terrain, in the desert, on rocks, around track terrain, or under a vehicle that needs more deliberate suspension tuning than an everyday replacement damper can provide.

Whether customers are upgrading for high-speed desert terrain, rock crawling, lifted truck control, or custom off-road suspension tuning, the Bilstein M 9100 Bypass Shock Absorber delivers bypass-style damping control with reservoir support. Now Available at LEER!



---



Features & Specifications

Product Type: Bypass suspension shock absorber

Brand: Bilstein

Series: M 9100 Bypass

Finish: Nickel plated

Body Design: 2-tube bypass screw top

Internal Design: Monotube

Piston Diameter: 46mm

Reservoir: Yes

Collapsed Length Range: 19.71 to 26.22 in.

Extended Length Range: 29.50 to 43.36 in.

Travel Range: 9.79 to 17.14 in.

Mount Type: Eye-to-eye with 1/2in heim mounts

Functionality:

• Supports custom suspension tuning for vehicles built around M 9100 Bypass shock dimensions
• Helps manage wheel control during rough terrain, repeated impacts, and changing terrain conditions
• Works well for motorsports, rock crawling, desert driving, lifted truck, and custom fabrication projects when dimensions match
• Allows builders to match collapsed length, extended length, mount style, and travel to the suspension layout
• Uses monotube shock technology for consistent damping feel during demanding use
• Gives race teams and experienced builders a serviceable foundation for specialized suspension setups



---



Available Options

The Bilstein M 9100 Bypass Shock Absorber is available in multiple configurations:

• 9.79in travel 2-tube version -- compact bypass shock choice for builds with tighter suspension packaging
• 14.14in travel 2-tube version -- mid-length bypass choice for custom off-road layouts that need more movement
• 17.14in travel 2-tube version -- long-travel bypass choice for builds designed around larger suspension movement

Choose the shorter travel version for tighter packaging, or choose the longer travel versions for custom suspension systems that need more wheel movement and bypass tuning range.



---



Why Choose

This product is ideal for customers who want motorsports-grade suspension control with fitment matched to the build.

• Purpose-built for customers who are planning a serious suspension upgrade rather than a simple appearance change
• Gives builders a clear path to match shock length, travel, and mounting layout to custom suspension geometry
• Supports vehicles that see repeated impacts, rough terrain, and demanding off-road environments
• Pairs well with fabrication-focused builds where suspension packaging and service access matter
• Helps customers move beyond generic replacement dampers toward a more specialized performance setup
• Backed by Bilstein motorsports engineering for customers who value proven damper design



---



What's Included

• One Bilstein M 9100 2-tube bypass shock absorber in the selected travel length
• External reservoir assembly integrated with the selected shock configuration

Note: Confirm included components before installation.



---



Installation Notes

• Confirm travel, collapsed length, extended length, bypass body clearance, and reservoir placement before installation
• Custom mounting tabs and fabrication may be required for motorsports and off-road applications
• Cycle the suspension before final use to verify tire, chassis, hose, and bypass tube clearance

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Bilstein warranty coverage varies by product type, application, and service conditions. Motorsports parts should be installed, assembled, and serviced by qualified technicians using the correct tools, compatible components, and accepted damper-service practices.

Warranty coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use. Proof of purchase may be required for warranty claims.
