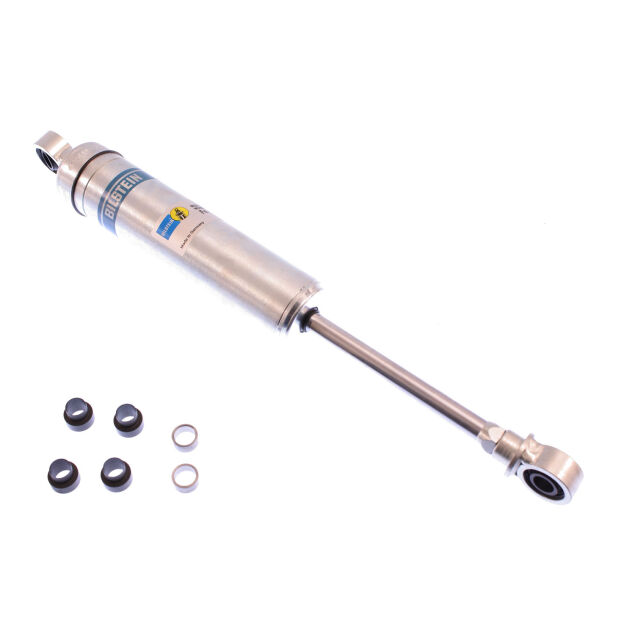

The Bilstein M 7100 Classic Coilover Shock Absorber is made for customers building vintage off-road race cars, VW based off-road vehicles, and custom motorsports suspensions that need a compact monotube damper. Its smooth coilover body supports applications where the shock works as part of the spring and damping package. The zinc plated finish gives the unit a clean, functional appearance for exposed suspension layouts.
The M 7100 Classic line carries a long-standing off-road racing identity, and this coilover-body version keeps that purpose focused on specialized builds. A 46mm monotube design helps deliver consistent damping behavior in demanding conditions. Self-adjusting deflective disc valving supports controlled movement over uneven terrain and repeated suspension cycling.
This configuration uses a 5 inch stroke with 11.24 inch collapsed length and 16.24 inch extended length. Those dimensions make it important for builders to check ride height, spring length, bump clearance, and droop before final installation. Eye-to-eye mounting with 1/2in heims at both ends supports common custom suspension layouts.
Customers choosing this shock are usually working on vehicles where off-the-shelf direct-fit parts do not solve the suspension package. The coilover smooth body design lets the damper support spring hardware planning while maintaining the classic Bilstein motorsports construction. It is a purposeful choice for lightweight off-road builds that need measured travel and durable damping.
The M 7100 Classic is especially useful when period-correct performance and serviceable suspension planning matter. It gives customers a familiar Bilstein off-road character in a size that works for vintage and custom applications. The result is a damper that supports vehicle control without adding unnecessary complexity.
Whether customers are upgrading for vintage off-road racing, VW based recreation, or custom coilover suspension packaging, the M 7100 Classic Coilover Shock Absorber delivers proven Bilstein control. Now Available at LEER!
Features & Specifications
Product Type: Suspension shock absorber
Brand: Bilstein
Series: M 7100 Classic
Body Design: Smooth body coilover
Internal Design: Monotube
Piston Diameter: 46mm
Finish: Zinc plated
Stroke Length: 5.00 inch
Collapsed Length: 11.24 inch
Extended Length: 16.24 inch
Mount Type: Eye-to-eye with 1/2in heims
Functionality:
- Supports vintage off-road and VW based recreational vehicle builds.
- Works in coilover-style suspension layouts that require compact travel.
- Provides monotube damping for consistent suspension response.
- Offers eye-to-eye mounting for custom chassis applications.
- Helps customers match known lengths to ride height and travel needs.
- Fits specialty builds that require more planning than direct replacement parts.
Why Choose
This product is ideal for customers who want period-correct Bilstein control in a compact coilover-capable package.
- Combines Bilstein off-road heritage with a compact coilover body.
- Supports custom spring and damper packaging in vintage applications.
- Keeps the build period-correct without giving up modern monotube control.
- Uses a zinc plated finish suited to functional motorsports hardware.
- Gives builders clear travel and mounting dimensions.
- Works well for lightweight off-road vehicles with custom suspension geometry.
What's Included
- One Bilstein M 7100 Classic coilover-body shock absorber.
Note: Confirm included components before installation.
Installation Notes
- Confirm spring hardware, ride height, compressed length, extended length, and mount width before installation.
- Custom coilover installations require careful clearance checks through full suspension travel.
- Use suitable hardware and verify that the shock does not bottom before the bump stop.
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Warranty coverage can vary by product, application, and use. Coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.
Proof of purchase may be required for warranty claims. Customers should retain purchase records and inspect suspension components after hard use, racing, or off-road operation.
