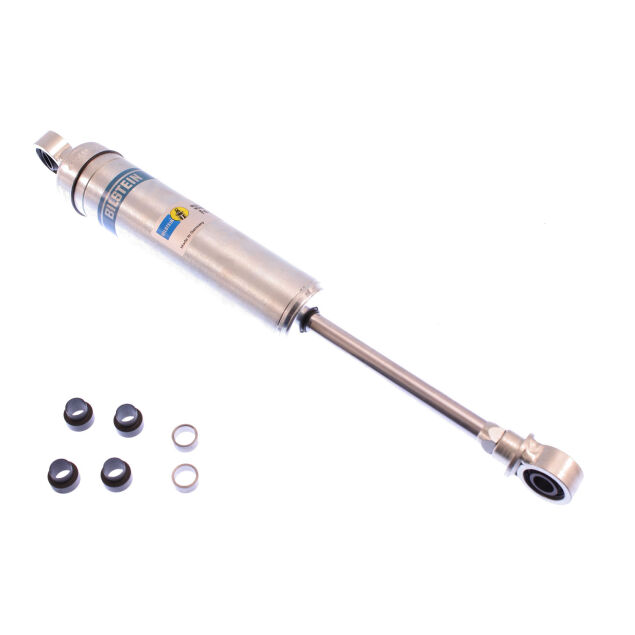

The Bilstein M 7100 Classic Smooth Body Shock Absorber is designed for customers who need a traditional non-coilover damper for vintage off-road and VW based recreational vehicles. Its smooth body format separates damping from the spring package, which is useful for torsion bar, leaf spring, and other custom suspension layouts. The zinc plated finish gives the shock a durable, purposeful appearance.
A 46mm ID monotube body supports consistent damping performance in the rough environments that classic off-road builds often see. The M 7100 Classic line is aimed at custom motorsports and recreational applications where vehicle geometry, travel, and packaging are planned by the builder. It gives customers a focused damper for suspension systems that do not follow a modern direct-fit template.
This configuration uses a 5 inch stroke with 11.24 inch collapsed length and 16.24 inch extended length. Those measurements are important for matching shock travel to bump stop placement, droop limit, and tire movement. The 1/2in heim mounts at both ends support eye-to-eye mounting in fabrication-friendly applications.
Customers often choose a smooth body shock when the vehicle already has a spring system and only needs a capable damper. That keeps the suspension package cleaner and avoids adding coilover hardware where it is not required. For vintage off-road vehicles, that simplicity can help preserve the character of the build while improving control.
The M 7100 Classic Smooth Body Shock Absorber fits best in projects where the customer has already measured suspension travel and identified proper mounting points. It gives builders a compact damper with known dimensions and a classic Bilstein motorsports profile. The result is a practical suspension upgrade for vehicles that need strength, control, and period-friendly design.
Whether customers are upgrading for VW based recreation, vintage off-road racing, or custom non-coilover suspension layouts, the M 7100 Classic Smooth Body Shock Absorber delivers proven control. Now Available at LEER!
Features & Specifications
Product Type: Suspension shock absorber
Brand: Bilstein
Series: M 7100 Classic
Body Design: 46mm ID smooth body non-coilover
Internal Design: Monotube
Finish: Zinc plated
Stroke Length: 5.00 inch
Collapsed Length: 11.24 inch
Extended Length: 16.24 inch
Upper and Lower Mount Type: 1/2in heim
Reservoir: No
Functionality:
- Supports custom non-coilover suspension layouts.
- Helps vintage off-road builds maintain controlled wheel movement.
- Works with suspension systems that already have a spring package.
- Offers known travel dimensions for fabrication planning.
- Uses heim mounts for common custom chassis applications.
- Supports VW based recreational vehicle suspension upgrades.
Why Choose
This product is ideal for customers who want classic Bilstein off-road control in a smooth-body package.
- Keeps the suspension package simple for non-coilover builds.
- Fits customers who need classic Bilstein off-road character.
- Provides a compact shock length for specialty vehicles.
- Uses a zinc plated finish for functional motorsports appearance.
- Supports careful fabrication with clear length and mount data.
- Works well for vintage off-road projects where direct-fit shocks are not appropriate.
What's Included
- One Bilstein M 7100 Classic smooth body shock absorber.
Note: Confirm included components before installation.
Installation Notes
- Confirm compressed length, extended length, mounting style, and available chassis clearance before installation.
- Custom applications may require fabricated mounts or spacers.
- Cycle the suspension before final use to confirm the shock is protected from bottoming or topping out.
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Warranty coverage can vary by product, application, and use. Coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.
Proof of purchase may be required for warranty claims. Customers should retain purchase records and inspect suspension components after hard use, racing, or off-road operation.
