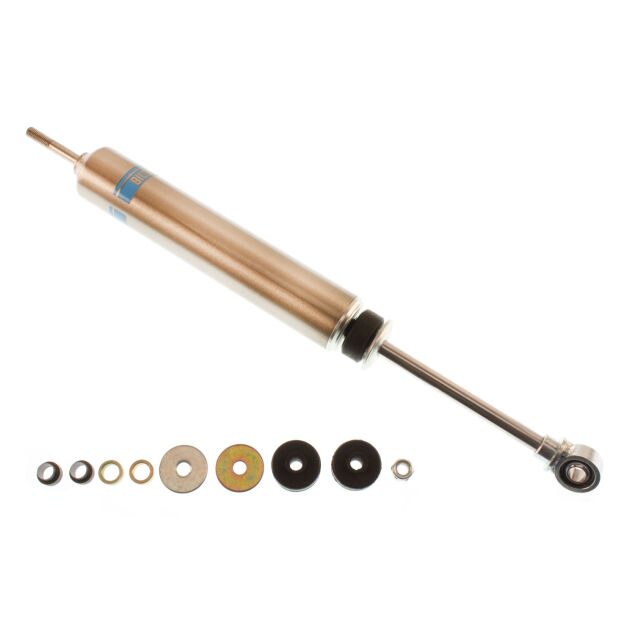

The Bilstein M 7100 Classic Shock Absorber with nickel plating and clear powder coat is built for customers who want a classic off-road damper with a distinct protected finish. It suits vintage off-road race cars, VW based recreational vehicles, and custom suspension packages where direct-fit replacement parts are not the focus. The smooth non-coilover body keeps damping separate from the spring package.
A 46mm monotube design supports consistent suspension response in demanding recreational and motorsports use. This configuration is identified for a front Class 11 style application, making it especially relevant for customers working with vintage VW based off-road layouts. The stem-to-eye mount arrangement gives the shock a more specific installation profile than eye-to-eye versions.
The shock uses a 6.59 inch stroke, 12.15 inch collapsed length, and 18.74 inch extended length. A stem upper mount and 12mm heim lower mount help define how it should be packaged on the vehicle. Those dimensions should be checked carefully against suspension travel, ride height, and mounting hardware before installation.
The nickel plated finish with clear powder coat adds a clean appearance for exposed suspension hardware while supporting durability. Customers building period-correct or specialty off-road vehicles often need a damper that balances classic application needs with modern monotube behavior. This M 7100 Classic version gives them a focused solution for that kind of build.
Because the mount style is specific, this shock should be selected only after confirming the vehicle layout and travel requirements. It is not a general visual upgrade; it is a measured suspension component for a defined custom or vintage application. When matched correctly, it helps maintain controlled wheel movement and predictable handling over rough terrain.
Whether customers are upgrading for vintage off-road recreation, Class 11 style suspension work, or custom non-coilover control, the M 7100 Classic Shock Absorber delivers protected Bilstein monotube performance. Now Available at LEER!
Features & Specifications
Product Type: Suspension shock absorber
Brand: Bilstein
Series: M 7100 Classic
Body Design: Smooth body non-coilover
Internal Design: Monotube
Piston Diameter: 46mm
Finish: Nickel plated with clear powder coat
Stroke Length: 6.59 inch
Collapsed Length: 12.15 inch
Extended Length: 18.74 inch
Mount Type: Stem-to-eye
Functionality:
- Supports vintage off-road and VW based recreational applications.
- Provides a stem-to-eye layout for specific mounting needs.
- Helps control suspension movement over uneven terrain.
- Uses monotube construction for consistent damping behavior.
- Offers a protected nickel finish for exposed hardware.
- Gives builders known dimensions for custom suspension planning.
Why Choose
This product is ideal for customers who want classic Bilstein control with a protected nickel finish.
- Fits customers working with classic off-road suspension layouts.
- Combines Bilstein M 7100 Classic heritage with a specific mount style.
- Provides more travel than the 5 inch M 7100 Classic versions in this chunk.
- Uses nickel plating with clear powder coat for a distinctive finish.
- Supports non-coilover suspension packages.
- Helps specialty builds retain controlled off-road behavior.
What's Included

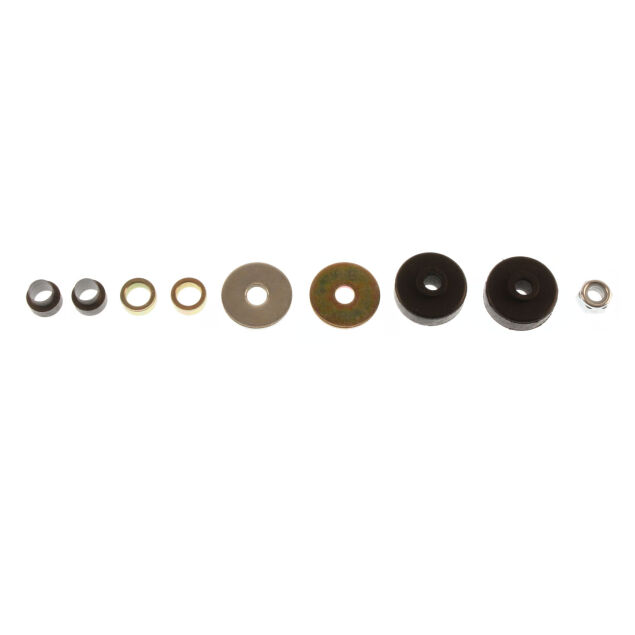

- One Bilstein M 7100 Classic shock absorber with nickel plating and clear powder coat.
Note: Confirm included components before installation.
Installation Notes
- Confirm stem-to-eye mounting compatibility before installation.
- Check compressed length, extended length, stroke, and surrounding clearance through full suspension travel.
- Custom applications may require spacers, bushings, or fabricated mounting provisions.
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Warranty coverage can vary by product, application, and use. Coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.
Proof of purchase may be required for warranty claims. Customers should retain purchase records and inspect suspension components after hard use, racing, or off-road operation.
