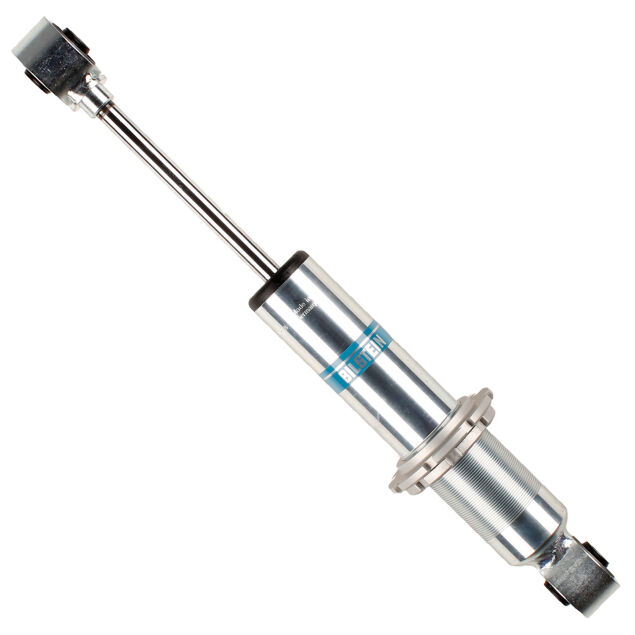

Bilstein M 7100 Classic Coilover Shock Absorber



Bilstein M 7100 Classic Coilover Shock Absorber is made for customers building custom off-road suspension packages where travel, mounting style, and coilover hardware need to be selected around the vehicle. It gives race-inspired builds a proven monotube damper format in a threaded body that accepts 2.5 in. ID single-rate spring hardware. Customers get a focused part that supports custom off-road coilover builds while staying grounded in proven Bilstein damper design.

The zinc-plated threaded body gives the coilover a purposeful motorsports appearance while supporting spring-seat positioning for custom installations. Its visual message is simple: this is a suspension component built for exposed use, fabrication work, and serious off-road movement. For customers comparing suspension upgrades, this product is best understood as a way to make the vehicle feel more settled and predictable, not as a decorative add-on.

M 7100 Classic Coilover shocks focus on dependable damping in lightweight custom applications and recreational off-road vehicles. Customers can match travel length and mounting requirements to the build while retaining the straightforward sealed, factory-serviceable character of the Classic design. That practical balance matters for customers who want an upgrade they can feel during normal driving, loaded use, rough-road travel, or track-focused setup work.

The 46mm monotube body, non-reservoir layout, and self-adjusting deflective disc valving help the damper react to uneven terrain. Heim-style and eye-style mounting options appear across the listed versions, with stroke lengths spanning compact and longer-travel coilover needs. These details help the product work as part of the complete suspension or steering system instead of acting like a generic replacement part.

The line includes multiple travel lengths and coilover body formats for custom suspension layouts. Customers should verify compressed length, extended length, travel, spring hardware, and mount style before choosing a damper for a fabricated or modified setup. The best result comes from matching the damper to the vehicle, position, and use case so the finished installation supports the way customers actually drive.

Whether customers are upgrading for custom suspension fabrication, lightweight off-road builds, or recreational trail performance, the Bilstein M 7100 Classic Coilover Shock Absorber delivers coilover-ready Bilstein monotube control for demanding terrain. Now Available at LEER!



---



Features & Specifications

Product Type: Suspension shock absorber

Brand: Bilstein

Series: M 7100 Classic Coilover

Vehicle Fitment: Universal custom off-road applications; dimensions and mounts vary by selected version

Finish: Zinc plated

Construction: 46mm monotube threaded-body coilover shock

Internal Design: Monotube

Piston Diameter: 46mm

Body Design: Threaded Body (Coilover)

Reservoir: No

Travel Length: 5.90, 6.25, 8.25, 7.25, 5.00 in.

Upper Mount Type: Eye 14.2mm, 1/2in Heim

Lower Mount Type: Eye 14.2mm, 1/2in Heim

Functionality:

• Supports custom coilover suspension builds with threaded-body shock construction
• 46mm monotube design helps provide consistent damping response
• Multiple travel lengths help match suspension movement to the build
• Non-reservoir format keeps packaging cleaner for tight installation areas
• Single-rate 2.5 in. spring hardware supports common coilover spring setups
• Heim and eye mount versions help accommodate different fabricated layouts



---



Available Options

The Bilstein M 7100 Classic Coilover Shock Absorber is available in multiple versions:

• 5.00 to 6.25 in. travel versions - Compact coilover lengths for tighter packaging and shorter-travel custom suspension layouts
• 7.25 to 8.25 in. travel versions - Longer coilover lengths for builds that need more suspension movement and package space
• Heim and eye mount versions - Mount styles that help builders match the damper to fabricated brackets or existing suspension points

Choose the version that matches the vehicle position, suspension travel, and use case so the Bilstein M 7100 Classic Coilover Shock Absorber works with the full build.



---



Why Choose

This product is ideal for customers who want custom off-road coilover builds.

• Designed for customers building suspension around dimensions and mount style
• Threaded coilover body supports spring hardware in custom applications
• Zinc-plated finish helps the damper suit exposed off-road installations
• Multiple travel lengths give builders more room to match suspension geometry
• Monotube design supports consistent performance over rough terrain
• Factory-serviceable Classic construction keeps the product focused and durable



---



What's Included

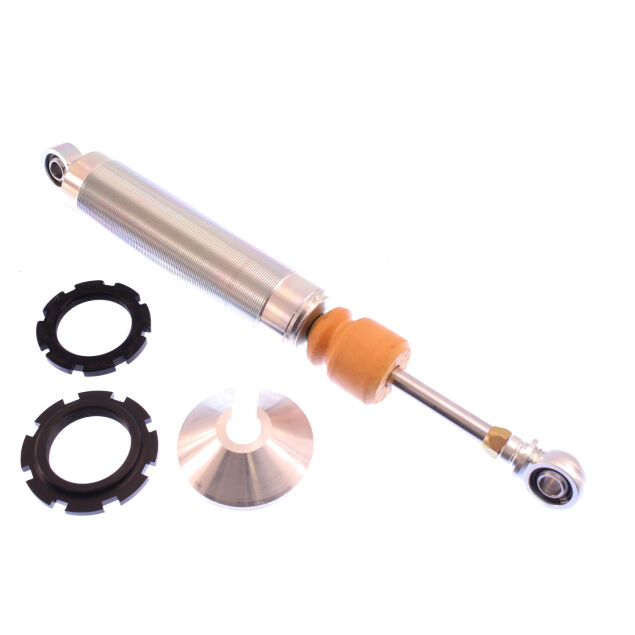

• One Bilstein M 7100 Classic Coilover shock absorber

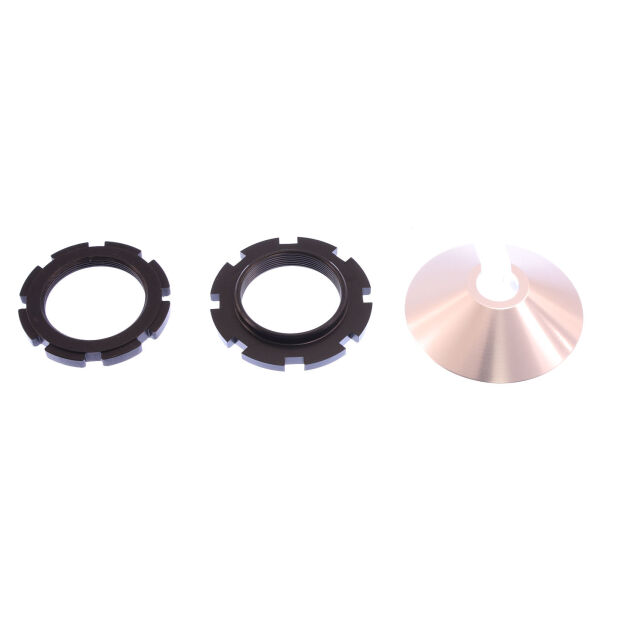

• Single-rate 2.5 in. spring hardware on listed versions
• Half-inch heim joints and misalignment spacers on selected versions

Note: Confirm included components before installation.



---



Installation Notes

• Confirm compressed length, extended length, stroke, and mount width before fabrication
• Spring selection, preload, and suspension geometry should be handled by a qualified builder
• Check full bump, full droop, tire clearance, and steering clearance before use

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Bilstein motorsports warranty coverage follows the terms supplied with the selected product. Coverage typically depends on proper installation, intended racing use, service condition, and the absence of misuse, impact damage, tampering, or non-approved modification.

Proof of purchase may be required for warranty support, and wear from competition use may be handled differently than standard street replacement coverage.
