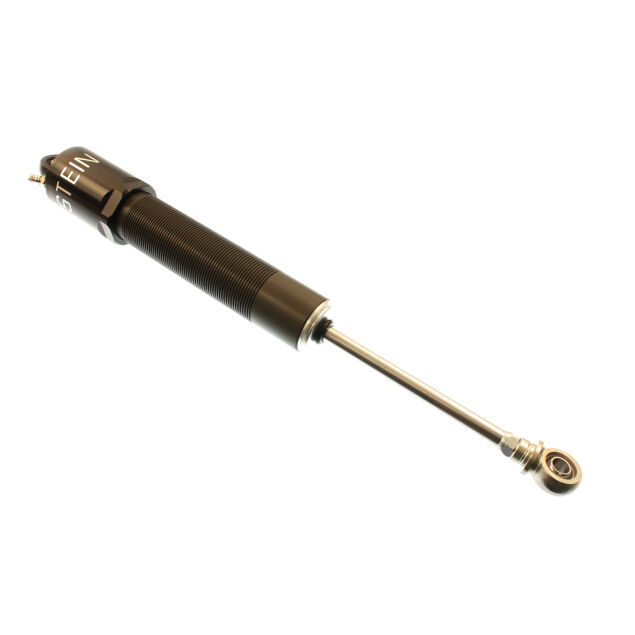

Bilstein BGT Series Shock Absorber - Clear Anodized



The Bilstein BGT Series Shock Absorber is built for customers running high-load oval-track platforms that need a serious threaded-body motorsports damper. BGT stands for Big Gas Threaded, and the design is aimed at Late Models, Super Late Models, Sprint Cars, Dirt Late Models, and Big Block Modifieds. The clear anodized finish gives the aluminum body a clean race-hardware appearance while supporting spring height adjustment needs.

A 46mm aluminum monotube body helps the shock deliver consistent, fade-resistant damping through repeated suspension cycles. The large 60mm nitrogen compartment reduces rod pressure and helps keep nitrogen pressure more consistent as temperatures change. That can be especially valuable for customers chasing predictable feel over a full race run.

The threaded body uses coarse threads for strength and practical coil spring height adjustment. Customers can choose 7 inch or 9 inch oval-track versions, giving builders options for different chassis packages and suspension travel targets. Eye 12.7mm mounts at both ends keep the installation layout familiar for motorsports applications.

The BGT Series is designed for race teams that need more than a simple smooth-body shock. Its aluminum construction, large gas chamber, and threaded body help customers manage ride height, suspension response, and heat consistency. The shock is also intended to support rebuild and revalve work, making it relevant for customers who tune throughout the season.

This damper is best chosen after measuring ride height, spring package, compressed length, and extended length. The 7 inch and 9 inch versions give customers a starting point, but the final choice should match chassis geometry and setup rules. When properly matched, the BGT Series supports confident tuning in demanding oval-track use.

Whether customers are upgrading for late model racing, sprint car setup, or high-load oval-track control, the BGT Series Shock Absorber delivers a tunable aluminum monotube package. Now Available at LEER!



---



Features & Specifications

Product Type: Suspension shock absorber

Brand: Bilstein

Series: BGT Series

Body Design: 46mm aluminum monotube body

Nitrogen Compartment: 60mm

Finish: Clear anodized

Collapsed Length: 15.67 inch and 16.75 inch options

Extended Length: 22.60 inch and 25.04 inch options

Mount Type: Eye 12.7mm upper and lower mounts

Functionality:

• Supports late model, sprint car, dirt late model, and modified chassis setup.
• Helps maintain consistent nitrogen pressure during heat changes.
• Provides threaded-body spring height adjustment capability.
• Supports rebuild and revalve work for race programs.
• Helps manage suspension response through long feature events.
• Offers clear length choices for oval-track packaging.



---



Available Options

The BGT Series Shock Absorber is available in multiple configurations:

• 7 inch BGT oval-track shock -- Shorter BGT option for oval-track chassis that need the 15.67 inch collapsed and 22.60 inch extended length range.
• 9 inch BGT oval-track shock -- Longer BGT option for oval-track chassis that need the 16.75 inch collapsed and 25.04 inch extended length range.

Choose the 7 inch option for shorter travel packaging, or choose the 9 inch option when the chassis requires additional length and travel.



---



Why Choose

This product is ideal for customers who want consistent damping and reduced rod pressure for high-load oval-track use.

• Combines an aluminum monotube body with a large gas compartment.
• Gives race teams a threaded body for spring height setup.
• Supports high-load oval-track applications.
• Helps customers tune for changing track grip and chassis balance.
• Offers clear anodized appearance for race hardware.
• Provides 7 inch and 9 inch choices for different suspension travel needs.



---



What's Included

• One Bilstein BGT Series shock absorber in the chosen length.

Note: Confirm included components before installation.



---



Installation Notes

• Confirm class rules, ride height, spring package, collapsed length, and extended length before installation.
• Custom race applications require careful clearance checks through full suspension travel.
• Rebuild and revalve work should be completed by qualified shock service personnel.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Warranty coverage can vary by product, application, and use. Coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.

Proof of purchase may be required for warranty claims. Customers should retain purchase records and inspect suspension components after hard use, racing, or off-road operation.
