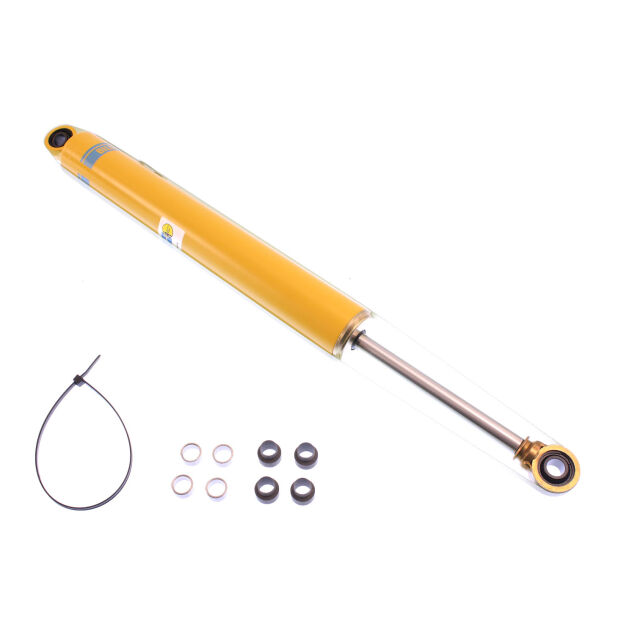

The Bilstein B8 6100 Shock Absorber is built for customers who want a serious off-road damper for lifted trucks, custom truck builds, rock crawling, and racing applications. Its yellow finish gives the shock a recognizable Bilstein look while the smooth body layout keeps the package straightforward for custom suspension work. The 8 inch travel range makes it useful where a standard replacement shock is not the right fit.
A monotube gas pressure design helps the shock manage heat and resist oil foaming when the vehicle is working hard. That matters when rough terrain, repeated suspension movement, and extended trail use ask more from the damper than a basic street setup. The result is a shock absorber aimed at control, durability, and consistent feel in demanding environments.
The B8 6100 configuration uses a 60mm body with a 60mm digressive piston, giving customers more oil capacity and damping control for rough terrain. The non-coilover smooth body design keeps the spring separate from the damper, which suits custom suspension systems already built around their own spring package. Heim mounts at both ends support fabrication-friendly installation in race and specialty applications.
This shock includes an 8 inch stroke, 14.06 inch collapsed length, and 22.05 inch extended length. Those dimensions help builders match the damper to suspension travel, bump clearance, droop range, and mounting points before installation. Customers should confirm the mounting layout, travel needs, and chassis clearance before committing to the final setup.
The B8 6100 is especially relevant for customers who need an off-road damper with more capability than a common replacement shock. It can support custom trucks that see trail use, rock crawling, and repeated high-load suspension movement. The performance-focused construction helps keep the vehicle more composed when terrain changes quickly.
Whether customers are upgrading for custom truck builds, rock crawling, or off-road racing, the B8 6100 Shock Absorber delivers controlled damping for demanding terrain. Now Available at LEER!
Features & Specifications
Product Type: Suspension shock absorber
Brand: Bilstein
Series: B8 6100
Body Design: 46mm ID smooth body non-coilover
Internal Design: Monotube
Finish: Yellow paint
Stroke Length: 7.99 inch
Collapsed Length: 14.06 inch
Extended Length: 22.05 inch
Upper and Lower Mount Type: 1/2in heim
Reservoir: No
Functionality:
- Supports custom off-road suspension layouts.
- Helps control suspension movement during repeated rough-terrain impacts.
- Offers monotube gas pressure damping for consistent feel under load.
- Works well for lifted trucks and specialty off-road builds.
- Gives fabricators defined collapsed and extended lengths for setup planning.
- Pairs a smooth body layout with heim mounts for custom applications.
Why Choose
This product is ideal for customers who want controlled damping with added oil capacity and motorsports-focused construction.
- Adds a serious damper option for customers building beyond basic replacement shocks.
- Supports rough-terrain confidence with a motorsports-focused monotube design.
- Provides yellow Bilstein styling that is easy to recognize on custom builds.
- Helps manage heat during extended off-road use.
- Keeps the damper package straightforward for non-coilover suspension layouts.
- Gives builders known travel and mounting dimensions for planning.
What's Included
- One Bilstein B8 6100 shock absorber.
Note: Confirm included components before installation.
Installation Notes
- Confirm compressed length, extended length, stroke, and mount type before installation.
- Custom applications may require vehicle-specific brackets, tabs, limit straps, or bump stop planning.
- Cycle the suspension through full bump and droop before final use.
Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.
Warranty Information
Warranty coverage can vary by product, application, and use. Coverage typically excludes improper installation, misuse, modifications, electrical issues, overloading, tampering, impact damage outside warranty terms, or non-compliant use.
Proof of purchase may be required for warranty claims. Customers should retain purchase records and inspect suspension components after hard use, racing, or off-road operation.
