Baja Designs XL Pro Linkable LED Light Bar



The Baja Designs XL Pro Linkable LED Light Bar combines multiple XL Pro light pods into an adjustable lighting system that can follow a straight bumper line or sweep across a curved roof profile. It is made for customers who want more control than a fixed one-piece bar can provide, with each light contributing focused output and each link helping shape the overall assembly. The result is a distinctive modular package for high-speed trails, open terrain, overlanding, and demanding nighttime work.

Every XL Pro light produces 4,095 raw lumens, so output grows with the selected three-light through nine-light configuration. The modular arrangement lets customers build the amount of coverage that fits the available mounting space and the intended driving environment. Multiple lights also create a smooth blend across near, mid-range, and distance zones when the individual aiming and lens positions are set carefully.

Adjustment is a central advantage of the Linkable design. Each light can be pitched vertically, while the linked assembly can be arranged with up to 20 degrees of horizontal arc to follow vehicle contours or spread coverage outward. This flexibility helps place light where it is useful instead of forcing every installation into a perfectly straight line.

Billet-machined links create the structural connection between the pods and support precise positioning across the assembly. Black rock guards protect the light fronts when appropriate, and the included pre-load kit helps support larger multi-light arrangements. The system maintains a clean, technical appearance that suits purpose-built trucks, SUVs, UTVs, and other off-road vehicles.

Configurations range from three to nine XL Pro lights, giving customers a practical way to balance mounting width, total output, weight, and electrical demand. The included harness supports the lighting system, while vehicle-specific or universal XL Linkable mounting brackets are selected separately to match the installation location. Proper bracket choice and careful aiming are essential for a secure, useful finished setup.

This light bar is well suited to customers who want a configurable system that can evolve with a vehicle build. The replaceable optics, individual pod layout, and adjustable links support maintenance and future setup changes without discarding the entire assembly. Whether customers are upgrading for high-speed desert travel, technical trails, overlanding, or nighttime work, the Baja Designs XL Pro Linkable LED Light Bar delivers scalable output with precise modular aiming. Now Available at LEER!



---



Features & Specifications

Product Type: Modular LED light bar

Brand: Baja Designs

Light Series: XL Pro

Configurations: Three through nine linked lights

Output: 4,095 raw lumens per light

Color Temperature: 5000K daylight

Vertical Adjustment: Up to 45 degrees

Horizontal Arc Adjustment: Up to 20 degrees

Vehicle Fitment: Universal with the correct mounting brackets

Functionality:

• Builds a scalable forward-lighting system with three through nine XL Pro pods.
• Allows a straight layout or a curved arrangement that follows a bumper, windshield, or roof line.
• Provides individual vertical aiming so each light can contribute to the intended coverage zone.
• Adds total output in predictable steps as more XL Pro lights are selected.
• Supports service through replaceable lenses and optics rather than a sealed one-piece design.
• Includes rock guards and a pre-load support solution for a more complete modular assembly.
• Works with separately selected XL Linkable brackets to suit a wide range of custom installations.



---



Available Options

The Baja Designs XL Pro Linkable LED Light Bar is available in multiple configurations:

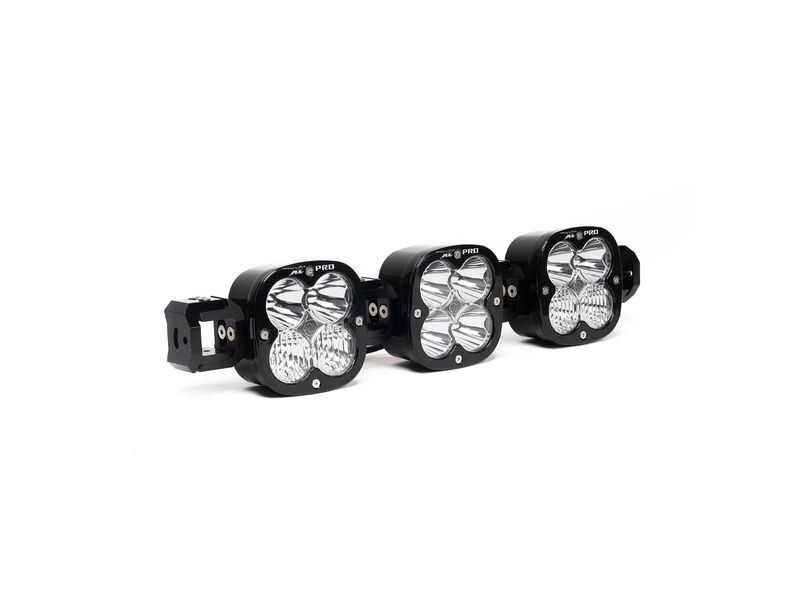

• 3-Light XL Pro - 3 linked XL Pro pods producing 12,285 raw lumens, suited to installations that need a compact modular lighting span.

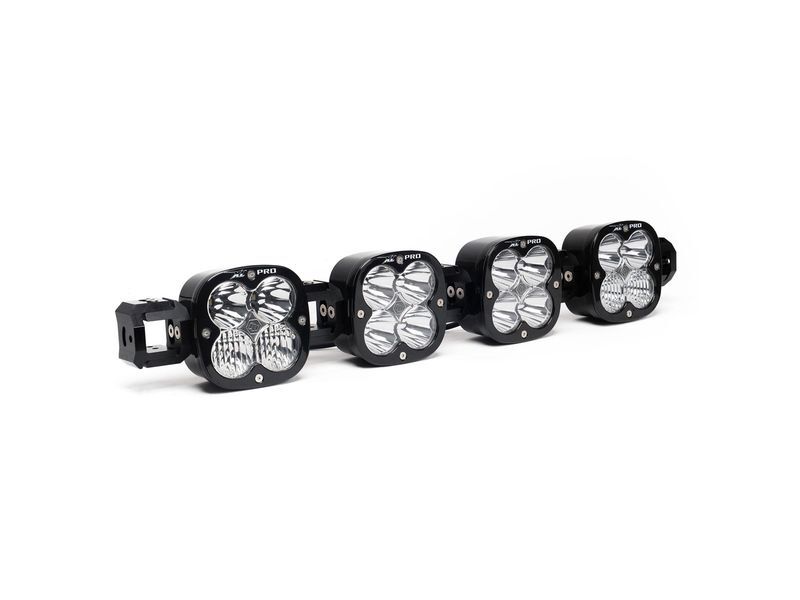

• 4-Light XL Pro - 4 linked XL Pro pods producing 16,380 raw lumens, suited to installations that need a compact modular lighting span.
• 5-Light XL Pro - 5 linked XL Pro pods producing 20,475 raw lumens, suited to installations that need a mid-width modular lighting span.
• 6-Light XL Pro - 6 linked XL Pro pods producing 24,570 raw lumens, suited to installations that need a mid-width modular lighting span.
• 7-Light XL Pro - 7 linked XL Pro pods producing 28,665 raw lumens, suited to installations that need a wide modular lighting span.
• 8-Light XL Pro - 8 linked XL Pro pods producing 32,760 raw lumens, suited to installations that need a wide modular lighting span.
• 9-Light XL Pro - 9 linked XL Pro pods producing 36,855 raw lumens, suited to installations that need a wide modular lighting span.

Choose a three- or four-light system for tighter mounting areas, choose five or six lights for balanced width and output, or choose seven through nine lights for broad high-output installations with the required mounting space and electrical capacity.



---



Why Choose

This product is ideal for customers who want a high-output light bar that can be shaped and aimed around the vehicle.

• Scales from a compact three-light setup to a full nine-light system without changing the core design.
• Follows straight or curved mounting lines for a more integrated finished appearance.
• Provides individual aiming control that helps distribute light across useful driving zones.
• Uses proven XL Pro pods with substantial output from each linked position.
• Supports future service and optical changes through replaceable lenses and components.
• Includes key system pieces such as the harness, black rock guards, and pre-load kit.
• Creates a distinctive modular look for performance-oriented off-road and adventure builds.



---



What's Included

• Selected quantity of XL Pro LED light pods.
• Billet-machined linking components for the selected light count.
• Pre-load kit for the linked assembly.
• Black rock guards for the included lights.
• Lighting wiring harness.

Note: Confirm included components before installation.



---



Installation Notes

• Select the correct XL Linkable mounting brackets separately for the vehicle and mounting location.
• Confirm that the mounting structure can support the selected light count and that the electrical system can handle the total load.
• Set the horizontal arc and individual vertical pitch before final tightening, then verify clearance through the vehicle's full range of motion.
• Aim the completed lighting system responsibly and check all link and bracket fasteners after initial use.

Buyer is responsible for use in accordance with applicable vehicle, road, off-road, towing, racing, and local laws.



---



Warranty Information

Baja Designs provides a Limited Lifetime Warranty against manufacturer defects and a 30-day satisfaction guarantee, subject to the brand's current terms, exclusions, and return requirements.

Warranty coverage typically excludes improper mounting, damaged wiring, misuse, modification, collision or impact damage outside warranty terms, and failures caused by an unsupported mounting surface. Proof of purchase may be required.
